DAOKAI 6 in 1 USB Serial Adapter - USB to TTL 485 232, TTL to 232 485, RS232 to 485 - 2Mbps for Windows 7/8/10, Linux, Arduino

• Module interface: USB to TTL converter module works at 5V and 3.3V, supports USB to TTL, USB to RS232, USB to RS485, TTL to 232, TTL to 485, 232 to 485.
• Module protection: Intelligent anti-burn, onboard 500mA self-recovery fuse, always protects your module and computer from high current damage. Even short circuit will not cause any impact, and the connection can be restored after the circuit is normal.

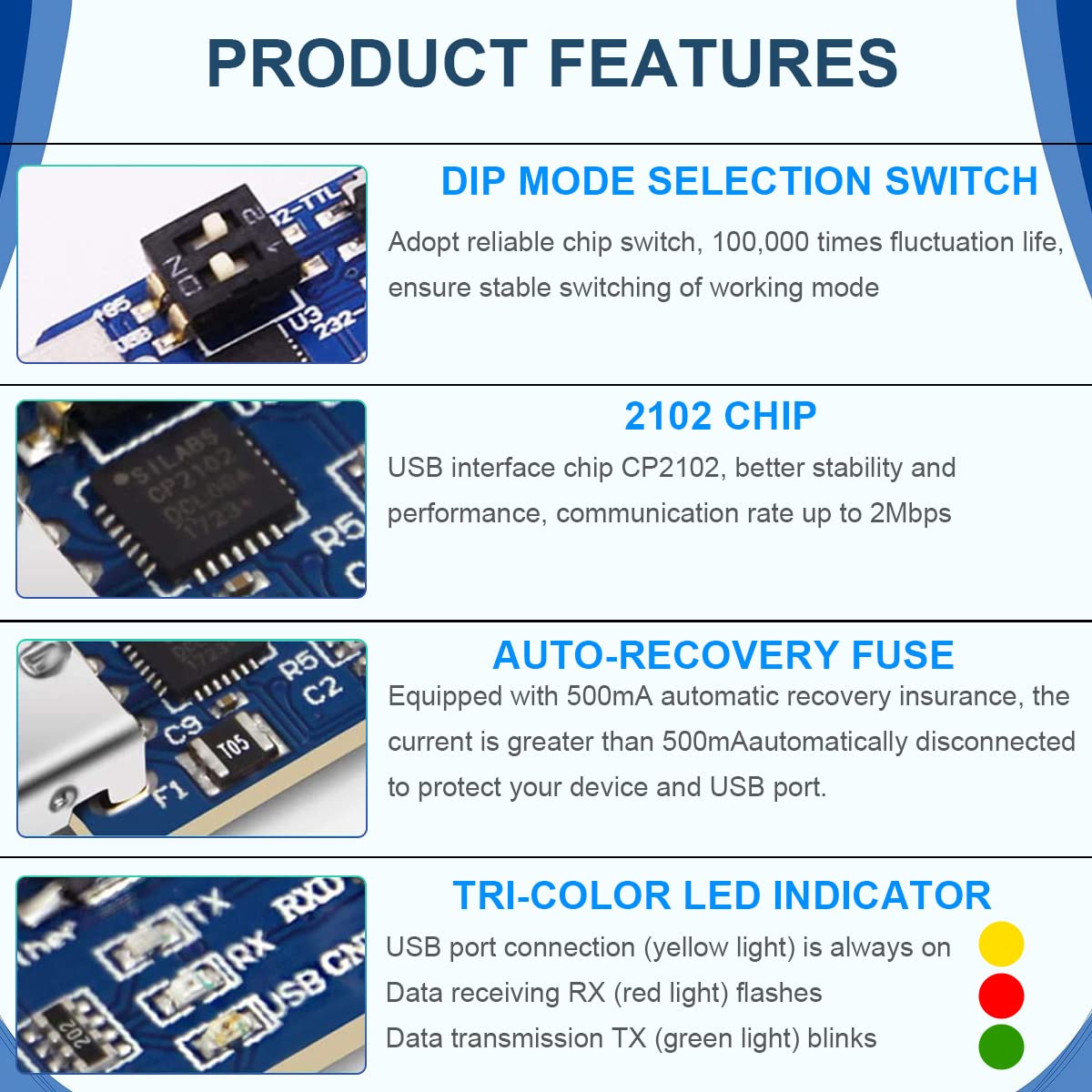

• Indicator light: Three-color LED indicator, connecting, receiving and sending indicators, let you know in real time whether the module is connected to the computer or sending and receiving data.
• Communication quality: Ingenious circuit design and professional PCB layout make module communication efficient and stable, and the highest baud rate of communication can reach 2Mbps.
• Compatibility: CP2102 serial adapter module compatible with for arduino, Windows XP/7/8/10 32bits/ 64bits, Linux etc. Before using the 6 in 1 usb to ttl module work, you need to install cp2102 driver.

Function introduction: 1.Power supply output: You can supply power to the microcontroller system through this module, which is convenient for debugging. 5V-500mA or 3. 3V- 100mA.(3.3V and +5V Compatible: This product supports 3.3V voltage.) 2.Overcurrent protection: The onboard resettable fuse will not damage the circuit board or computer even if the positive and negative poles are short-circuited. If there is a short circuit or the current exceeds 500mA, the fuse will automatically open. When the circuit returns to a non-short circuit state, the fuse will return to normal. 3.Transceiver indicator: When there is data on the sending line or the receiving line of the serial port, the transceiver indicator on the board will light up, which is convenient for debugging. 4.TTL level interface: It can be directly connected to a microcontroller or other embedded devices, such as 51, STC, AVR, ARM, FPGA, etc., without conversion. 5.RS232 level interface: connect to a computer or RS232 level serial device. 6.RS485 level interface: automatic sending and receiving control, no need for sending and receiving control lines, default receiving state, when there is data on the sending line, it is changed to sending state. 7.Free mutual conversion of four levels: circuit design, USB, TTL, RS232, RS485 free mutual conversion, physical switching through switches, convenient and reliable, no interference. 8.High-speed communication: baud rate up to 2Mbps. 9.DTR and RTS signals: The module leads out the DTR and RTS signals in the serial port and is multi-functional, and supports MSP430 microcontroller BSL download, etc. Package includes: 1 x CP2102 USB-UART Converter 1 x 12pin Female to Male Cable 1 x USB Extension Cable
