DAOKAI 20PCS Micro Limit Switch Long Straight Hinge Lever Arm 28MM 1NO 1NC 5A 125V/250V 3Pin Momentary Contact Switch for Various Industrial Automation Equipment

• Product: Name:Micro Limit Switch, It is a commonly used small current master electrical appliance, These Micro Switches features Single Pole Double Throw (SPDT) Type, 1NO + 1NC Contact, Momentary Action.

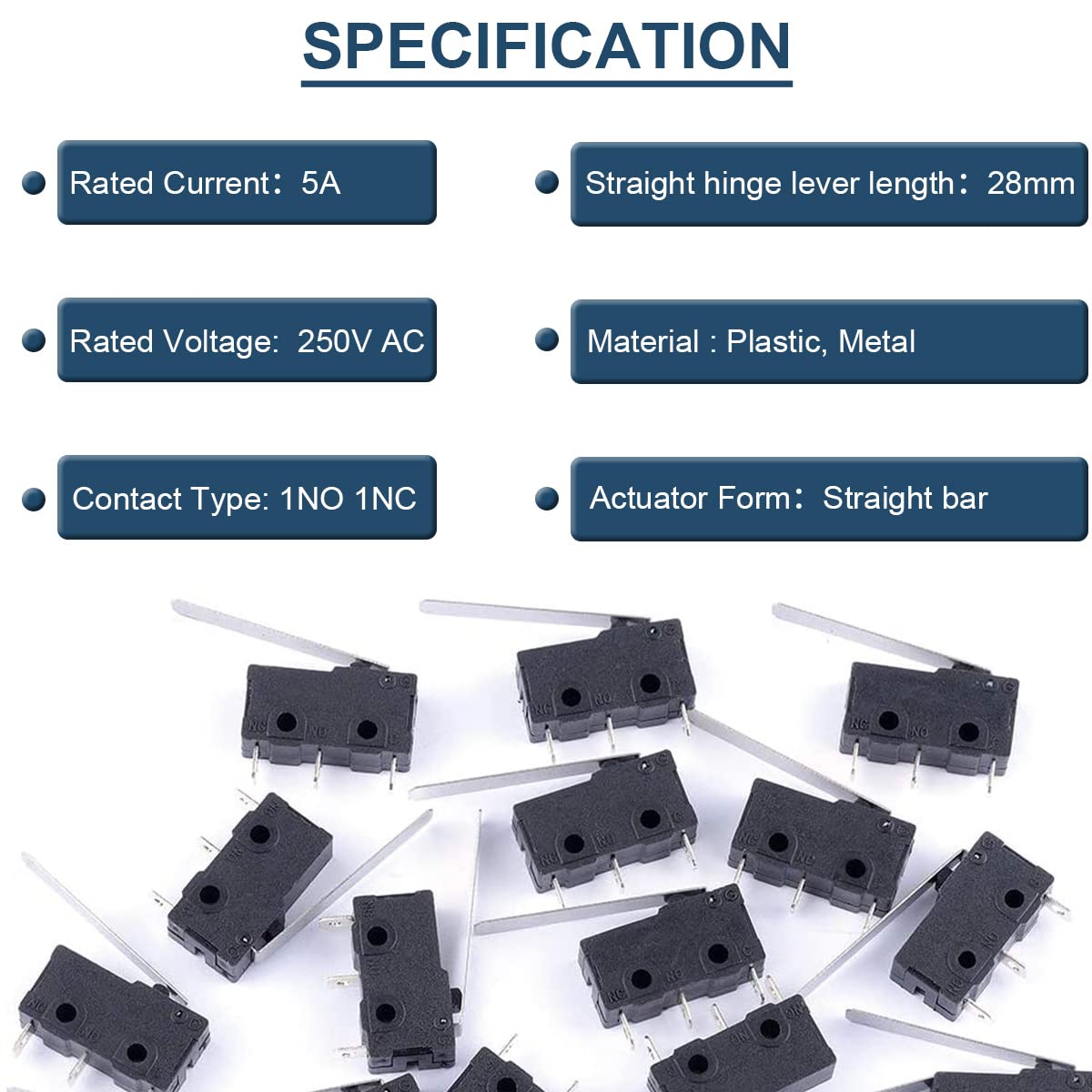

• Parameters: Copper contacts, Terminal: 3Pin, Rated Voltage: AC 125V-250V, Rated Current: 5A, Action Type: Momentary. Actuator Form: Long Straight Lever.
• Working principle: Use the collision of the moving parts of the production machinery to make the contacts move to make or break the control circuit to achieve a certain control purpose.
• Application: Used in various machine tools, lifting machinery, electrical equipment machinery, and various industrial automation equipment applications.
• Package includes: You will get 20 x 3Pin 5A 125V/250V Long Straight Lever Micro Limit Switch.

Product description： The limit switch is a commonly used small current main electric appliance.The collision of the moving parts of the production machinery is used to make the contacts move to realize the on or off control circuit to achieve a certain control purpose. Usually, such switches are used to limit the position or travel of mechanical movement.Move the motion machine to a certain position,or Make the motion machine automatically stop according to a certain position, reverse movement, variable speed movement or automatic round-trip movement etc. Parameters： Working Current: 5A Working Voltage:125V/ 250V Insulation Resistance: ≥ 20mΩ Contact Resistance: ≤50mΩ Working Mode: Self reset Contact Type: 1NO + 1NC Action Type: Momentary Actuator Form: Long Straight Hinge Lever Arm 28MM 3-Pin Terminals Scope of application： Products are widely used such as computer mouse, car mouse, automotive electronic products, communication equipment, testing instruments, gas water heaters, gas stoves, small household appliances, microwave ovens, rice cookers, floating ball equipment, medical equipment, power tools, and electrical and Wireless devices and other applications. Package includes： 20 x 3Pin Long Straight Lever Micro Limit Switch
