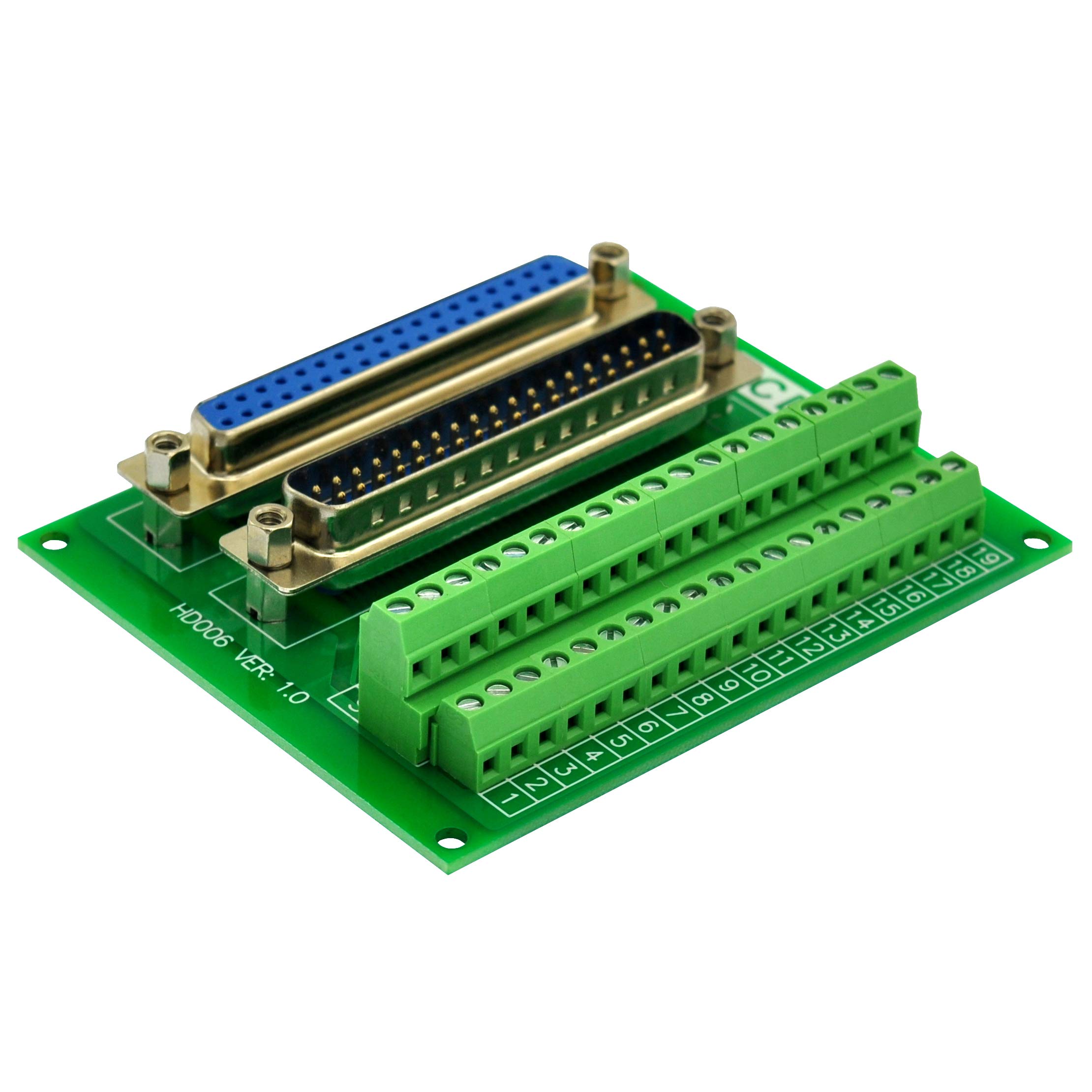

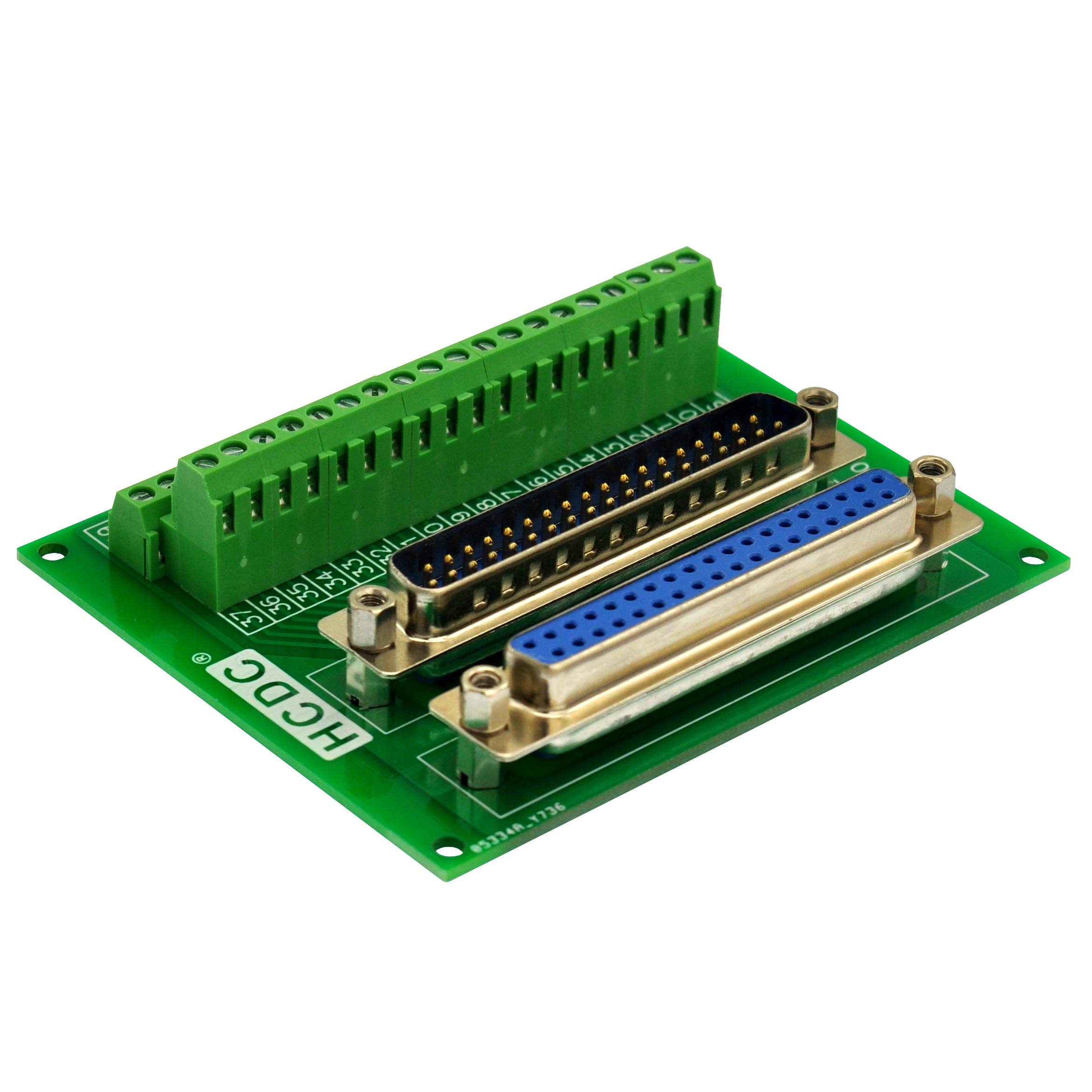

D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB37)
★★★★★
$35.00
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
- Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
- Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
- FR-4 fiber glass PCB, dual copper layers.

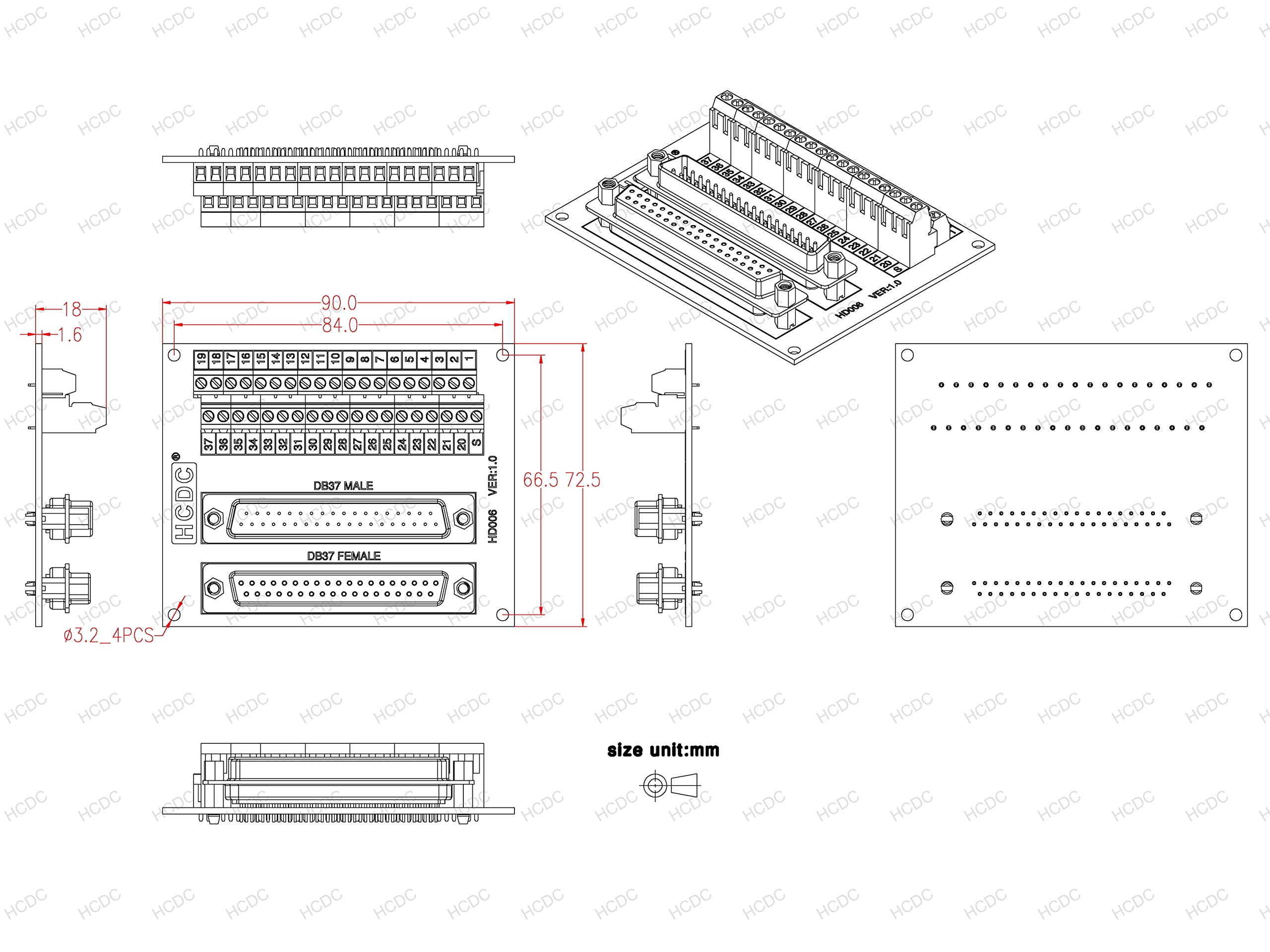

- CAD 3D (pdf): https://m.media-amazon.com/images/I/A12lWJNxMcL.pdf
Product description
1, Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C 3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual copper layers.
