Price
$46.58
CZH-LABS DIN Rail Mount DSUB DB26HD Male/Female Header Interface Module, D-SUB Breakout Board. — image 1
IO ModulesCZH-LABS✓ In stock

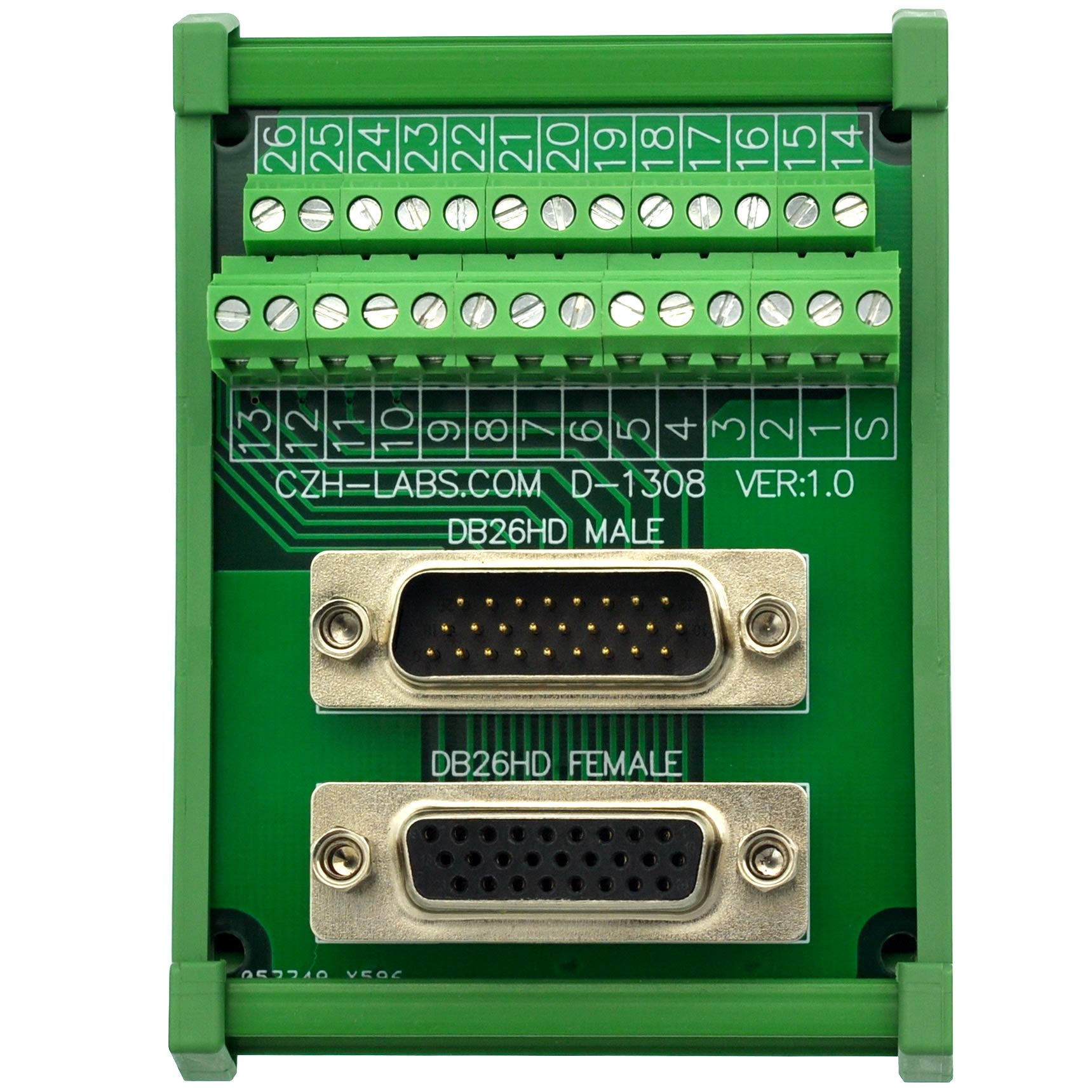

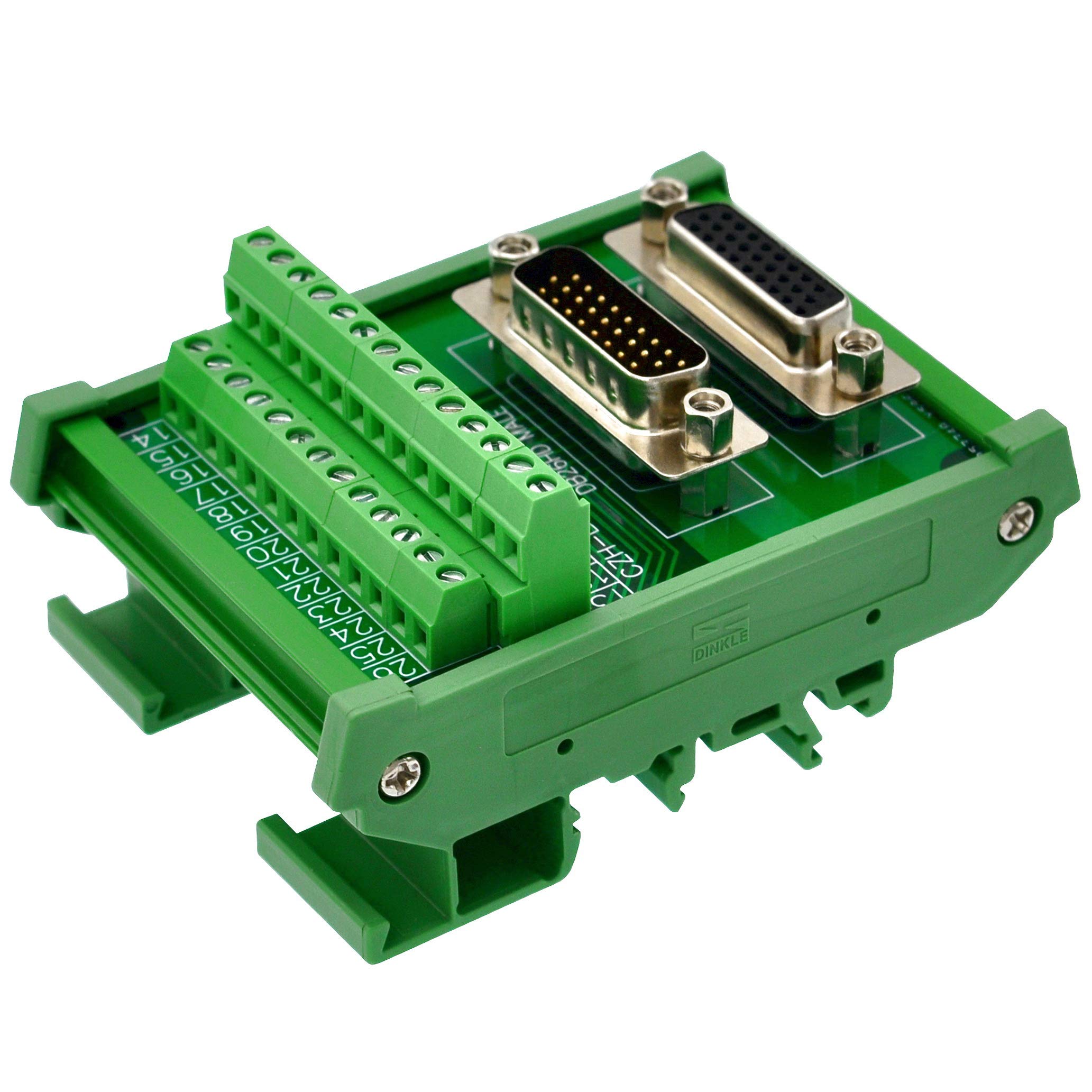

CZH-LABS DIN Rail Mount DSUB DB26HD Male/Female Header Interface Module, D-SUB Breakout Board.

$46.58
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

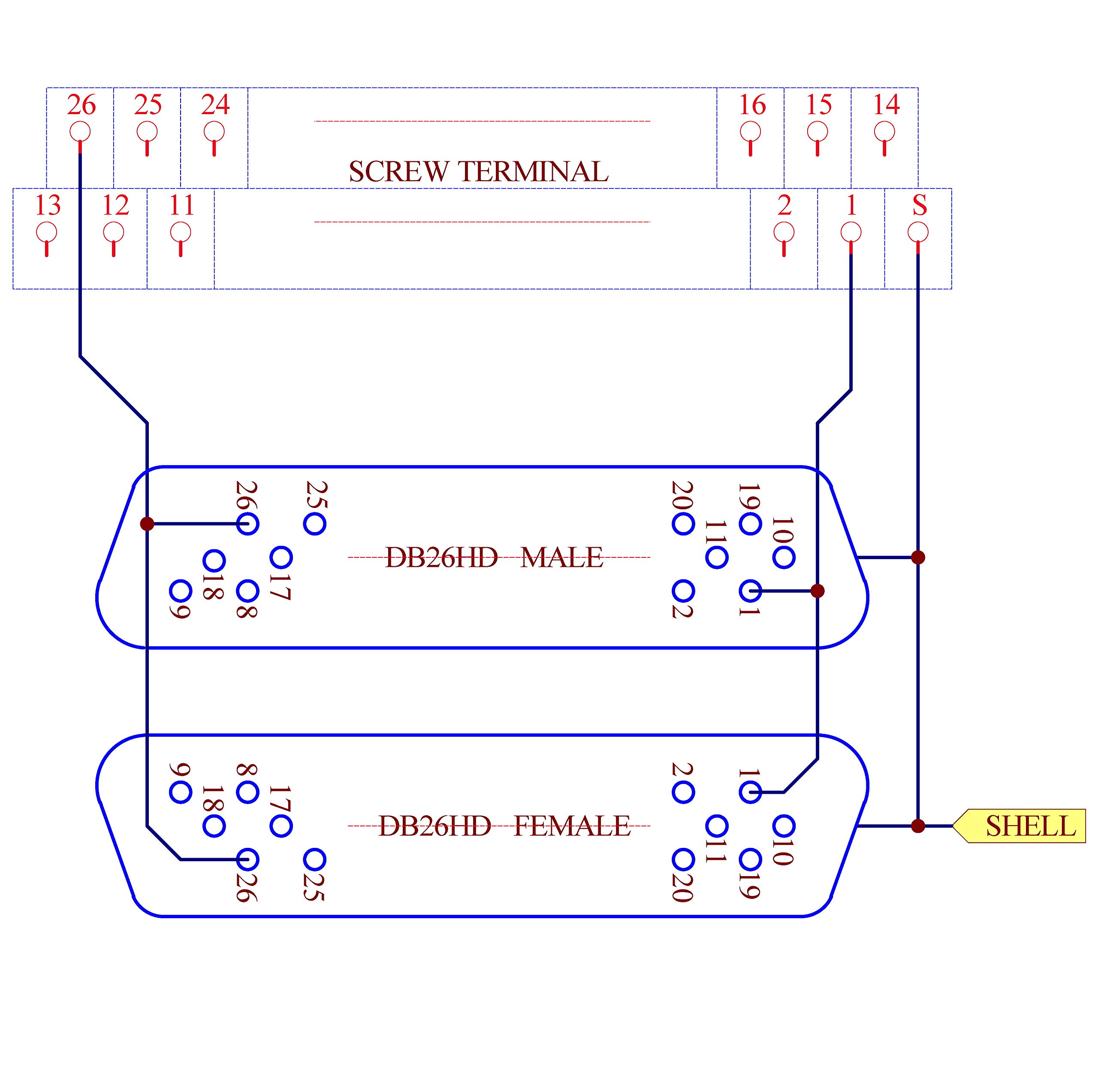

  • Standard DB26HD Male/Female header connectors. Male header, female header and ************************************************************* terminal 1:1:1 connects for per line.
  • Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
  • Terminal block: Pitch 3.81mm/0.15" miniaturization ************************************************************* terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
  • FR-4 fiber glass PCB, dual copper layers.

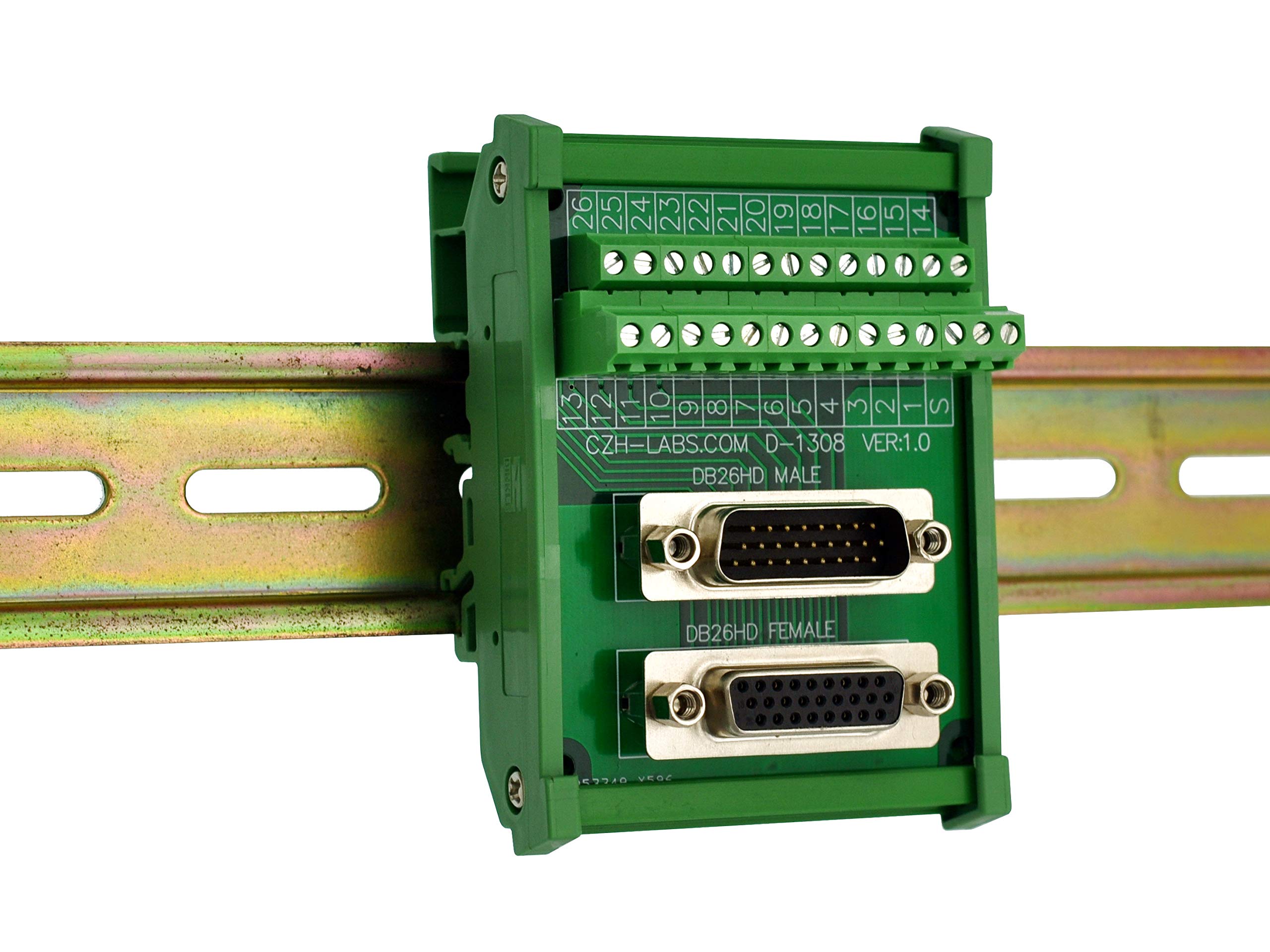

  • High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB ************************************************************* mount use.
Product description

1, Standard DB26HD Male/Female header connectors. Male header, female header and * terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC 3, Terminal block: Pitch 3.81mm/0.15" miniaturization * terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual copper layers. 5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB * mount use.

Product details
Brand
CZH-LABS
Manufacturer
Electronics-Salon
Colour
Green
