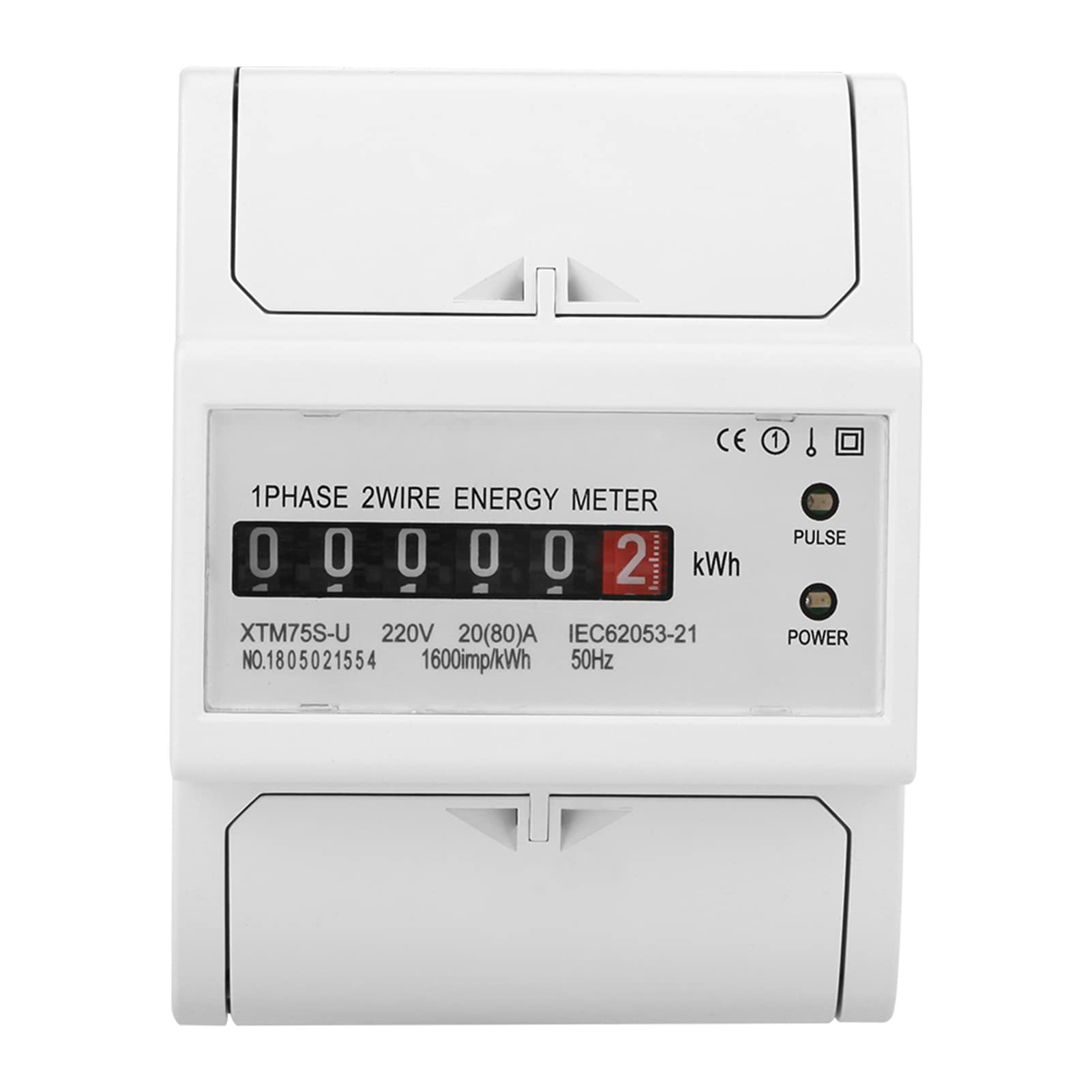

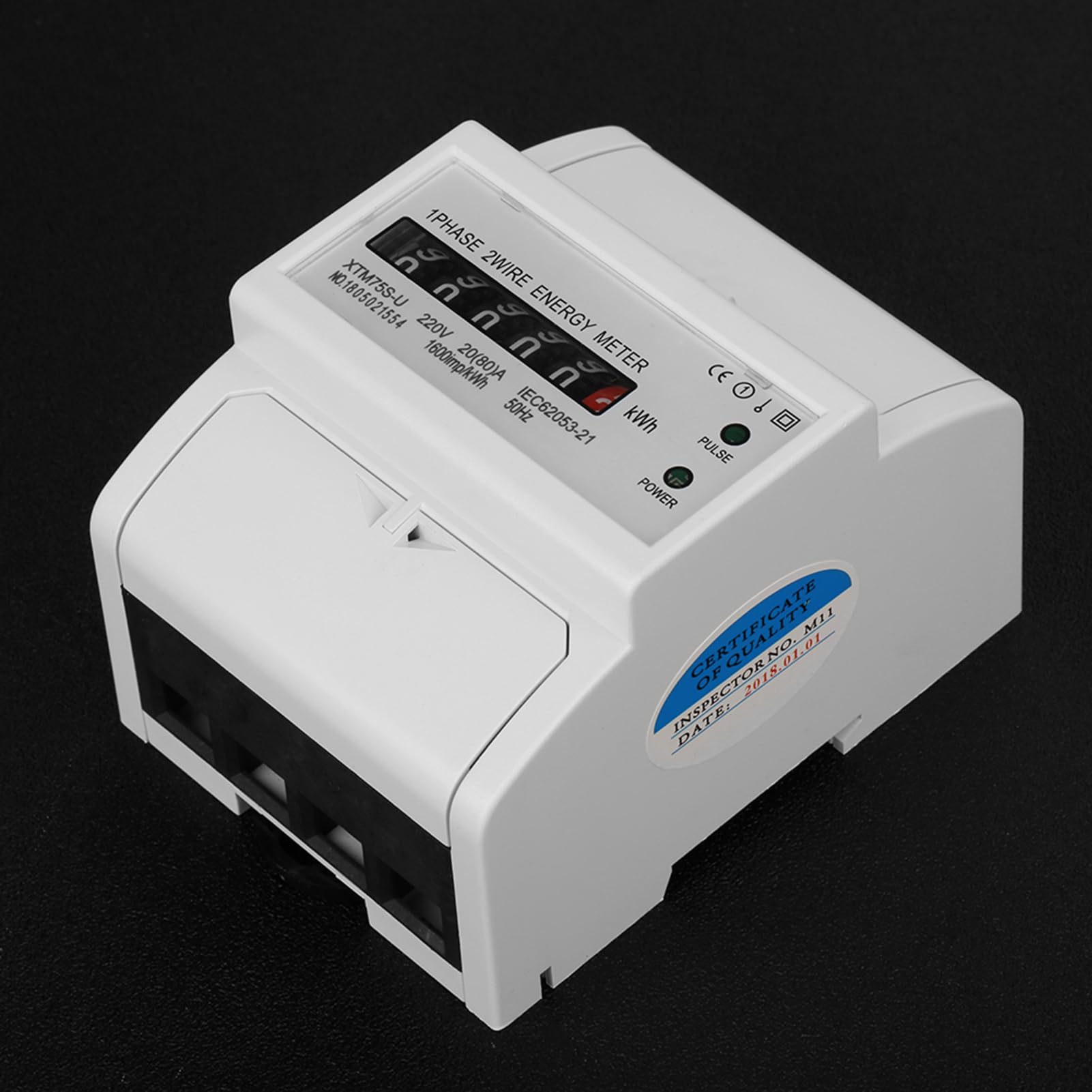

CYTGOUPER XTM75S-U Single Phase Electricity Meter, 1 Phase 2 Wire 4P Din Rail Electric Meter, 5 and 1 Digits LCD Display Electricity Usage Monitor for Home Industrial (20(80) A)

• HIGH-ACCURACY ENERGY MONITORING: This single phase electric meter delivers accurate and stable active energy measurement for 1-phase 2-wire circuits. It professionally tracks real-time power consumption, providing reliable and consistent reading data for residential and industrial energy management. This precise energy monitor helps users accurately count power usage and realize scientific electricity cost control
• STANDARD DIN RAIL EASY INSTALLATION: Designed with standard 35mm DIN rail mounting and 6-pole 12.5mm modular size, this digital electric meter fully complies with industry standard installation specifications. It can be quickly and stably installed in various standard electrical boxes and control panels. No complicated wiring or auxiliary tools are required, supporting flexible deployment for home, office and industrial electrical systems
• CLEAR LCD DISPLAY WITH FLEXIBLE MODES: Equipped with a 5+1-digit high-definition LCD display (max 99999.1kWh) and soft blue backlight, this energy monitor ensures clear readings even in dim environments. It supports intuitive real-time electricity data viewing and flexible pulse output configuration according to actual use needs. The humanized display design greatly improves daily reading convenience and equipment adaptability

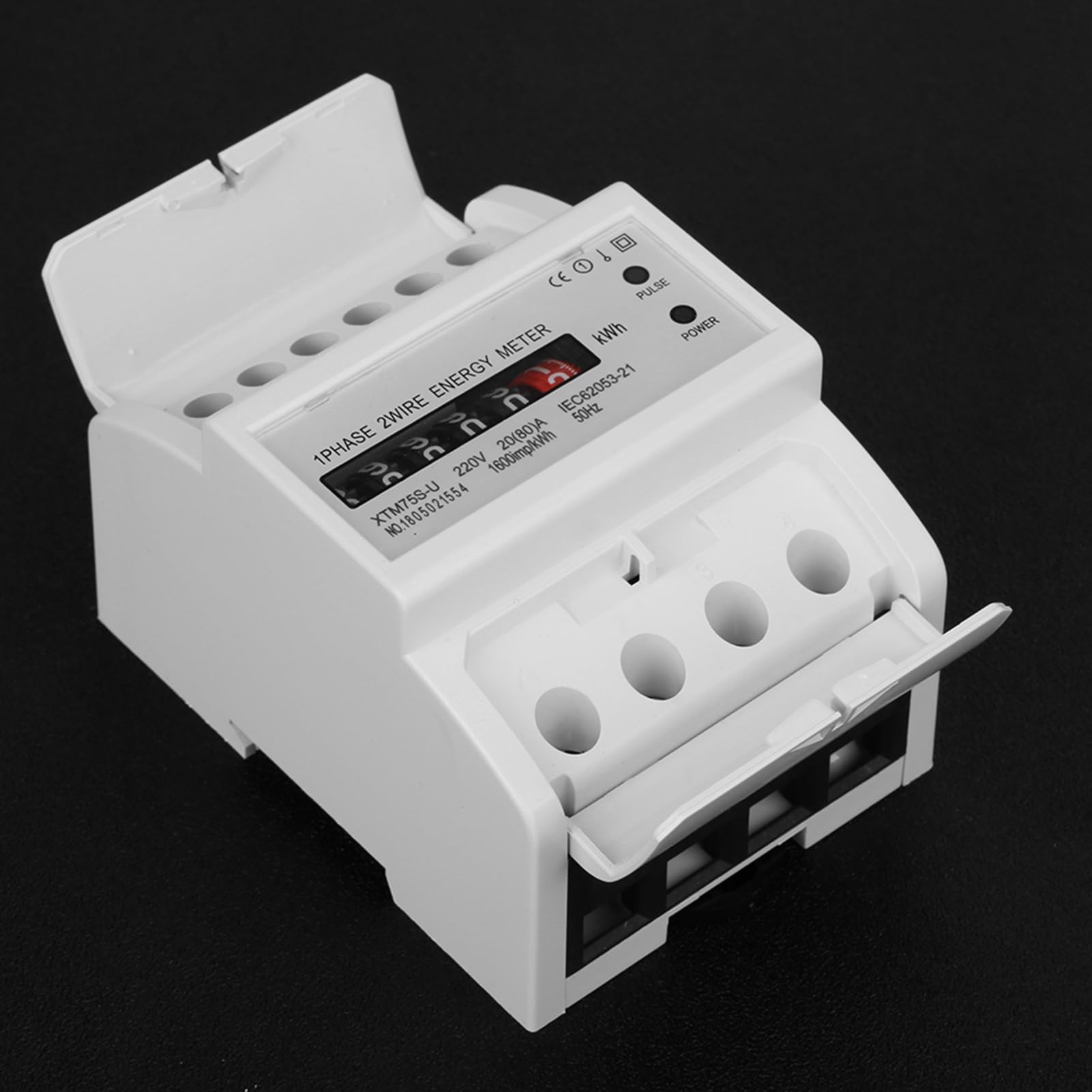

• MULTI-LAYER SAFE & DURABLE PROTECTION: This electric meter adopts high-strength insulating materials with excellent insulation and anti-aging performance. It comes with a standard short terminal cover, with optional extended terminal cover for upgraded safety protection. The reliable structural design effectively prevents electric leakage, short circuit and dust intrusion, ensuring safe and stable operation in various complex electrical environments
• STRONG ANTI-INTERFERENCE & STABLE PERFORMANCE: Built with professional anti-electromagnetic interference structure, this single phase electric meter adapts to wide temperature working environment from -25°C to +55°C, resisting harsh industrial and household temperature changes. It supports long-term uninterrupted operation, being a durable and cost-effective power consumption monitoring accessory for home and industrial scenarios

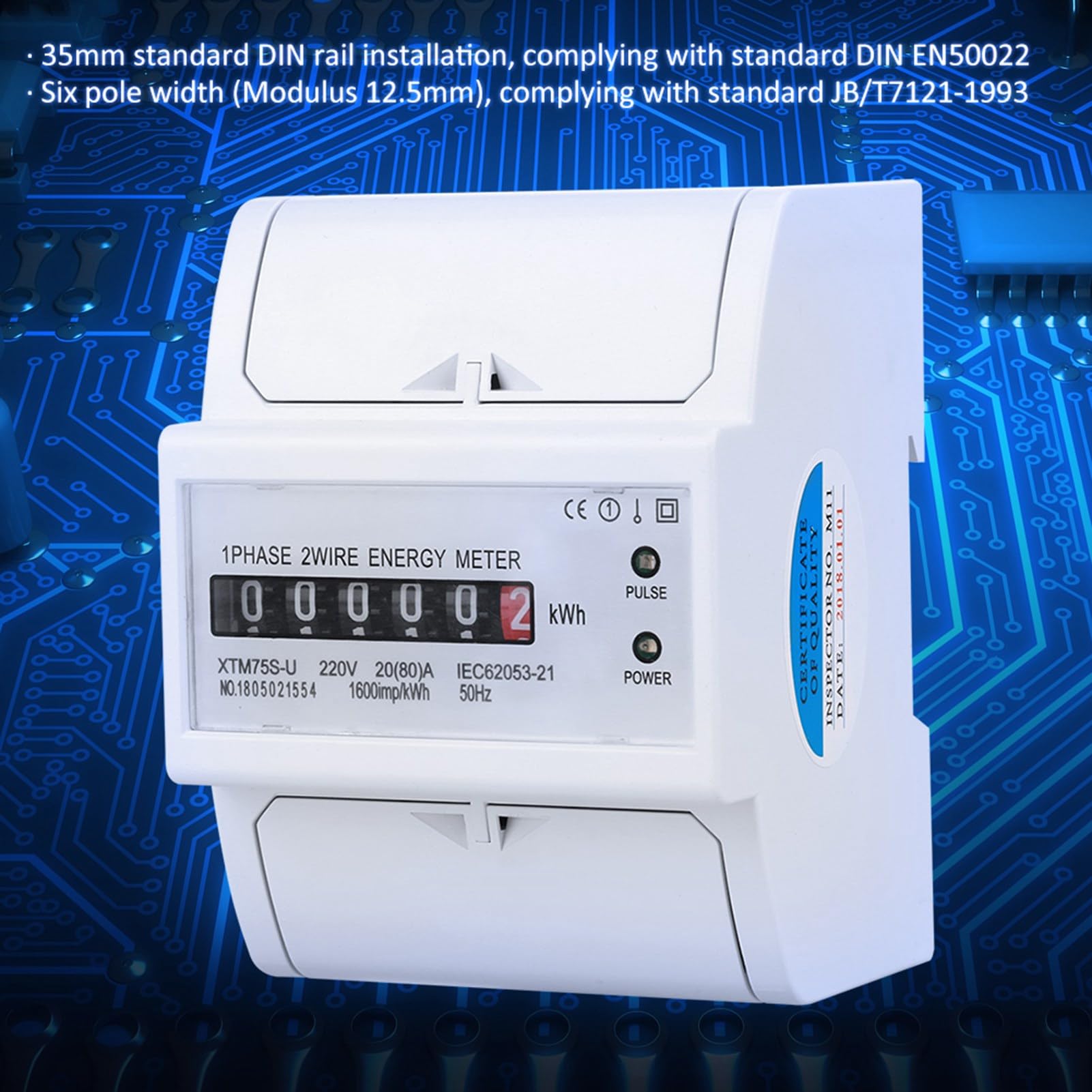

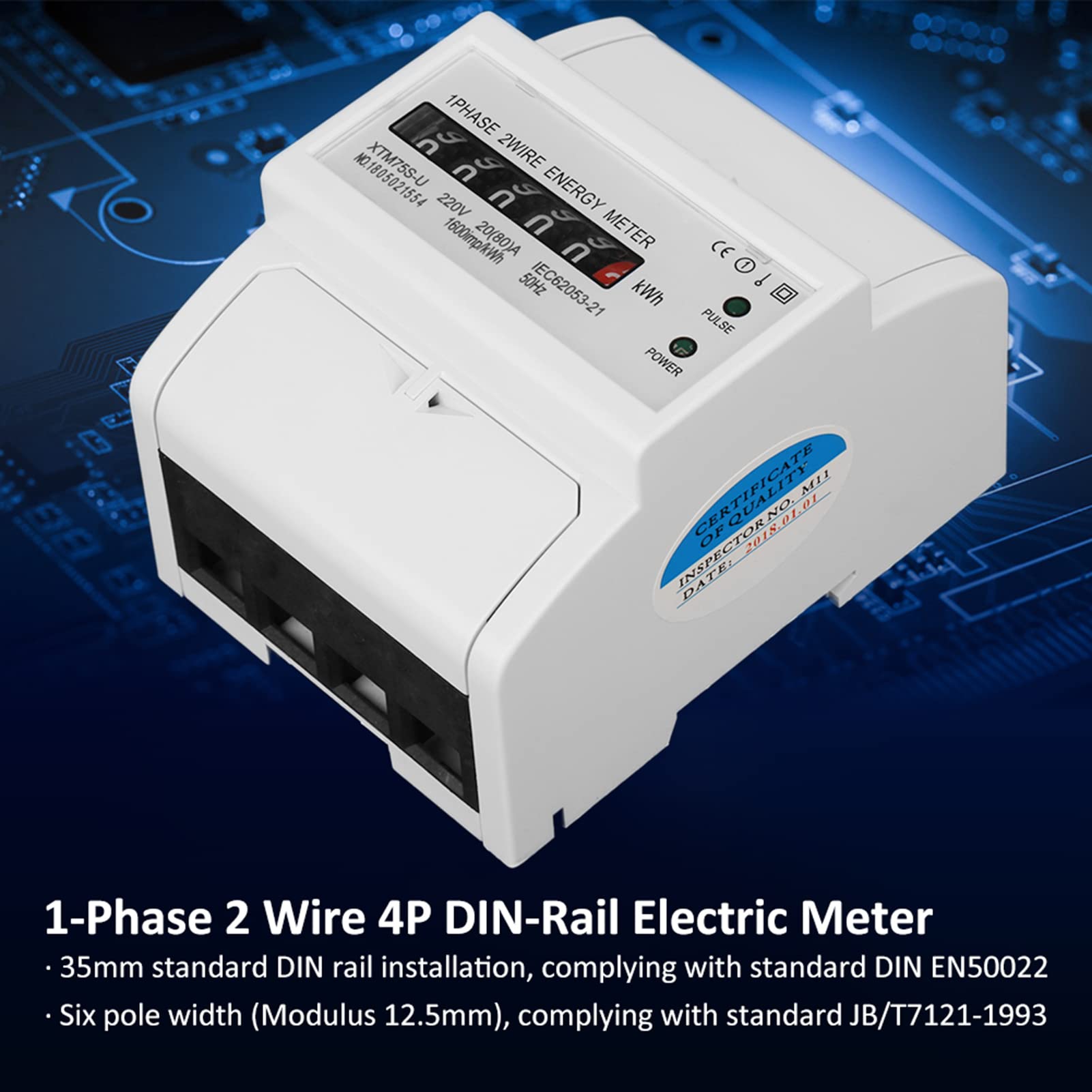

Features: 35mm standard DIN rail installation, complying with standard DIN EN50022. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993. May select 5+1LCD digits display (99999.1kWh) . Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity), complying with standard IEC 62053-31 Standard configuration don't detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions by an individual LED. Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safely. Specifications: Model: XTM75S-U Accuracy: Class 1 Voltage: 220V Current: 5(30)A,15(60)A, 20(80)A (Optional) Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv Size: 10 x 7.6cm / 3.94 x 2.99in Weight: Approx. 270-277g Package included: 1 x DIN-Rail Electric Meter 1 x Manual Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
