Delay Off Time Relay, GRT8-B1 Delay Timer Switch with LED Indicators Mini Power Off Delay Cycle Timer Relay DIN Rail Type Mount AC 220V

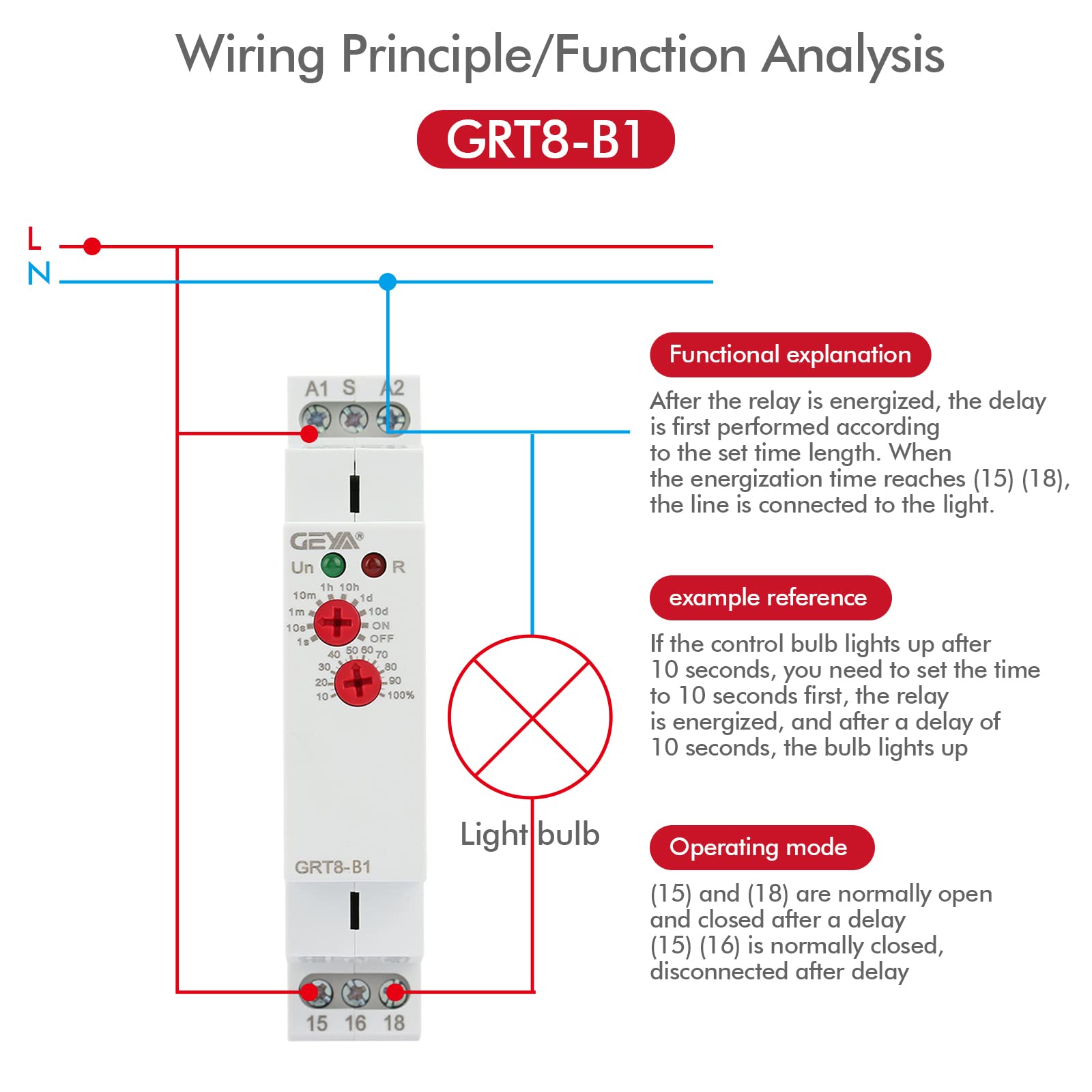

• 【Multiple Powerful Functions】: Off delay time relay A type function can do the power on delay, B type function can do the power off delay, you can adjust it by the panel button.
• 【Technical Parameters】: Time relay Nominal control voltage: AC 220V (50-60Hz), power terminals. A1-A2, power consumption: AC max.6VA/1.3W
• 【DIN Rail Function】: Off delay time relay use DIN rail type to mount on 35mm DIN rail.
• 【Extra Wide Delay Range】: Our time relays have an extra wide delay range between 0.1s and 10 days.

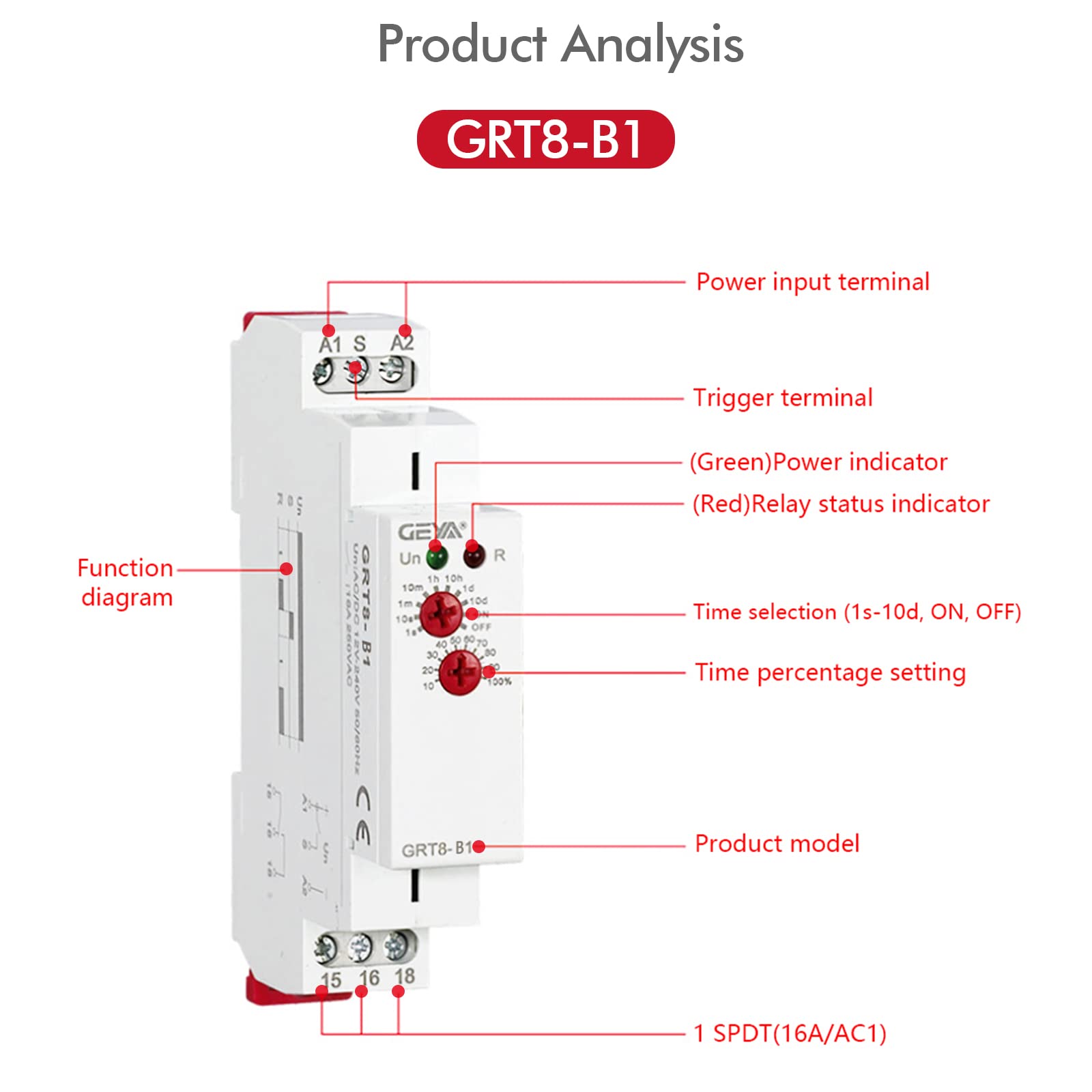

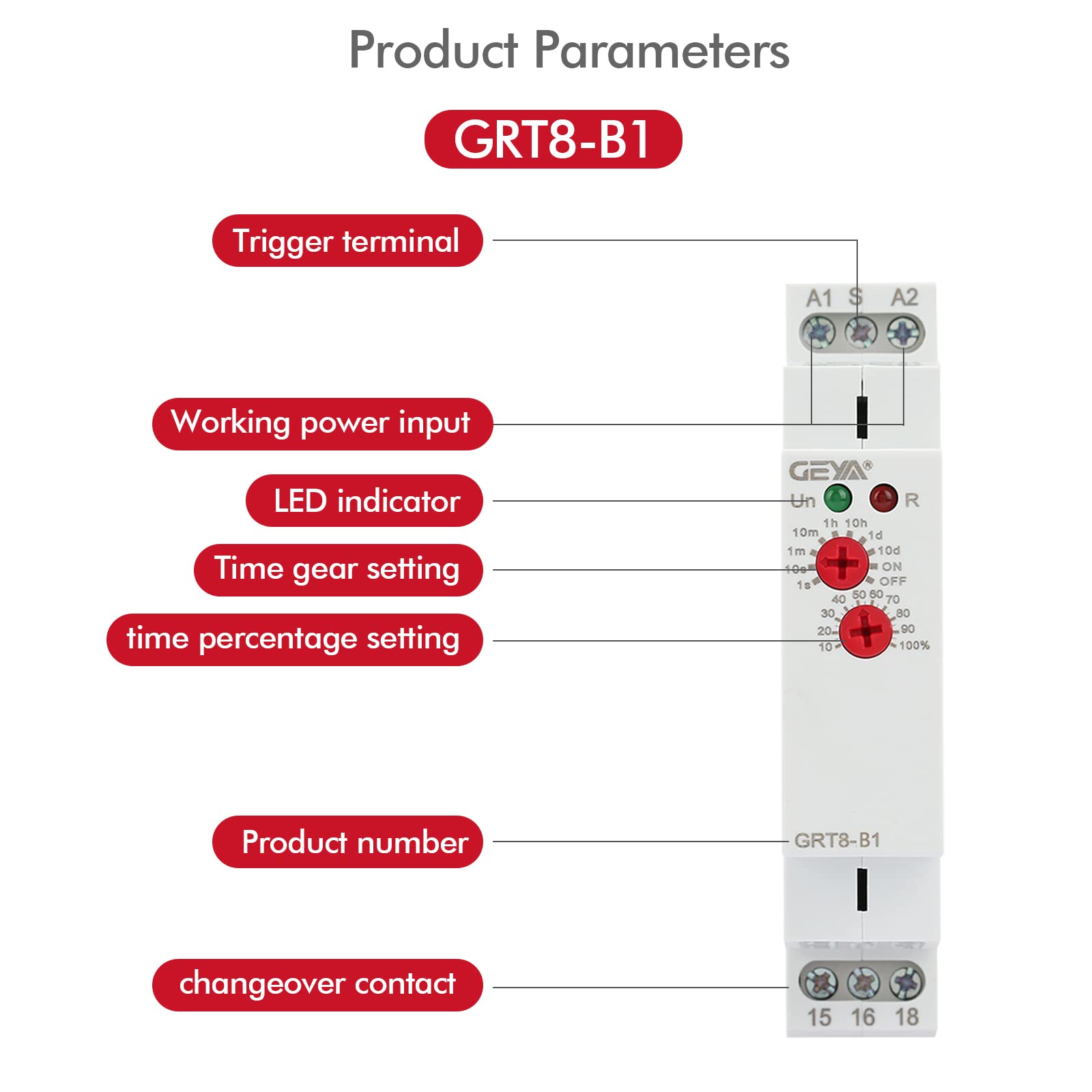

• 【Relay Status】: Our Off delay time relay are equipped with LED indicators, so you can see the status of the relay at any time.

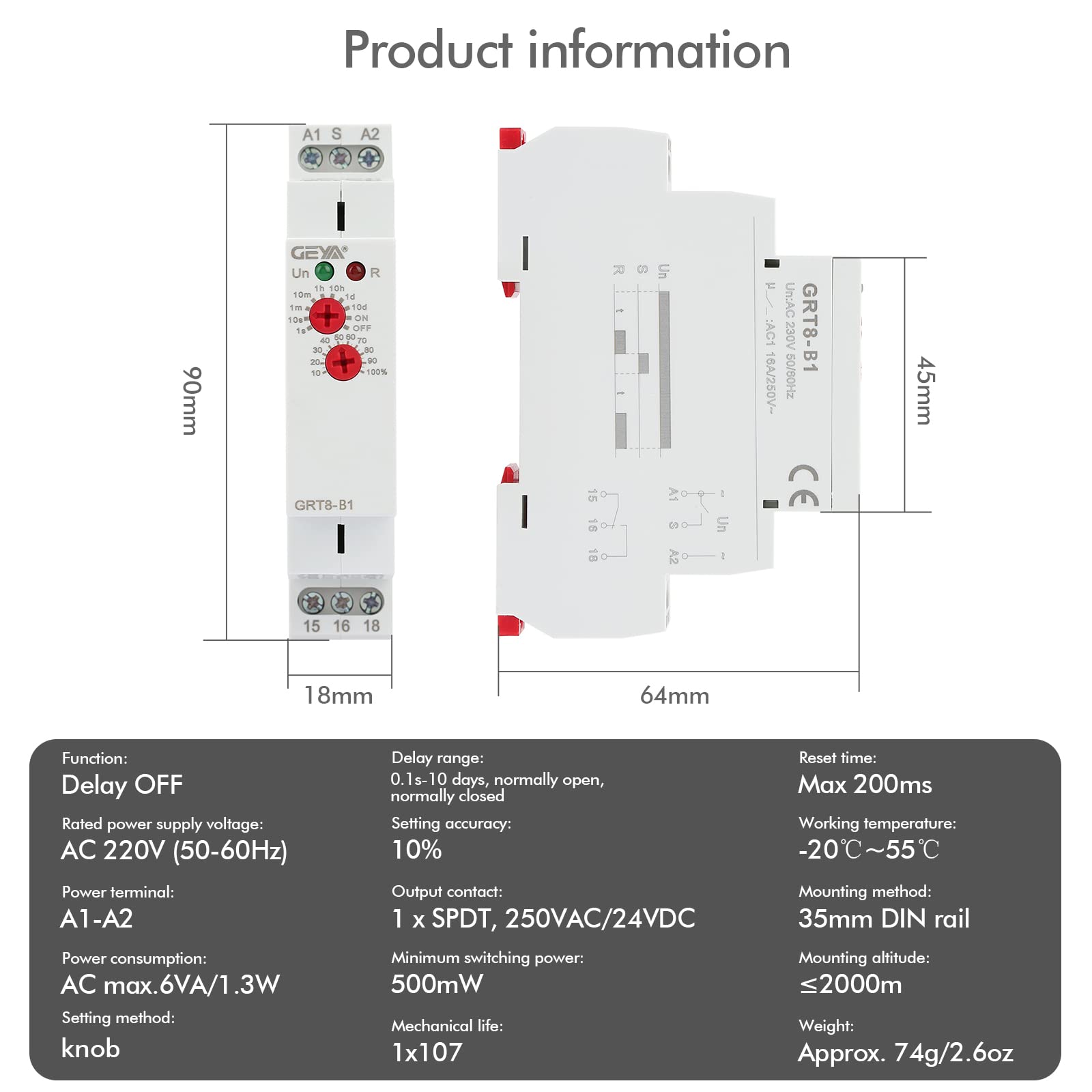

Features: 1.Off delay time relay A type function can do the power on delay, B type function can do the power off delay, you can adjust it by the panel button. 2.Time relay Nominal control voltage: AC 220V (50-60Hz), power terminals. A1-A2, power consumption: AC max.6VA/1.3W 3.Off delay time relay use DIN rail type to mount on 35mm DIN rail. 4.Our time relays have an extra wide delay range between 0.1s and 10 days. 5.Our Off delay time relay are equipped with LED indicators, so you can see the status of the relay at any time. Specification: Function: Delay OFF Rated power supply voltage: AC 220V (50-60Hz) Power terminal: A1-A2 Power consumption: AC max.6VA/1.3W Setting method: knob Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Setting accuracy: 10% Output contact: 1 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: Red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 74g/2.6oz Package Included: 1 * Off Delay Time Relay Notes: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
