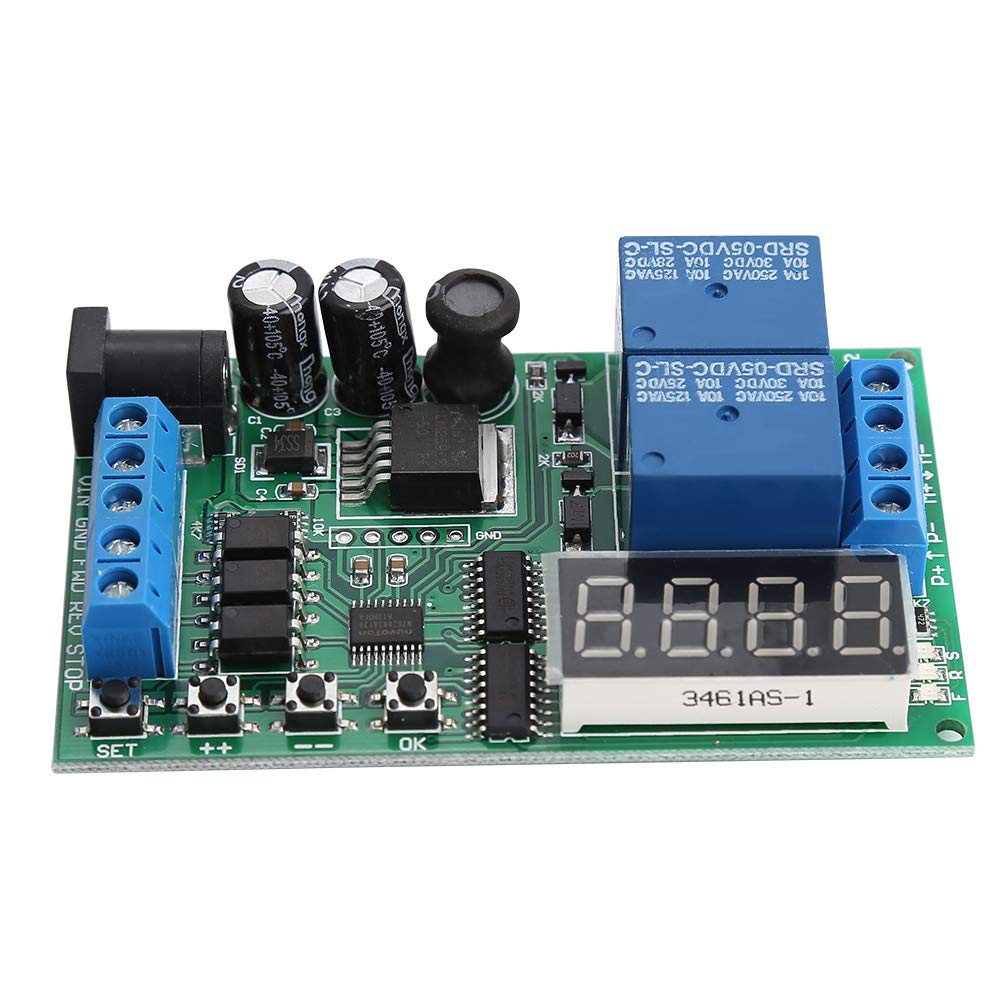

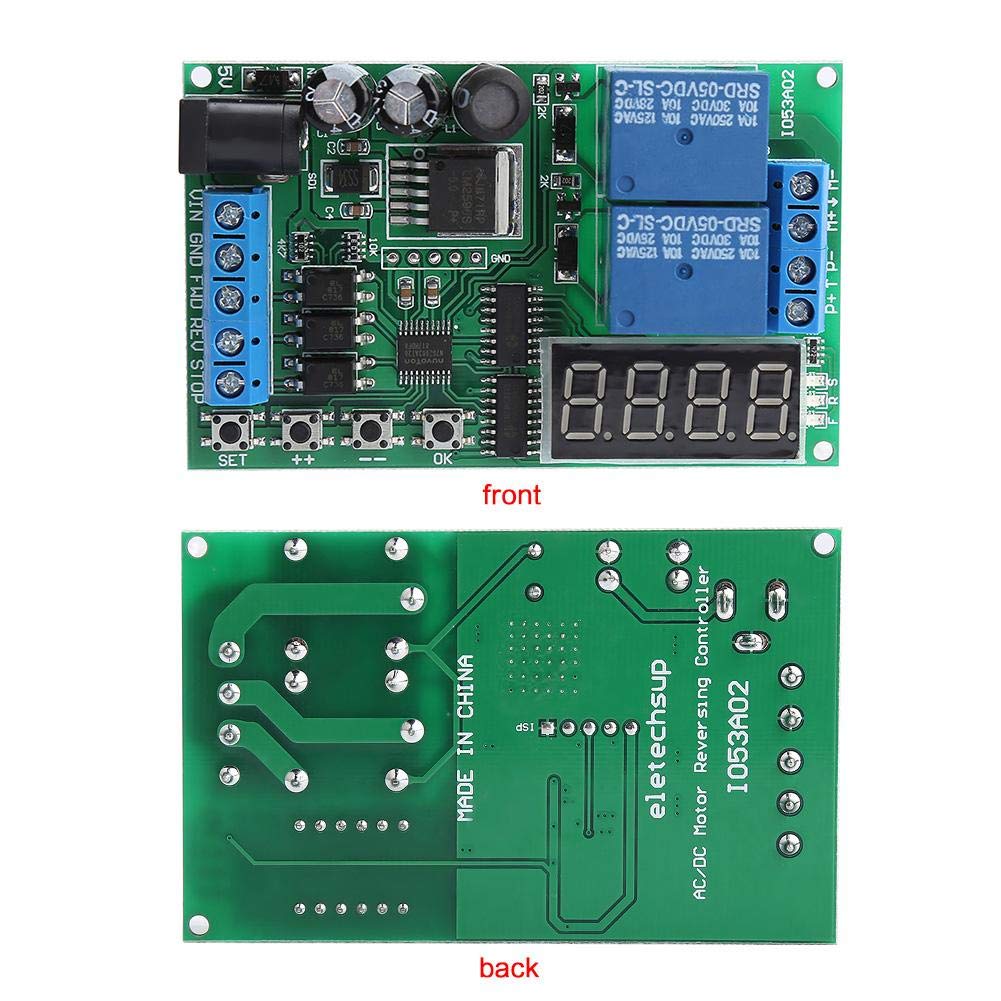

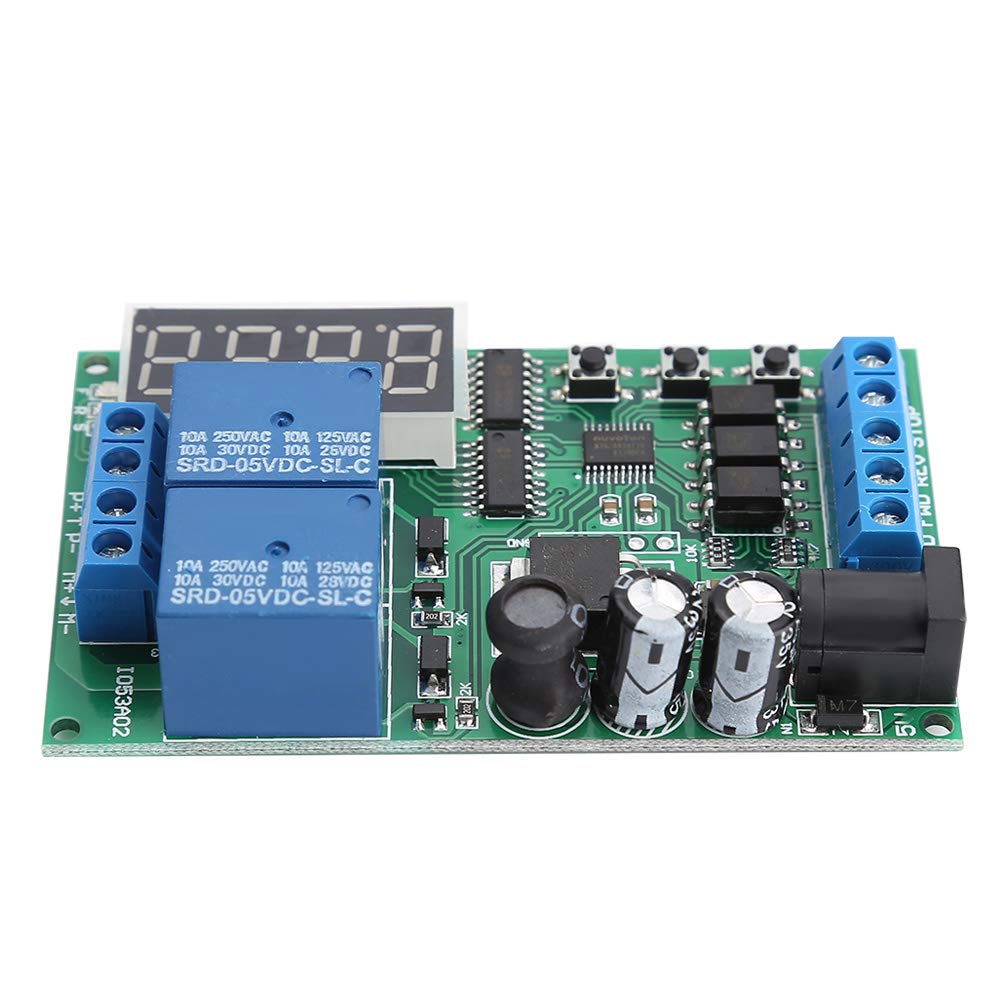

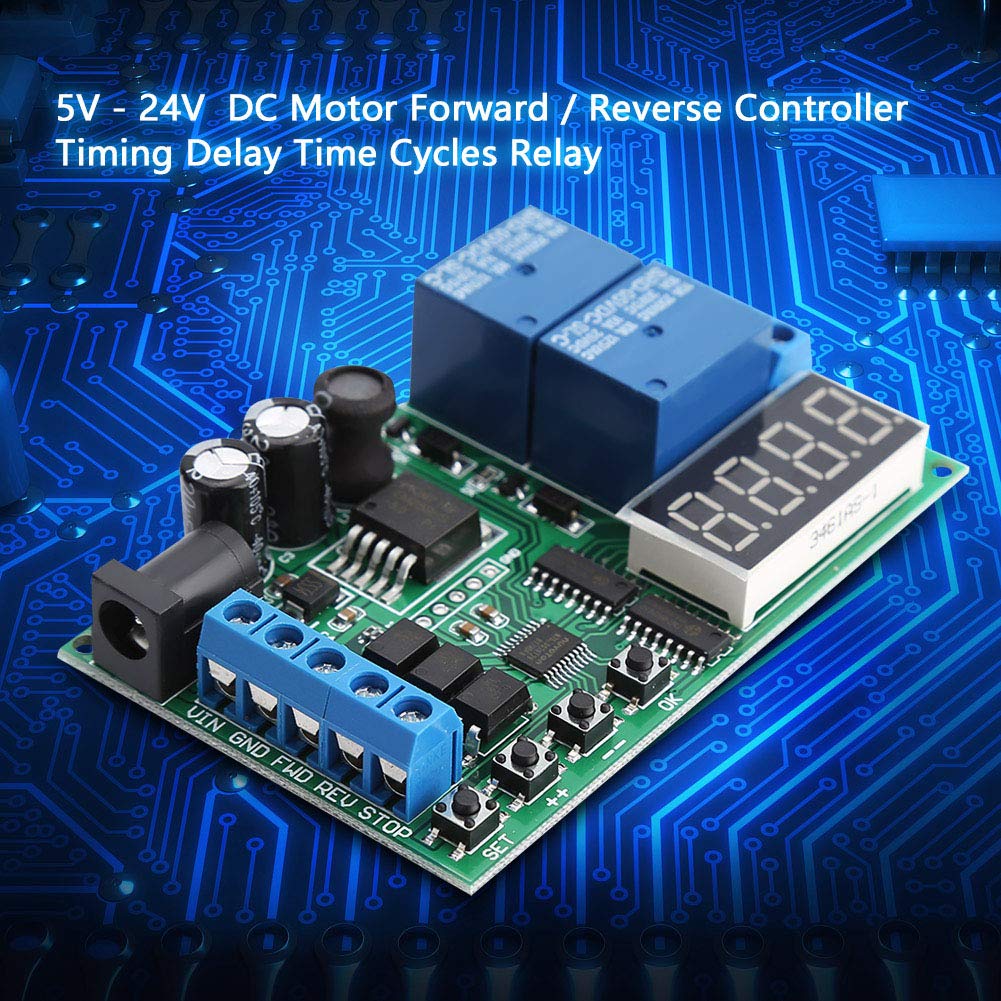

Nimoa Motor Controller Relay Board, 5V - 24V, Manual, Silver Contacts, 5A, 9999 Min, PCB Mount, NC, Multifunction Time Relay

• 【Motor Controller board】This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.
• 【Dual power supply】Two power supplies cannot be powered with electricity at the same time: Power supply 1, DC 6.5-25V; Power supply 2, DC 5V.
• 【Working current】 (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. Relay load current, recommended less than 5A.

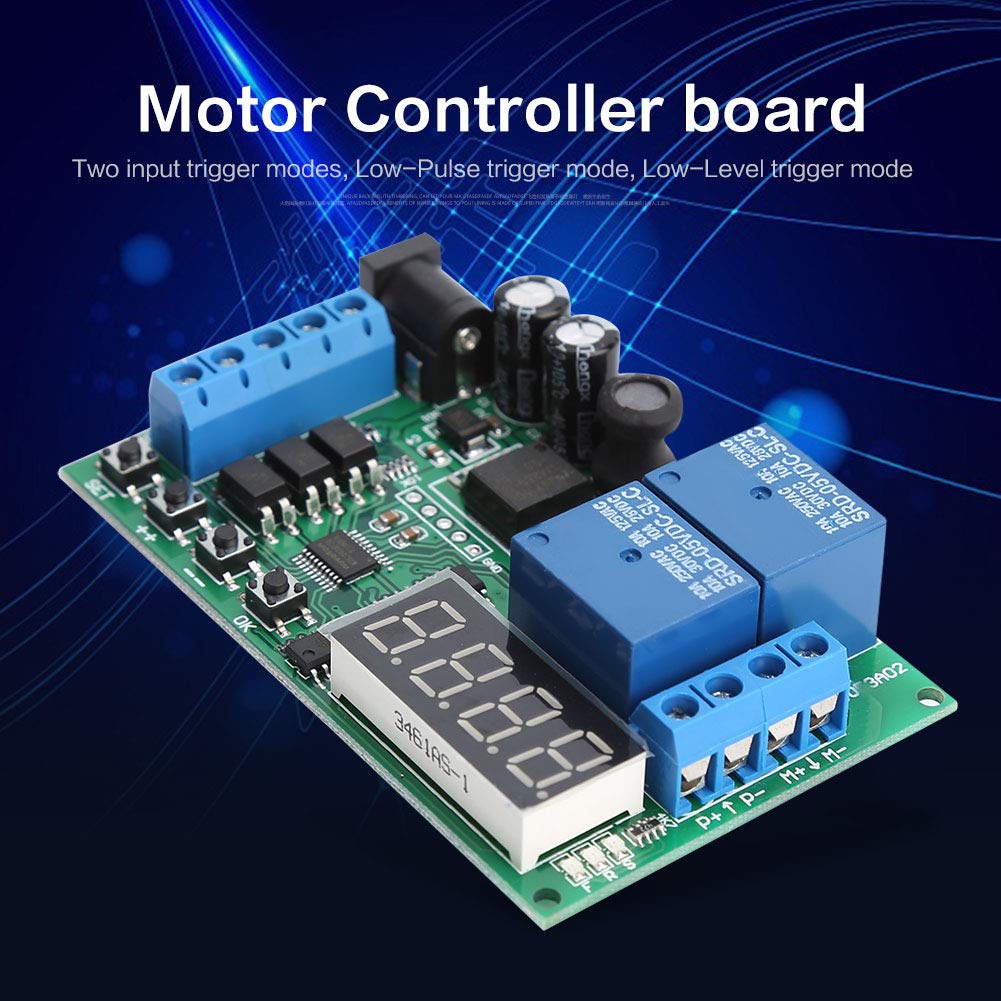

• 【Multi control port, modes and indicators】There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP). There are two input trigger modes, Low-Pulse trigger mode and Low-Level trigger mode. There are three indicators, forward indicator(FLED), reverse indicator(RLED), stop indicator(SLED).
• 【Relay action】Motor forward: relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing. Motor reverse: relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing. Motor stop: relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing.

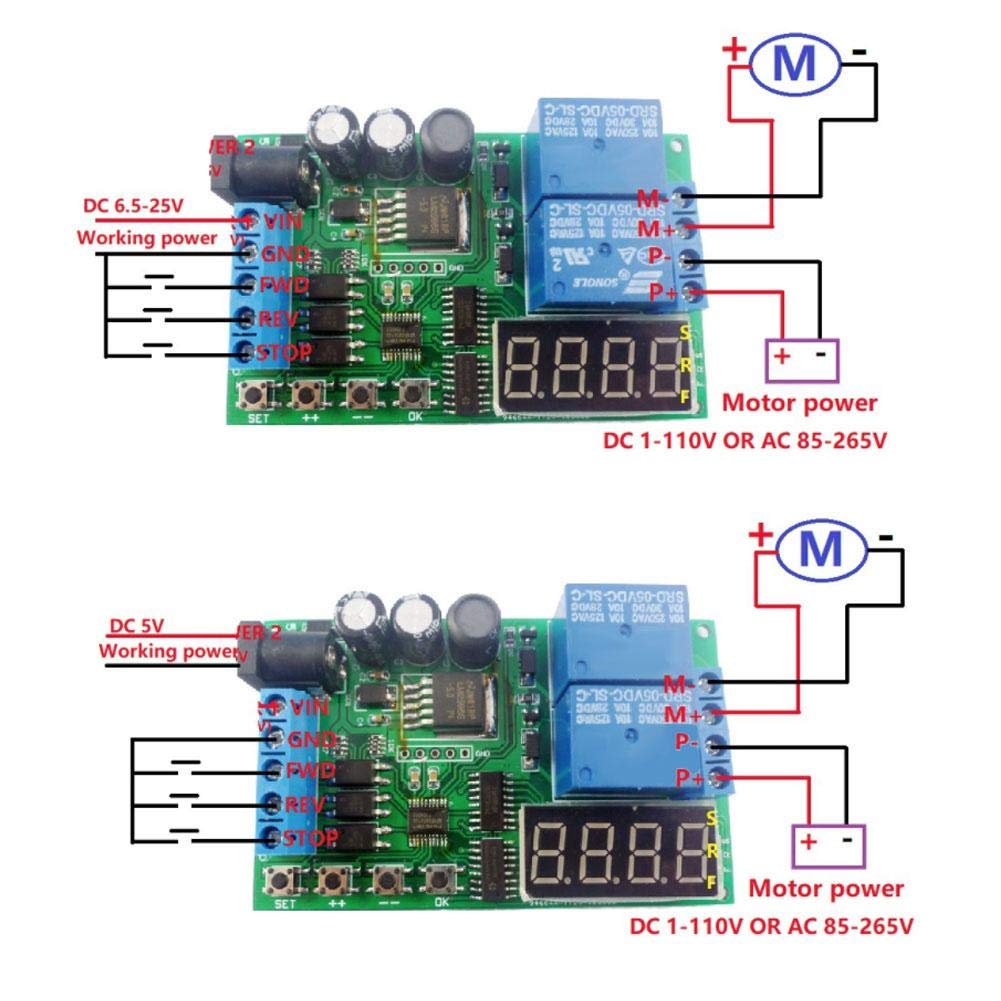

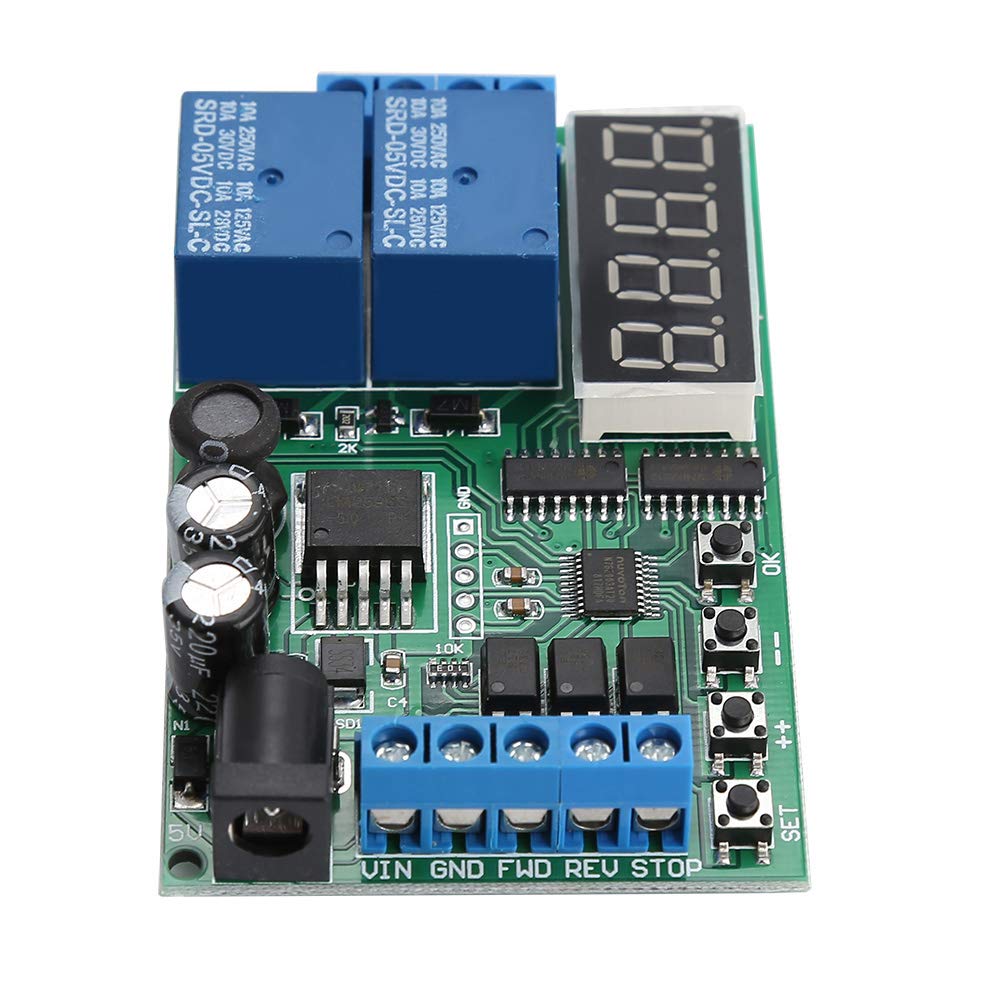

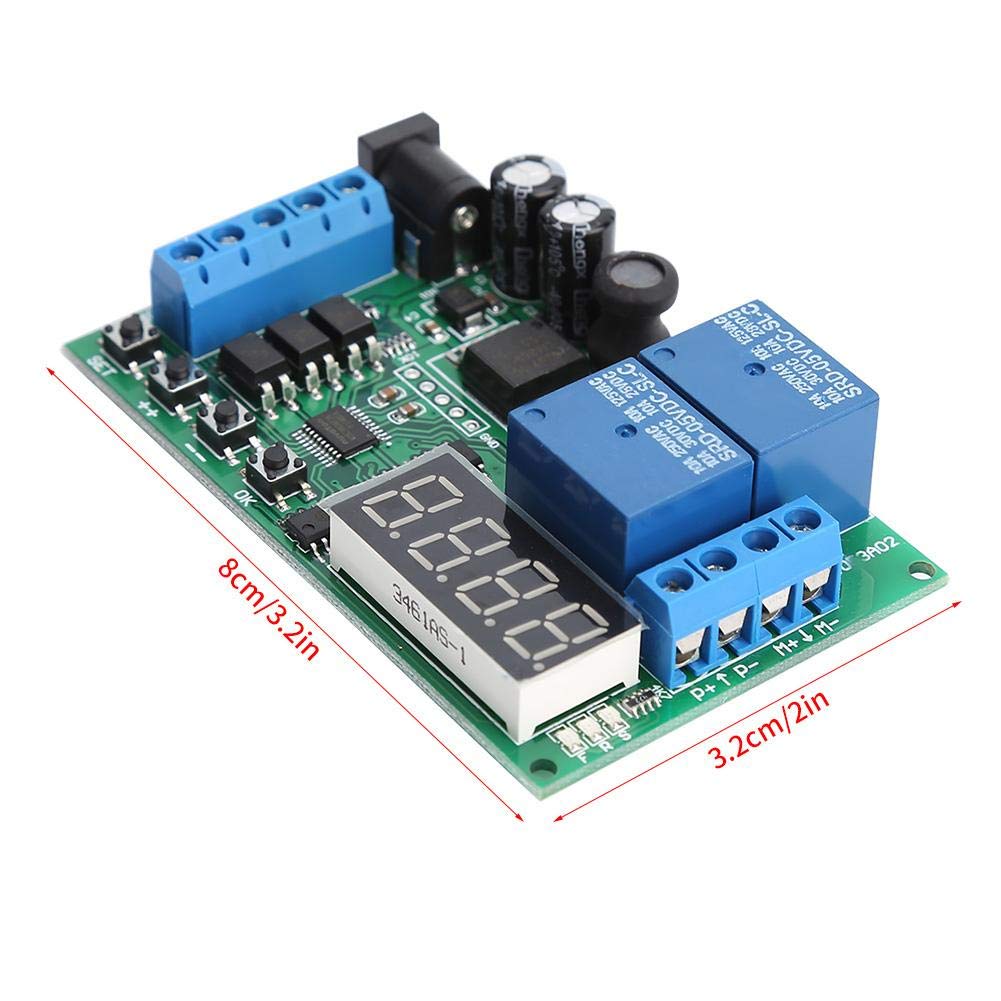

Port:DC 5.5MM female : Power supply 1, DC 5V power supply. VIN: Power 2 positive, DC 6.5-25V power supplyGND: Power supply 2 negative FWD: Forward input control (partial Function-Mode is invalid) REV: Reverse input control (partial Function-Mode is invalid) STOP : Stop input control (partial Function-Mode is invalid)M+: Motor positive M-: Motor negative P+: Positive terminal for motor power supplyP-: negative terminal for motor power supply Specification:Power supply: DC 6.5-25V, DC 5V Working current: 83mAStandby current: 41mARelay load current: <5ADelay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutesSize: 8*5cm/3.2*2inWeight: Approx. 51g/1.8ozTrigger mode: 1 low pulse trigger (falling edge trigger)2 low level trigger (rising edge trigger)Timer: T1: Forward timer T2: Reverse timerT3: Stop timerTime unit : 0.1 second, 1 second, 1 minuteRelay action: Motor forward : Relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing.Motor reverse : Relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing. Motor stop : Relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing.Factory settings: Press the "++" and "--" buttons simultaneously for 5 seconds.Energy-saving mode:Press and hold the "OK" button for 5 seconds to enter the "Energy-saving mode". Press and hold the "OK" button again for 5 seconds to exit the "Energy-saving mode". Energy saving mode just turns off the digital tube and LED indicator, and other functions are normal.Package list:1 x Motor Controller board
