Cuifati PCI-E to 5 Port Adapter Card,PCI-E to 5 Port USB 3.0 19 Pin PCI Express Expansion Card Connector,PCI-E to USB 3.0 5-Port PCI Express Expansion Card for Desktop Pc Desktop

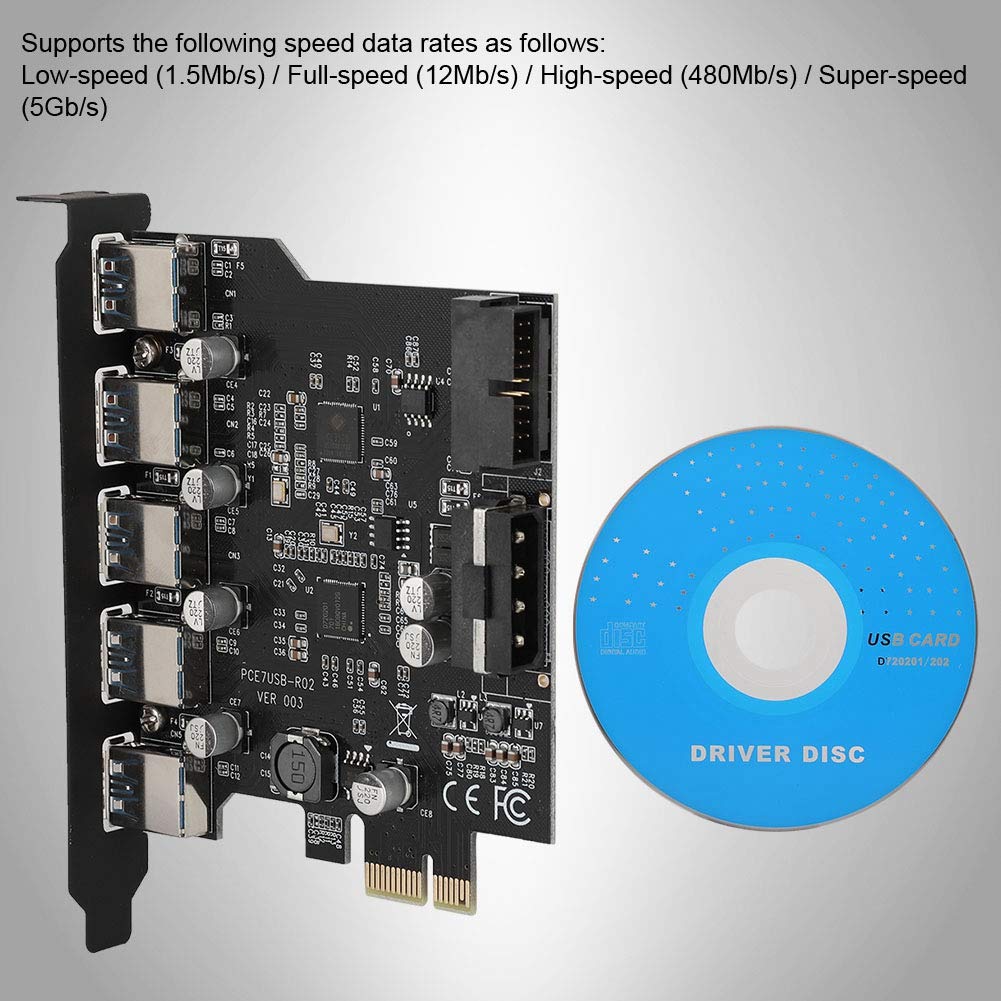

• Supports the following speed data rates as follows: Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s).

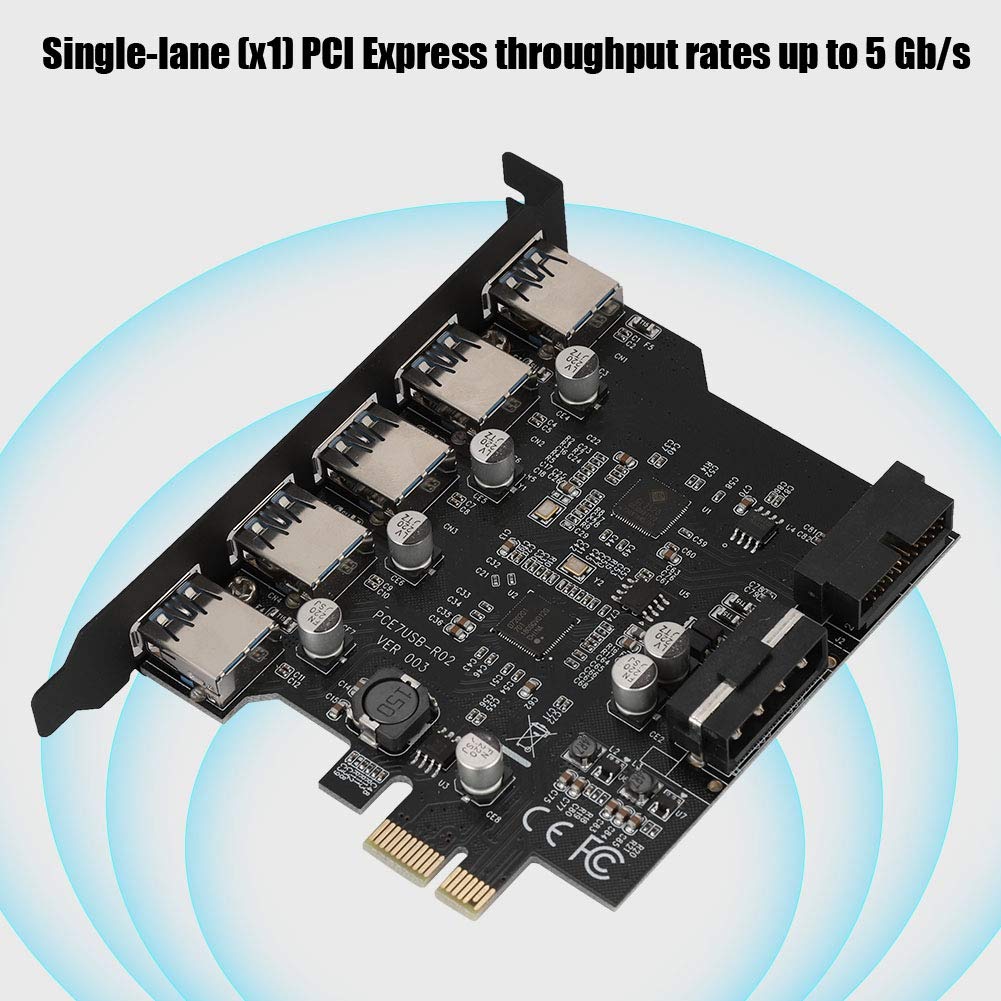

• Single-lane (x1) PCI Express throughput rates up to 5 Gb/s.

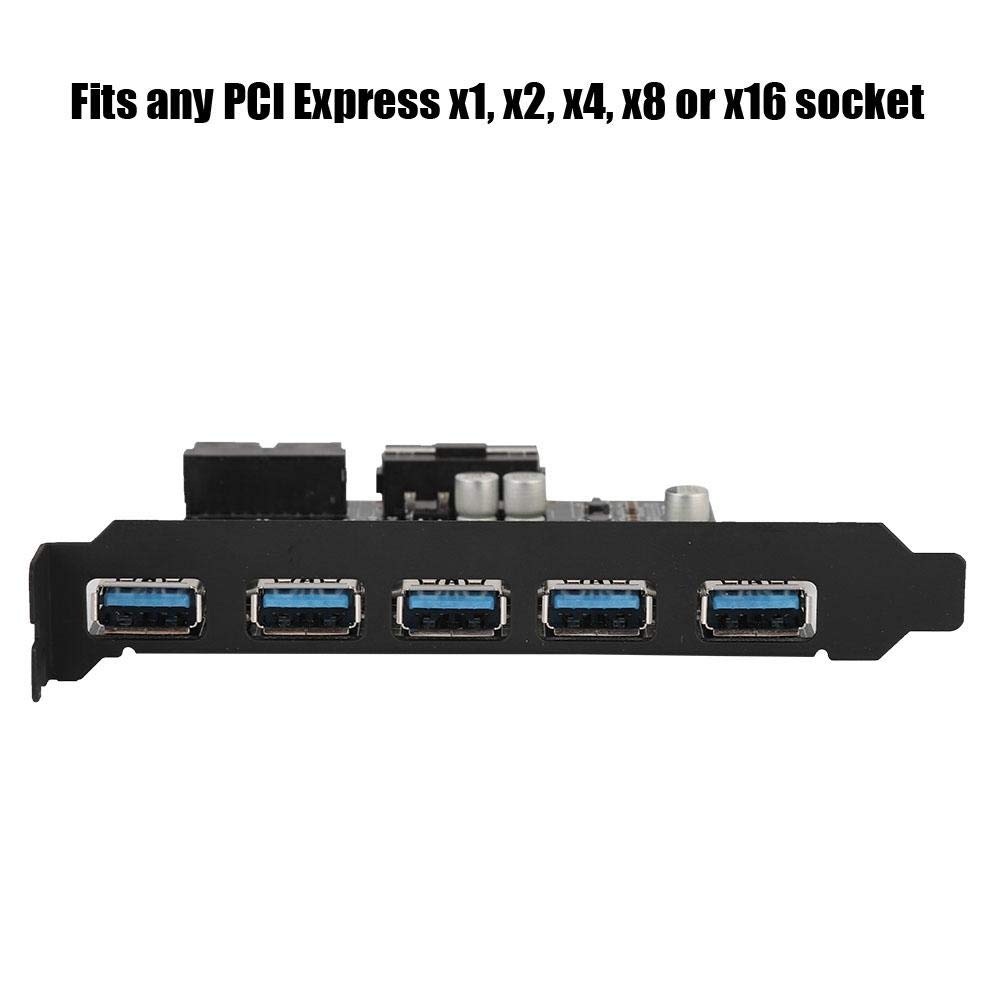

• Fits any PCI Express x1, x2, x4, x8 or x16 socket.
• Supports simultaneous of multiple USB 3.0/2.0/1.1 devices.
• Support UASP: 70% Faster than traditional USB 3.0, with UASP Transfer Protocol; The UASP Transfer Protocol only can accelerate read and write speed of SSD hard disk.

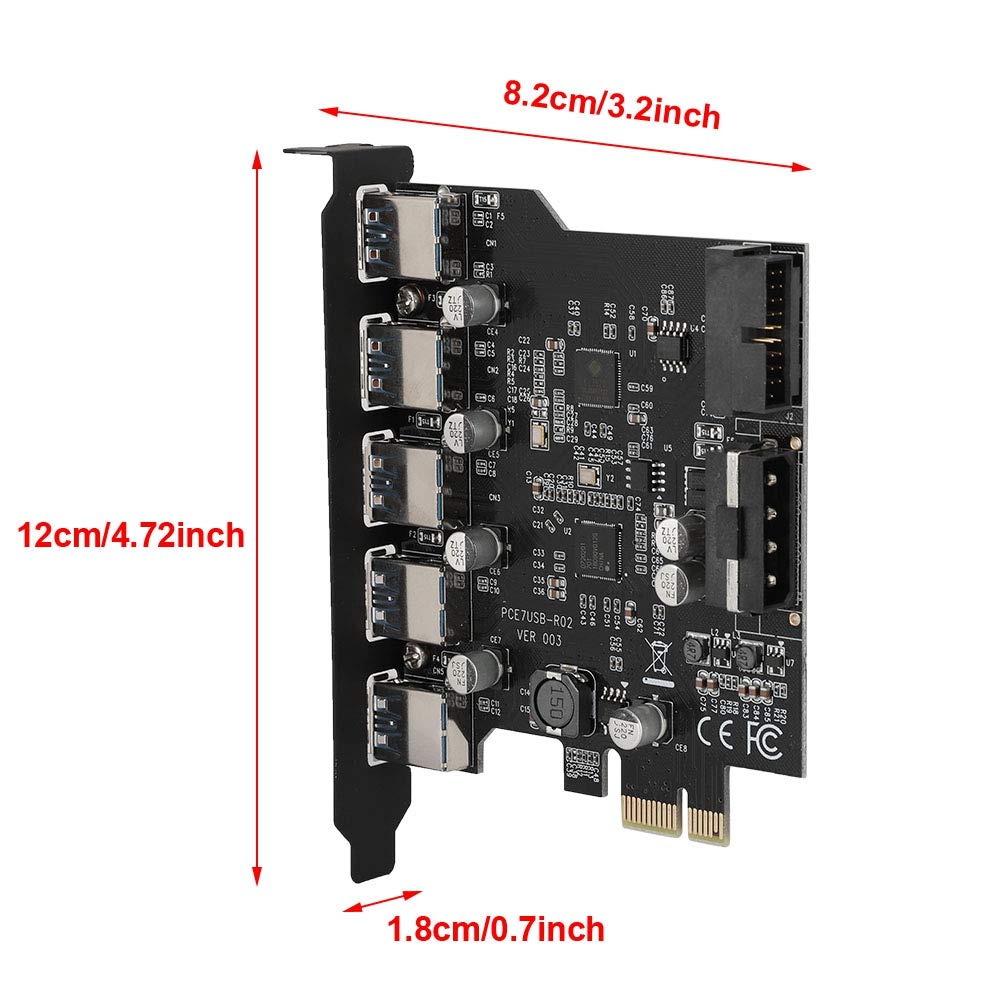

Features: Supports 5 x USB 3.0-TYPE-A 1 x19PIN 5Gbps.Supports the following speed data rates as follows: Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s).Single-lane (x1) PCI Express throughput rates up to 5 Gb/s.Fits any PCI Express x1, x2, x4, x8 or x16 socket.Supports simultaneous of multiple USB 3.0/2.0/1.1 devices.Hot-swapping feature allows you to connect/disconnectdevices without powering down the system.Support UASP: 70% Faster than traditional USB 3.0, with UASP Transfer Protocol; The UASP Transfer Protocol only can accelerate read and write speed of SSD hard disk.Operating Systems: Windows XP, Vista and 7 (with included drivers) Windows 8/8.1/10 - No additional drivers are needed for Win8/8.1/10 Windows XP and Vista Users Please Note:Due to OS limitations, the real transfer speed after installation of the respective drivers will be located between the level of USB 2.0 and 3.0 Specification: Name: 5-port USB3.0 expansion card Main control chip: Renesas uPD720201+Genesys GL3520 Bus interface: PCI Express x1, x2, x4, x8 or x16 socket Interface: USB3.0 interface x 5 Size: approx. 12 * 8.2 * 1.8 cm/ 4.72 * 3.2 * 0.7in Weight: Approx. 92.5g / 3.3oz Package list: 1 x 5 Ports+19PIN PCI-E to USB 3.0 Expansion Card 1 x Driver CD Note: This PCI-E card is only compatible with standard-sized tower cases (not mini computers). To ensure sufficient power supply and smooth transfers,particularly for large data transfers,it is necessary to connect the card to the power supply of the PC.
