CRT Superstar SS-6900-N Mobile Device 10 M SSB

• Mobile Device

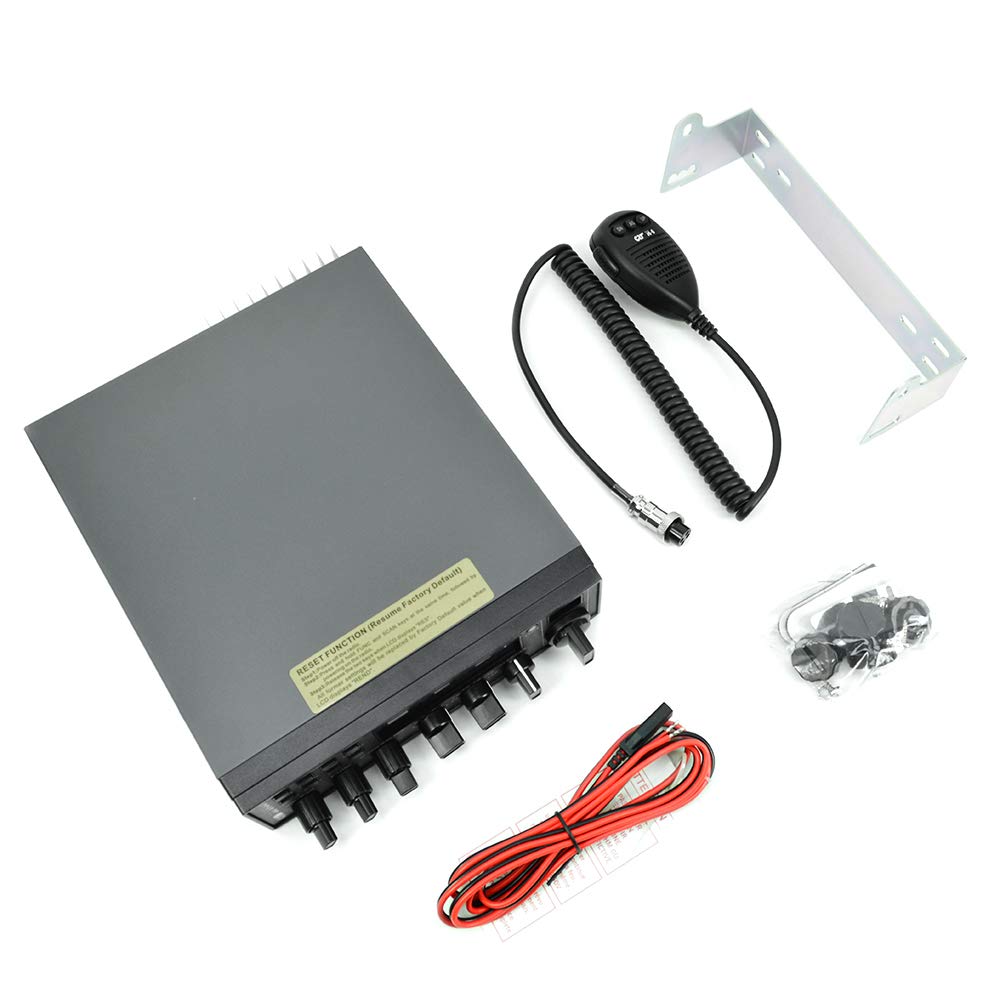

• Included components: radio station microphone radio station microphone clip holder mounting station support power cord

10 M mobile device - with Blue Display Technical Data FREQUENCY range 28-29, 7 mhz (10 Meter amateur band?) Operating Modes AM/FM/LSB/USB/CW/PA Transmitting Power FM: 40 W On: 12 W/SSB: up to 30 W FREQUENCY Steps 10 hz/100 hz/1 kHz/10 kHz Features RF Controller Noise Sheer & FA function Programmable Slider Clarifier S-Meter Roger Beep Adjustable output power (on/FM/SSB) Scan function Echo function can be connected Two channel monitoring (Dual Watch) Built-in SWR Meter The display shows the operating voltage display Protective circuit SWR unfavourable conditions Too high input voltage protection Switch + 10 kHz Reset function Time-out Timer Hi-Cut Function Emergency Call Keyboard lock can be connected Programmable via PC including the RX/TX for each channel can be programmed separately (Software & cable not included, available as an option) 3.5 mm jack for auxiliary Speaker Jack for CW-Tastset CW Sideton 300 hz - 3 kHz in 10 hz steps adjustable Receptacle for PA (Durchsagelautsprecher) Microphone Connector 4-Pol Antenna Connector PL-Jack Power Supply 13.8 V DC (8-10a max. TX case) Dimensions in mm Approx 280 x 250 x 60 Weight Approx 2 kg Package Contents Superstar SS-6900-N Mobile Device Hand-held microphone (dynamic) Motor bracket with screws DC Cable Instructions
