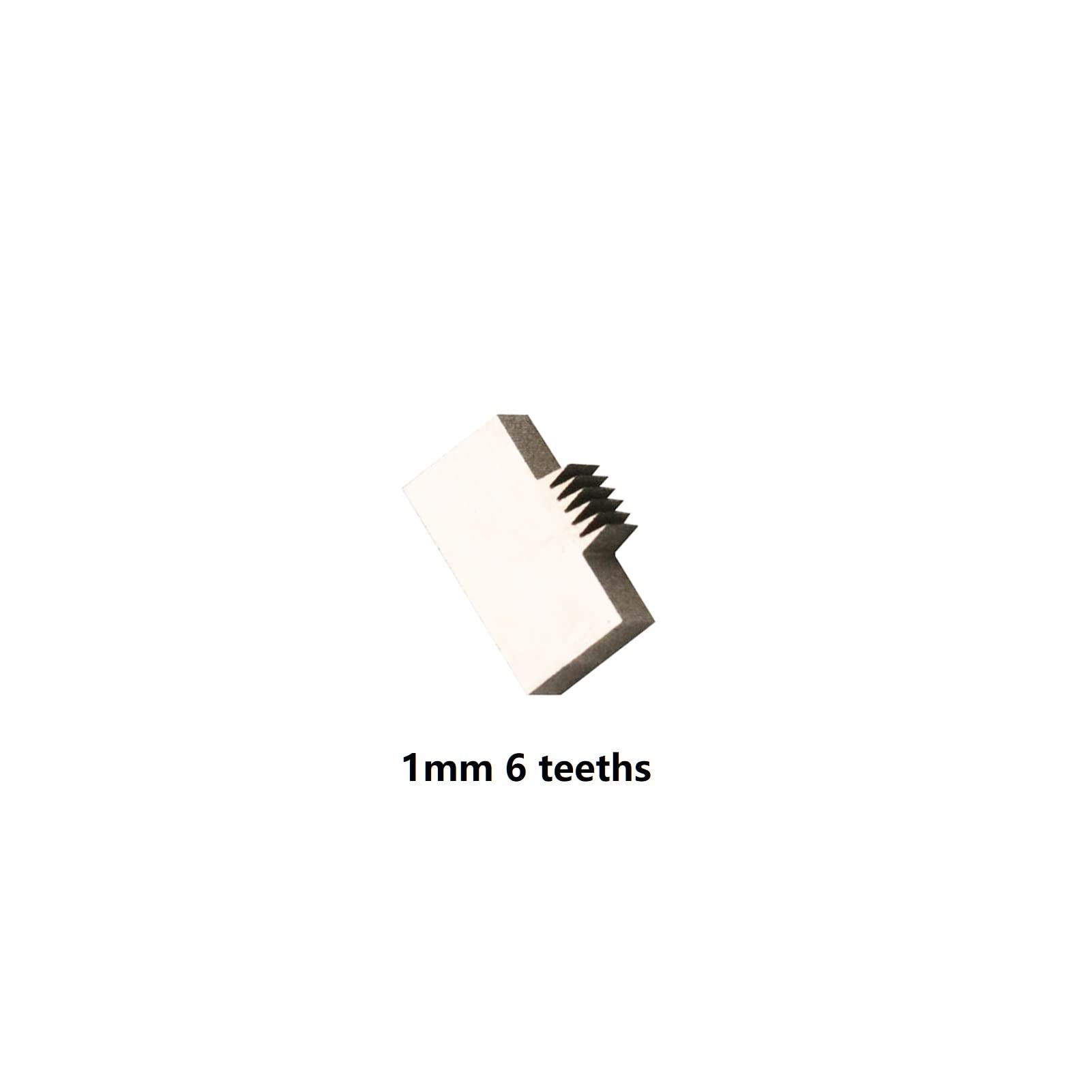

Crosshatch Cutting blade Cross-Cut Blades 1-edge Cross-Cut Blade (1 mm / 6 teeth)

• Designed for use with the Adhesion Test Kit blade handle this blade will allow you to make your cuts much faster.

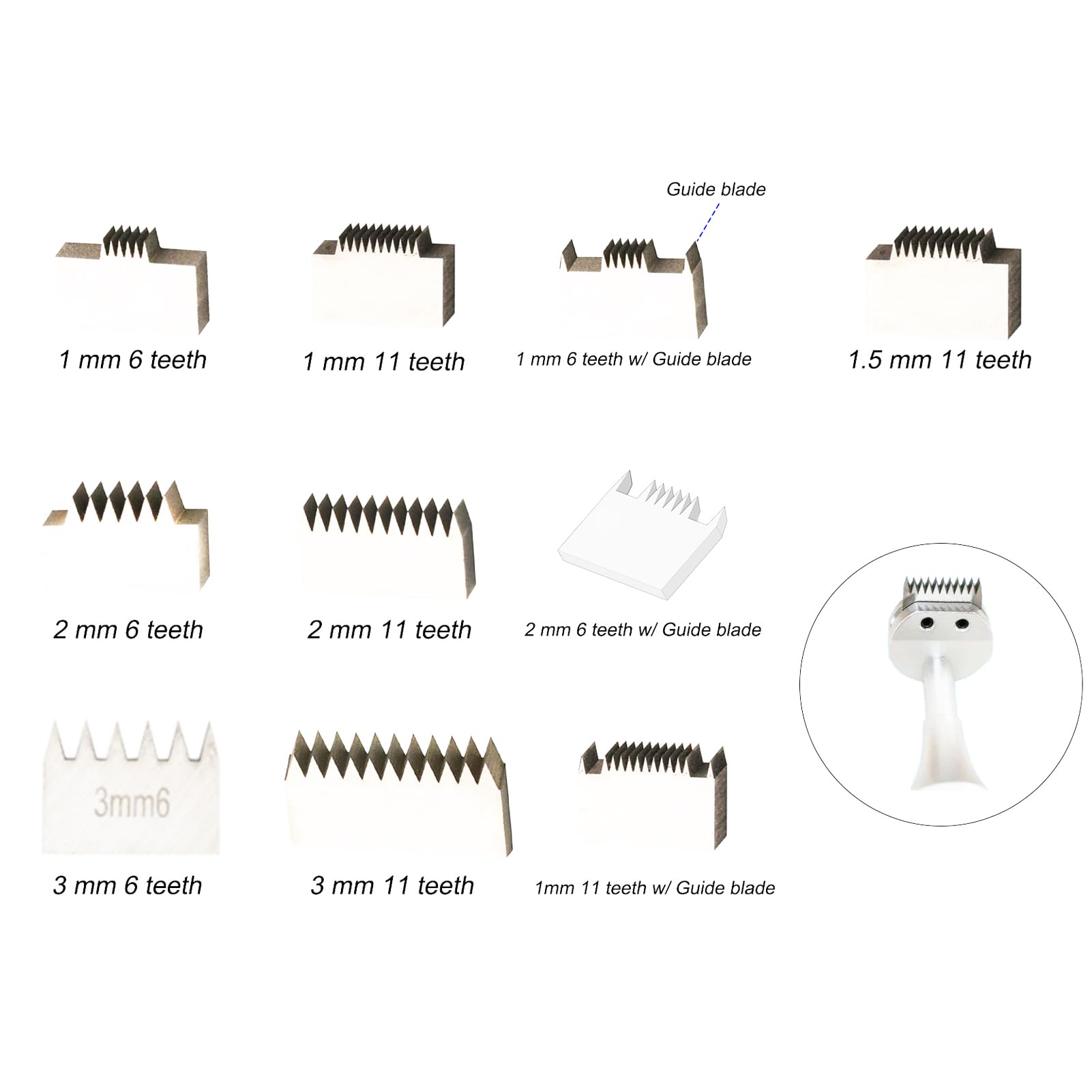

• A range of cutting blades is available for different thicknesses and types of coating.
• The lattice patterns of a certain size are evenly drawn, and the degree of adhesion of the coating to the substrate is evaluated by evaluating the integrity of the coating in the lattice pattern
• .Material: Stainless steel

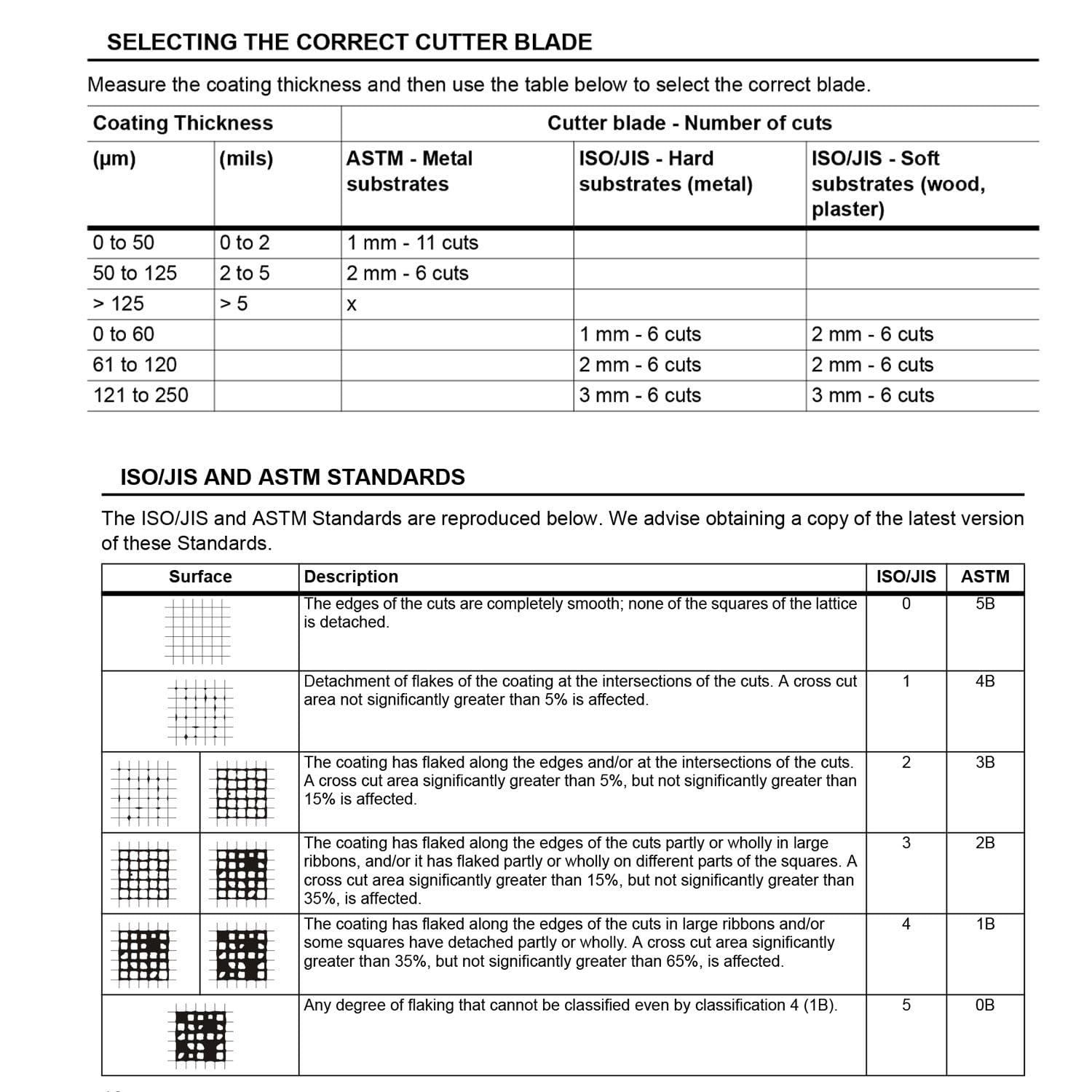

Designed for use with the Adhesion Test Kit blade handle this blade will allow you to make your cuts much faster. Cutter Spacing： 1 mm (0.04 in) 2 mm (0.08 in) 3 mm (0.12 in) 1.5 mm (0.06 in) ASTM method D3359 requires 11 cut lines for 1 mm cutter: 1 mm cutter for films up to 50 µm (2 mils) thick 2 mm cutter for films between 50-125 µm (2 - 5 mils) thick ISO standards prescribe that the number of cuts shall be 6, and that the cut in each direction must be according to the film thickness and type of coating used as shown below: 0 - 60 µm 1 mm space for hard substrates (metal) 0 - 60 µm 2 mm space for soft substrates (plastic) 61 - 120 µm 2 mm space for hard or soft substrates 121 - 250 µm 3 mm space for hard or soft substrates Standards ASTM D 3002, D 3359 Method B ISO 2409 DIN 927-3
