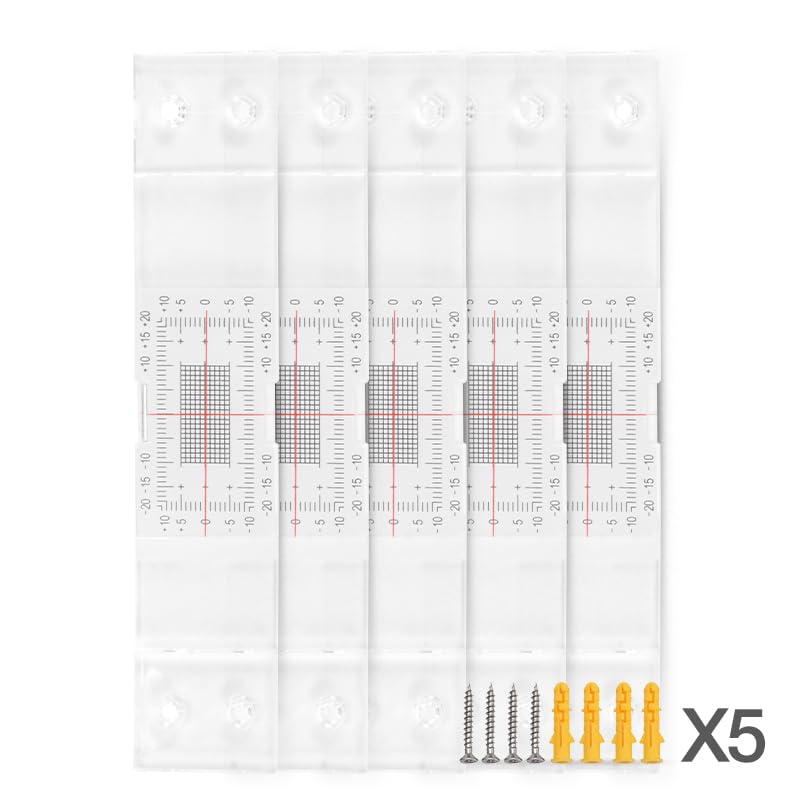

Crack Monitoring Record, 5pcs Corner Tell-Tale Monitor, Tell-Tale Crack Monitor for the Standard, Crack Measure and Record Instrument

• Cracks monitoring Tell tales crack monitors Simple and cool analog crack monitor device.
• ±1 mm (±0.04") tick marks on X-Y axes; ±0.5 mm (±0.02") discrimination
• ±20 mm (±0.79") horizontal and ±10 mm (±0.38") vertical range
• High-quality polymer with easy-to-read measurement grid
• Crack monitoring scale is used to monitoring the cracks in the walls and how they evolved along the measured time.

Tell tale for two dimensions manual crack monitoring works. This little item is used to monitoring the cracks in the walls and how they evolved along the measured time. Tell-Tales are precision gauges use to monitor the movement of a crack, horizontal or vertically on a flat surface. The monitor that consist of two plates which overlap for a part of their length. The bottom plate is calibrated in millimeters and the top plate is transparent and marked with a hairline cursor in the form of a cross. The two pegs are removed. As the crack opens or closes, the cursor moves relative to the calibration scale. The opening or closing of the crack is then recorded on the crack record sheet supplied.
