CQRobot 298:1 Micro Metal Gearmotor 12Dx24L mm Low-Power (LP) 6V (2 Pieces), 45 RPM/2.0 kg.cm (28 oz.in), with Mounting Bracket, D-Shaped Gearbox Output Shaft is 9 mm Long and 3 mm in Diameter.

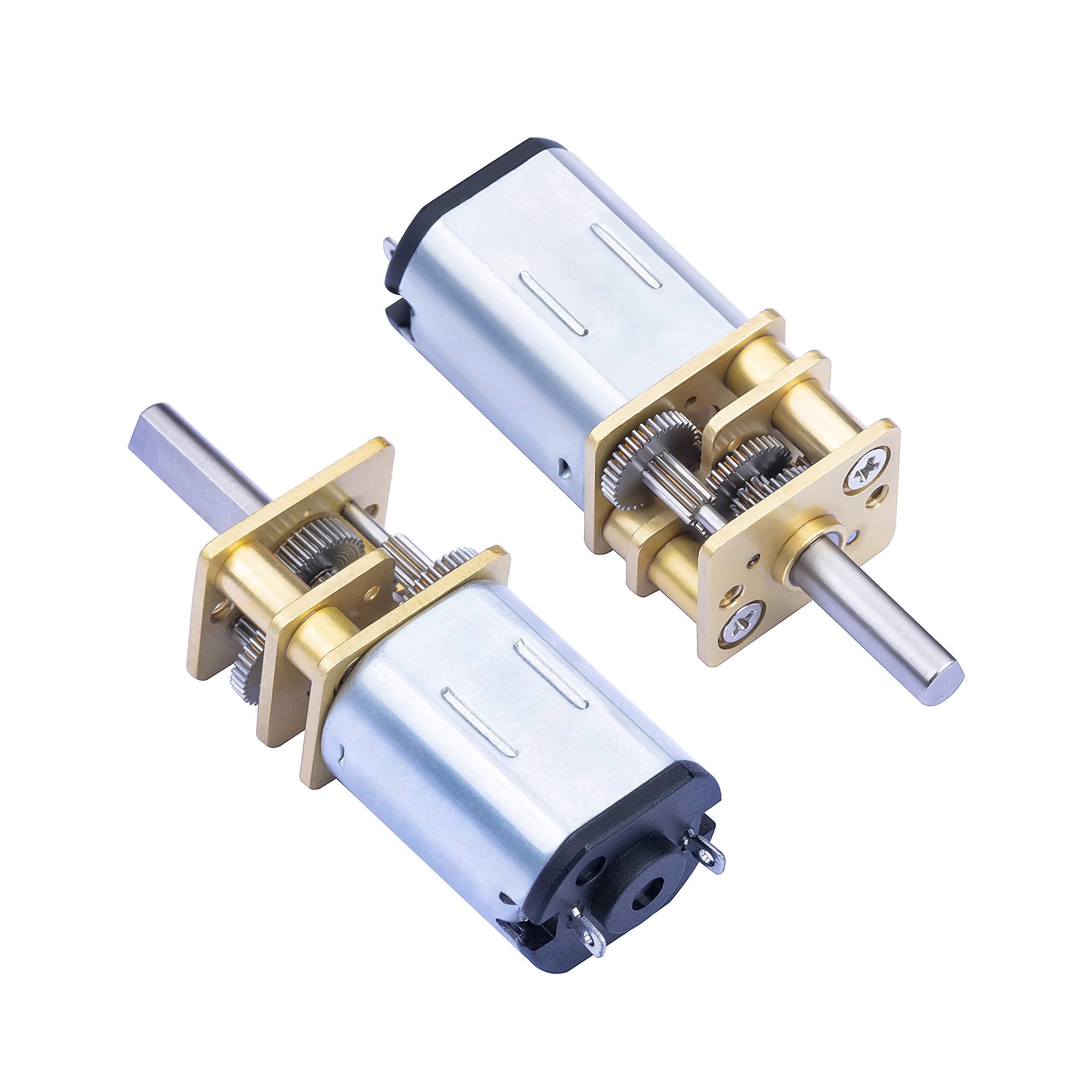

• This gearmotor is a miniature low-power, 6 V brushed DC motor with a 298:1 metal gearbox.

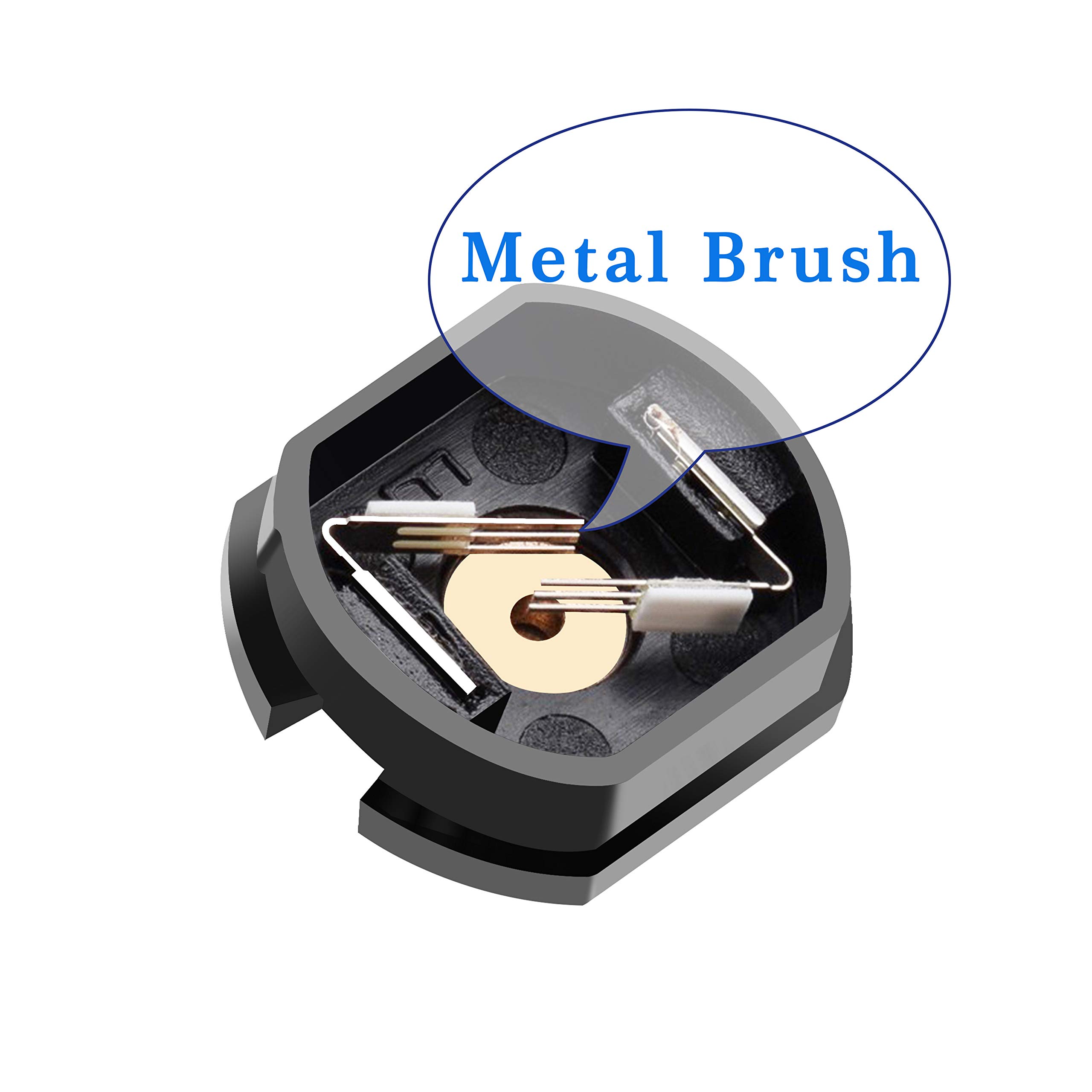

• Dimensions of versions with precious metal brushes (LP), This gearmotor with Mounting Bracket.

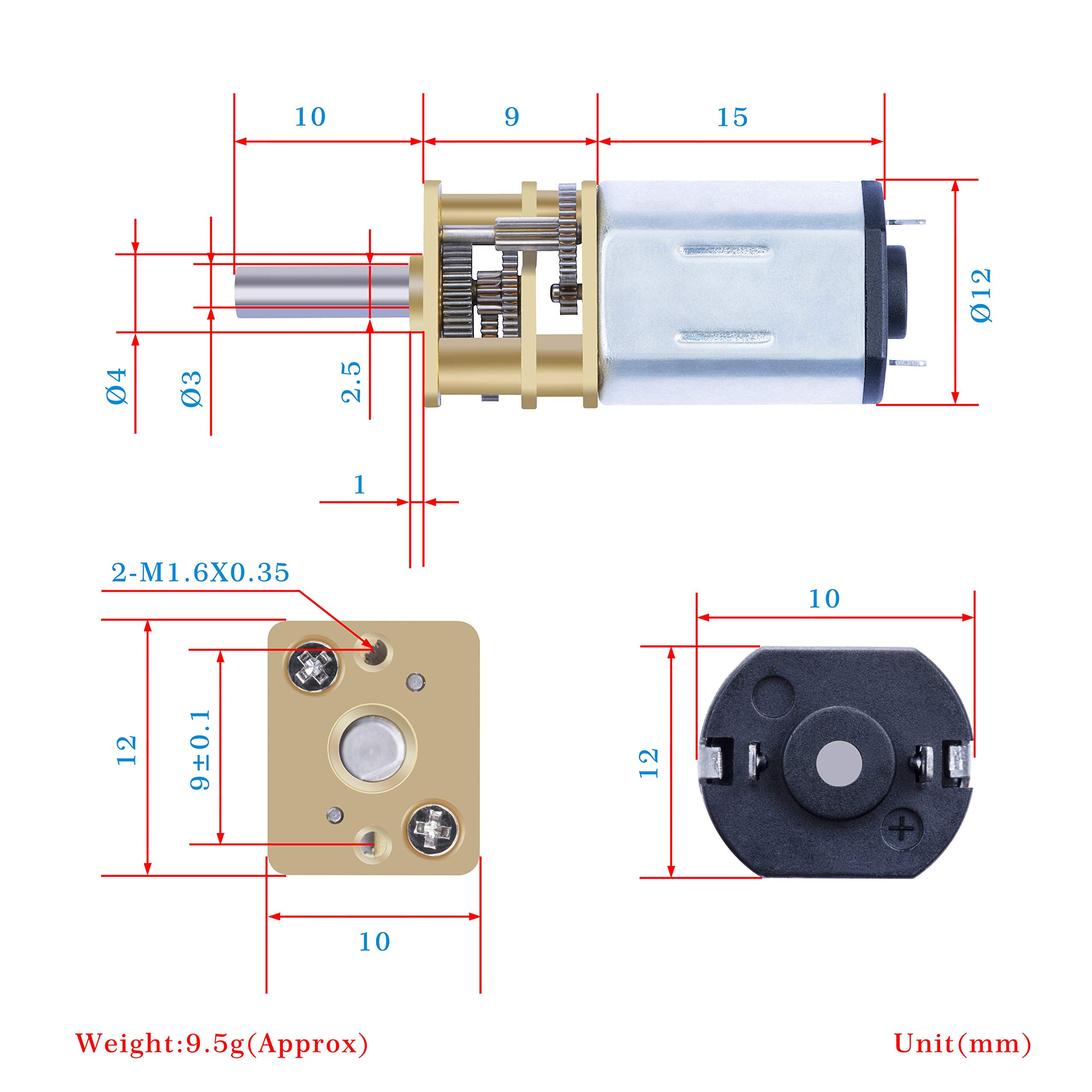

• It has a cross section of 10 mm * 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.
• No-load Performance: 45 RPM, 20 mA.
• Stall Extrapolation: 2.0 kg.cm (28 oz.in), 0.36 A.

This gearmotor is a miniature low-power, 6 V brushed DC motor with a 298:1 metal gearbox. Dimensions of versions with precious metal brushes (LP), This gearmotor with Mounting Bracket. It has a cross section of 10 mm * 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. General Specifications - Gear Ratio: 298:1 - No-load Speed @ 6V: 45 rpm - No-load Current @ 6V: 0.02 A - Stall Current @ 6V: 0.36 A - Stall Torque @ 6V: 2.0 kg.cm - Max Output Power @ 6V: 0.22 W - Extended Motor Shaft: N - Motor Type: 0.36A stall @ 6V (LP 6V) - Size: 10 mm * 12 mm * 26 mm - Shaft Diameter: 3 mm - Weight: 9.5 g Performance at Maximum Efficiency - Max Efficiency @ 6V: 27 % - Speed at max Efficiency: 34 rpm - Torque at max Efficiency: 0.44 kg.cm - Current at max Efficiency: 0.09 A - Output Power at max Efficiency: 0.15 W DISTRIBUTION LIST 2 * Micro Metal Gearmotors with Mounting Bracket(LP-6V-298:1)
