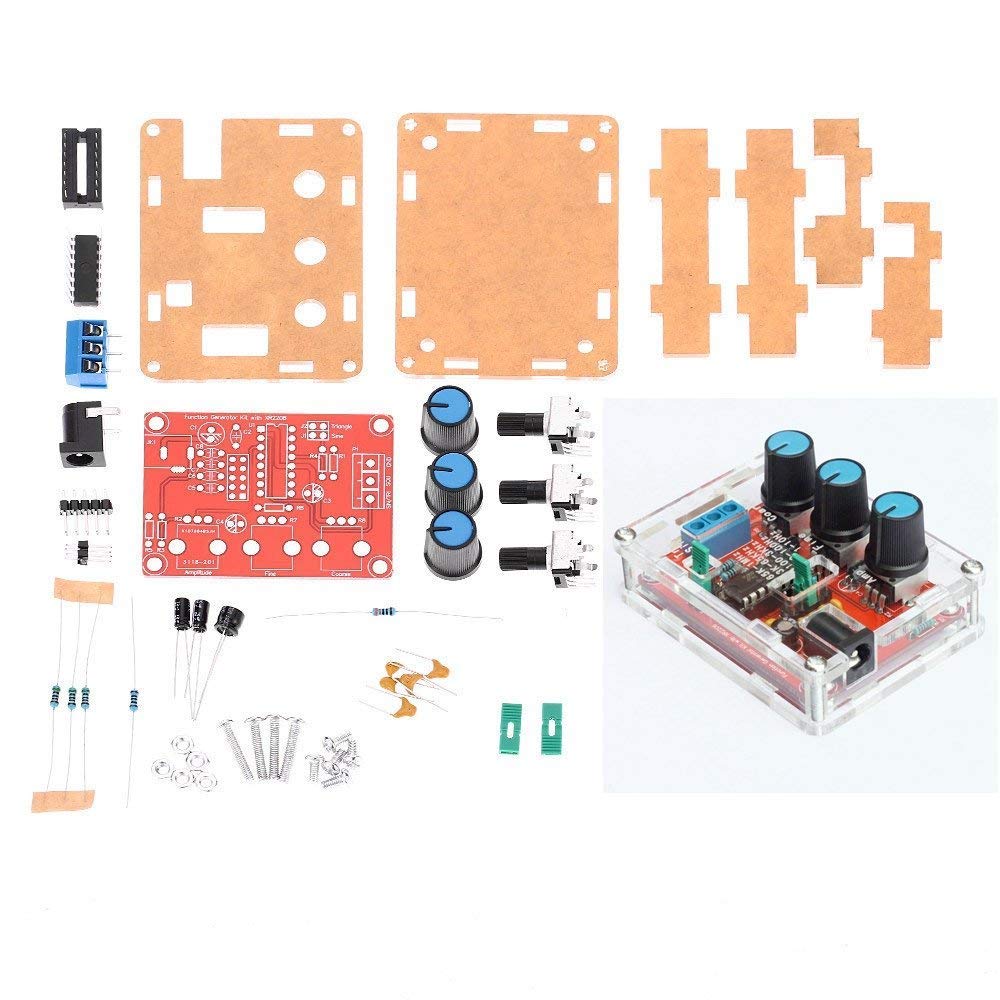

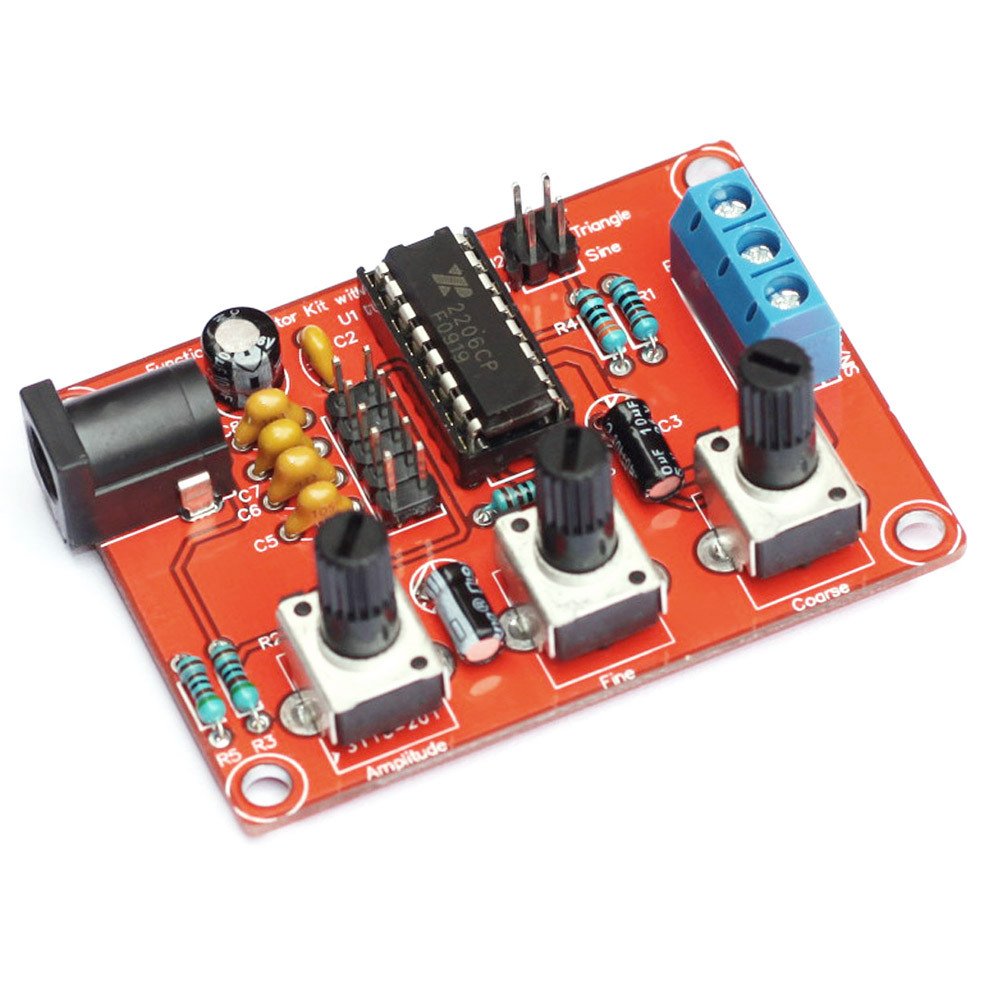

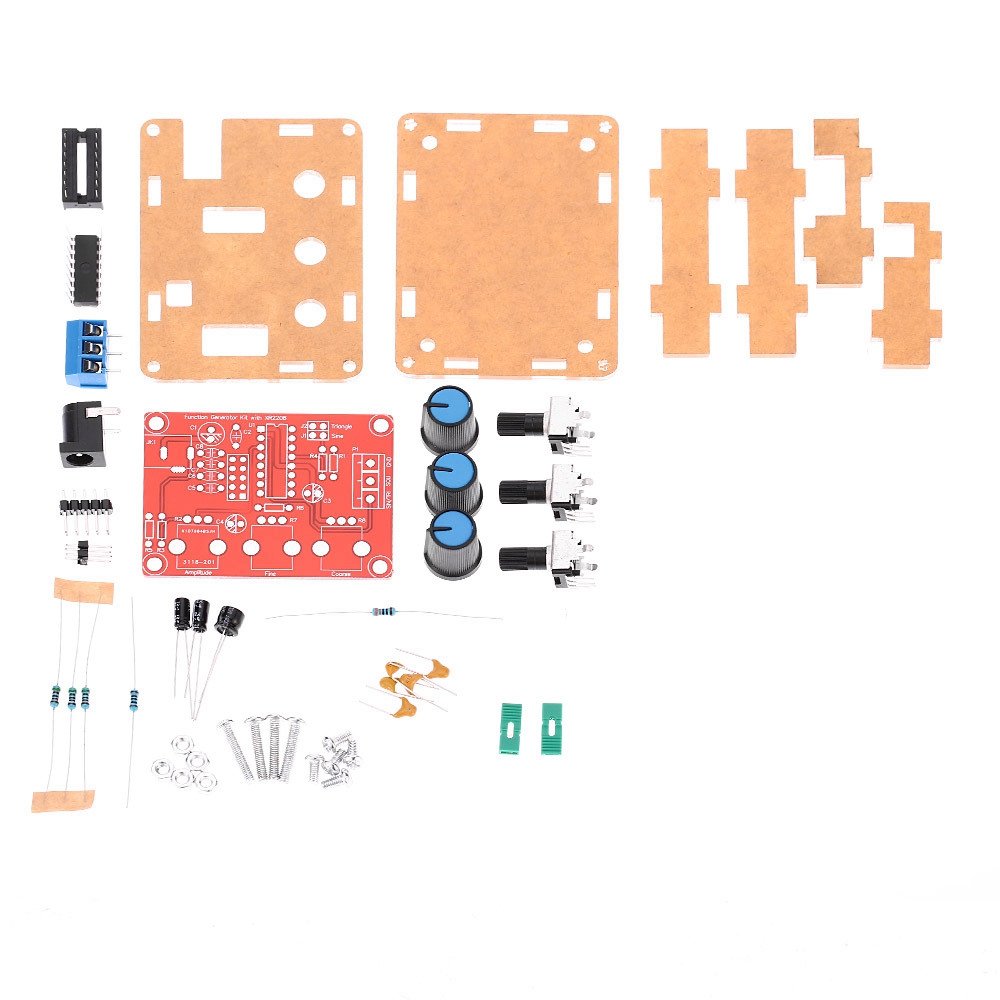

COVVY XR2206 High Precision Function Signal Generator DIY Kit
About this item
- Five precision resolution,can produce sine wave, triangular wave, square wave.
- Frequency range: 1Hz-1MHz.
- Frequency adjustment with coarse adjustment, fine tuning.
- Wide range of power supply, it's suggested to use DC 9-12V external power supply or 9V battery(NOT Included).
- Fewer components,easy to install.
Product description
Features: * Five precision resolution,can produce sine wave, triangular wave, square wave * Frequency range: 1Hz-1MHz * Frequency adjustment with coarse adjustment, fine tuning * Wide range of power supply, it's suggested to use DC 9-12V external power supply or 9V battery(NOT Included) * Fewer components,easy to install Specifications: Voltage Supply: 9-12V DC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz - 1MHz SINE WAVE * Amplitude: 0 - 3V at 9V DC input * Distortion: Less than 1% (at 1kHz) * Flatness: +0.05dB 1Hz - 100kHz SQUARE WAVE * Amplitude: 8V (no load) at 9V DC input * Rise Time: Less than 50ns (at 1kHz) * Fall Time: Less than 30ns (at 1kHz) * Symmetry: Less than 5% (at 1kHz) TRIANGLE WAVE * Amplitude: 0 - 3V at 9V DC input * Linearity: Less than 1% (up to 100kHz) 10mA Package include: 1 * XR2206 Signal Generator
Product details
