2-Channel Isolated CAN Bus HAT for Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips, Multi Protection Circuits, 3.3V/5V Jumper, 120Ω Resistor, C/Python Examples

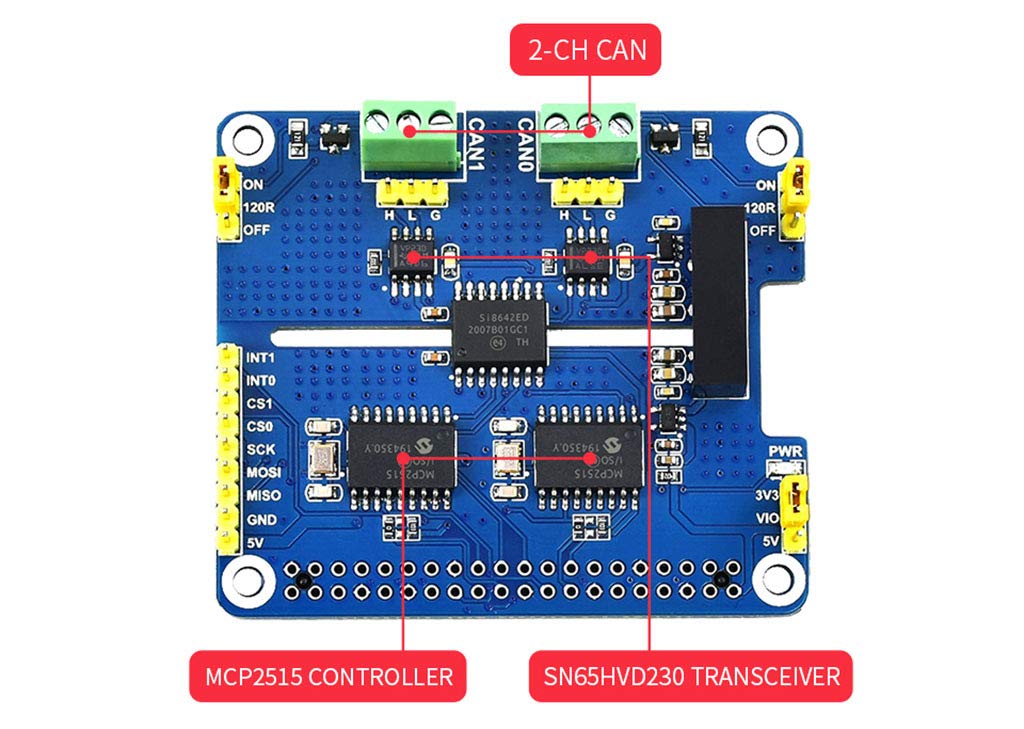

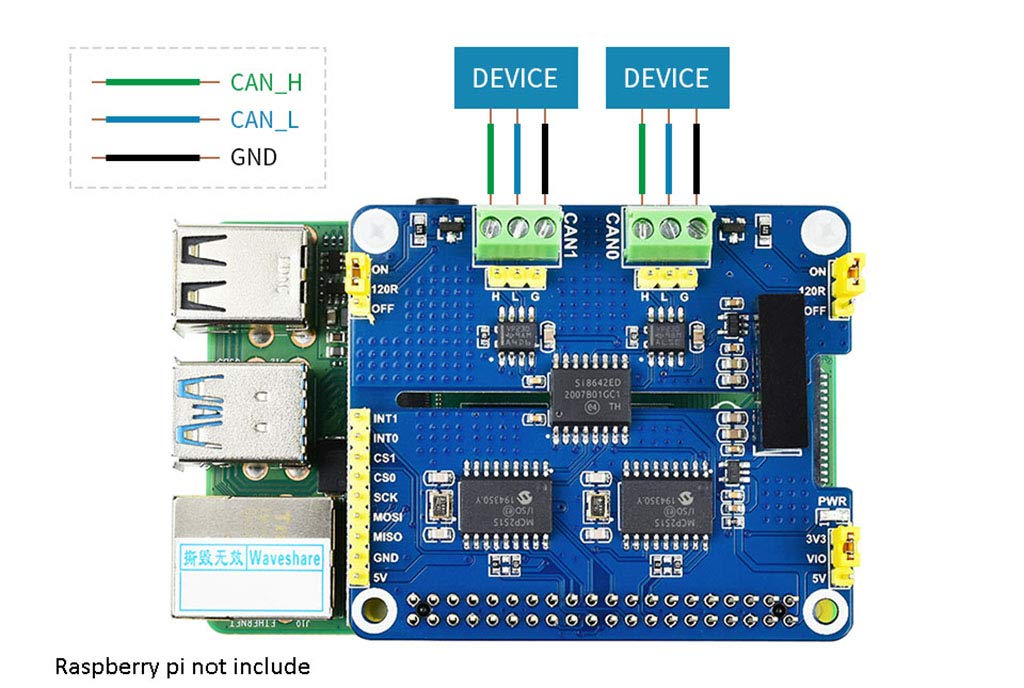

• Dual-Chip CAN Communication: Features MCP2515 CAN controller and SN65HVD230 CAN transceiver for reliable 2-channel CAN Bus communication, ideal for Raspberry Pi projects.

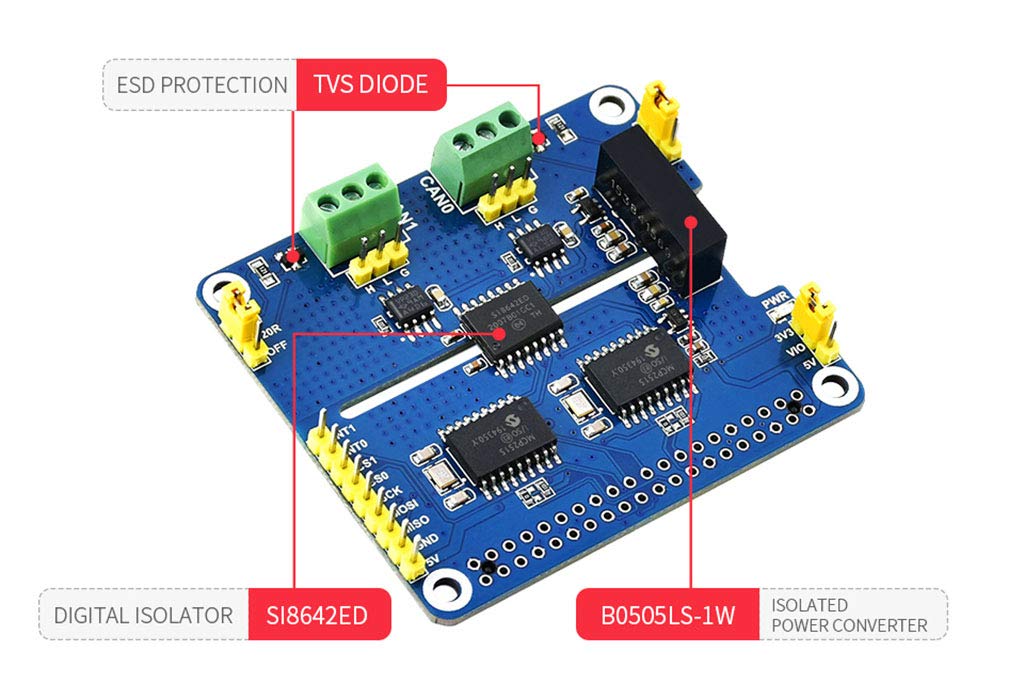

• Enhanced Safety & Stability: Equipped with electrical isolation circuitry, SM24CANB TVS diode, and ESD protection for safe, stable, and anti-interference performance.

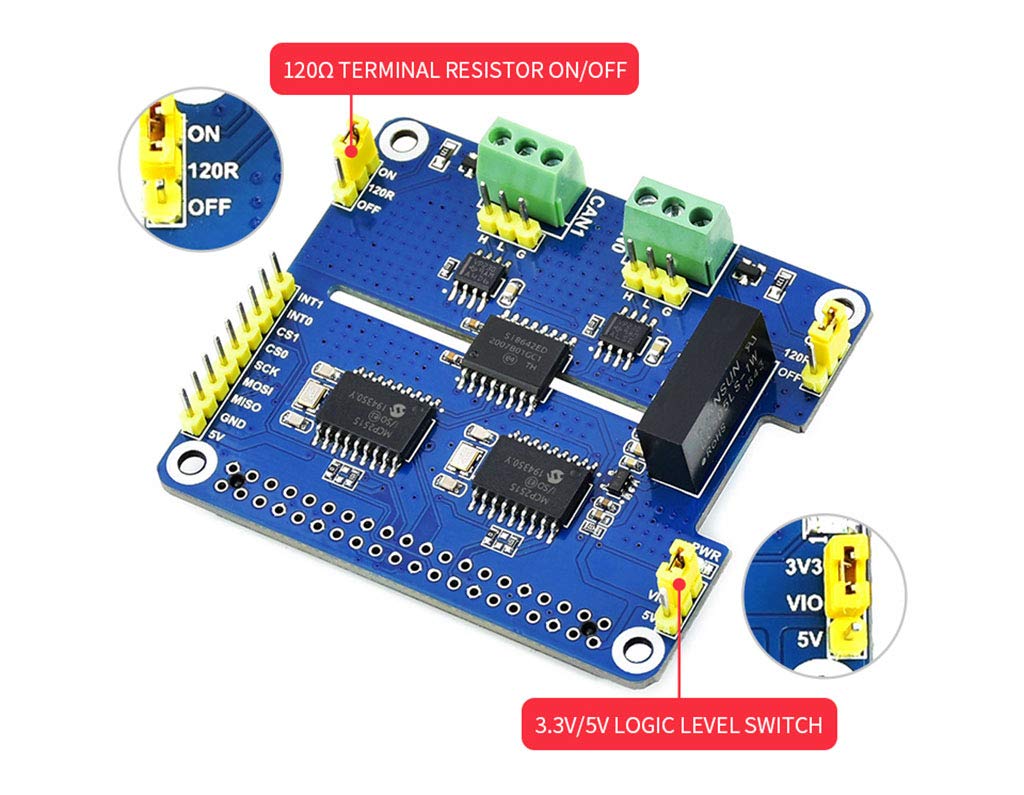

• Flexible Voltage Selection: Onboard jumpers allow easy selection of 3.3V or 5V operating voltage and enable/disable 120Ω terminal resistor for versatile applications.
• Multi-Protection Circuits: Integrated power isolation, transient peak voltage protection, and signal isolation ensure secure and stable CAN Bus communication.

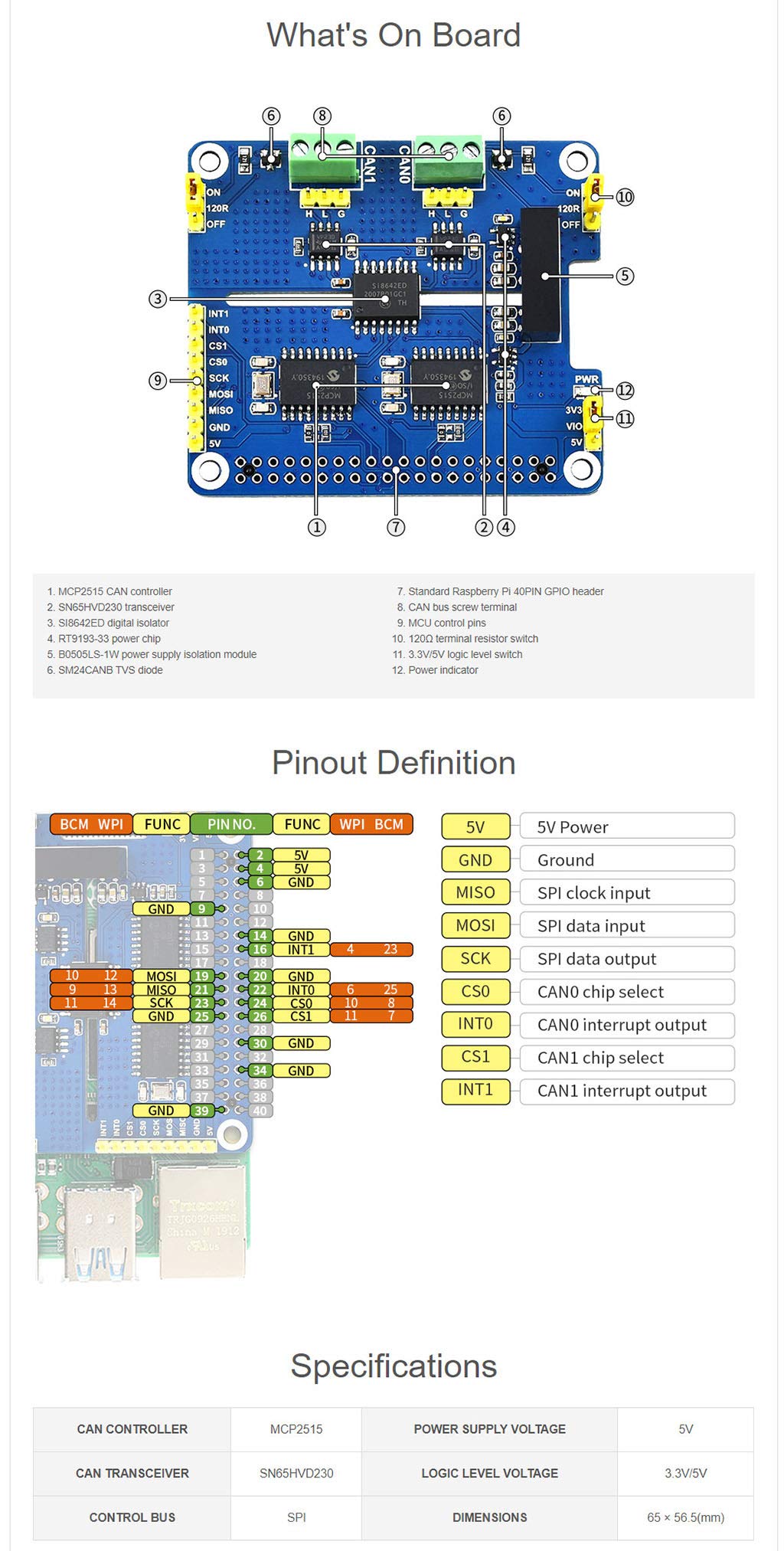

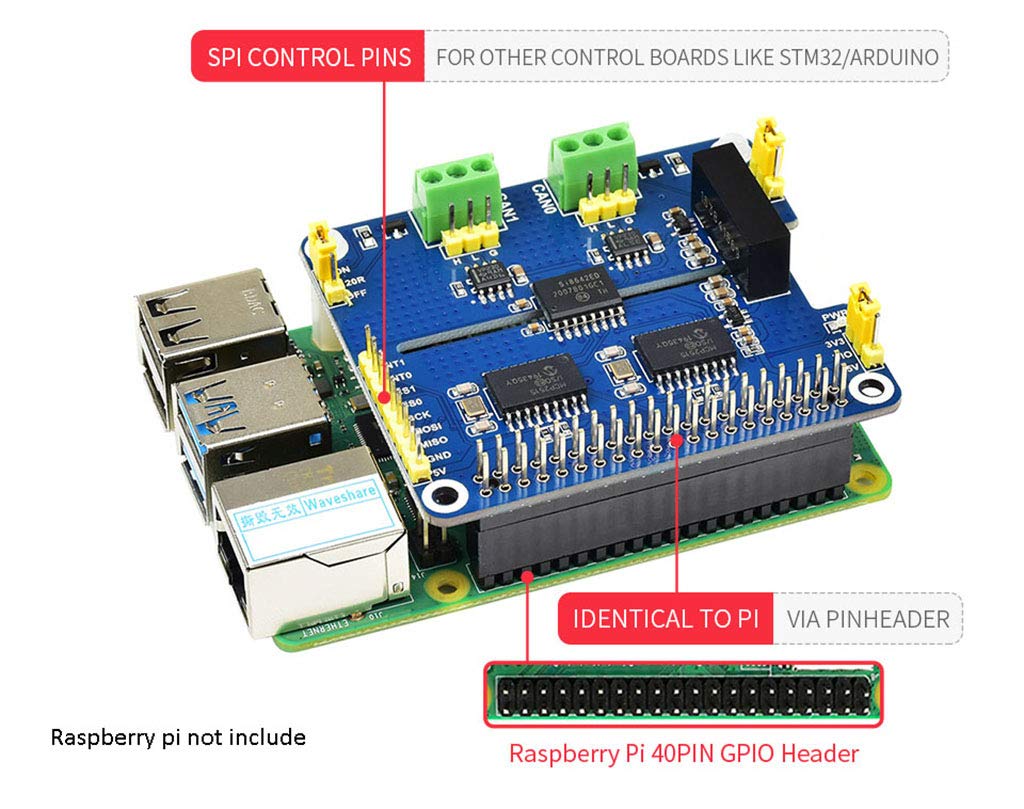

• Compatible & Developer-Friendly: Designed for Raspberry Pi 40PIN GPIO header, includes C/Python examples and manual for seamless integration and quick setup.

Overview The 2-Channel Isolated CAN Bus HAT for Raspberry Pi is a high-performance expansion board designed to enable robust and reliable CAN Bus communication for your Raspberry Pi projects. Built with the MCP2515 CAN controller and SN65HVD230 CAN transceiver, this HAT supports 2-channel CAN communication, making it perfect for industrial automation, automotive diagnostics, and IoT applications. Key Features: Dual-Chip Solution: The combination of MCP2515 and SN65HVD230 ensures efficient and reliable CAN Bus communication. Electrical Isolation: Integrated power and signal isolation circuits provide stable voltage and enhanced anti-interference capabilities, ensuring safe and stable operation. Multi-Protection Circuits: Onboard TVS diode, ESD protection, and transient peak voltage protection safeguard your Raspberry Pi and connected devices. Flexible Configuration: Use onboard jumpers to easily select between 3.3V and 5V operating voltage or enable/disable the 120Ω terminal resistor for optimal setup. Raspberry Pi Compatibility: Designed with a standard 40PIN GPIO header, this HAT is compatible with all Raspberry Pi series boards. Developer-Friendly: Includes a detailed manual and C/Python examples to help you get started quickly. Whether you're working on industrial control systems, automotive projects, or IoT applications, this 2-Channel Isolated CAN Bus HAT offers the reliability, flexibility, and protection you need to take your Pi projects to the next level. Package include 1. 2-CH CAN HAT x1 2. RPi screws pack x1 3. 2×20PIN female header x1
