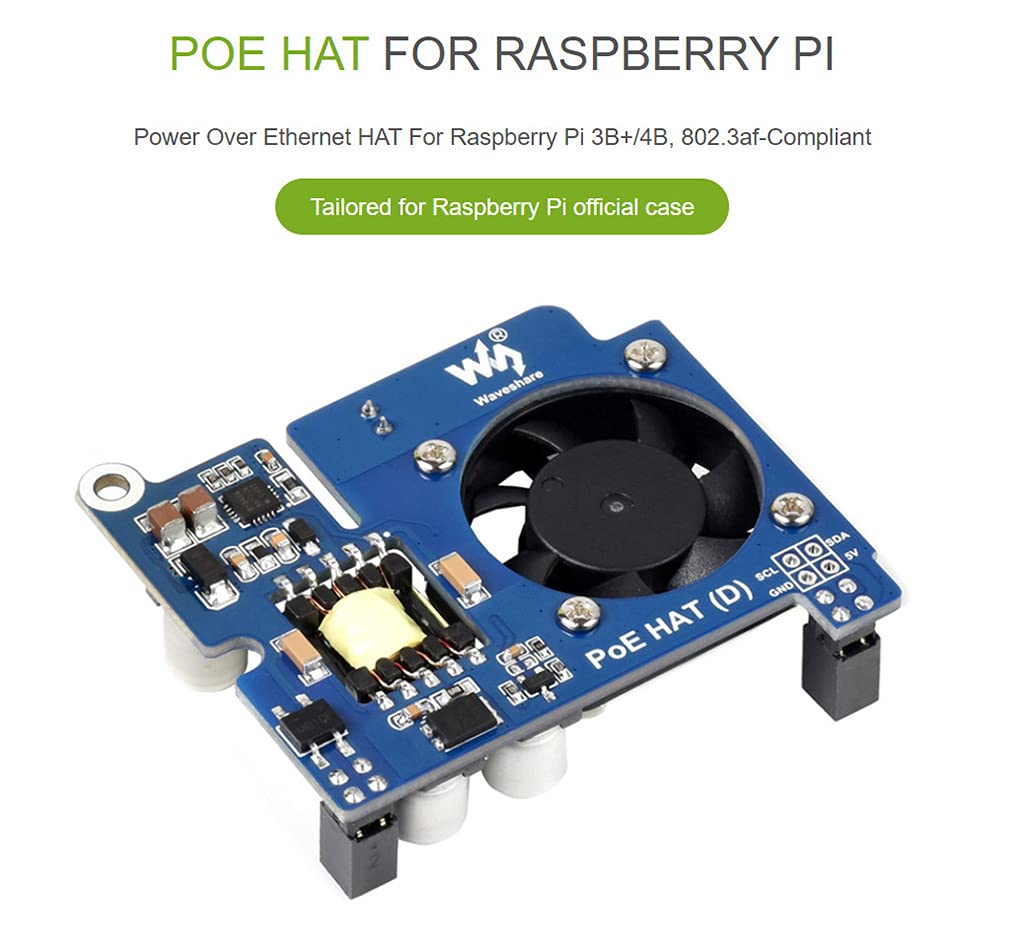

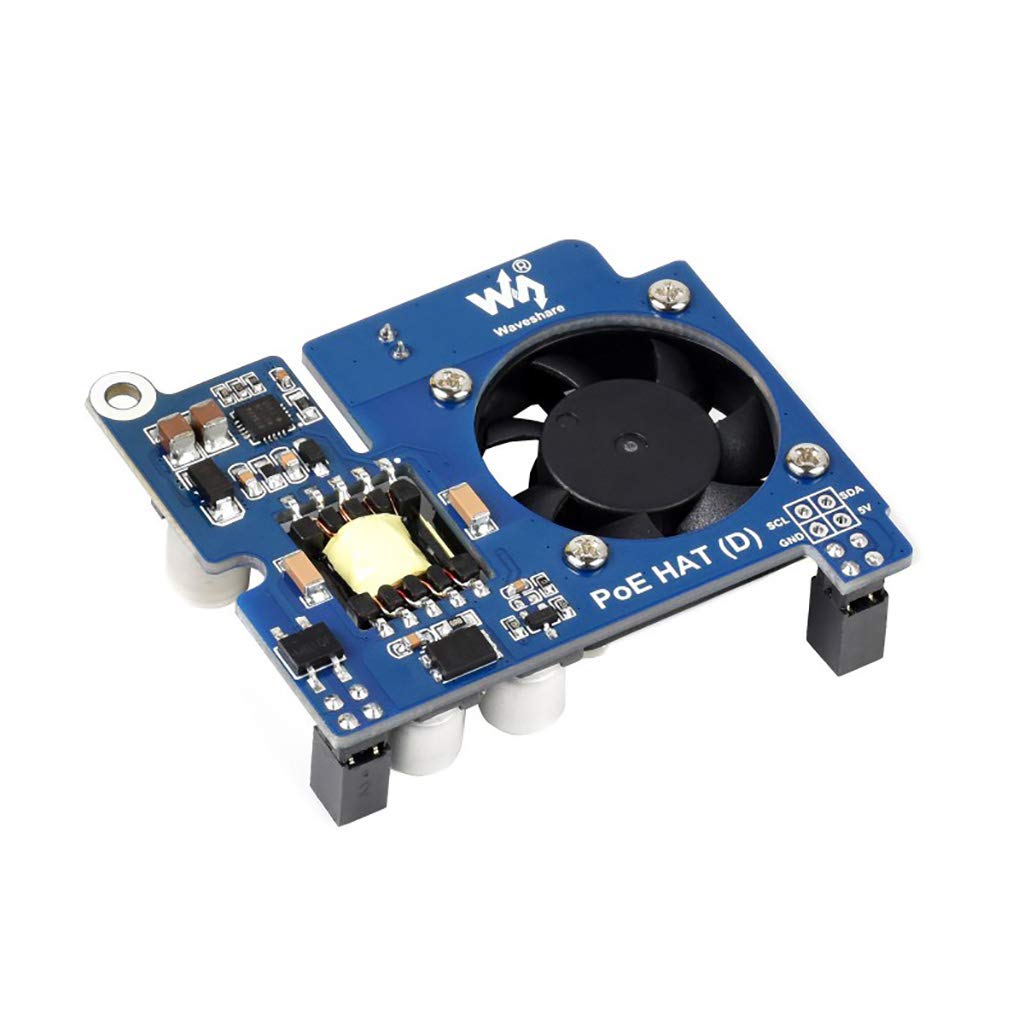

Power Over Ethernet HAT POE Type D For Raspberry Pi 3B+/4B, 802.3af-Compliant, Fit Raspberry Pi Official Case

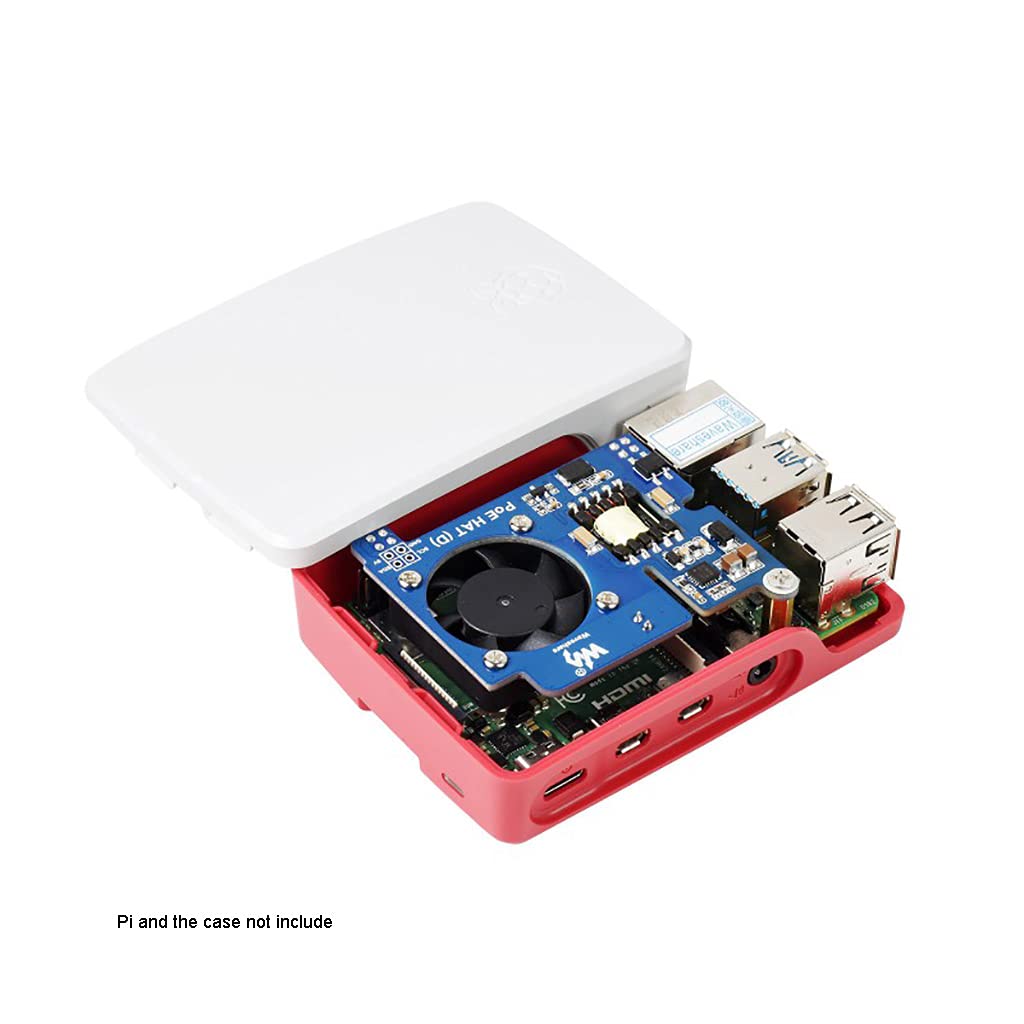

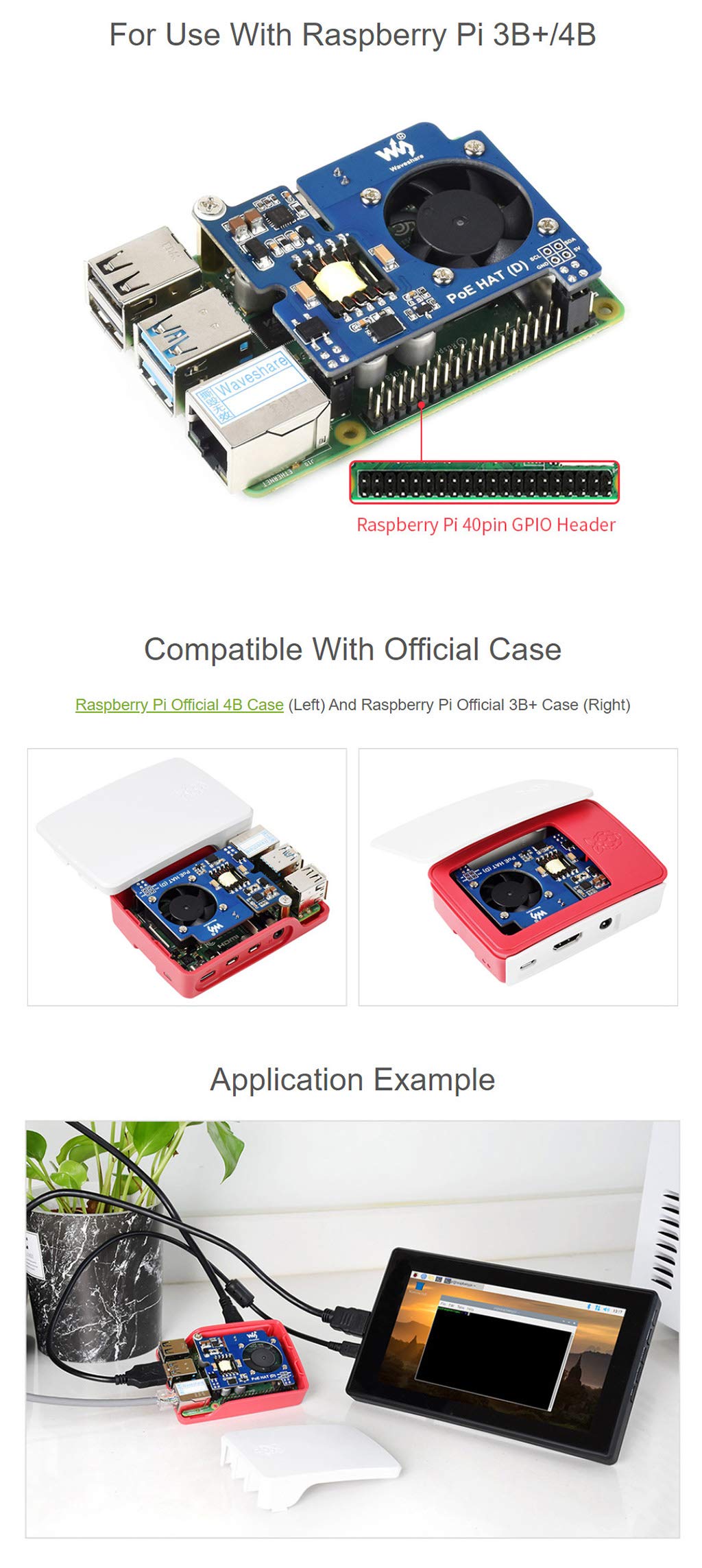

• Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
• PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
• Fully isolated switched-mode power supply (SMPS)
• Onboard high speed active cooling fan, better heat dissipation

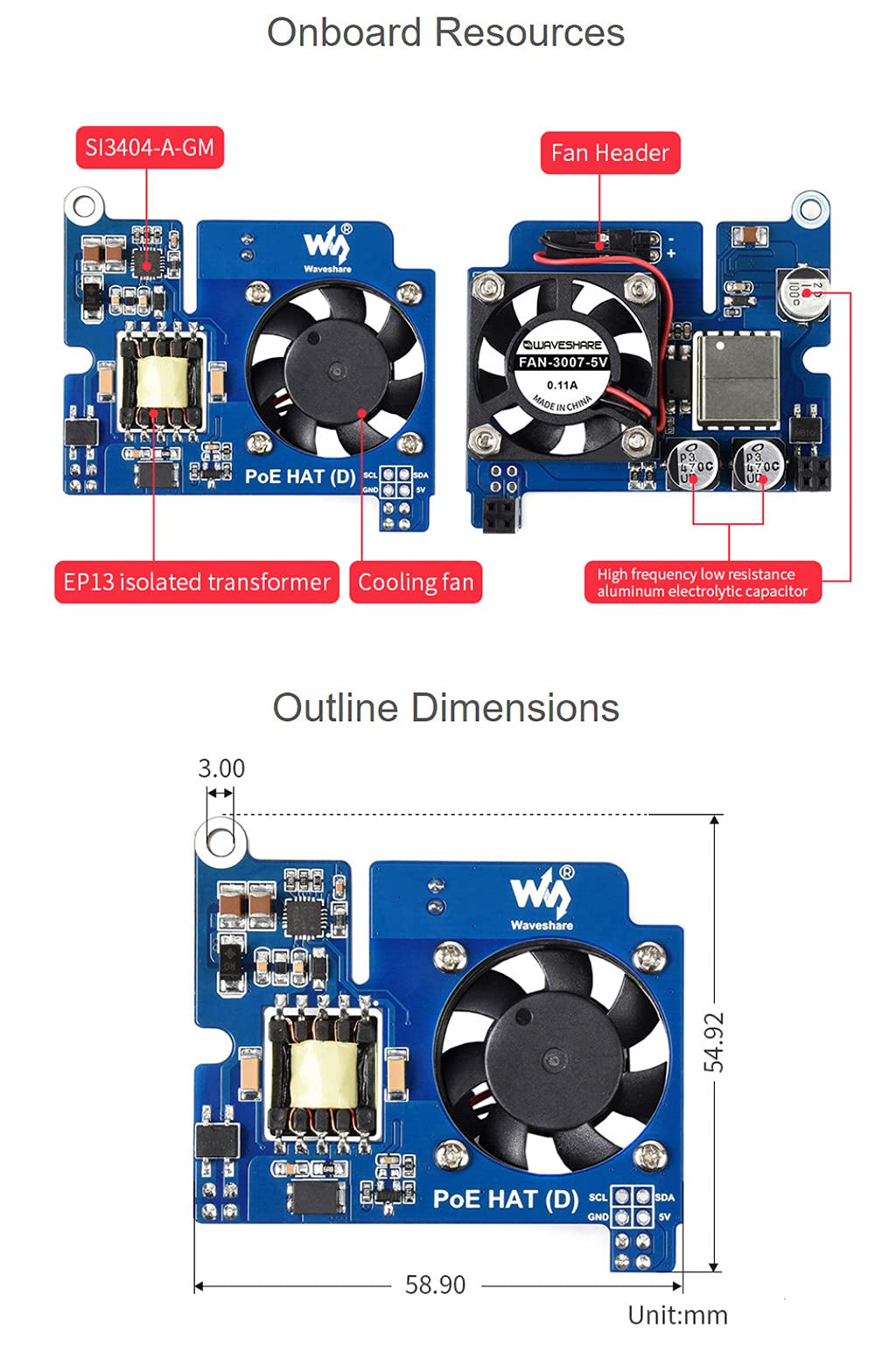

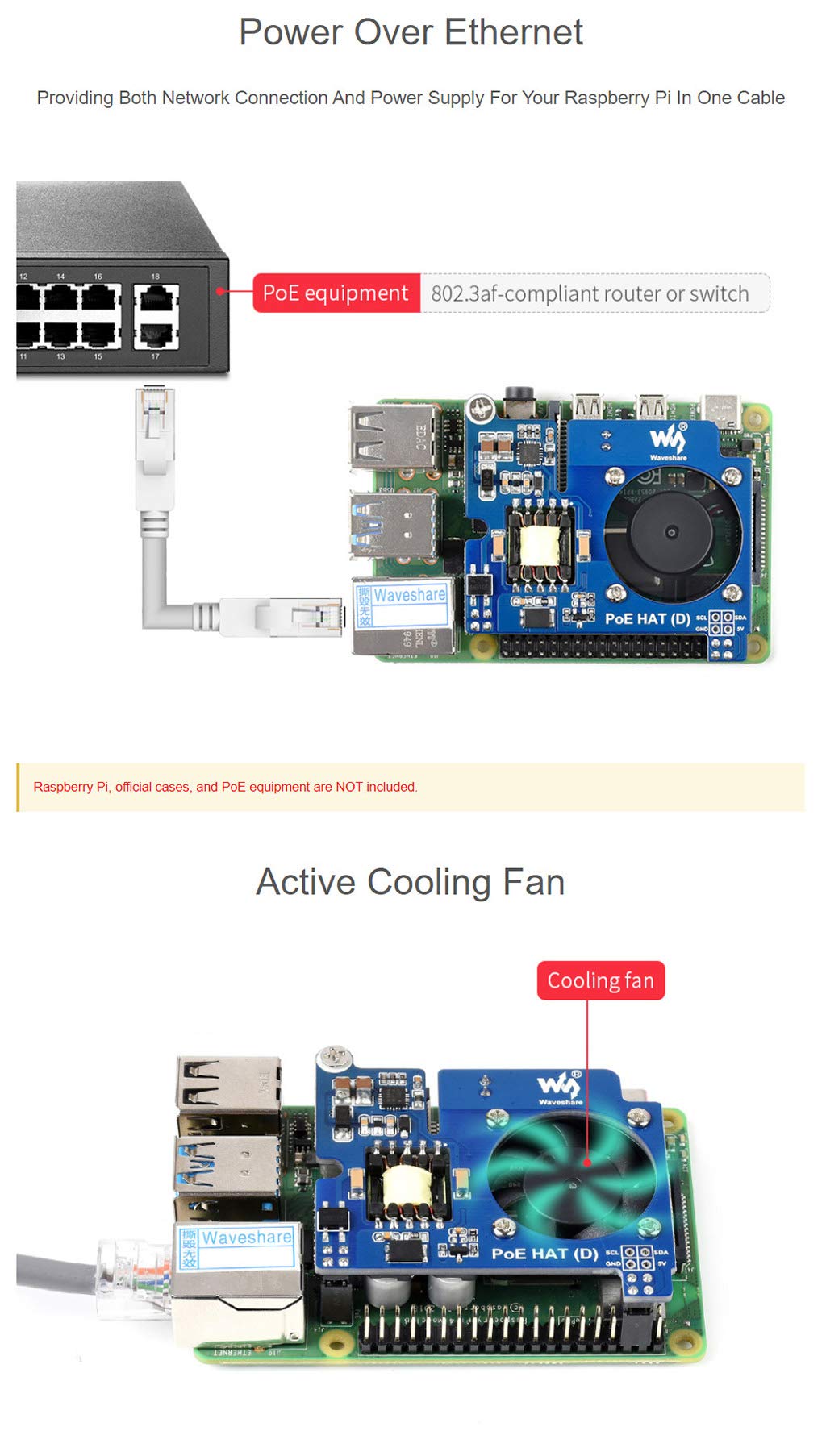

Features The PoE HAT (D) is an 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant Fully isolated switched-mode power supply (SMPS) Onboard high speed active cooling fan, better heat dissipation Resources download: https://www.waveshare.com/wiki/PoE_HAT_(D) Specification POE POWER INPUT: 37V ~ 57V DC in POWER OUTPUT: 5V 2.5A DC out NETWORK STANDARD: IEEE 802.3af PoE DIMENSIONS: 58.90 × 54.92mm Package List 1. PoE HAT (D) x1 2. Standoffs pack x1 Resources download: http://www.waveshare.com/wiki/PoE_HAT_(D)
