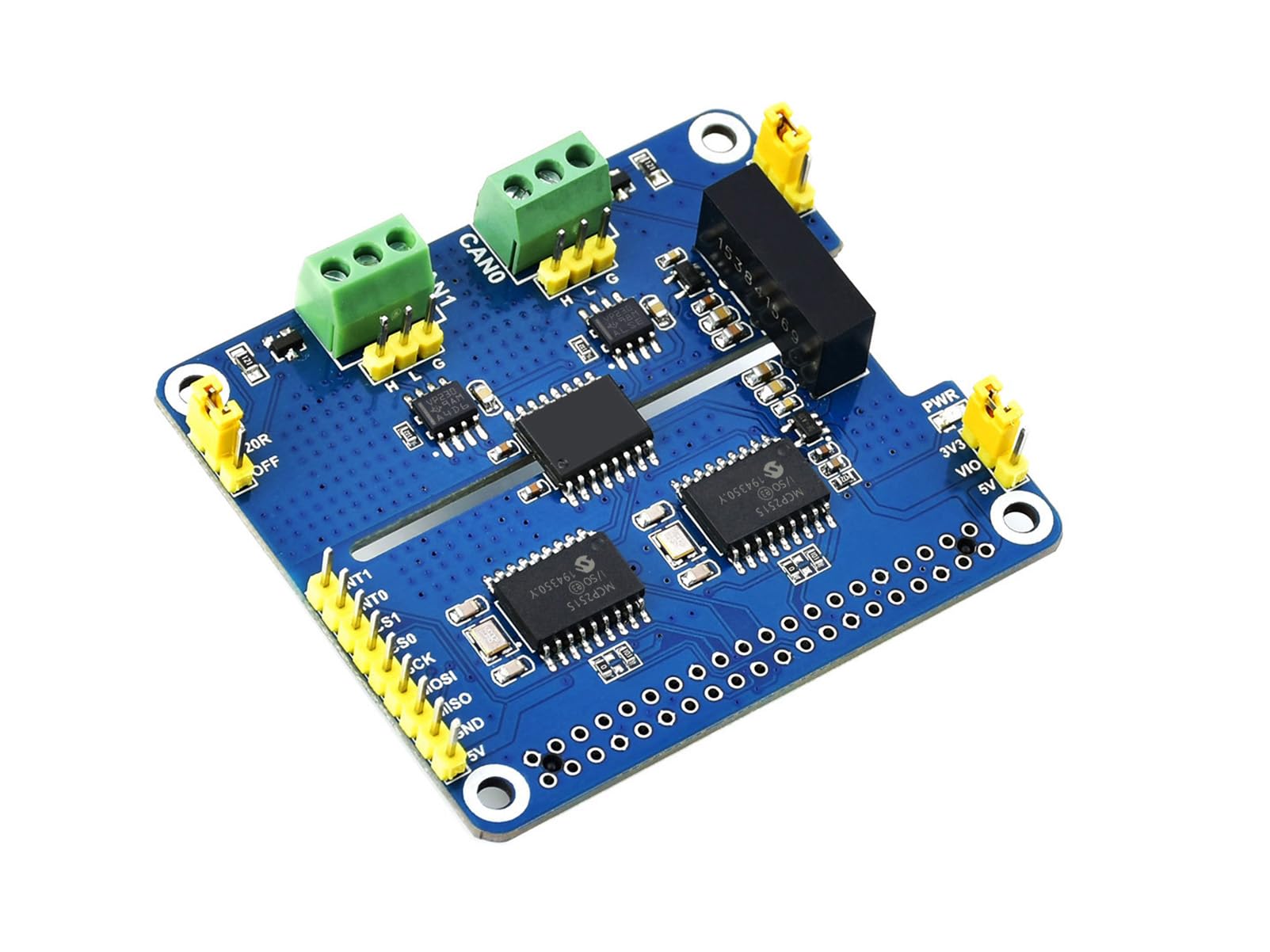

Coolwell 2 Channel CAN HAT Isolated CAN Bus Expansion Board for Raspberry Pi/STM32/Arduino with MCP2515 + SN65HVD230 Dual Chips Solution

• 2-CH CAN HAT for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH 2W, adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
• 2 channel can-bus, integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal

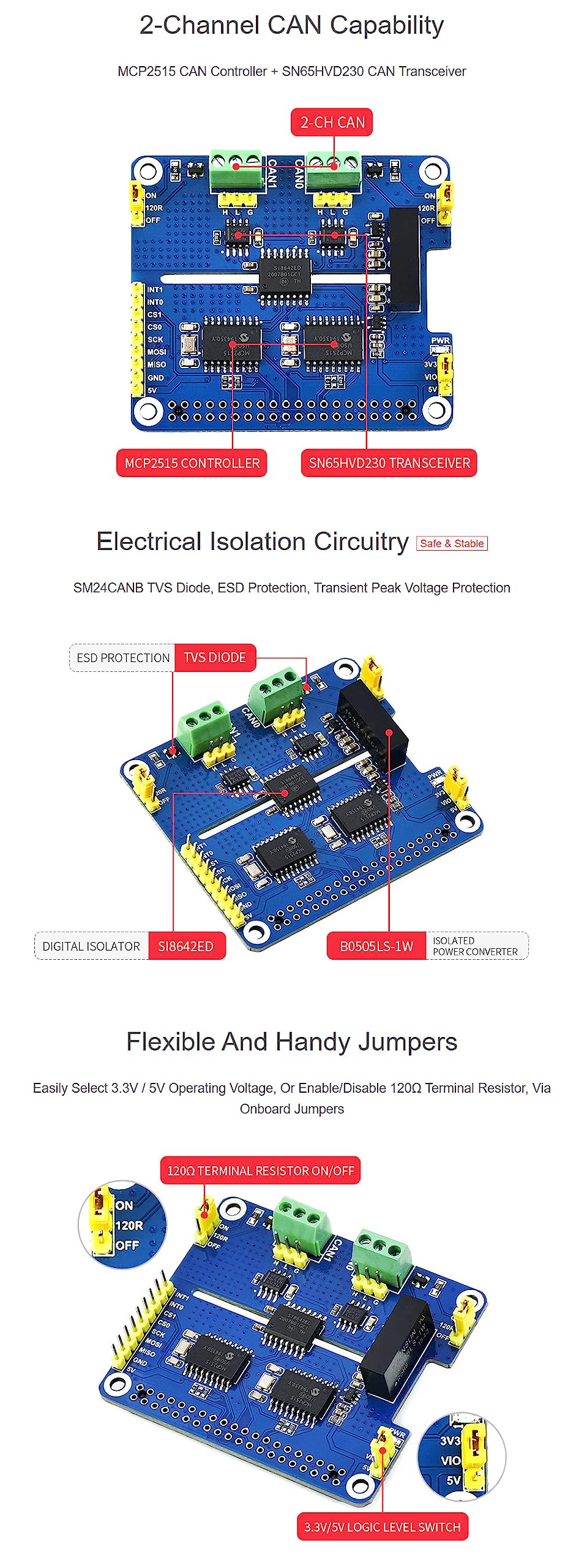

• 2 CH CAN BUS, onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
• Waveshare CAN HAT for Raspberry Pi, onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection

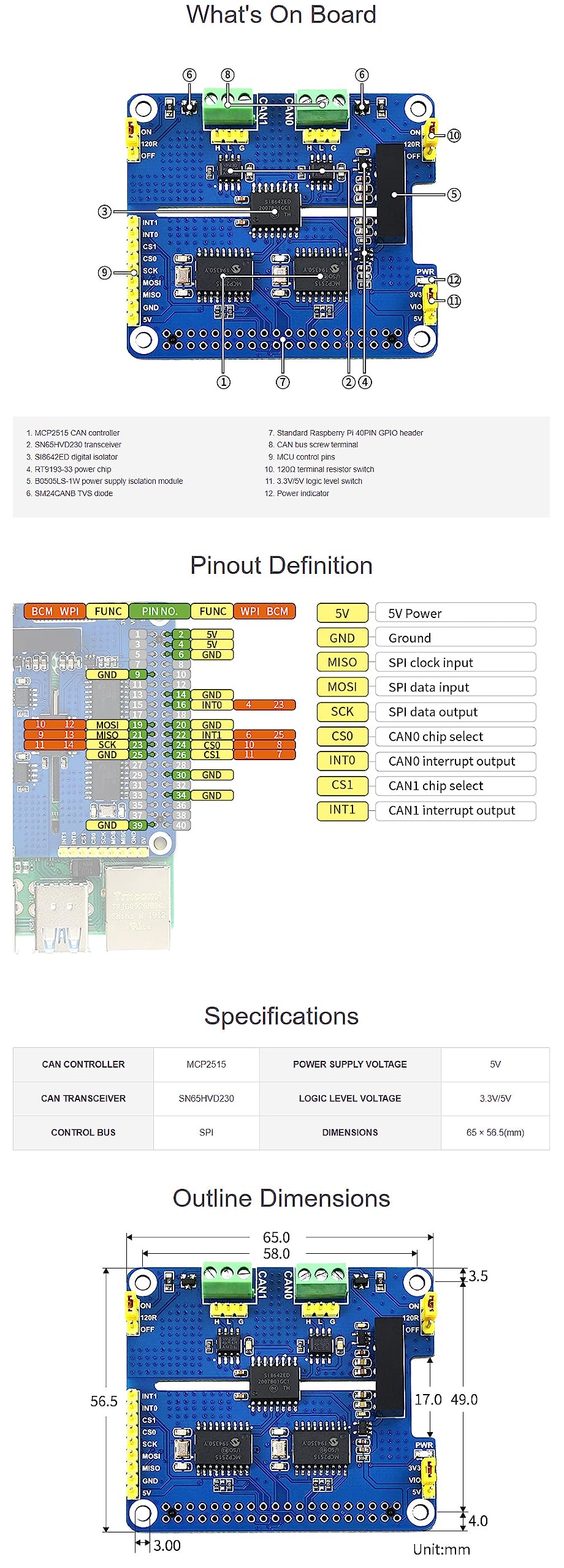

• Breakout SPI control pins, for connecting with STM32/Arduino, feel free to contact us for resources address and technical support

Features: Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection Onboard voltage translator, select 3.3V/5V operating voltage by jumper Onboard 120Ω terminal resistor, configured by jumper. Breakout SPI control pins, for connecting with host control boards like STM32/Arduino Package includes: 1. 2-CH CAN HAT x1 2. RPi screws pack x1 3. 2 x 20-pin female header x 1
