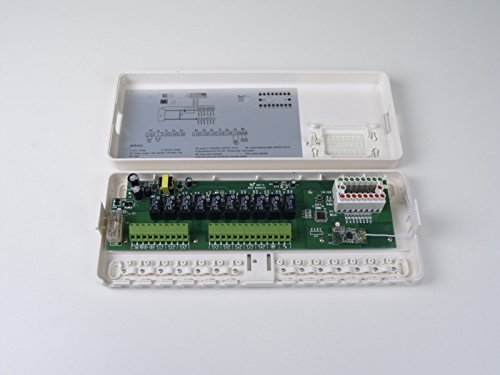

Controller for UNDERFLOOR Heating 8 Zones

• Multi-Zone Control: Manages up to 8 separate heating zones, allowing for precise temperature control in different areas of your home or building.
• Energy Efficiency: Optimizes energy use by heating only the areas that need it, reducing energy consumption and lowering utility bills
• Compatibility: Works with a variety of underfloor heating systems, offering versatility and flexibility in installation.
• LED Display: Equipped with a clear LED display for easy reading and monitoring system status.
• Silent Operation: Operates quietly, maintaining a peaceful and comfortable environment.

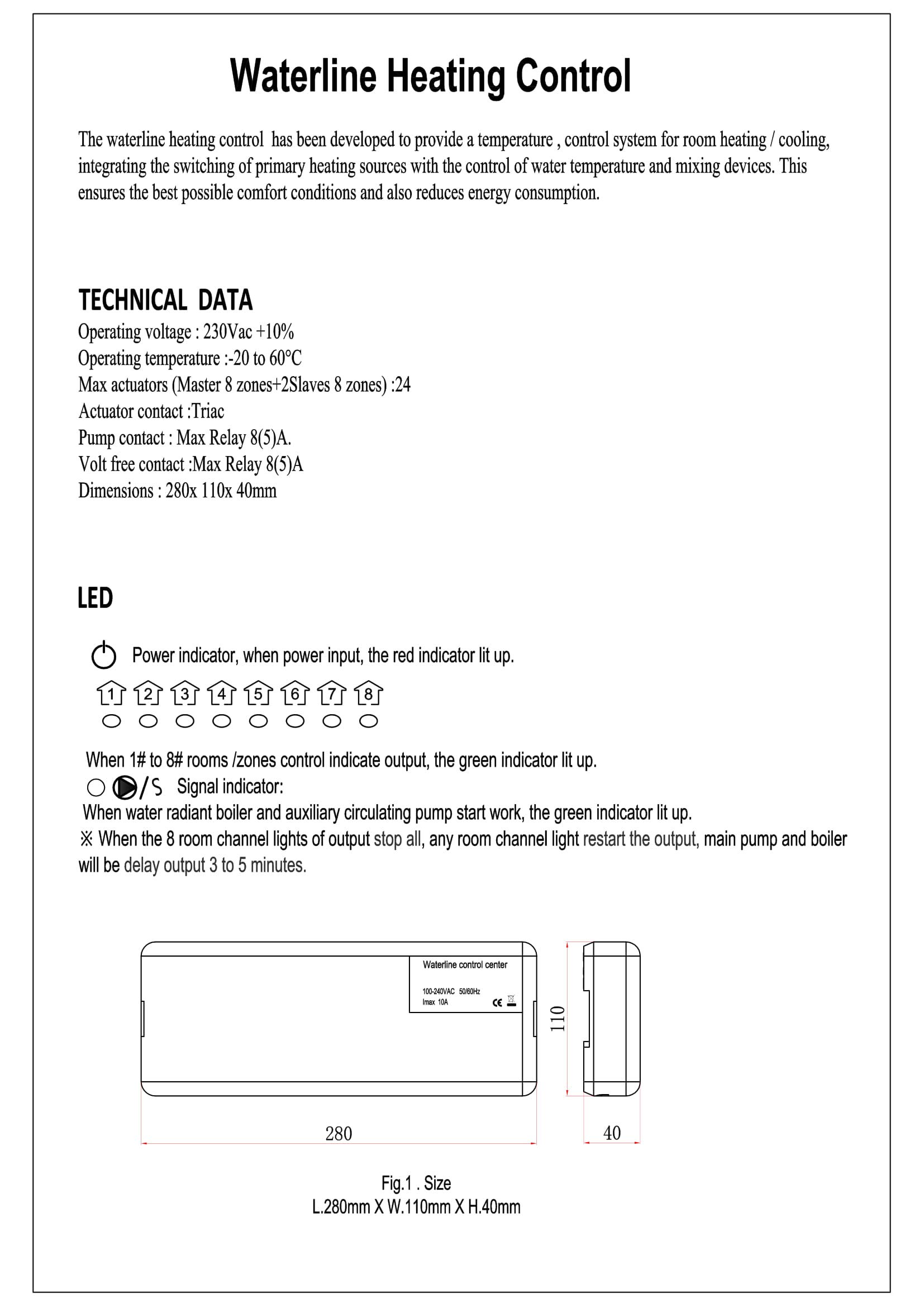

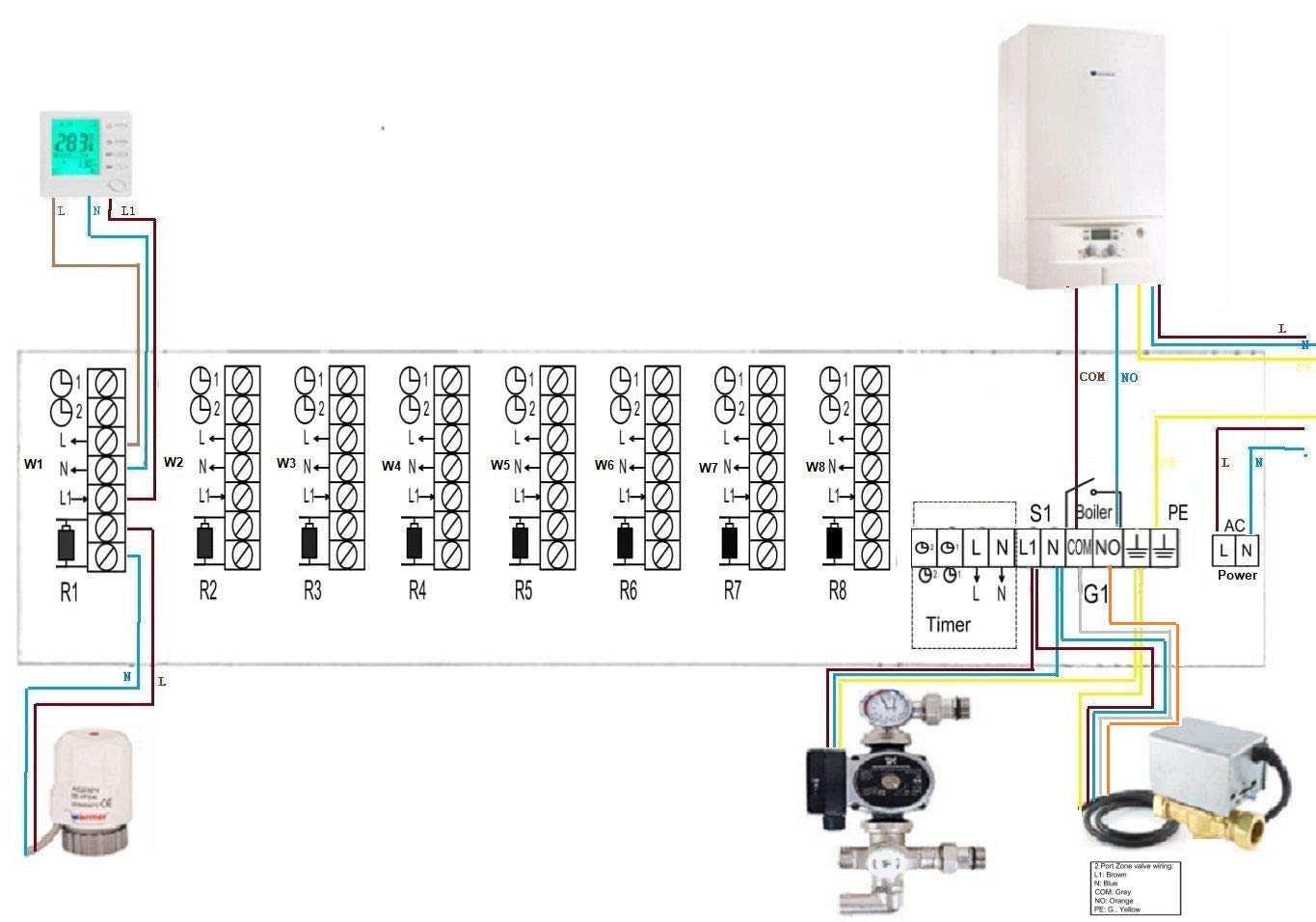

Product description Optimize your heating system with our 8-Zone Underfloor Heating Controller, designed to provide precise control, enhance energy efficiency, and deliver ultimate comfort in every room. Whether you’re managing a home or a commercial space, this controller offers the features and reliability you need for superior underfloor heating performance. Legal Disclaimer Always turn off power at the fused spur before removing the cover. Only a qualified electrician should install this product. All wiring must conform to local/ national building standards and electrical codes. If the system is not operating correctly, re-check the wiring and check the fuse. Use this control centre only as described in this manual. Output indication: WIRING: a) 1-2: Room thermostat time control (please only use 1 zone depending on which timer zone you wish) b) W(1-8): Room thermostat L: Live N: Neutral L1: Switched Live e) R1-R8 : Actuator Live and Neutral f) S1: Hot water circulating pump 240VAC,8(5)A output g) G1: volt-free output for the boiler (<8A), h) PE: Earth i) AC: Power supply 240VAC,50/60Hz J) Timer: L: Live N: Neutral 1-Timer Zone 1 2: Timer Zone 2 2. LED (1) Power indicator. (2) : Zone Indicators, when lit that zone is currently calling for heat. (3) Signal indicator: Boiler and pump indicator: when lit the pump and boiler relays are closed.
