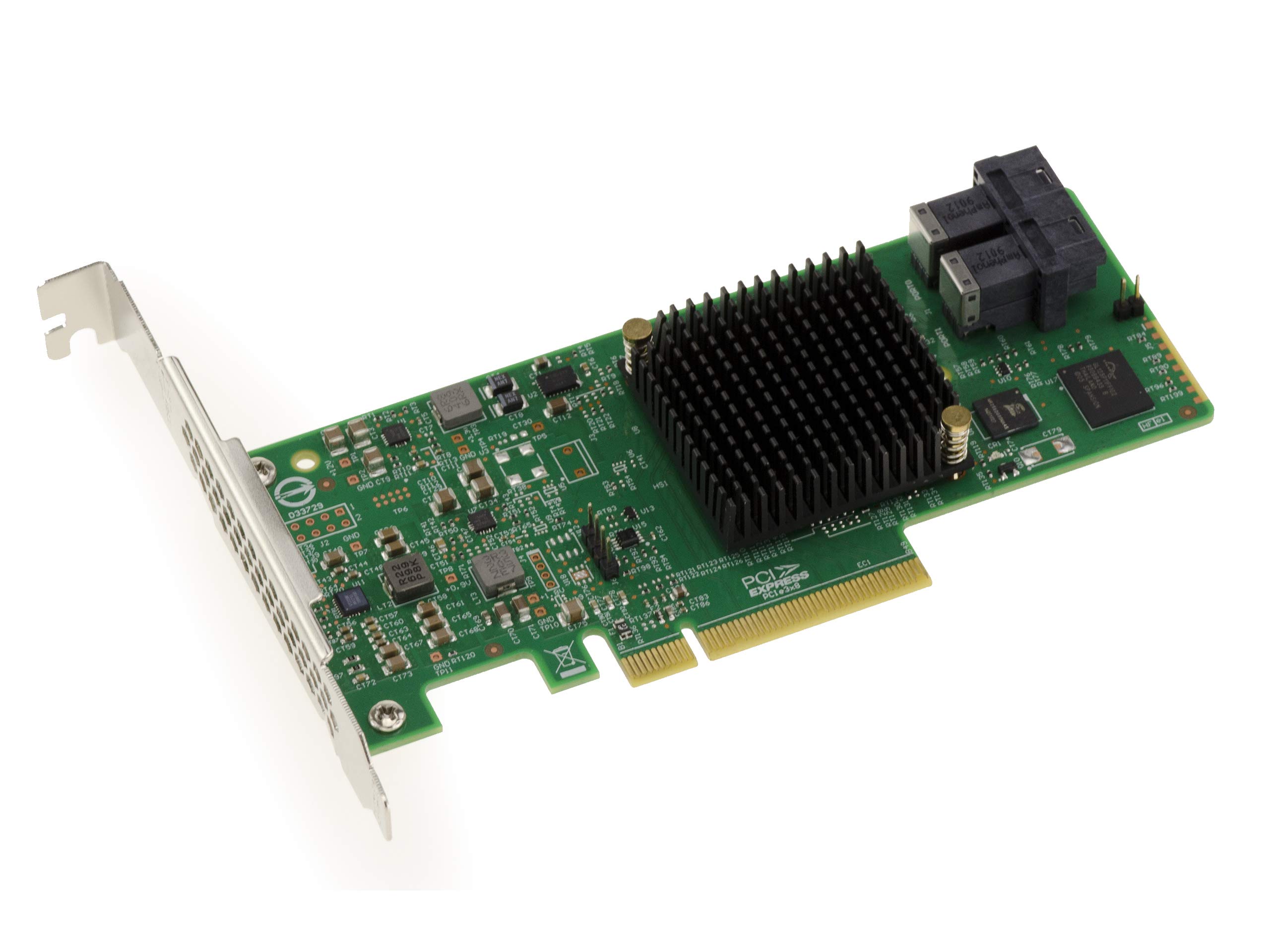

KALEA-INFORMATIQUE 12GB 8-port internal PCIe 3.0 SAS controller card with Raid 0 1 1E 10. OEM Model 9311-8i, High and Low Profile

• 3008 Fusion MPT 2.5 SAS controller. 8 internal ports via 2 SFF8643 Mini SAS HD connectors, each supporting 4 drives. 12Gb/s SAS 3.0 compatible data transfer rate.

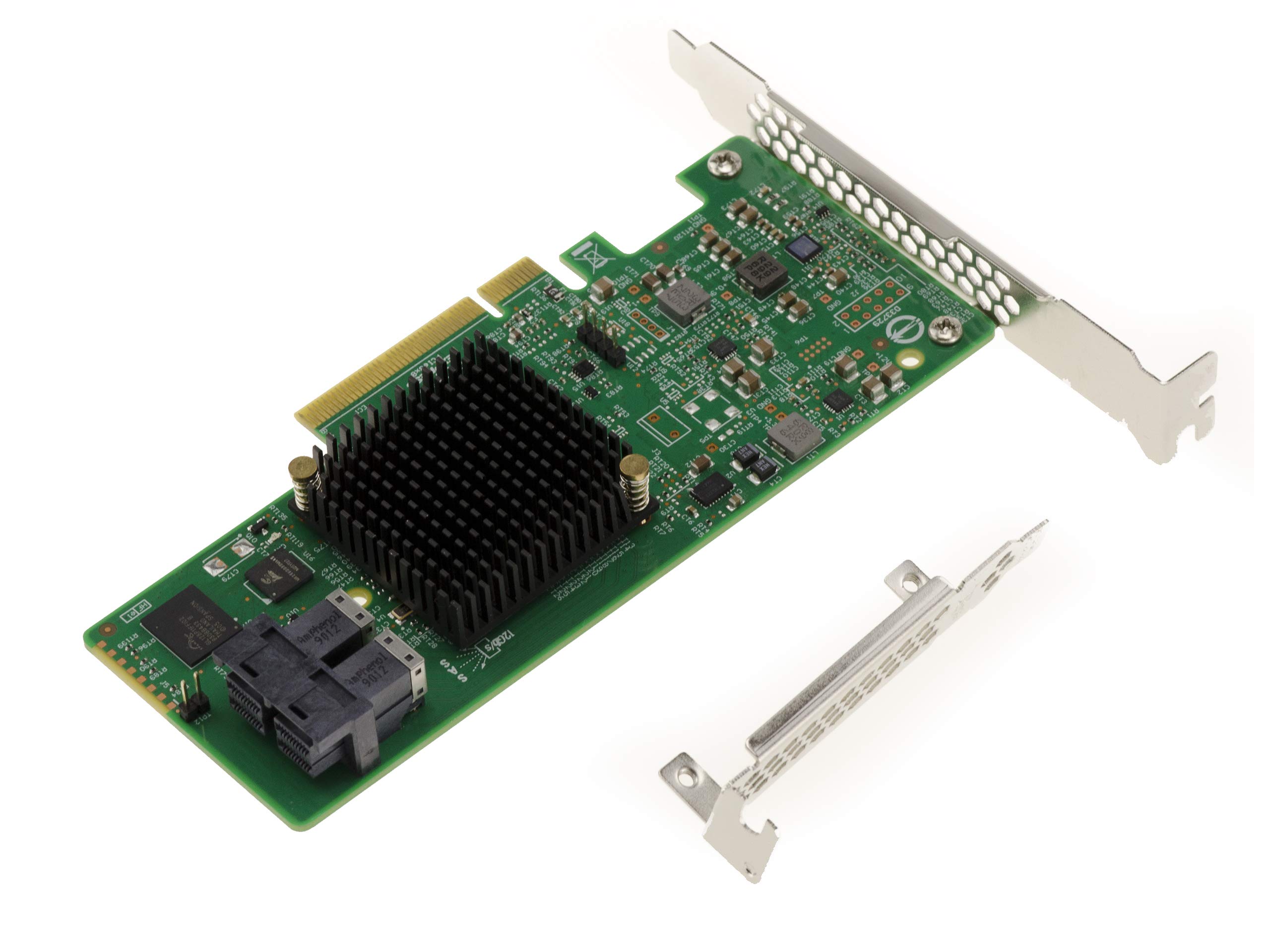

• SAS half-duplex bandwidth, x8 bus, 9600 MB/s. PCIe 3.0 bus, x8. PCIe port transfer rate 8000MB/s (Half Duplex x8, PCIe 3.0). Form factor: Low Profile, supplied with Low and High Profile brackets.
• Integrated RAID including the following functions: Mirroring (RAID 1) / Mirroring + Striping (RAID 10) / Mirroring Enhanced solution (RAID 1E) / Striping (RAID 0).
• Certifications: EMC Class B-US (CFR 47, P15B); Canada (ICES-00); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE.
• Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD.

Supplied in "OEM" version, i.e. delivered in a neutral box and with drivers to be downloaded from the LSI website (www.broadcom.com). Main benefits: Compact form factor, PCIe 3.0 8x for high bandwidth,Exceptional RAID performance, High performance with transfer rates of 12GB/s, Fusion-MPT? architecture, Superb performance, Small form factor, Small form factor, PCIe 3.0 8x for high bandwidth, Exceptional RAID performance, High performance with transfer rates of 12GB/s, Fusion-MPT? architecture. General features: 3008 Fusion MPT 2.5 SAS controller. 8 internal ports via 2 SFF8643 Mini SAS HD connectors, each supporting 4 drives. 12Gb/s SAS 3. 0. SAS half-duplex bandwidth, x8 bus, 9600 MB/s. PCIe 3.0 x8 bus. PCIe port transfer rate 8000MB/s (half-duplex x8, PCIe 3.0). Form factor: Low Profile, supplied with Low and High Profile brackets. Support for Passive Copper connectors. Operating voltage +12V +/-8% 3.3V +/-9%. Consumption 13W. Environment: operating 0°C to 55°C, Storage -45°C to 105°C, RH 5 to 90%. Lifetime in excess of 2,800,000 hours. RAID features: Integrated RAID including the following functions: Mirroring (RAID 1) / Mirroring + Striping (RAID 10) / Mirroring Enhanced solution (RAID 1E) / Striping (RAID 0). 14 spreads on two volumes RAID 0: 10 / Volume, RAID 1: 2 / Volume, with Hot Spare, RAID 1E: 10 / Volume, RAID 10: 10 / Volume, Certifications: EMC Class B-US (CFR 47, P15B) Canada (ICES-00) Japan (V-3/02. 04) Europe (EN55022/EN55024) Australia/New Zealand (AS/NZS 3548) Korea (N-B 2-0001-404) Safety: EN60950 RoHS WEEE. Support : Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD.
