COMeap PCIe 8 Pin Male to CPU 8 Pin (4+4 Detachable) Male EPS-12V Motherboard Power Adapter Cable for Seasonic Modular Power Supply 25-inch(63cm)

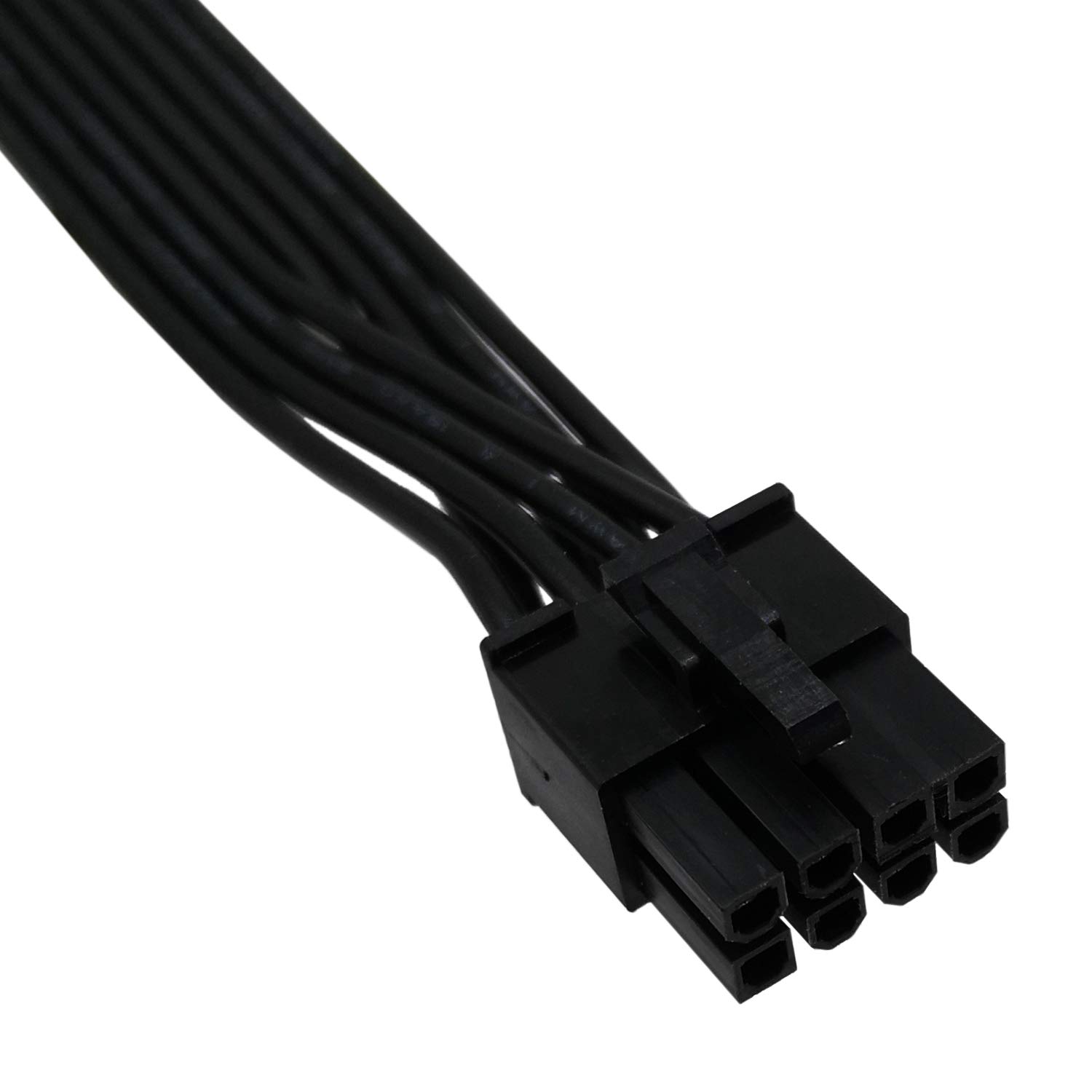

• 『PCIe 8P - CPU 8P(4+4)』PCIe 8 pin male end to plug into the power connector of power supply(NOTE: 8 pin male connector is PCIe 8 pin, not ATX 8 pin.), CPU 8 pin (4+4) male end to plug into the Motherboard.(NOTE: the 8 pin end and 4+4 pin male ends cannot be used interchangeably);

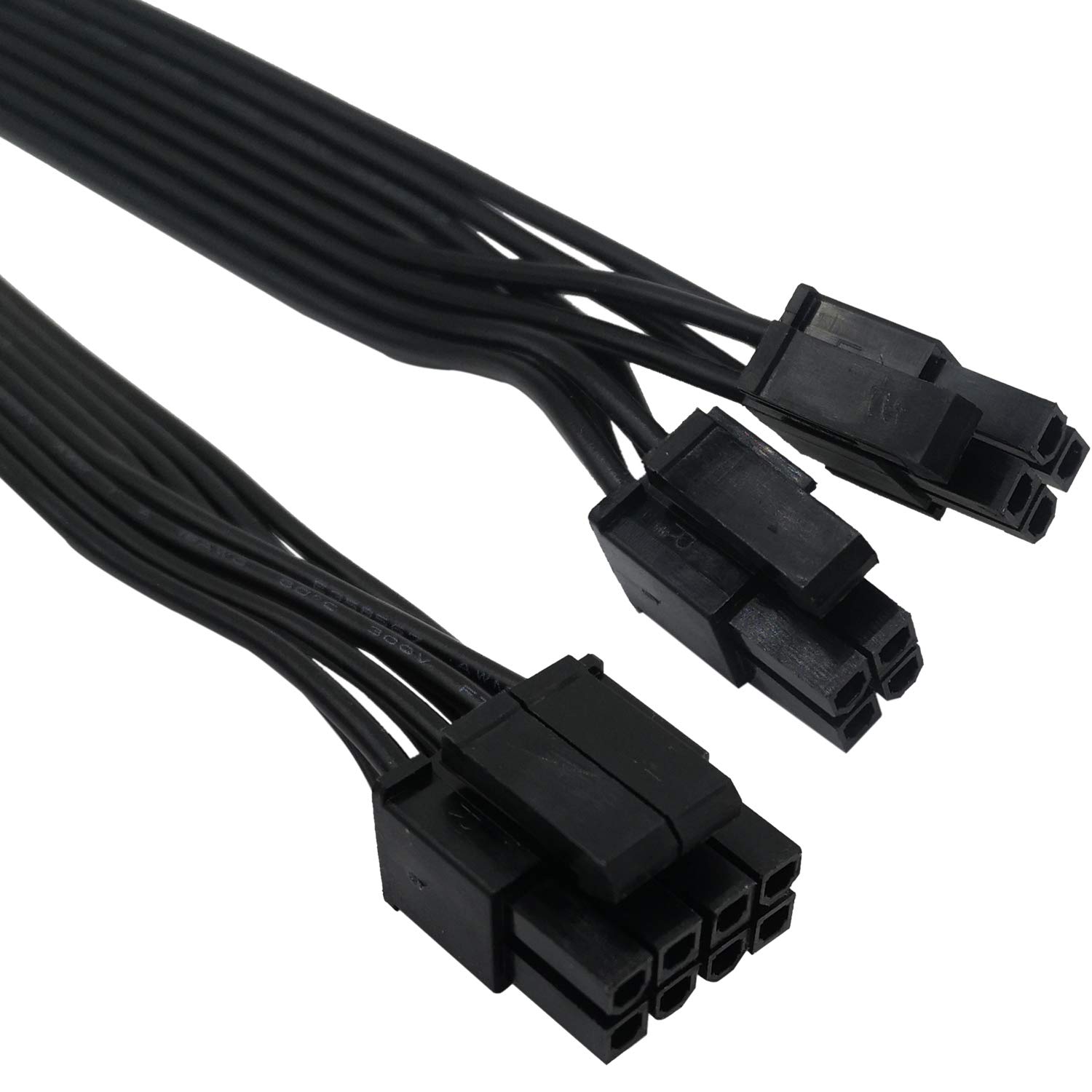

• 『Only designed for motherboards, it doesn't work with graphics vedio cards』Compatible with motherboard with ATX 4 pin or 8 pin port(Detachable CPU 8 pin(4+4) end could be used as EPS ATX 8 pin or P4 ATX 4 pin by sliding on/off the 4 pin.);
• 『Compatibility』Compatible with Seasonic fully modular power supply such as: P520 Fanless / X650 KM3/X750 KM3/X850 KM3 / Snow Silent 1050/Snow Silent 750 / SS XP3 1200 / Platinum 1200 XP2/Platinum 1050 XP2/Platinum 860 XP2/Platinum 760 XP2/Platinum 660 XP2 / Platinum 400/Platinum 460 / XM2 1250/XM2 1050 / M12ii 850 EVO/M12ii 750 EVO/M12ii 650 EVO/M12ii 520 EVO SSR-550FX/650FX/750FX/850FX/1000FX;

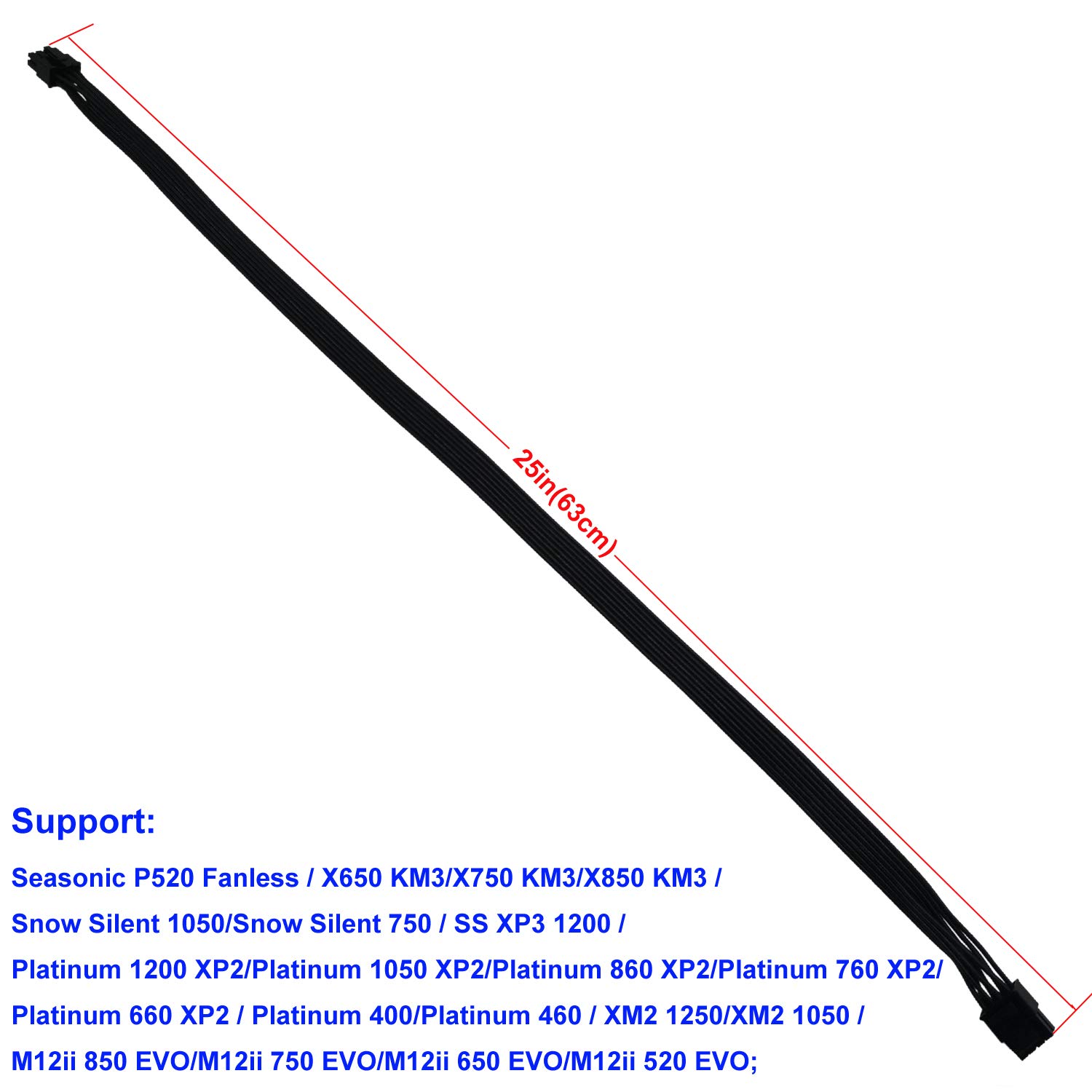

• 『Parameter』Gauge: 1007-18AWG(standard tin-coating copper wire), Length(including connectors): 25-inch(63cm), Quantity: 1pcs, Self-adhesive tape*1pcs, (NOTE: Do not work with GPU/VGA.);
• 『Note』It was only designed for some types of Seasonic PSUs as listed. If you use other incompatible brand PSUs or types, it will definitely burn or damage the motherboard and we won’t take any responsibility for wrongly using or installing. Please carefully check the compatible types or contact us if you are not sure if it supports your power supply;

Features: The COMeap PCIe 8 Pin Male to CPU 8 Pin (4+4 Detachable) Male cable is to provide a convenient solution for extending the connection from power supply to motherboard; Support: Seasonic modular power supply such as: P520 Fanless / X650 KM3/X750 KM3/X850 KM3 / Snow Silent 1050/Snow Silent 750 / SS XP3 1200 / Platinum 1200 XP2/Platinum 1050 XP2/Platinum 860 XP2/Platinum 760 XP2/Platinum 660 XP2 / Platinum 400/Platinum 460 / XM2 1250/XM2 1050 / M12ii 850 EVO/M12ii 750 EVO/M12ii 650 EVO/M12ii 520 EVO; Specification: Length(including connectors): 25-inch(63cm); Connectors: 1x PCIe 8 pin male, 1x CPU 8 pin (4+4) male; Gauge: 1007-18AWG(standard tin-coating copper wire); Quantity: 1pcs; Self-adhesive tape*1pcs; Note: 1. The 8 pin male connector is PCIe 8 pin, not ATX 8 pin, which was designed for Seasonic PSUs; 2. Do not work with GPU.
