Coaxial Crimping Tool and 10Set SMA Male to Female for Crimping RG174 RG316 SMA Antenna Cable

• 1. 10 x SMA Male and Female Crimping Pliers 1 x Coaxial Pliers for Mounting and Crimping Plugs with Antenna Cable

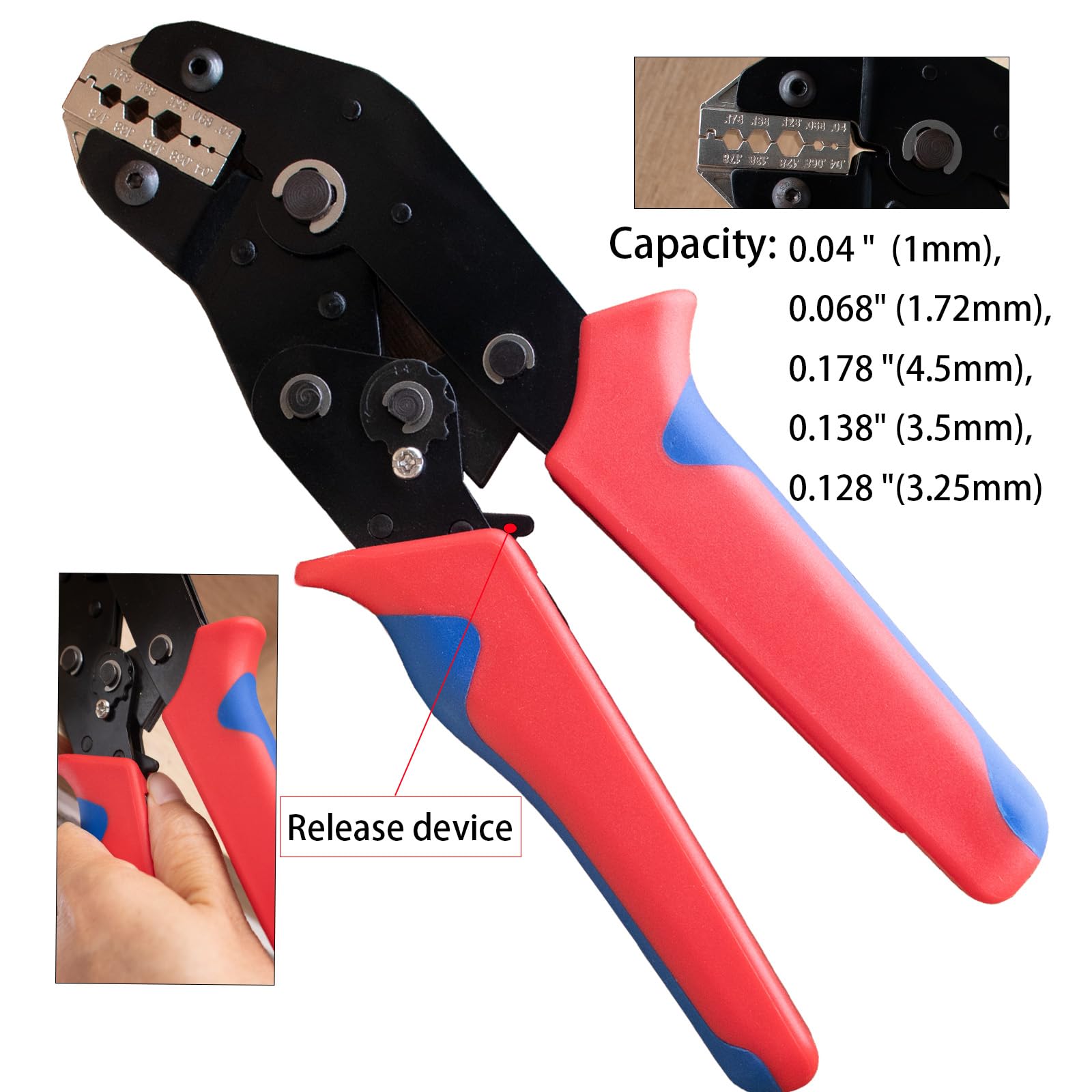

• 2. Crimp plugs in a hexagonal diameter of 1.0mm, 1.72mm, 4.5mm, 3.5mm, 3.25mm, 3.25mm, 3.25mm cable capacity, SMA center pin and precise outer sleeve in the RG174/RG316 crimp cable.

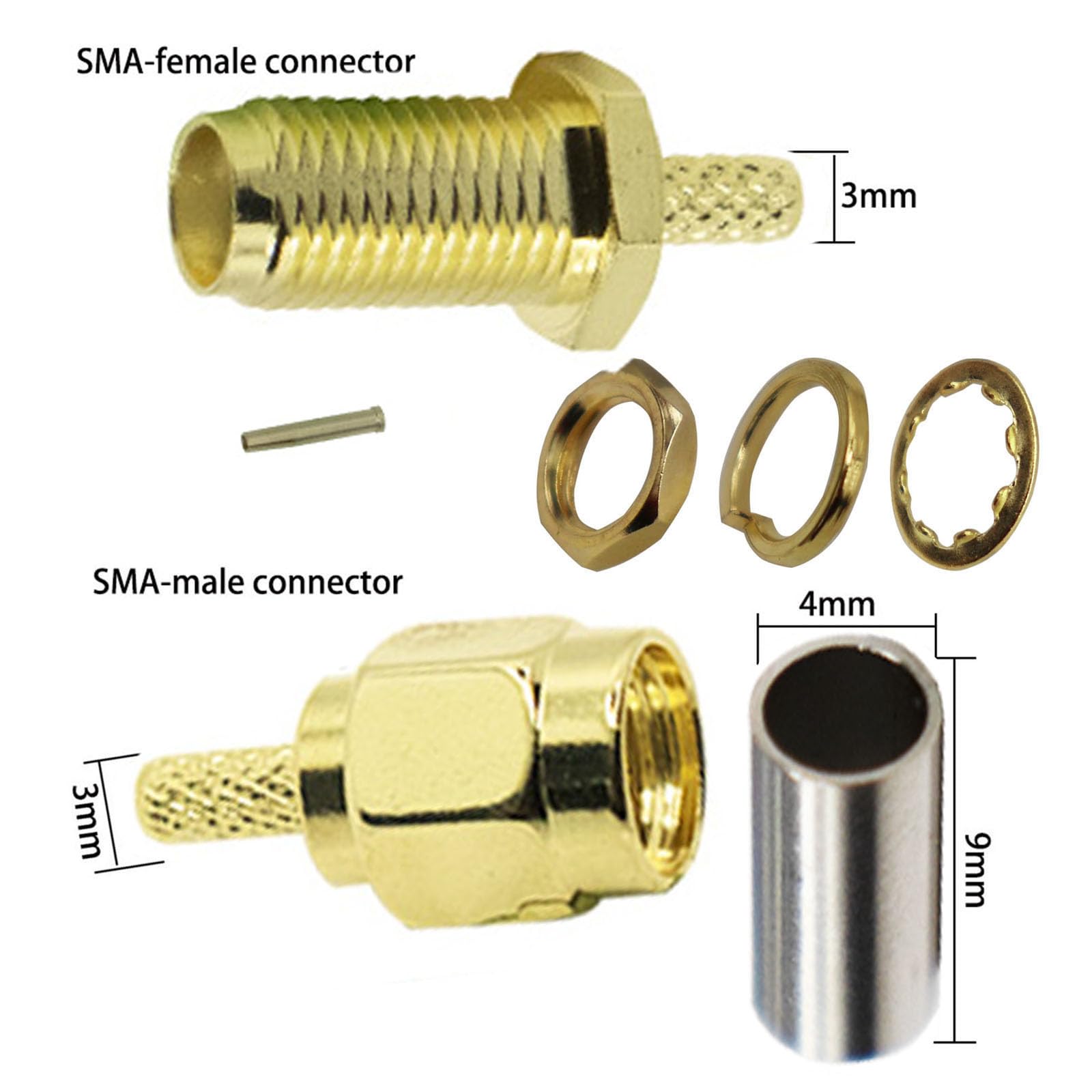

• 3. 10 Pack SMA Male and SMA Female Crimp Adapter, Impedance: 50 Ohm, Suitable for RG174 RG316 RG188 and similar coaxial cable.
• 4. The SMA Crimp Kit allows you to create SMA extension cables to connect antennas, routers and amplifiers to SMA devices using the corresponding antenna connectors.

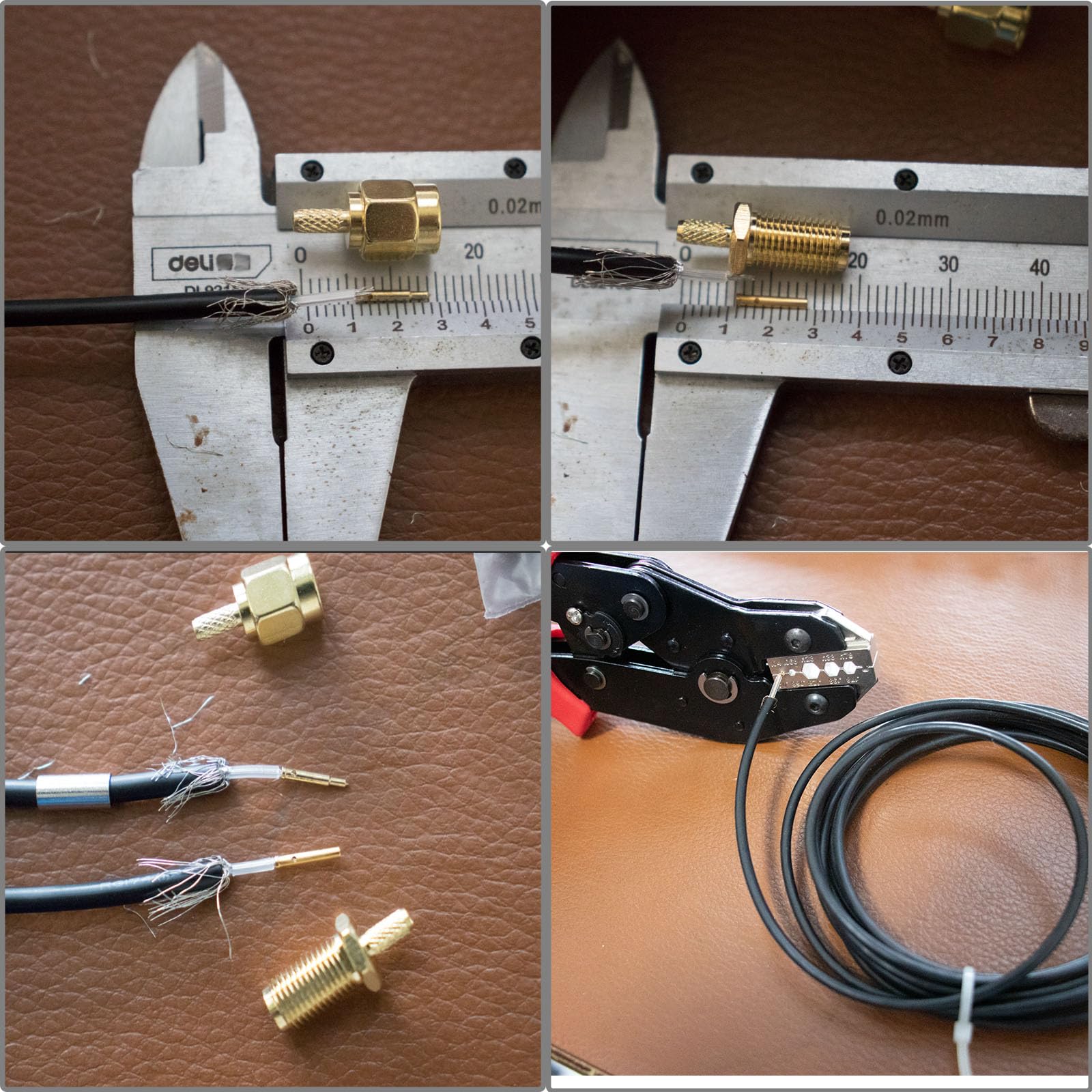

• 5. Entfernen Sie etwa 12mm der Isolierung vom Kabel und legen Sie einen 4mm-Kerndraht frei.Stecken Sie den Stift in den freigelegten Kerndraht und crimpen oder löten Sie sie zusammen. (Note: If the diameter of the center wire is not thick enough, it is not possible to crimp it. Attach the SMA connector to the cable and tighten the outer shell.

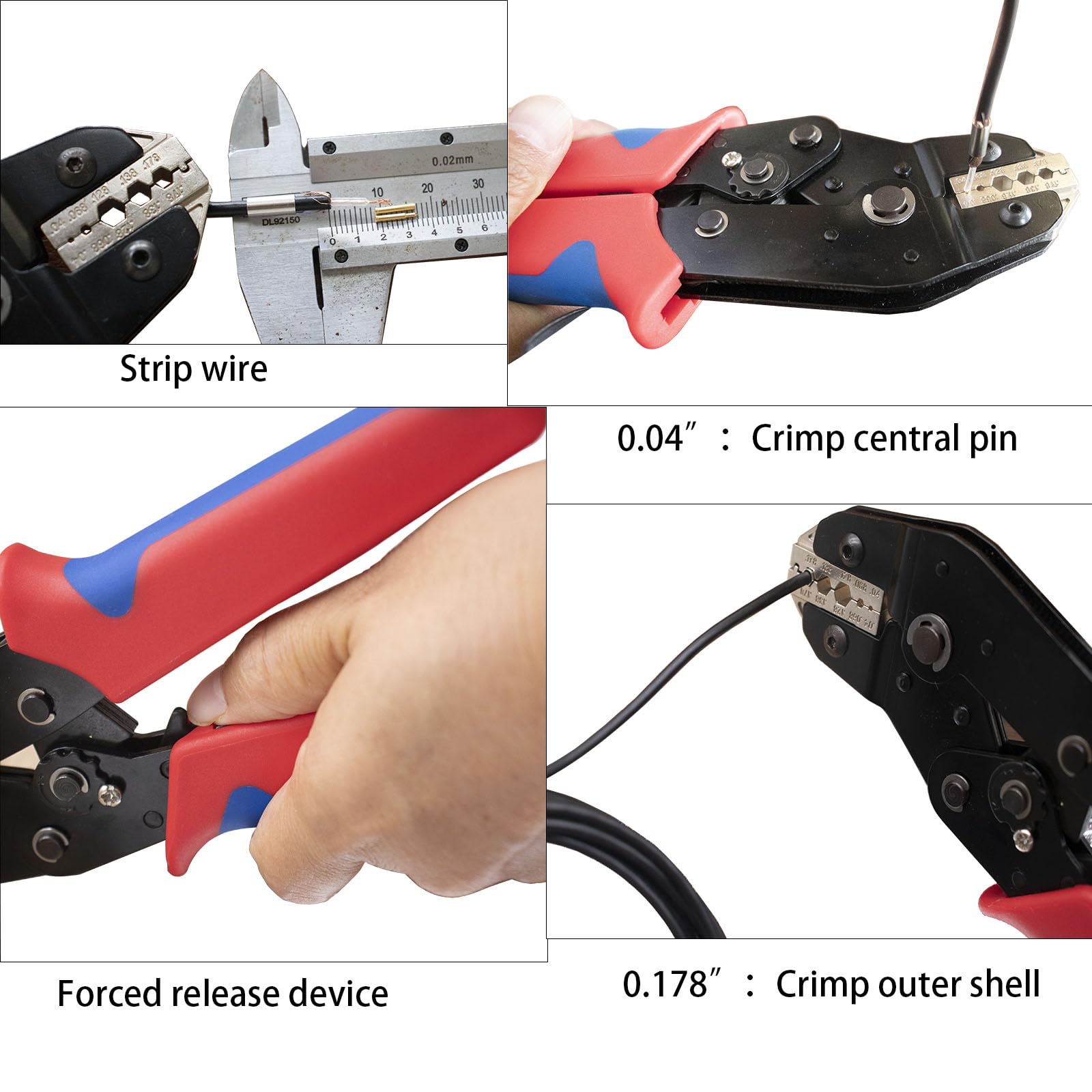

Package: 10 x SMA connectors. 10 x SMA sockets. 1 x crimping tool. SMA male + female Impedance: 50 ohm (Ω). Plug Housing Style: Straight Housing material: brass. Inner conductor material: brass. Outer sheath: gold. Cable Type: RG174 / RG316 / RG188 / LMR Coaxial Cable SMA Crimping Pliers: 1. Case material: high carbon steel, strong and durable. 2. Material die: alloy, more accurate. 3. Colour: red. 4. Shrink specifications: - 0.04 inches (1.0 mm). - 0.068 inches (1.72 mm). - 0.178 inches (4.5 mm). - 0.138 inches (3.5 mm). - 0.128 inches (3.25 mm). Instructions for crimping SMA connectors: 1. Insulate the cable approx. 12 mm and expose a 4 mm thick core wire. 2. Insert the pin into the exposed core wire and crimp or solder them together 3. Insert the SMA connector into the cable and crimp the outer sheath
