Kagni Coaxial Cable Crimping Pliers, Blue, with 10x RP-SMA Male, 10x RP-SMA Female Connectors & SMA Crimping Tool for RG174, RG316 Wifi Antenna Extension Cable

• 1. Reverse polarity SMA male connectors, made from goldplated brass,50 Ohm,straight, solder/crimp,10pcs.

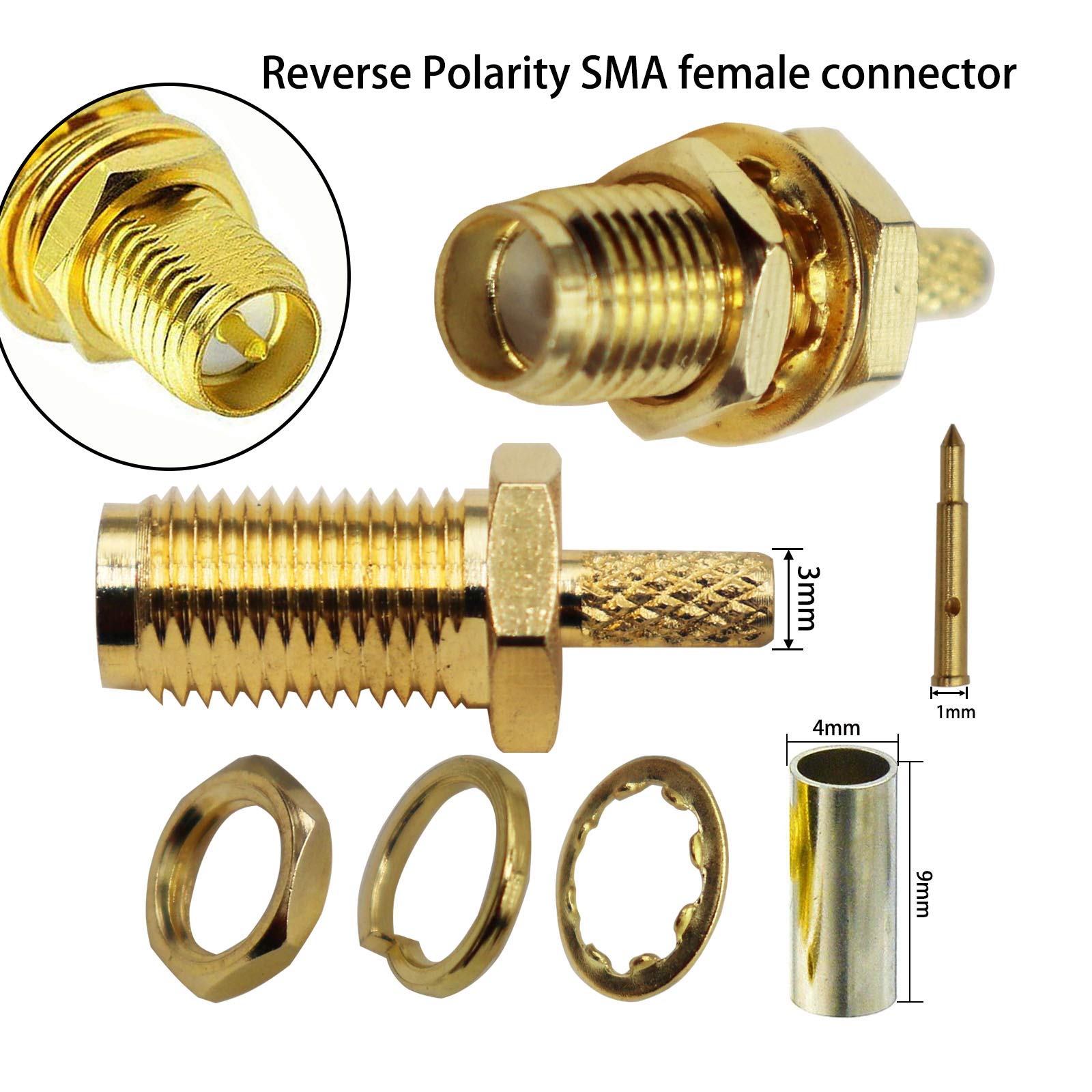

• 2. Reverse polarity SMA female connectors,made from goldplated brass,50 Ohm,straight, solder/crimp,10pcs.
• 3. For cable type RG174, RG 188, RG316, etc.use this SMA crimp tool and RP SMA adapters to make your expected RP-SMA extension cable on WLAN devices, GPS antennas or in the automotive sector.

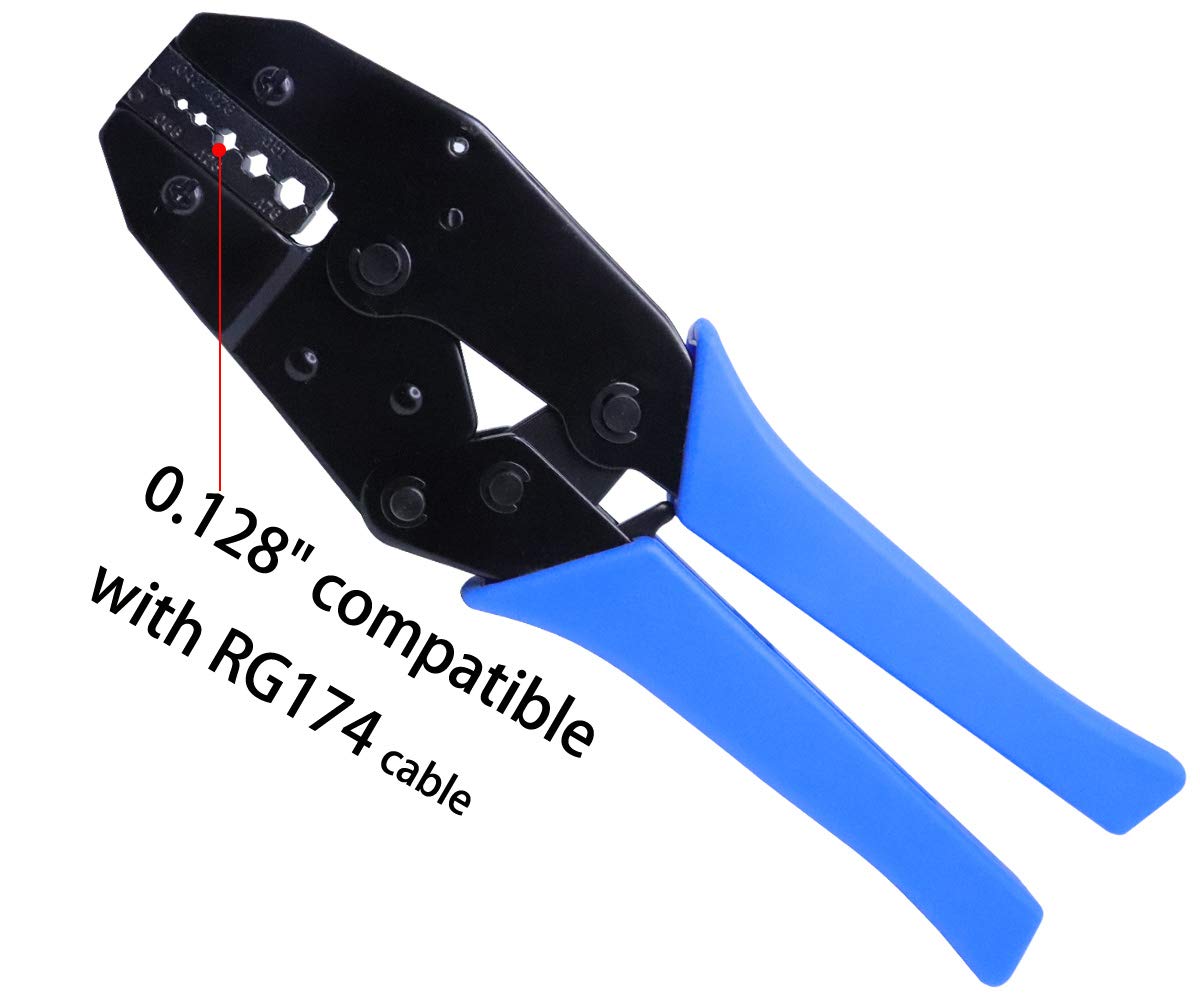

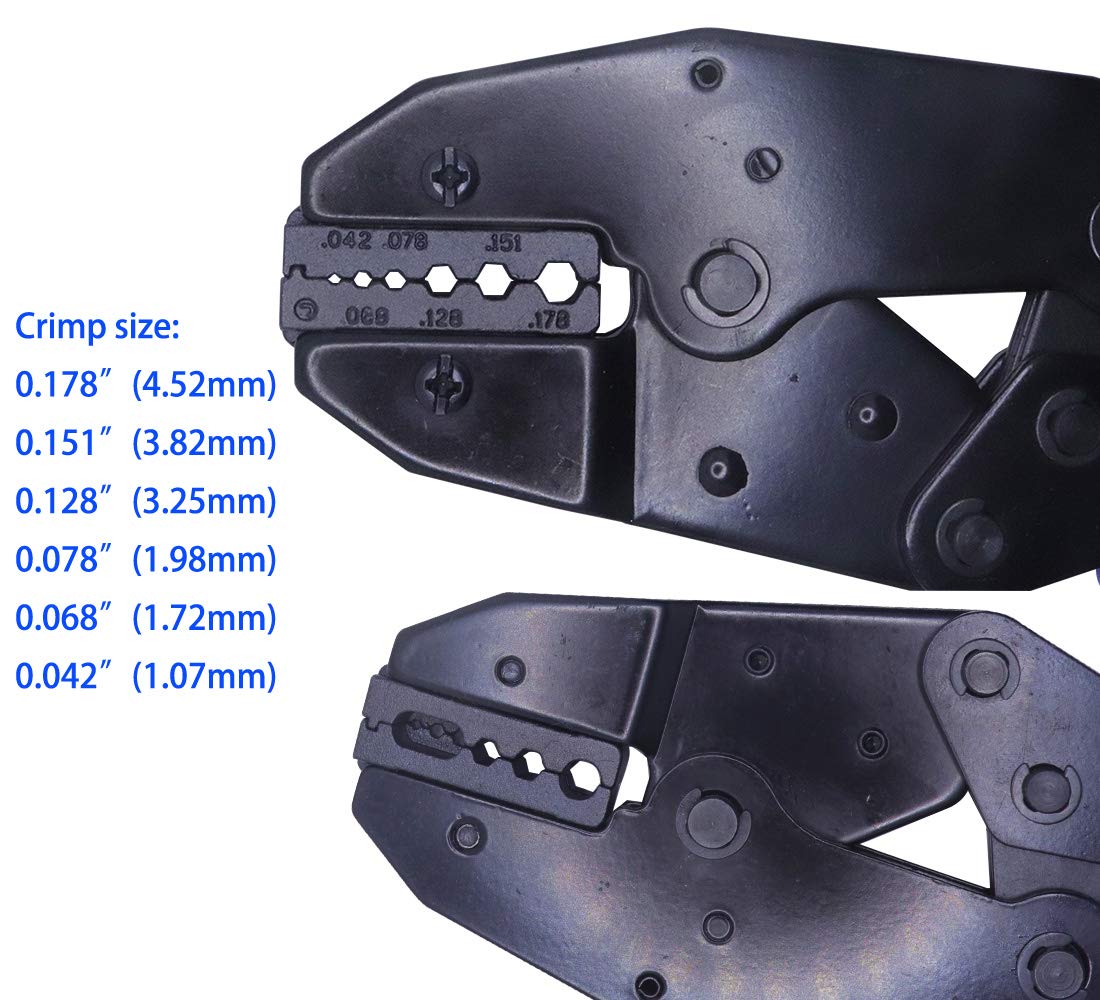

• 4. Heavy duty ratchet crimping tool,the hexagonal dimensions on the jaws : 0.042"(1.07mm), 0.068"(1.72mm), 0.078"(1.98mm), 0.128"(3.25mm), 0.151"(3.82mm), 0.178"(4.52mm),.
• 5. The smallest die cavity on the crimper is 0.042" ,You have to solder the pin and use this tool to crimp the collar.

Discription: RP SMA Male+female Connector Impedance:50 ohm Connector body style: straight Shell material: brass Inner conductor material: brass Shell plating: gold Inner conductor plating: gold-plated Cable Type: Available for .085" and .141" diameter semi-rigid cables and all the standard flexible cables including RG174 RG316 SMA crimping tool: 1.Color: blue 2.Weight: 520g 3.Length: 215CM 4.Applicable cable: RG174 RG180 RG188 RG316...... 5.Crimping specifications: 0.178"(4.52mm) 0.151"(3.82mm) 0.128"(3.25mm) 0.078"(1.98mm) 0.068"(1.72mm) 0.042"(1.07mm) Package: 10x RP-SMA Male Connectors 10x RP-SMA Female Connectors 1 x SMA crimping tool
