CNLonQcom 20 Amp Solar Isolator Switch DC500V Circuit Breaker, AC 120V/240V Disconnect Box Outdoor IP65 Waterproof

• [2P Solar Isolator Switch]: This breaker box is designed to provide superior isolation, over-voltage and overload protection. It effectively prevents circuit damage and reduces fire risks caused, ensuring the longevity and safety of your solar system

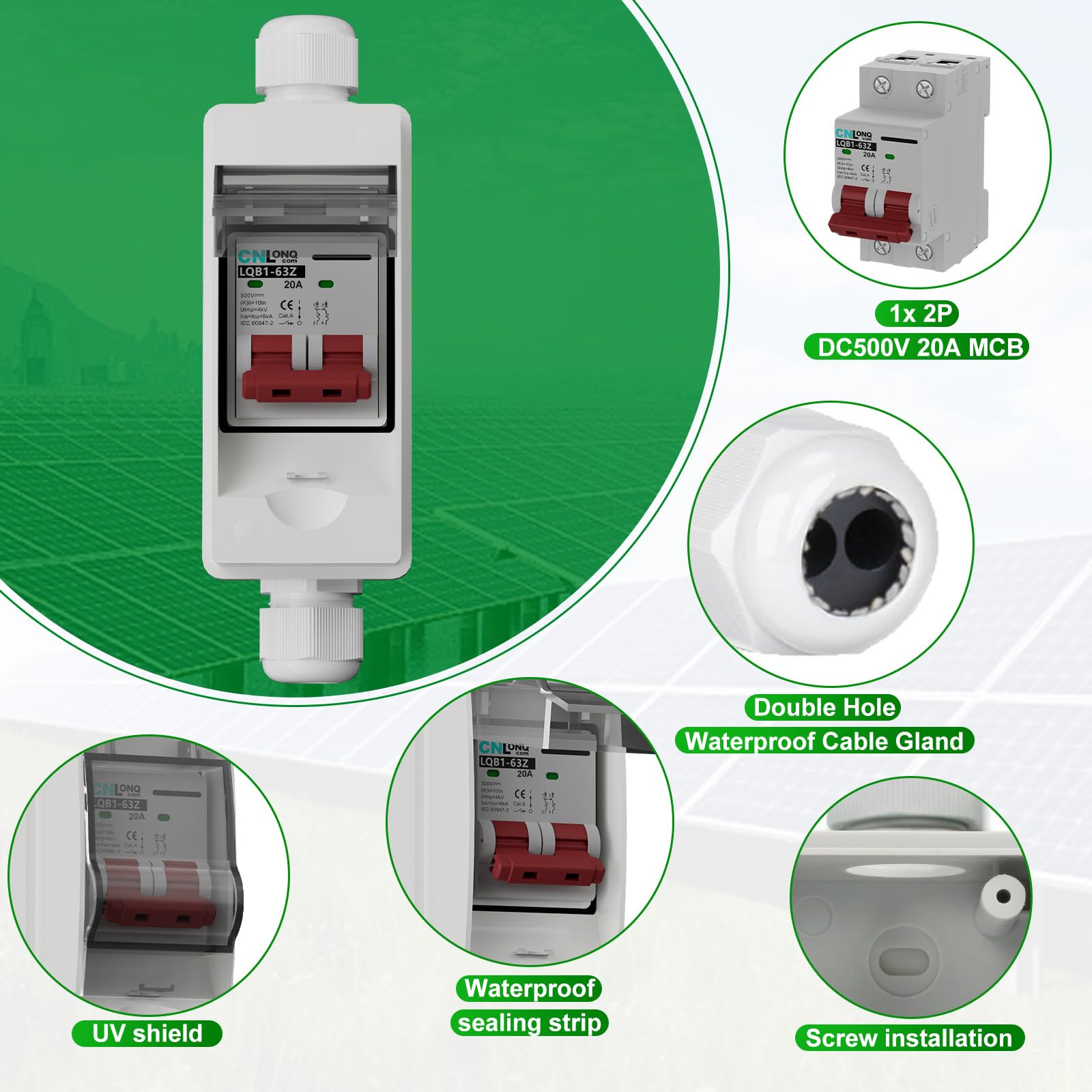

• [PGM20 Waterproof Connector]: Features two dual-hole M20 connectors with IP68 waterproof rating, compatible with 2.5/4/6mm² cables

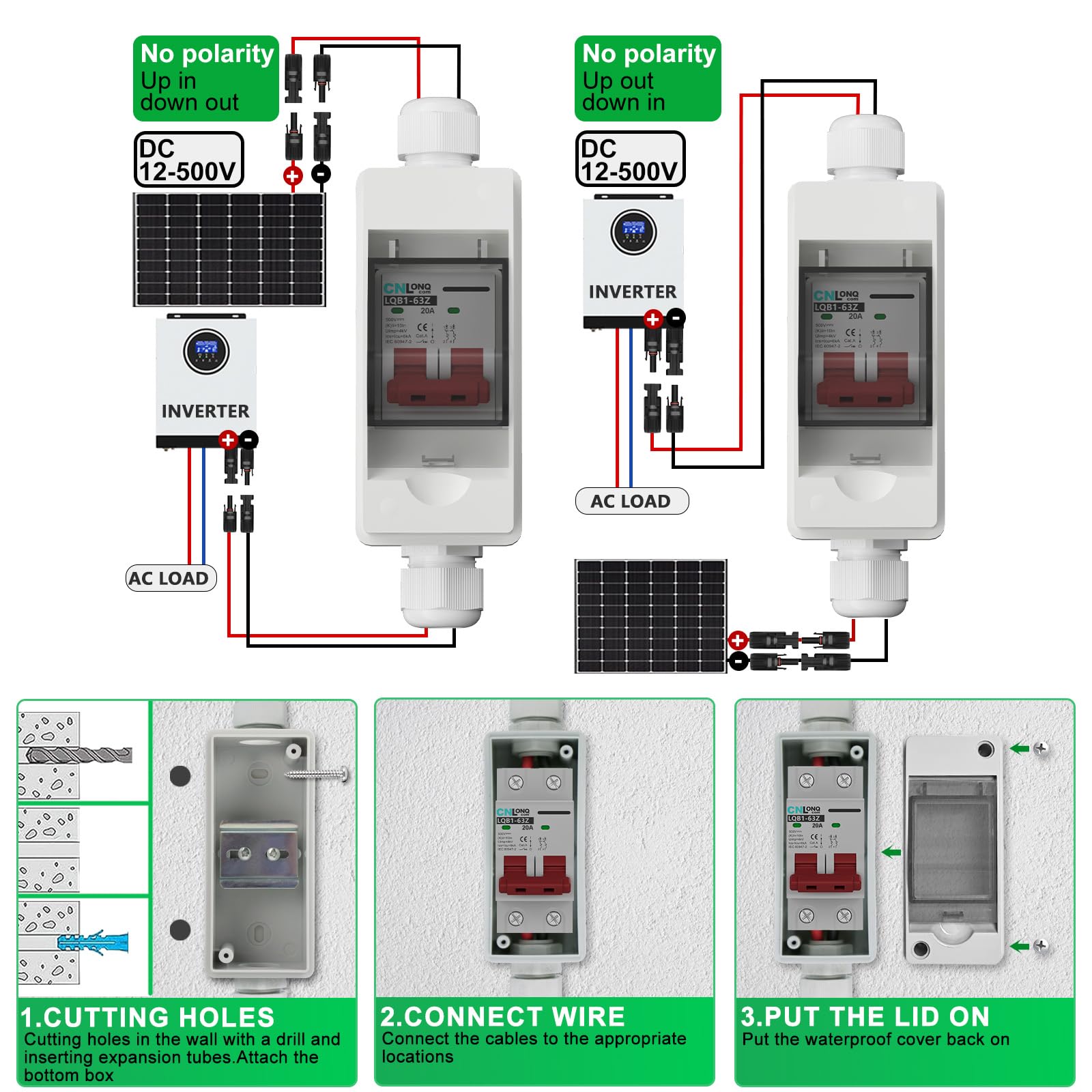

• [20A circuit breaker]: Crafted from PA flame-retardant material, this circuit breaker operates efficiently across DC 12-500V and AC 90-400V systems. Its non-polarity design supports both +/- or -/+ poles (DC) and L/N wires (AC)

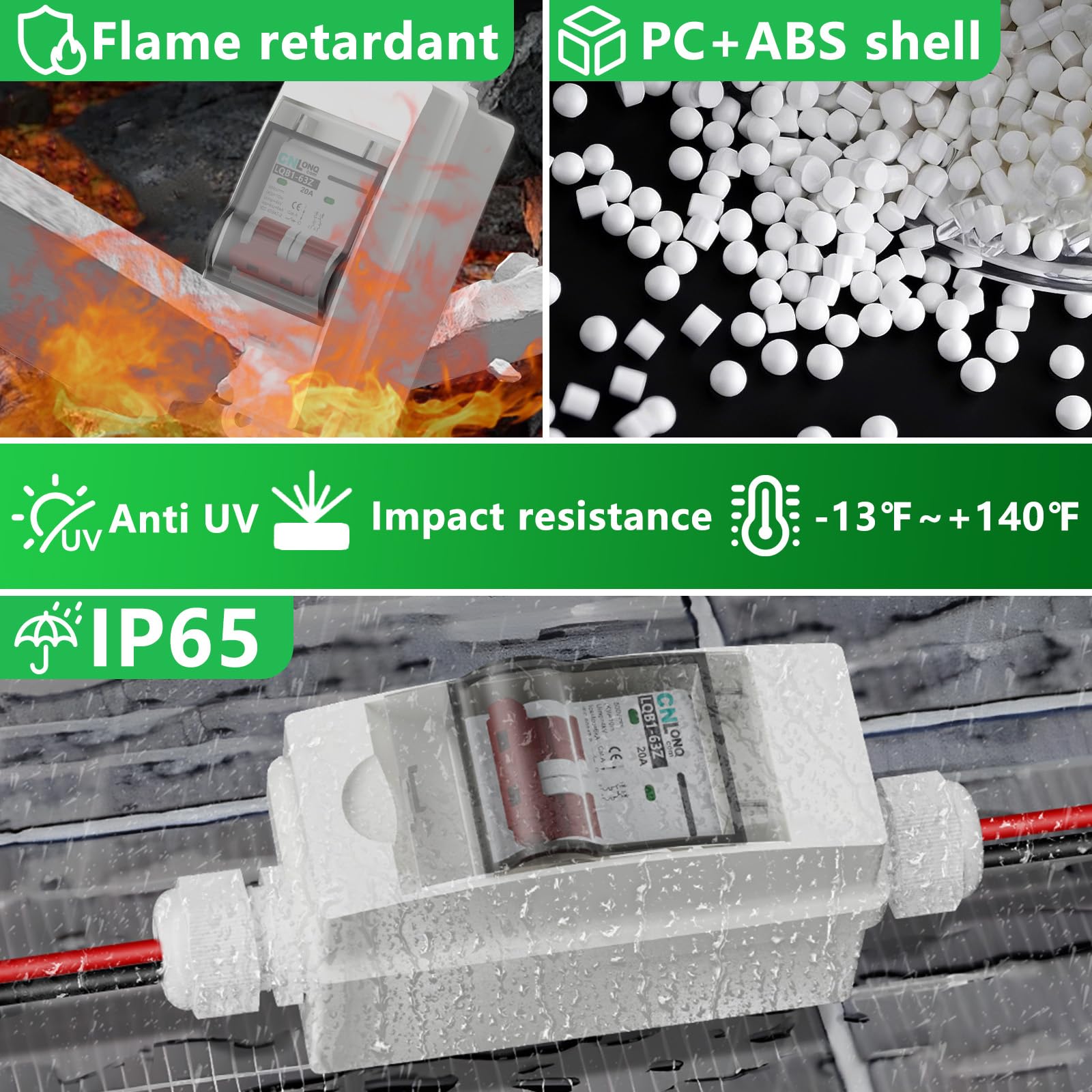

• [Durable IP65 Waterproof Box]: Built with high-quality PC+ABS materials, the breaker box features an IP65 waterproof and flame-retardant. It's perfect for indoor and outdoor use, standing up to harsh weather conditions like heavy rain and dust
• [Application]: Ideal for on-grid and off-grid solar panel systems, residential homes, RVs, rooftop, and more wind and solar systems. This PV isolator switch is a versatile solution for enhancing the safety and efficiency of various renewable energy setups

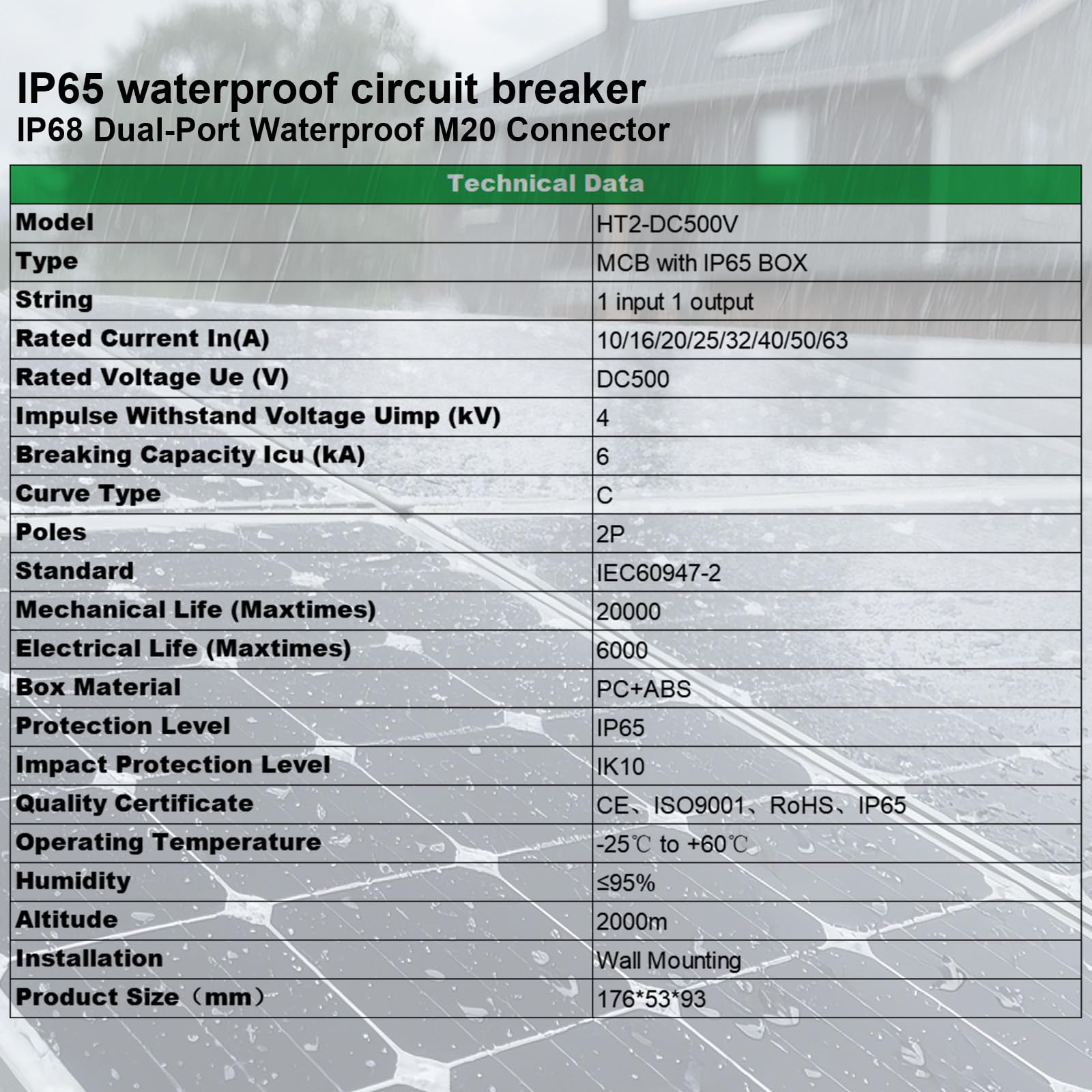

LQX-HT2-DC500V Solar Disconnect Switch consists of a miniature circuit breaker and a waterproof and UV-resistant case, which is mainly used for circuit protection of outdoor photovoltaic panels, RVs, EVs, UPS batteries and inverters. It has the functions of fast circuit on/off, thermal overload protection and short circuit protection. It can also be used for AC circuit output protection. Technical Parameters : Shell material: PC+ABS Number of strings: 1 in 1 out Rated working voltage DC 12~500V or AC 90-400V Rated current: 16A; 20A; 25A; 32A; 40A; 50A; 63A Number of poles: 2P Waterproof and dustproof grade: IP65 Electrical life: 6000 times Mechanical life: 20000 times Standard: IEC60947-2 / GB14048.2 Operating temperature: -25°C to +60°C
