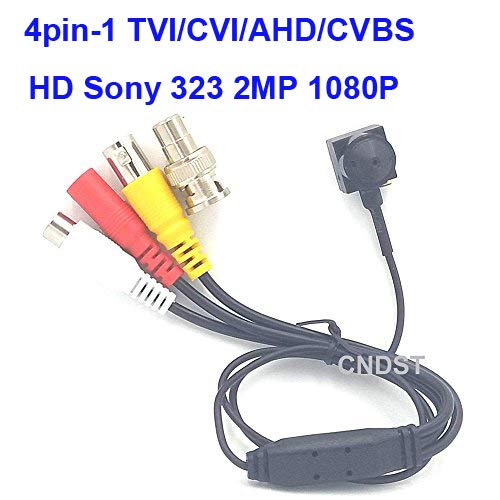

CNDST CCTV 1080P 2MP HD Mini Pinhole Security Camera 2000TVL 3.6mm 90degree 4-in-1 TVI/CVI/AHD/960H CVBS Small Indoor Hidden Surveillance Camera, For 1080P 4-in-1 TVI/AHD/CVI/CVBS/960H DVR(DST-15EXP1)

• Camera was set up to AHD already, if you need change AHD to TVI or CVI or CVBS, you can change on your DVR. But your DVR should be 1080P 4-in-1 AHD/CVI/TVI/CVBS.

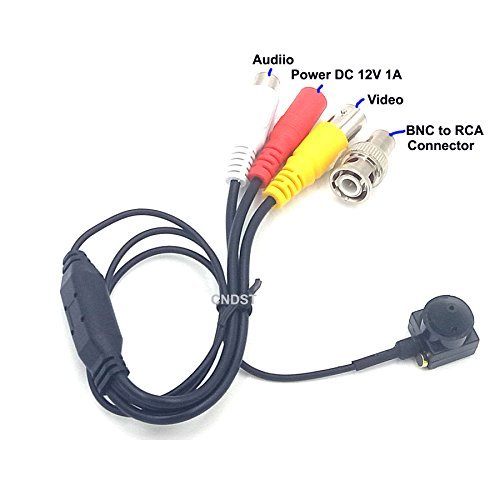

• Working Condition: Camera can work during daytime and night with light. If under low light, picture quality is not so good as the daytime. Pls use DC 12V 1A Power Adapter for this mini camera.
• Advantage: AHD cameras resolution and picture quality is much better than analog cameras.

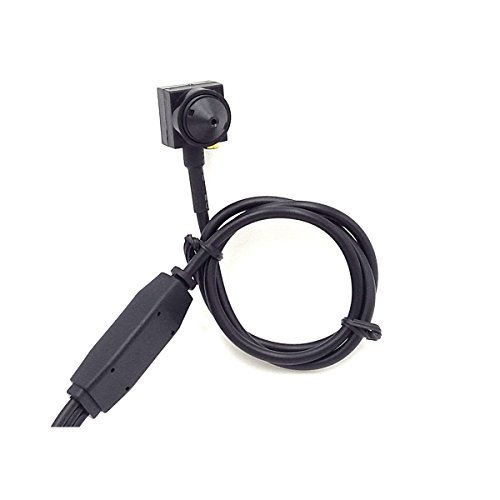

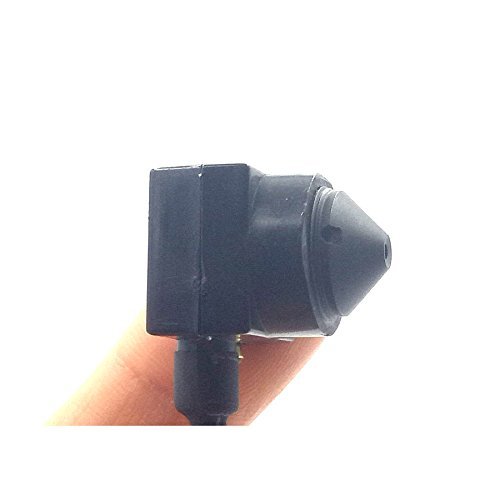

• Material and Item Dimention: plastic housing, Item Dimention: 0.59X0.59X0.71 inch.

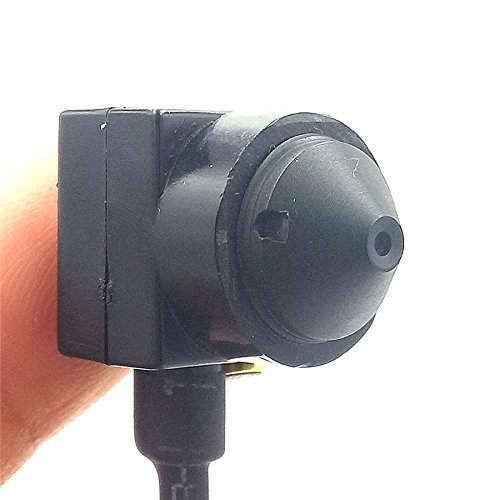

• Resolution: 2000TVL, 2MP, DC 12V, f3.6mm lens

*** Please make sure your DVR is AHD 1080P before purchasing this camera. Only TVI or CVI 1080P DVR cannot work with AHD cameras. All AHD cameras need to work with AHD DVR, first connect the camera with the AHD DVR, then connect the AHD DVR with the LCD display, so that the camera image can be displayed on the display*** Key Features Min. Illumination: 0.001 Lux (F1.2) Signal System: PAL Lens: 3.6mm Standard Tapered Pinhole Lens Camera Type: Indoor Power supply: DC12 V/75 mA. Camera specifications: Model DST-AHD15EXP1 Horizontal resolution 2.0 Mega Pixel 1080P PAL: 1920 x 1080 @ 30fps Min. StarLight Illumination 0.001 Lux (F1.2) PAL signal system NTSC electronic shutter: 1/60 ~ 1/100000s. Max Common transmission distance 75-3 lines can be up to 500m S/N Ratio over 46dB. Gamma 0.45 / 1.0 Auto Exhibition OSD N/A White Balance Automatic White Balance Backlight OFF / ON / BLC / HLC Peak Adjust Mirror / Brightness / Contrast / Sharpness / Shade / Gain ATR ON / OFF Motion detection off/on (sense detection/salt zone). OFF/ON Privacy Masking (4 Zone) Day / Nigh True Day and Night (Auto / Day / Night / Ext. D & N) 2D-NR OFF/ON (Level 0-15/16) Camera ID OFF/ON Sync.System Internal Video output 1 Vp-p/75 Ohms - Working conditions -20 ~ 60 degrees/0-93% humidity. Package dimensions (L x W x H): 3.15 x 2.28 x 1.81 inch Delivery weight: 65 g Package includes: 1 x camera. 1 x user manual
