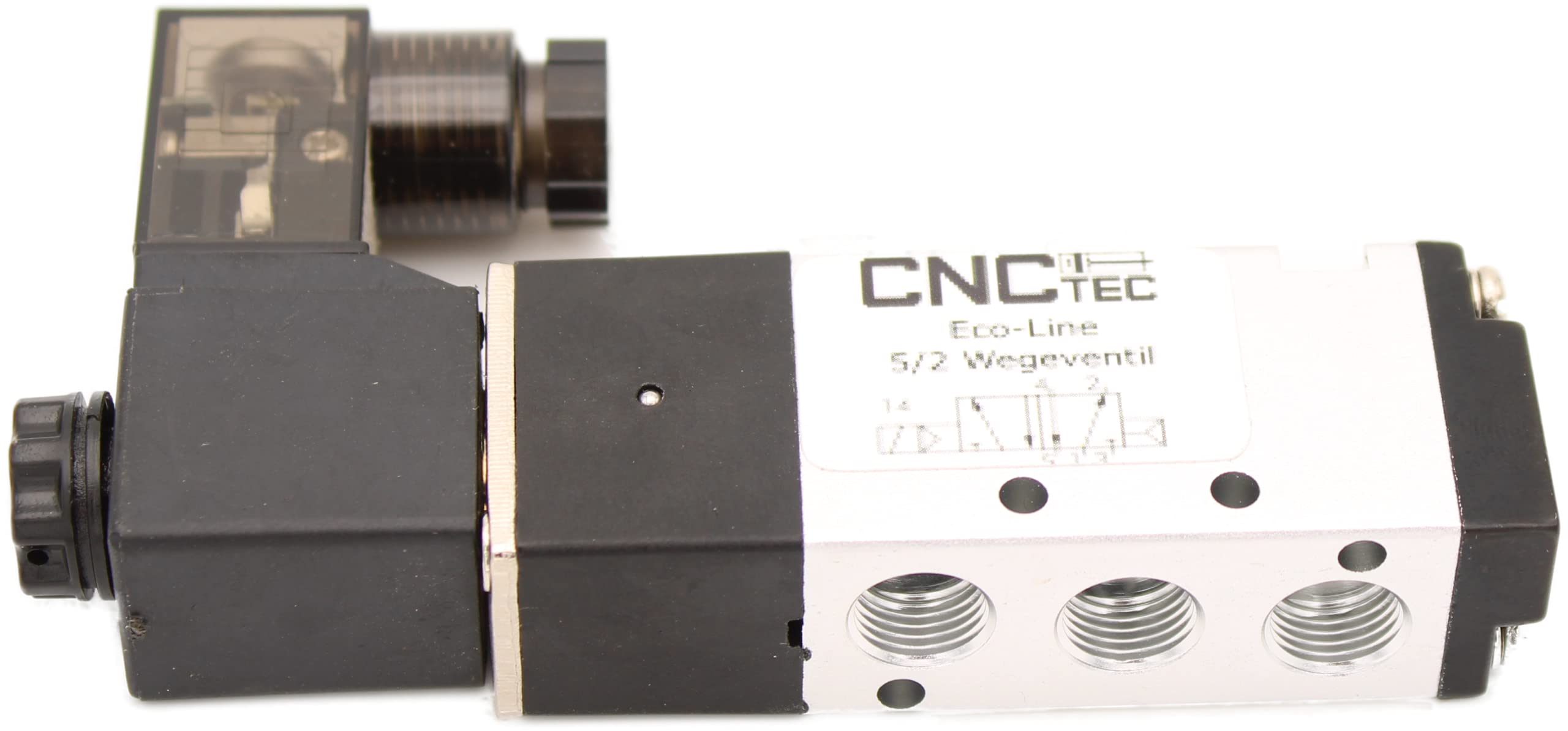

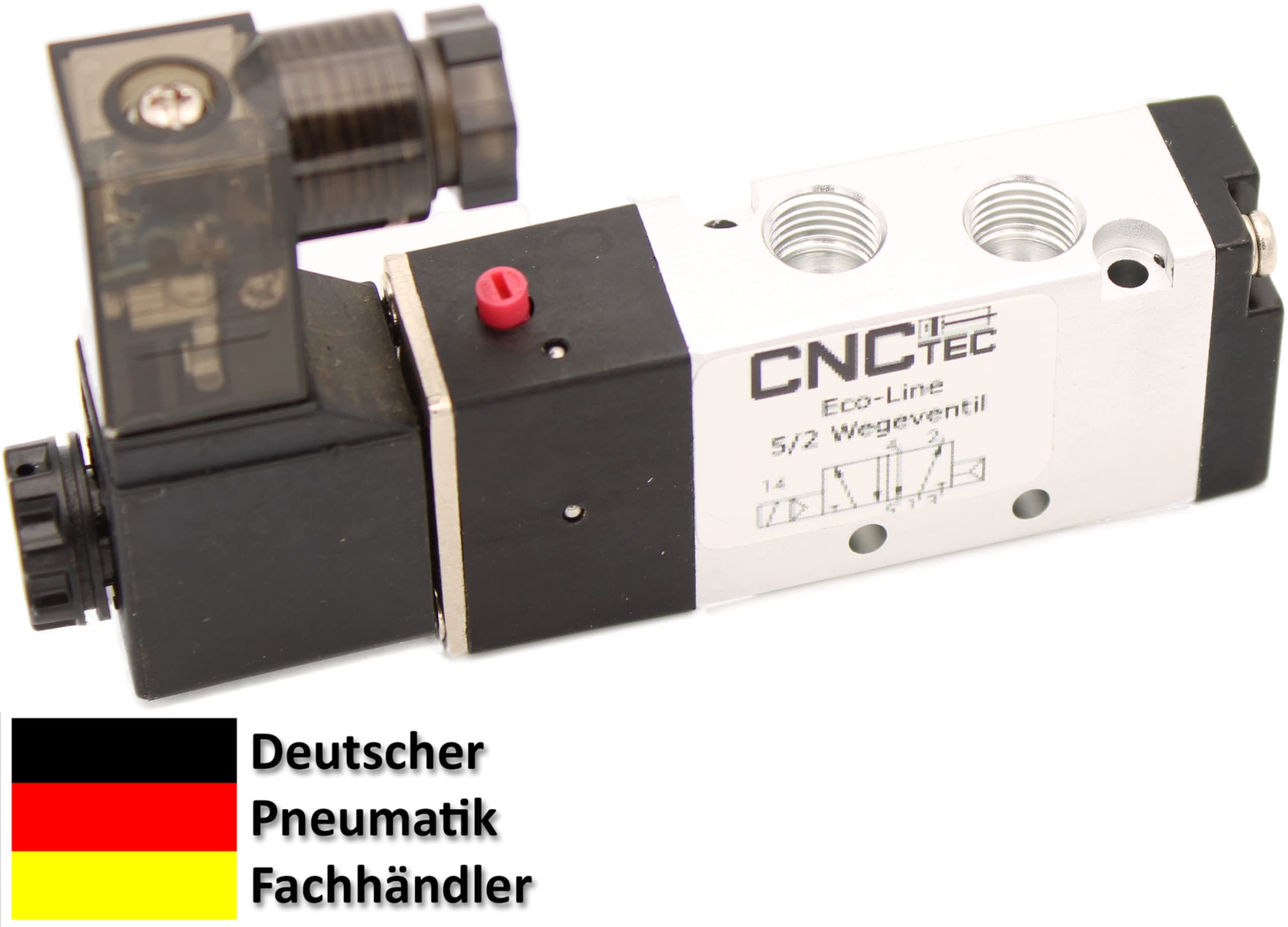

CNCTEC EcoLine 5/2 Way Pneumatic Valve 1/8 Inch 230 Volt AC Path Valve 5/2 Way Valve (230 Volt AC)

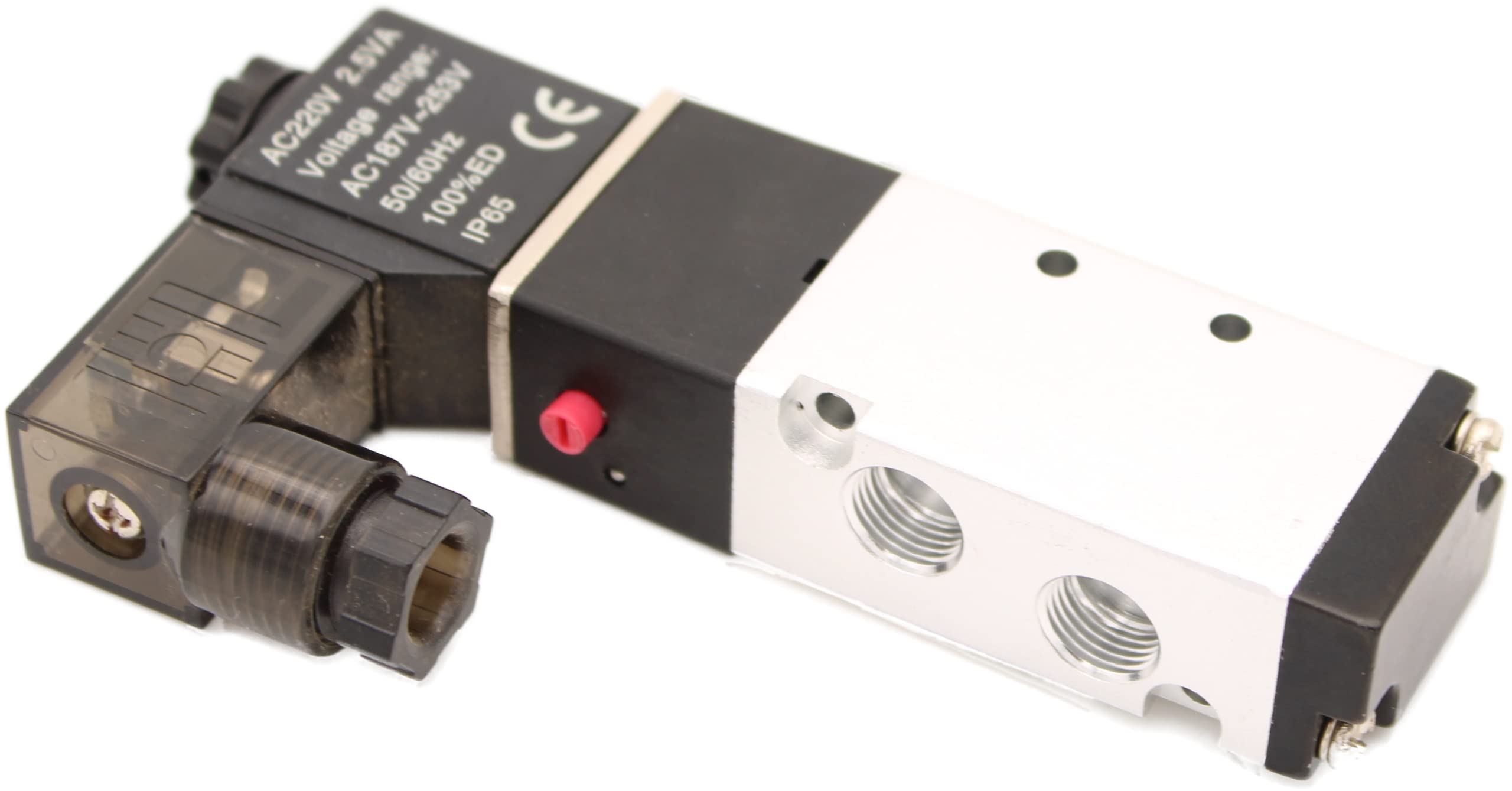

• Fast inflation 1/8 inch – CNCTEC eco-Line solenoid valve, reliable and inexpensive pneumatic valve with G 1/8 inch thread on all air connections. Available with 12 Volt 2.5 Watt DC, 24 Volt DC 3 Watt or 230 Volt AC 2.5 VA coil. Supplied with plug with LED status indicator.
• Quality control – 5/2-way valve with spring reset, monostable. High reliability, even in continuous use.
• Quick reaction time of 85 ms and 5 switching games per second, our valve is equipped for almost all purposes in the pneumatic area.
• Long-lasting and durable: With at least 8 million switching games, this 5-2-way pneumatic valve is very durable. With the protection class IP65, it has full touch protection and is protected from jet water (nozzle) from any angle. This ensures safe operation of your system.

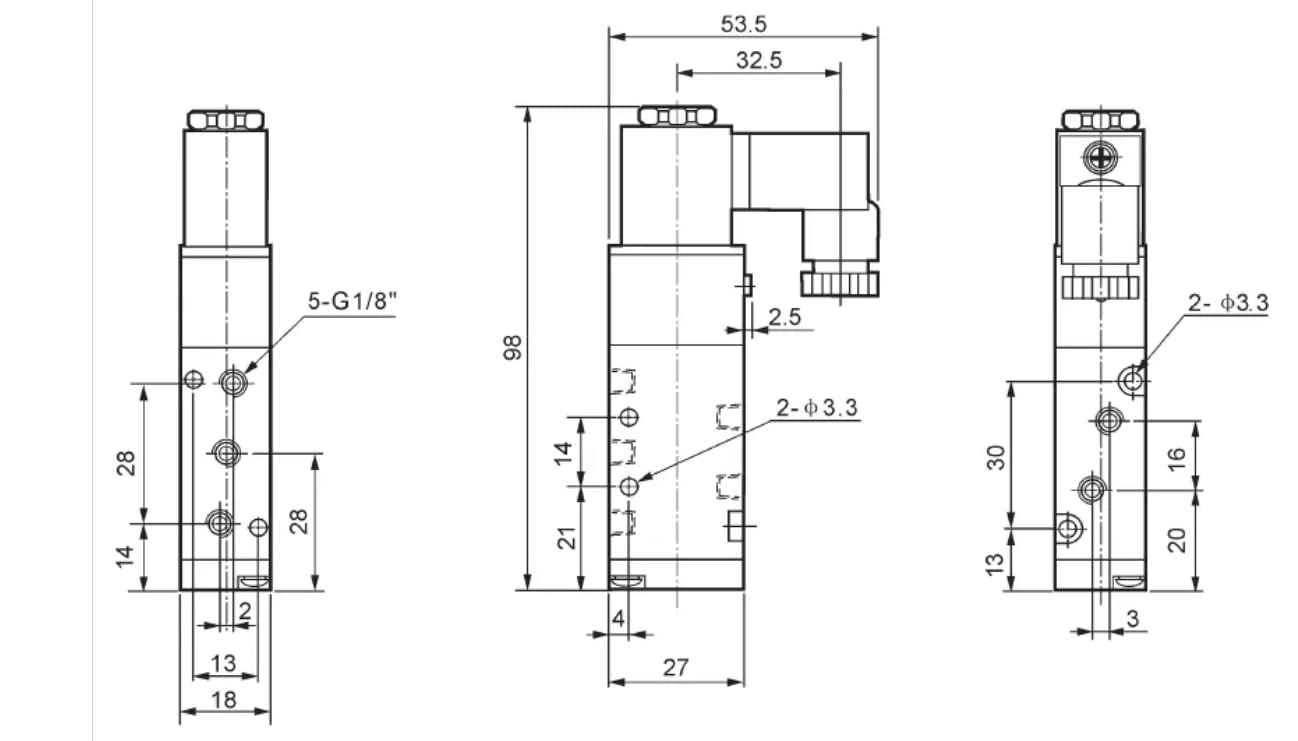

• ✅ Safe design: the pneumatic way valve CNCTEC eco-Line is equipped with G 1/8 inch threads on all connections. Flow rate of 475 l/min with oiled and unoiled, filtered compressed air. Operating pressure: 1.5 - 8 bar / 1.5 - 8 kg/cm². Operating temperature: -10 to 70 °C, weight 116 g. Dimensions with coil and plug: 112 x 53 x 18 mm. Control via a 12 VDC, 24 VDC or 230 AC coil. The electrical connection is made via the supplied plug.
• ✅ 30-day return – you are not 100% satisfied with our valve? Then send the valve back for free and you will receive your money back without ifs and buts. No risk. Corporate headquarters in Germany.

We have a clean finish. 12 volt DC, 24 volt DC or 230 volt AC, 1/8 inch connection on all inputs and outputs. Affordable and reliable pneumatic valve. Technical data: operating pressure 1.5 - 8 bar / 1.5 - 8 kg/cm², 1/8 inch monostable. Protection class IP65, max. 5 switching games / sec. LED display with controlled coil operating temperature -10 to 70 °C, service life min. 8 million switching games. Weight: 116 g. Package contents: 5/2 way valve including coil and connector. Versatile: whether industry, workshop or hobby, with compressed air accessories from Knktel, you are always on the safe side. Visit our Amazon store. German dealer, you will receive an invoice with VAT
