CNC Spindle, 12-48VDC Engraving Machine Spindle 300W Brushed High-Speed Air-Cooling Spindle,for Engraving PCB, Acrylic, Drilling, etc.

• ✔ 【Technical Parameters】 - Working Voltage: 12-48VDC. Power: 300W. Speed: 3000-12000r / min. 400mN.m. Radial Runout: about 0.02-0.05. Diameter: 52mm / 2in.
• ✔ 【Technical Parameters】 - Working Voltage: 12-48VDC. Power: 300W. Speed: 3000-12000r / min. 400mN.m. Radial Runout: about 0.02-0.05. Diameter: 52mm / 2in.

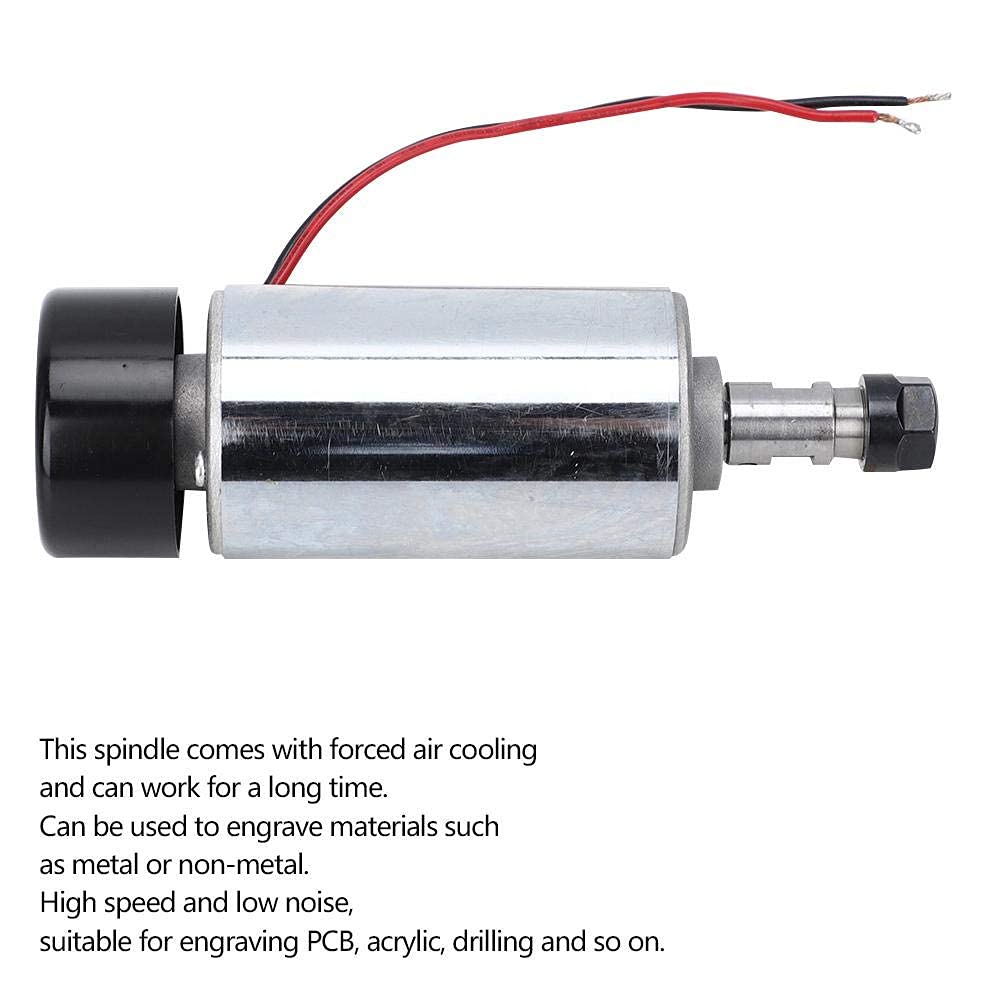

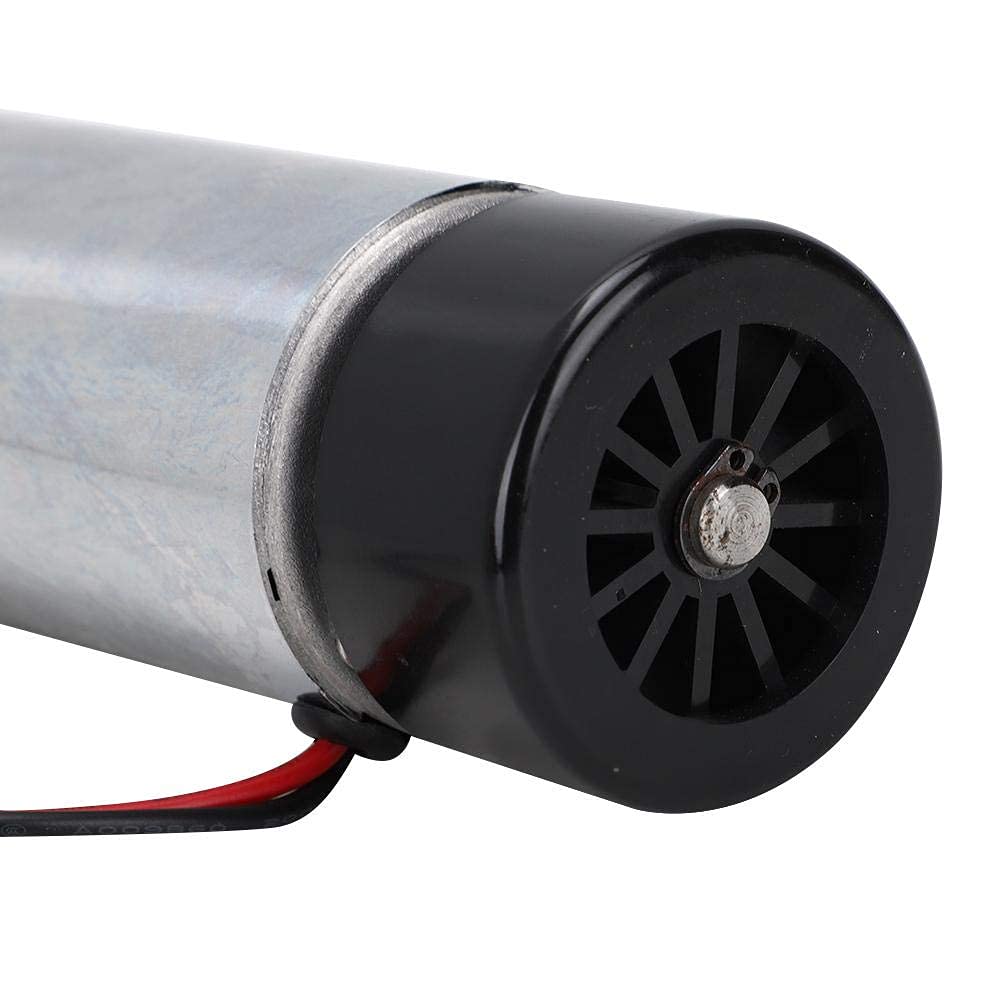

• ✔ 【Superior Performance】 - This spindle comes with forced air cooling and can work for a long time. Chrome-plated surface, smooth texture, rust and corrosion resistant.
• ✔ 【Apply To】 - The engraving spindle suitable for engraving PCB, acrylic, drilling, etc. Can be used to engrave materials such as metal or non-metal.
• ✔ 【After-sales Service】 - We cherish every customer and commit to providing you with good service. If you have any questions about quality and instructions during use, we will be happy to assist you.

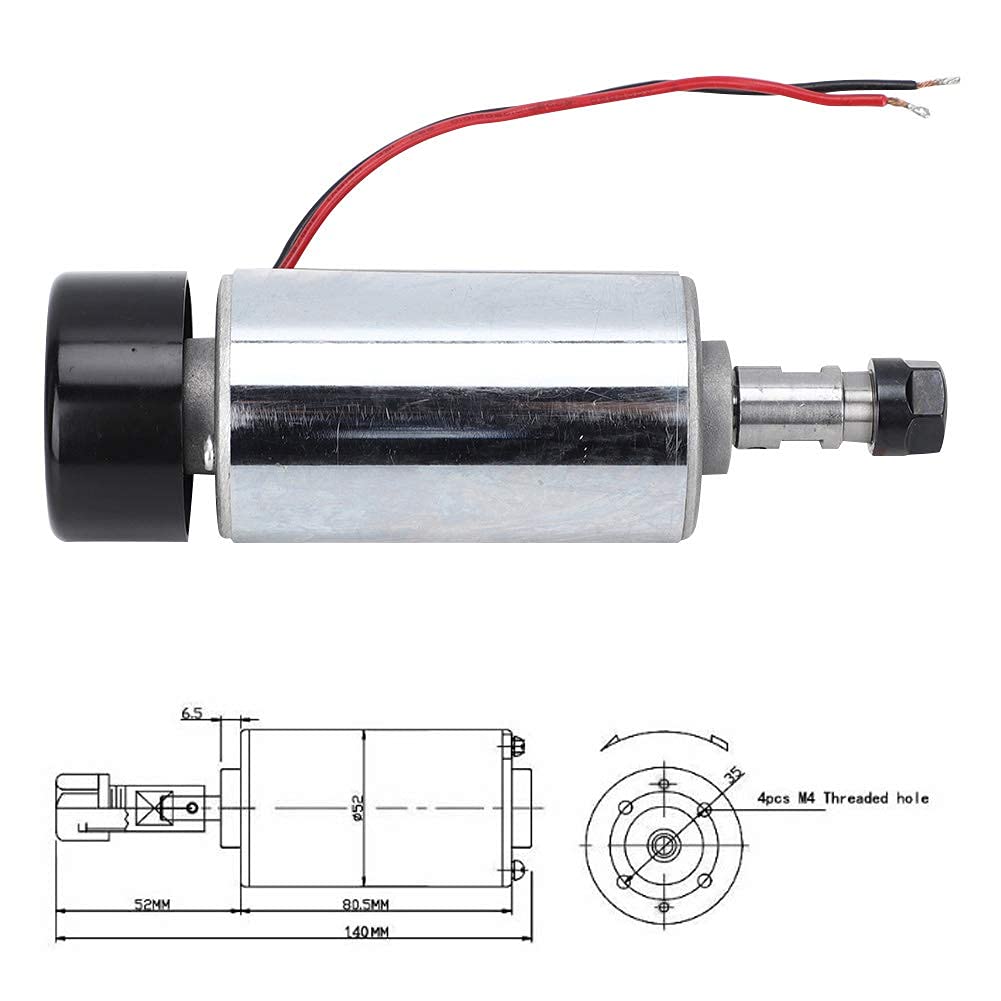

Feature: 1. This spindle comes with forced air cooling and can work for a long time. 2. Suitable for engraving PCB, acrylic, drilling, etc. 3. Can be used to engrave materials such as metal or non-metal. 4. 3000-12000r/min high speed, low noise operation. 5. Chrome-plated surface, smooth texture, rust and corrosion resistant. Specification: Condition: Brand New Item Type: Engraving Machine Spindle Working Voltage: 12-48VDC Power: 300W Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm) 400mN.m Insulation Resistance: >2 megohms Insulation Dielectric Strength: 400V Diameter: Approx. 52mm / 2in Chuck Part Length: Approx. 35mm / 1.4in shank, (including nuts and is 43mm / 1.7in) Chuck Part Diameter: Approx. 16mm / 0.6in Total Motor Length: Approx. 175mm / 6.9in (including clamping parts and motor) Spindle Net Weight: 0.8 kg / 1.8 lb(approx.) Spindle Radial Runout: about 0.02-0.05 Package List: 1 x Spindle
