CM4-Duino Base Board for Raspberry Pi Compute Module 4,CM4 Socket,CSI Camera Connector,HDMI Port,USB 2.0 Connector,M.2 M KEY Slot,Arduino-compatible Header

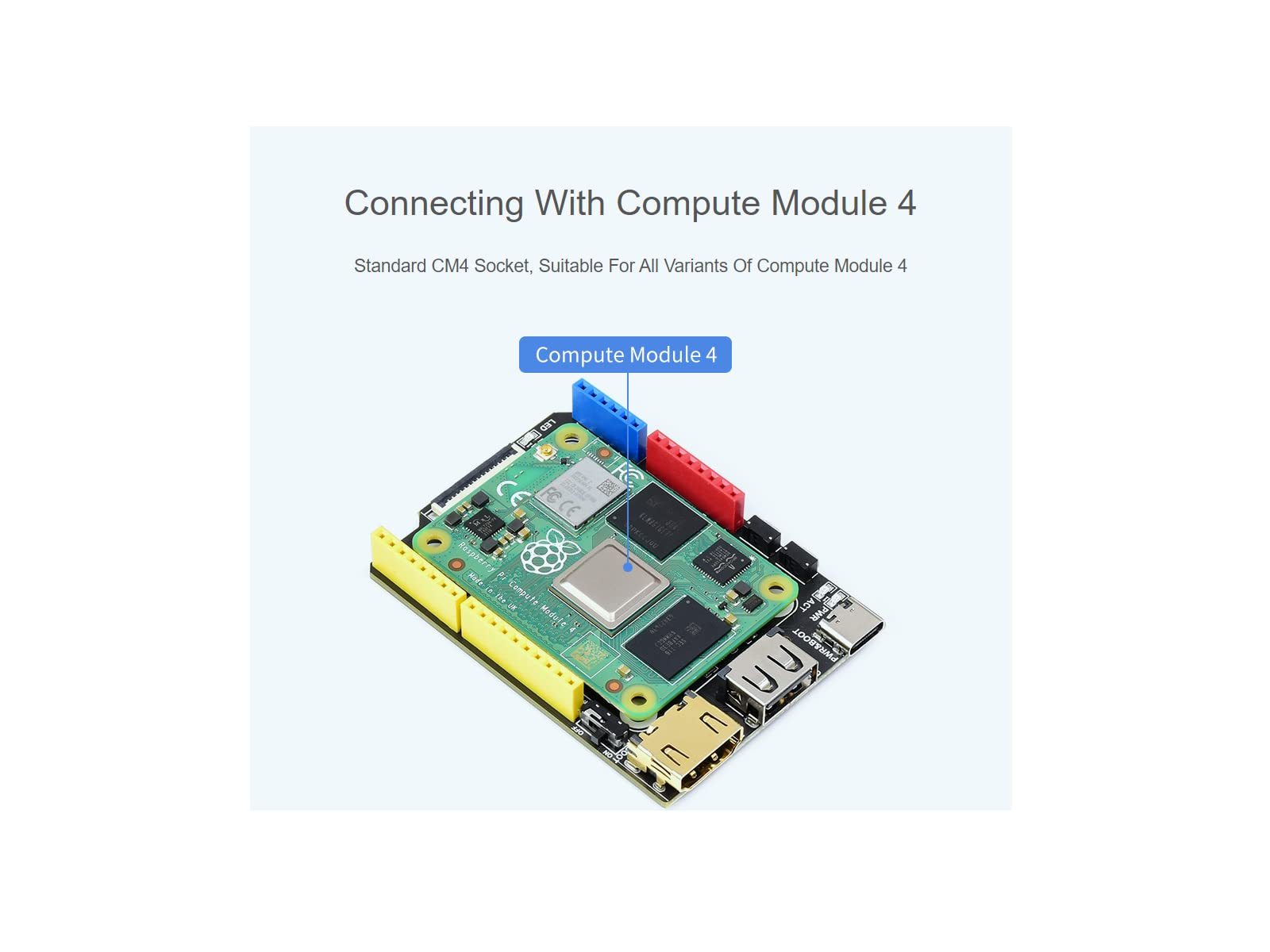

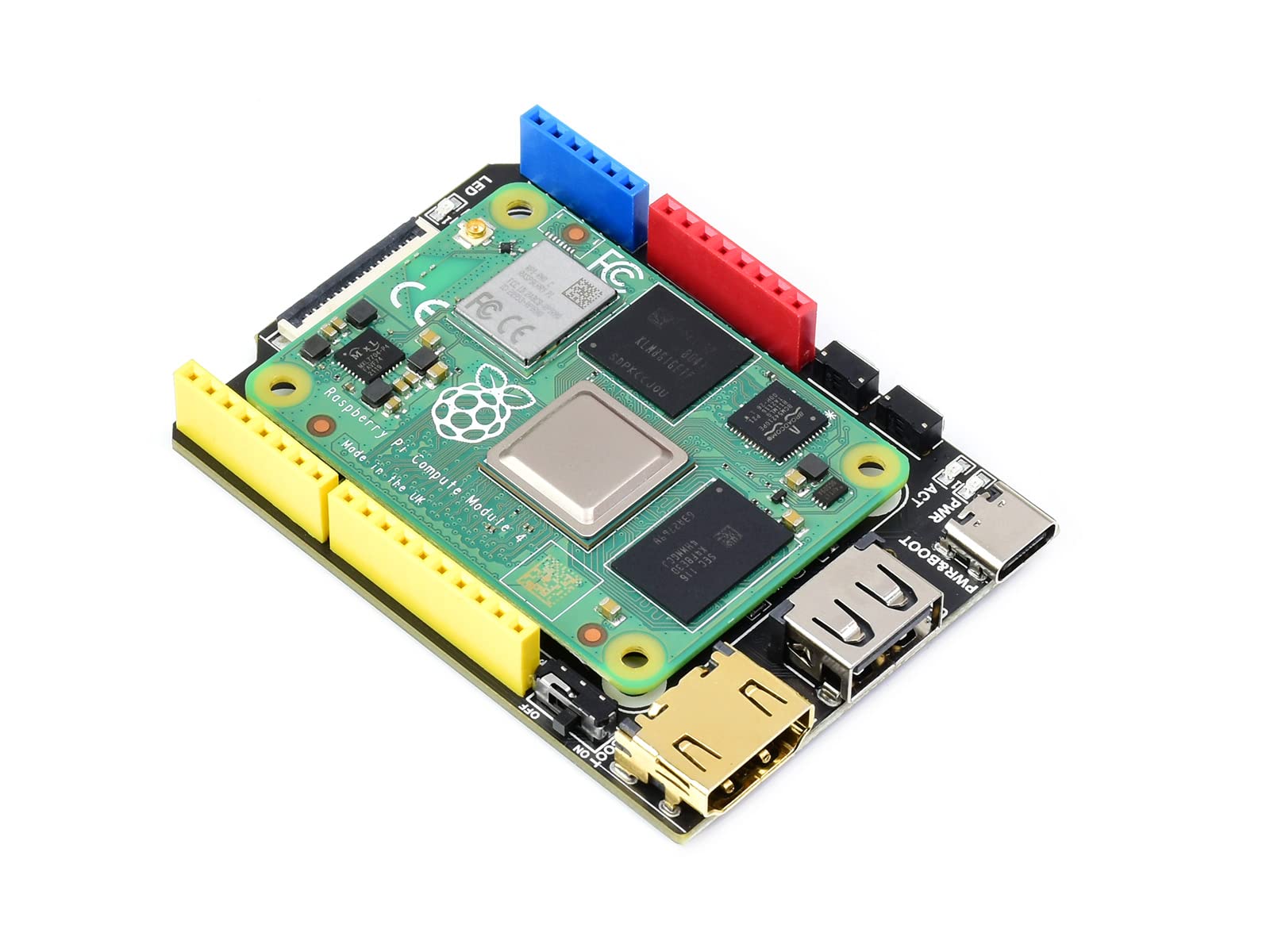

• [Connecting With Compute Module 4]Standard CM4 Socket, Suitable For All Variants Of Compute Module 4

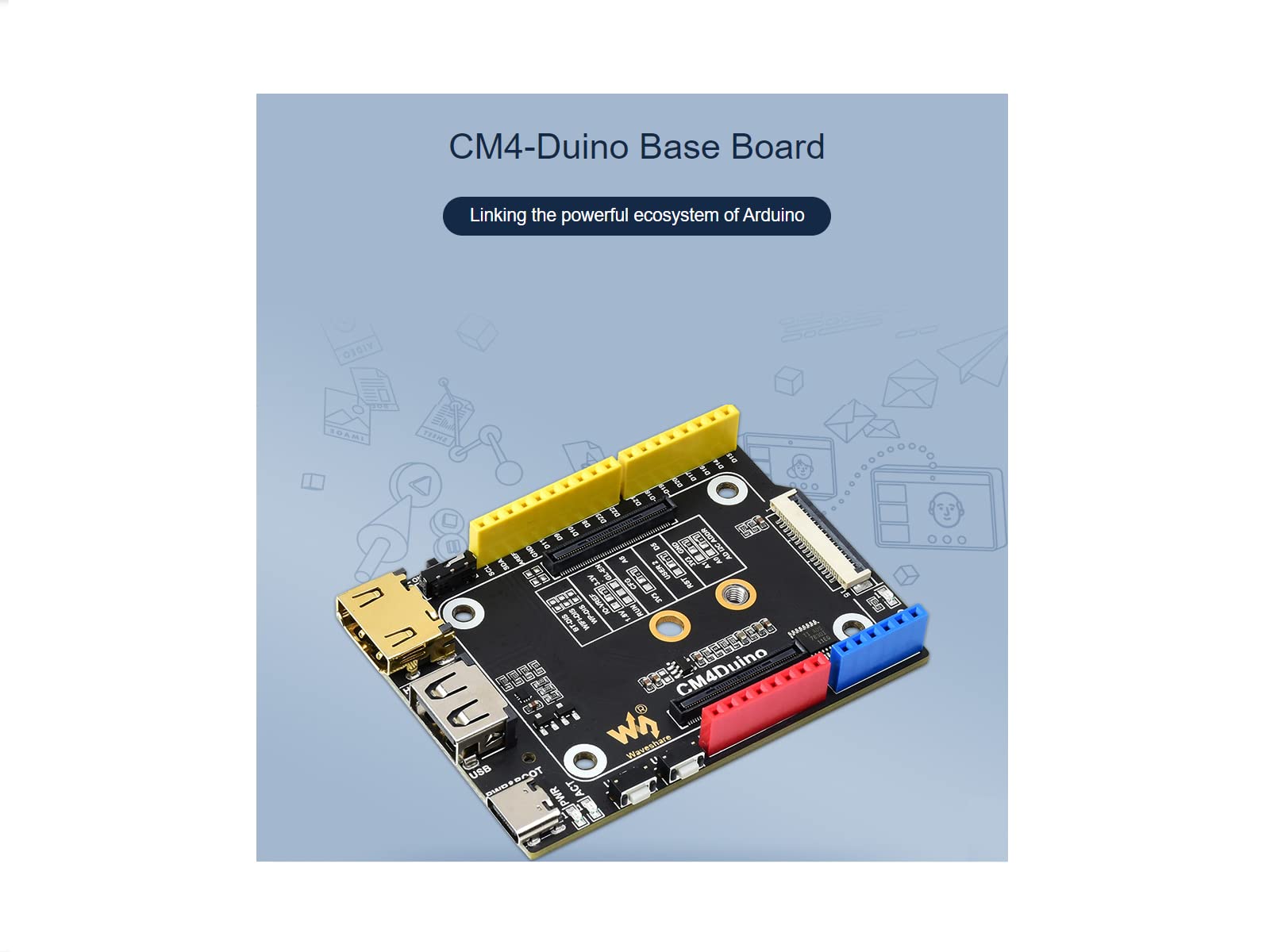

• [CM4-Duino Base Board]Linking the powerful ecosystem of Arduino

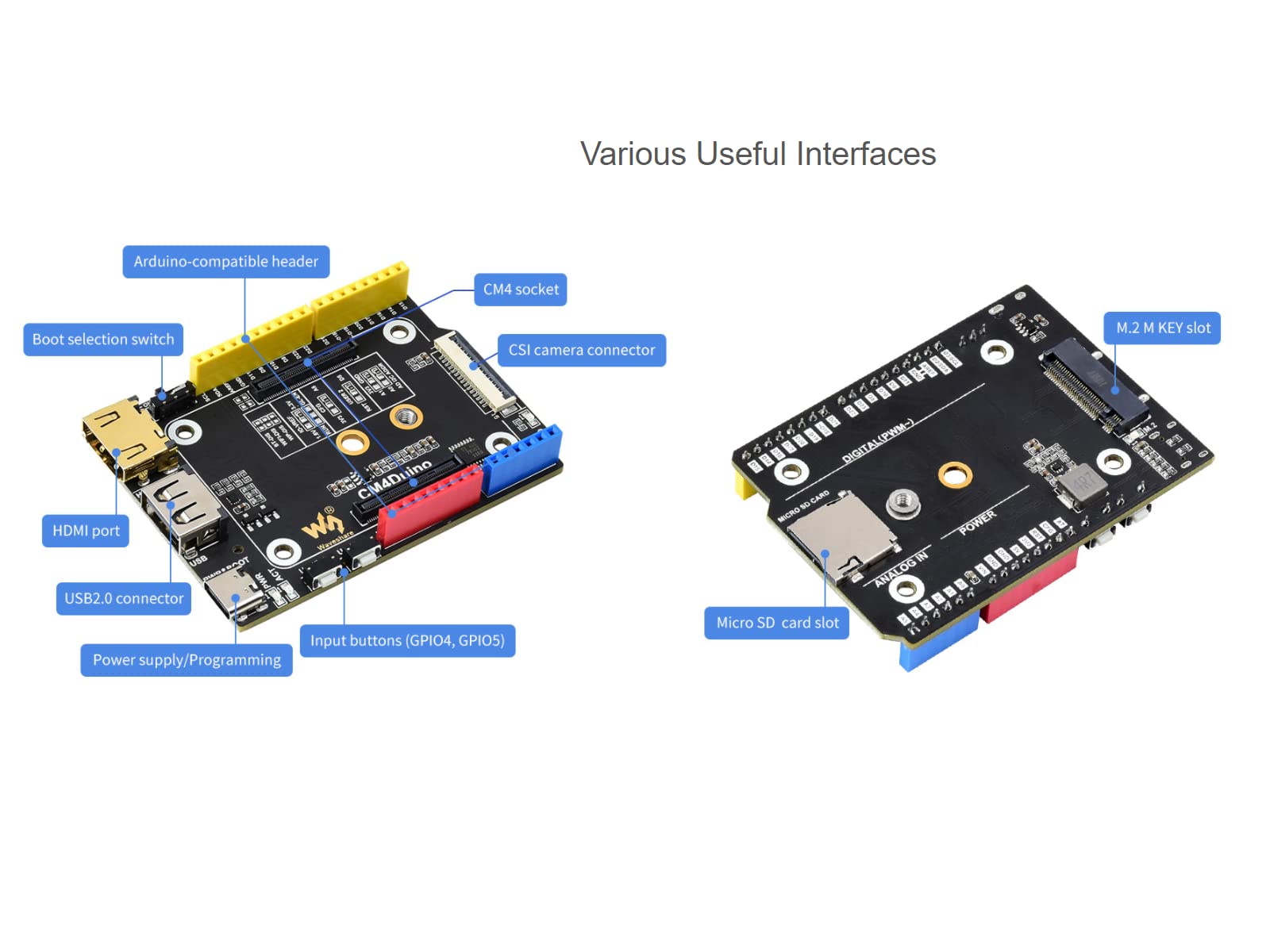

• [Various Useful Interfaces]USB 2.0 Type A × 1,MIPI CSI-2 × 1,HDMI × 1,Arduino-compatible GPIO header

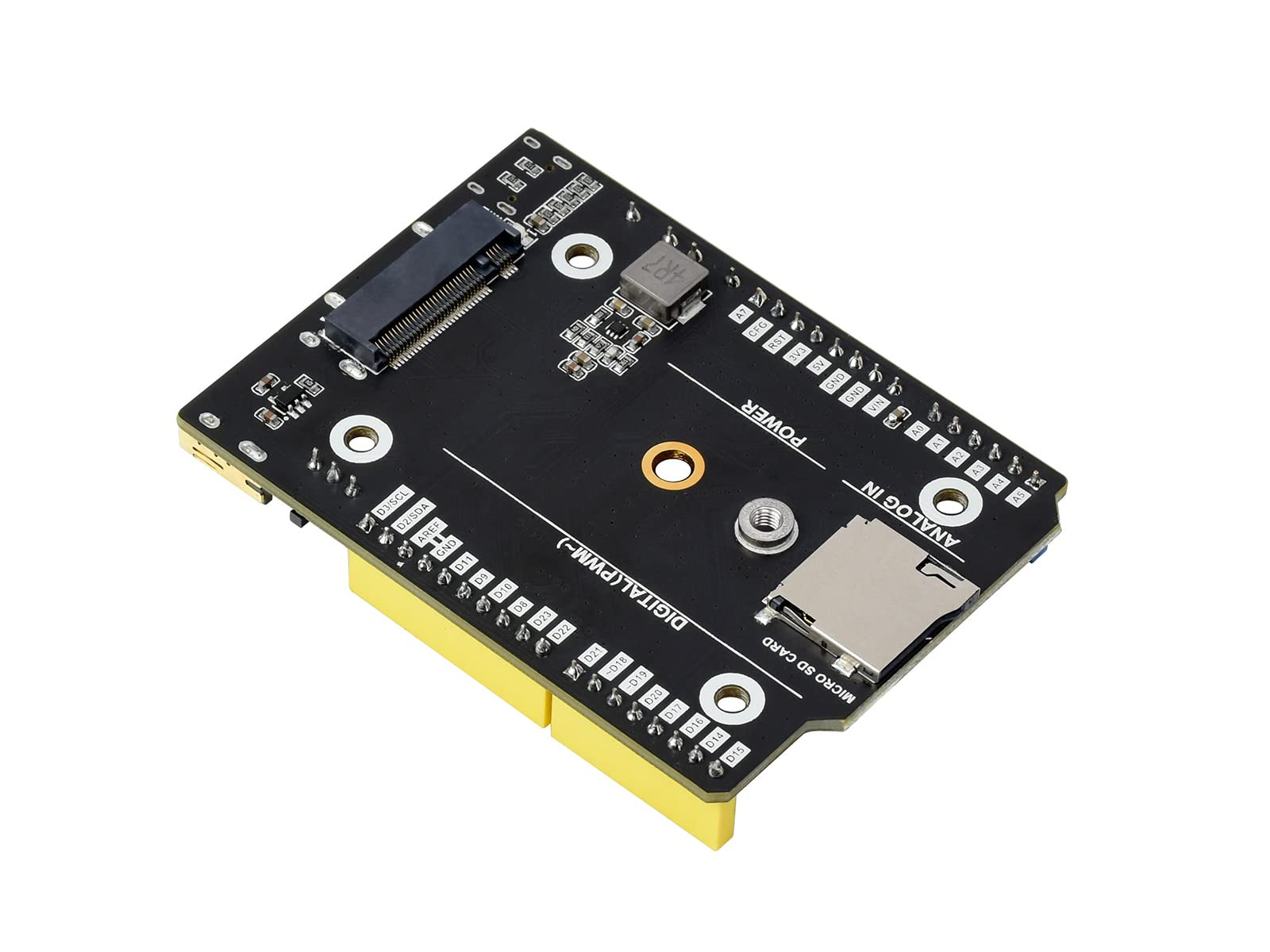

• [STORAGE]Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
• [Note]The CM4 is NOT included. Please buy it separately if necessary.

Overview A CM4 duino basic expansion board, an expansion board that can be used with Raspberry Pi Compute Module 4, and supports 5V DC power supply with Typc-C interface. Onboard HDMI interface, one CSI interface and one USB interface, standard arduino interface, etc... Specifications CM4 SOCKET---suitable for all variants of Compute Module 4 CONNECTOR---M.2 M KEY slot, for connecting communication module or NVME SSD Arduino compatible GPIO header USBUSB 2.0 Type A × 1 CAMERAM---IPI CSI-2 × 1 (15pin 1.0mm FPC connector) VIDEO---HDMI × 1, supports 4K 30fps output STORAGE---Micro SD card socket for Compute Module 4 Lite (without eMMC) variants POWER INPUT---5V DIMENSIONS---73.58 × 53.34mm Precautions for use 1: Do not plug and unplug any device except USB and HDMI when powered on 2: Type C interface can be used as power supply or as USB interface to burn image (need to use BOOT switch to switch) 3: In order to ensure the normal power supply of CM4, please do not connect other devices when using the Type C interface to burn the image. 4: When CM4 is in normal use, it needs to provide 5V 2A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency reduction and so on. 5: USB2.0 is closed by default, if you want to open it, you need to add dtoverlay=dwc2,dr_mode=host in config.txt Package Content CM4-Duino x1 Development Resources https://www.waveshare.com/wiki/CM4-Duino?Amazon Note 1. Technical Support is provided , Please feel free to contact us via Amazon message if you have any problem. 2.the Compute Module 4 in the photo is NOT included.
