Club 3D Mini DisplayPort black Black

• CAC-1180
• Model Number: CAC-1180
• Colour: black

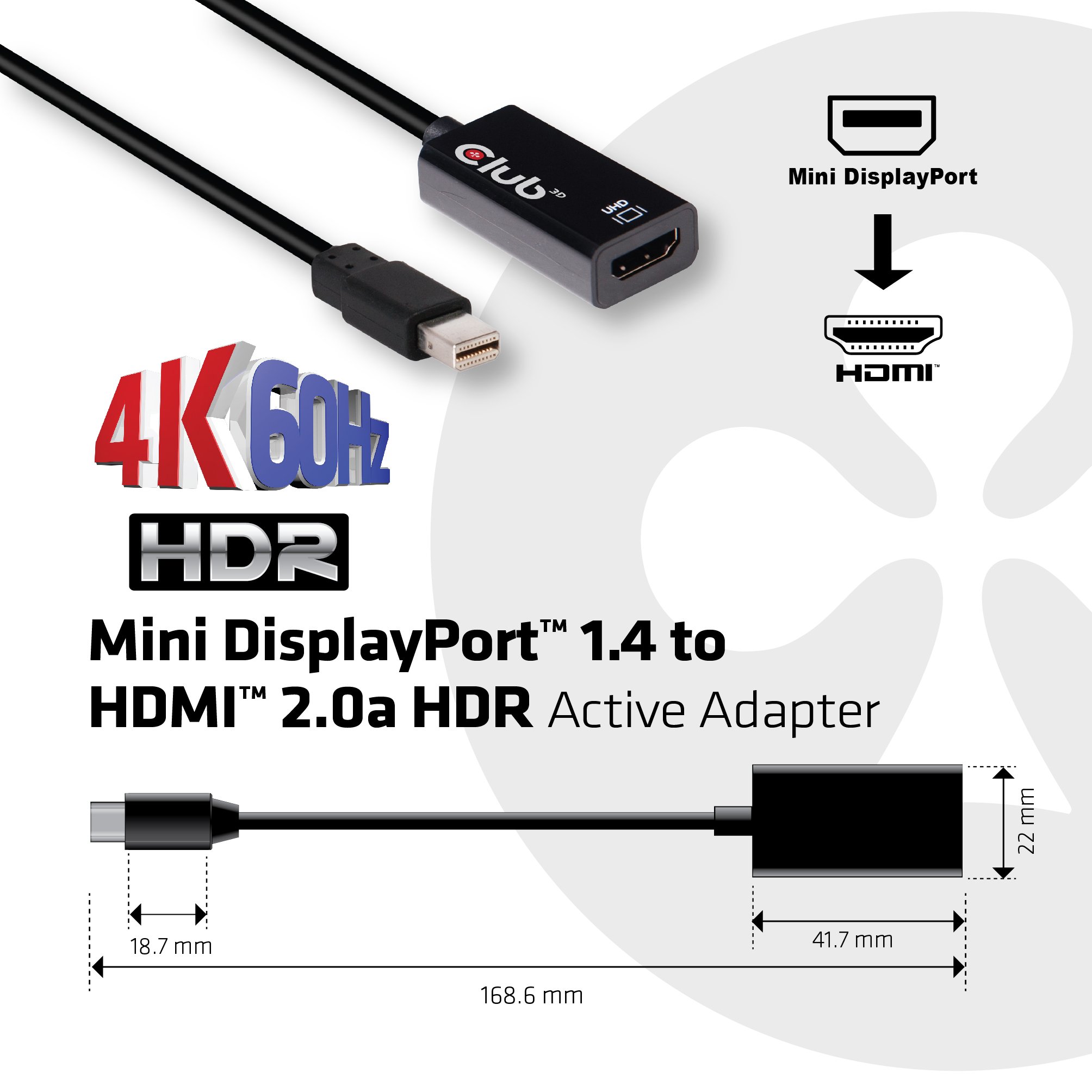

The Club3D CAC-1180 is a mini DisplayPort 1.4 To HDMI 2.0a active signal converter. It features support for HDR video quality for deep Color media content playback. The Mini DisplayPort receiver supports up to 5, 4 Gbps per lane over 4 lanes. The HDMI output is fully compliant to HDMI specification version 2.0a. The CAC-1180 is downwards compatibel to earlier DisplayPort and HDMI versions, but this can influence the functionality and/or supported features such as HDR. Supports up to 4K UHD ResolutionsThe CAC-1180 supports UHD resolutions up to 4096 x 2160P at 60Hz.Color FormatsIt supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per Pixel) as long as it fits w ithin steel he M ini D isplayPort a nd H DMI L ink B and-width. The CAC-1180 also supports Pixel encoding conversion from RGB or YCbCr 4: 4: 4 To YCbCr 4: 2: 0 and YCbCr 4: 2: 0 pass-trough function. In addition HDR with deep color up to 12bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4: 4: 4 over DP link to YCbCr 4: 2: 0 on the HDMI output with a horizontal expansion to CEA timings.
