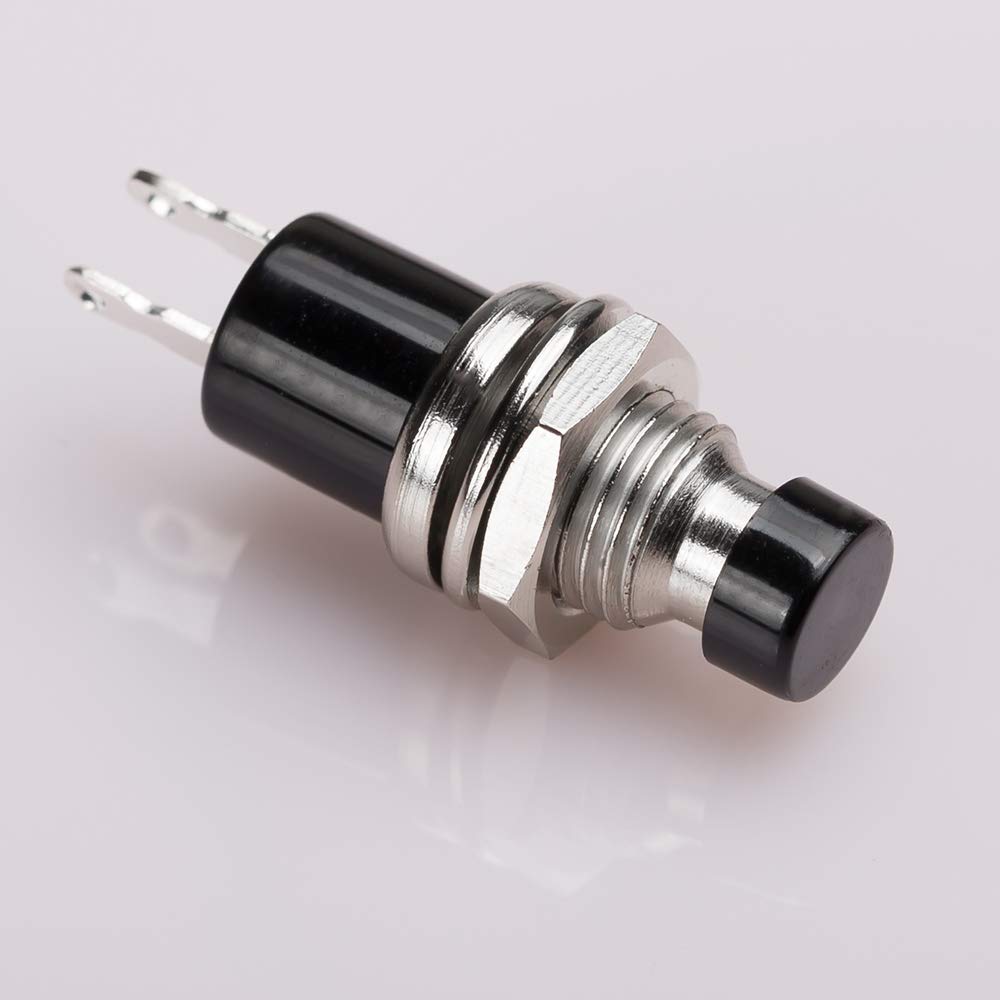

CLDIY 1A 250V AC SPST Normal Closed (NC) Moment Switch 2 Pin Mini Micro Button Red and Black Cap 20pcs

• ★Item Name: Push Button Switch; Action Type: Momentary; Contact Type: NC (Normally Closed), When you press it, it will turn off. When you release it, it will turn on.
• ★ Poles: SPST; Rated Voltage: AC 250V / 1A; Connectors: 2 Pin.

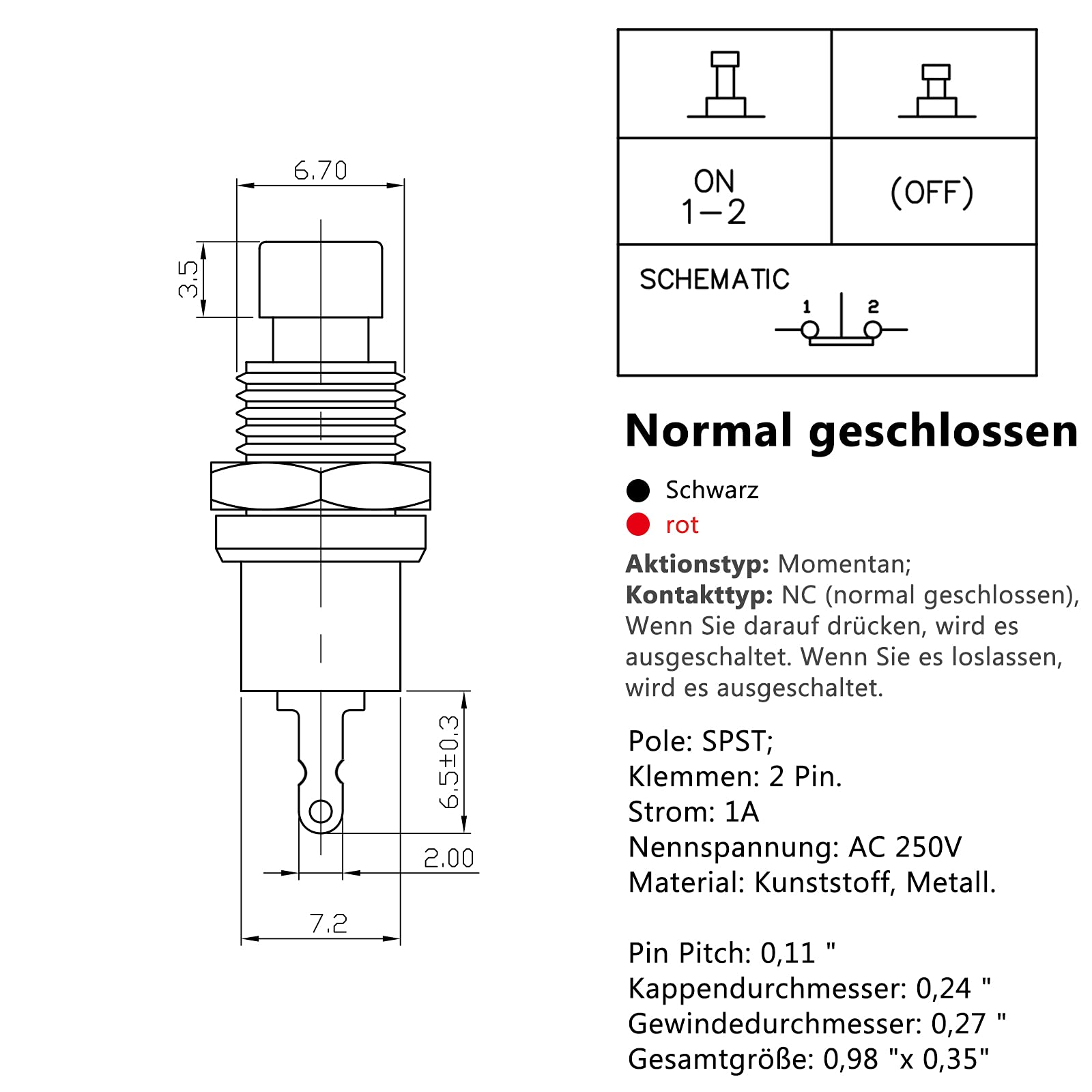

• ★Thread Diameter:6.9mm; Cap Diameter:6mm; Pin Spacing: 3mm
• ★Total Size:25*9mm (Max. L * D); Material: Plastic, Metal

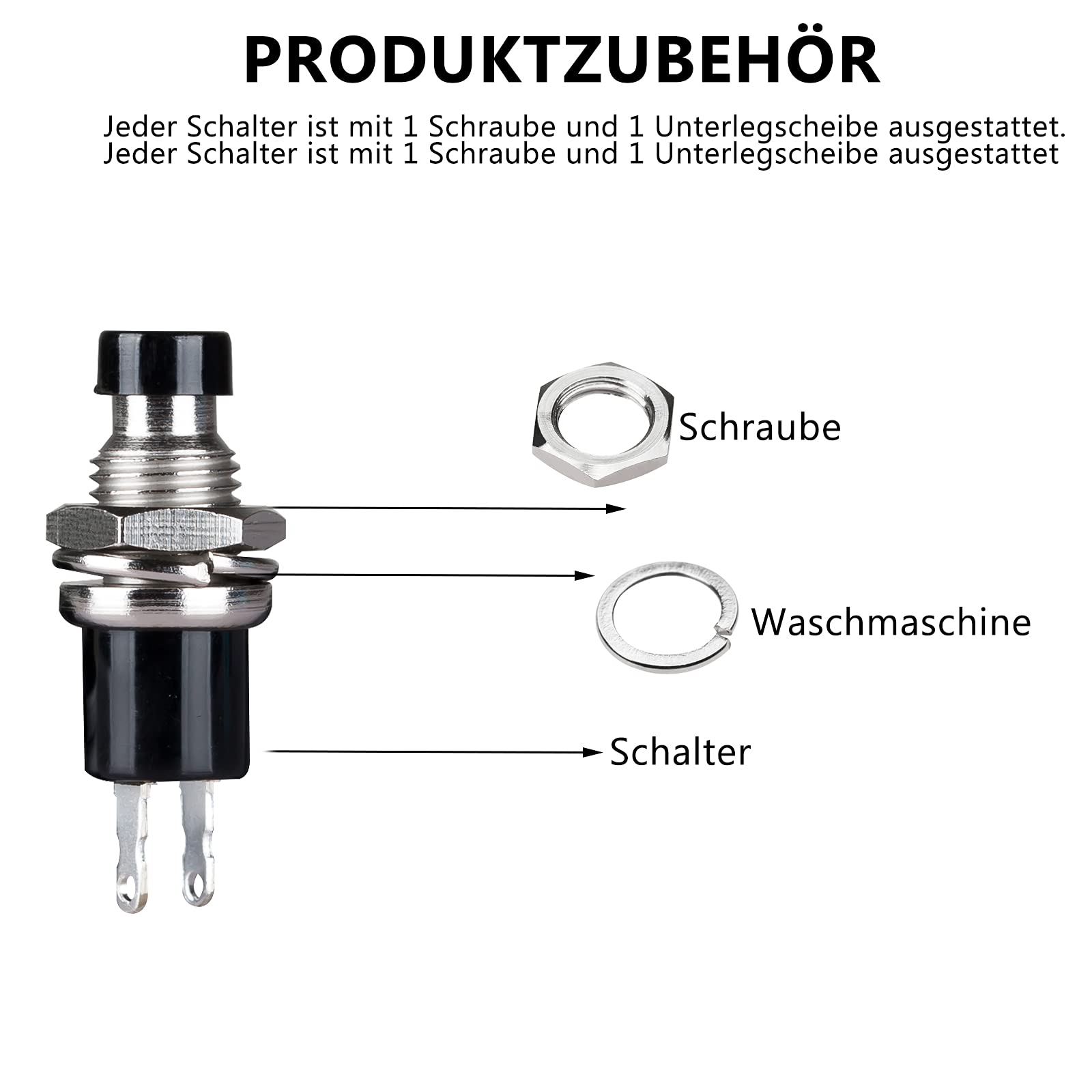

• ★Package Content:20 x Push Button Switches

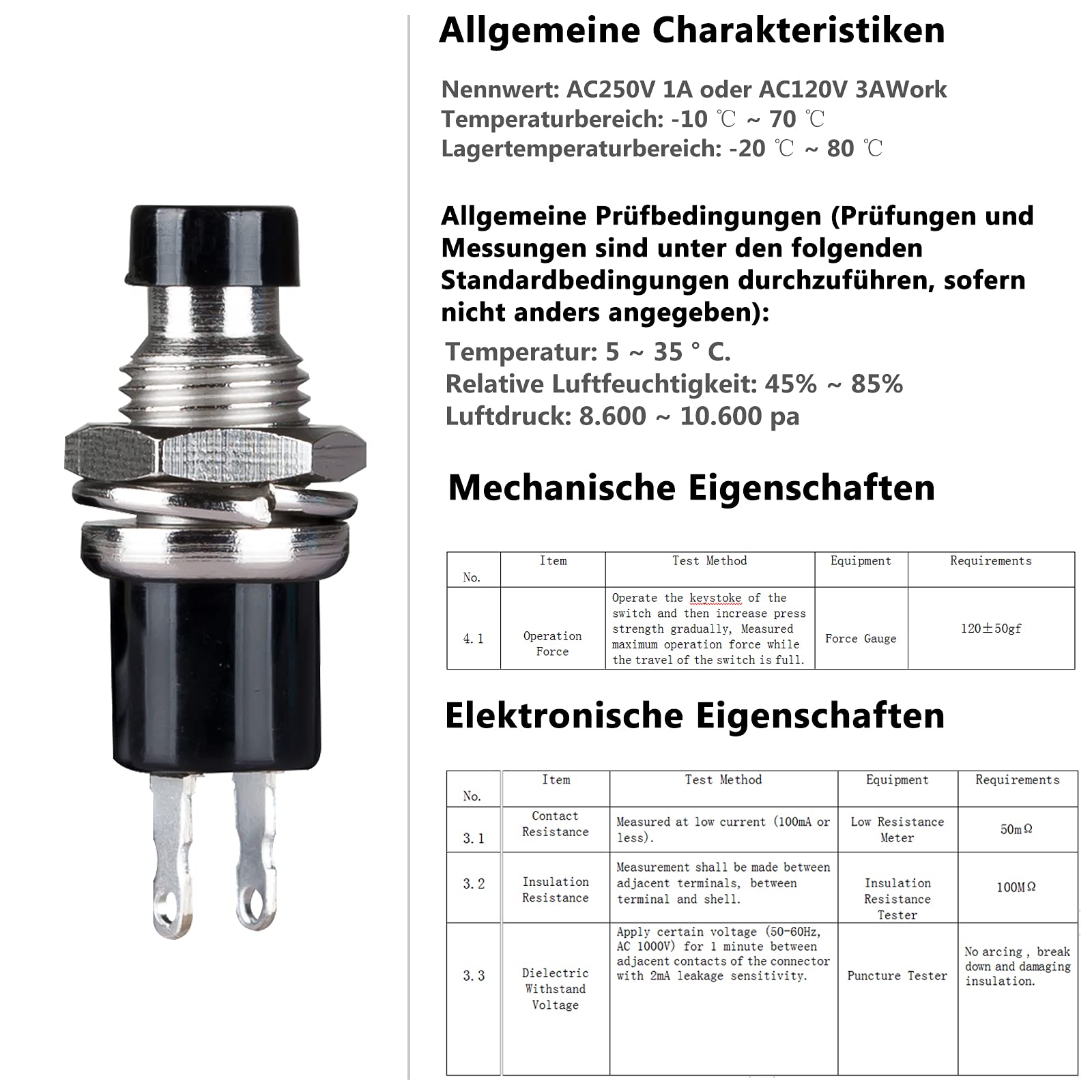

Pressure switch. Product parameters: - Poles: SPST - Connectors: 2 Pin. - Material: plastic, metal. - Action Type: Momentary. - Rated voltage: AC 250V / 1A. - Contact type: NC (normally closed), when you press it, it will turn off. When you release it, it will turn on. Product specifications: - Pin spacing: 3 mm. - Cap Diameter: 6mm - Thread diameter: 6.9 mm. - Total size: 25 x 9 mm (max. L x D). Product Features: ✔ DIY enthusiasts for cooling car circles and laboratory enthusiasts. ✔ The pressure switches are used in industrial control loops. ✔ For controlling electromagnetic starters, contactors, relays and other circuits. Warm tips: Choose the suitable electric soldering iron and increase the welding speed. It is recommended to use an electric 20W soldering iron to complete the welding in three seconds. The flux must be the right amount. When welding, try to turn the pins of the switch down. It is also better to use plug wire with connection, e.g. such as pins with spring, auxiliary plugs, and direct welding to avoid Package contents: 20 x Push Button Switches
