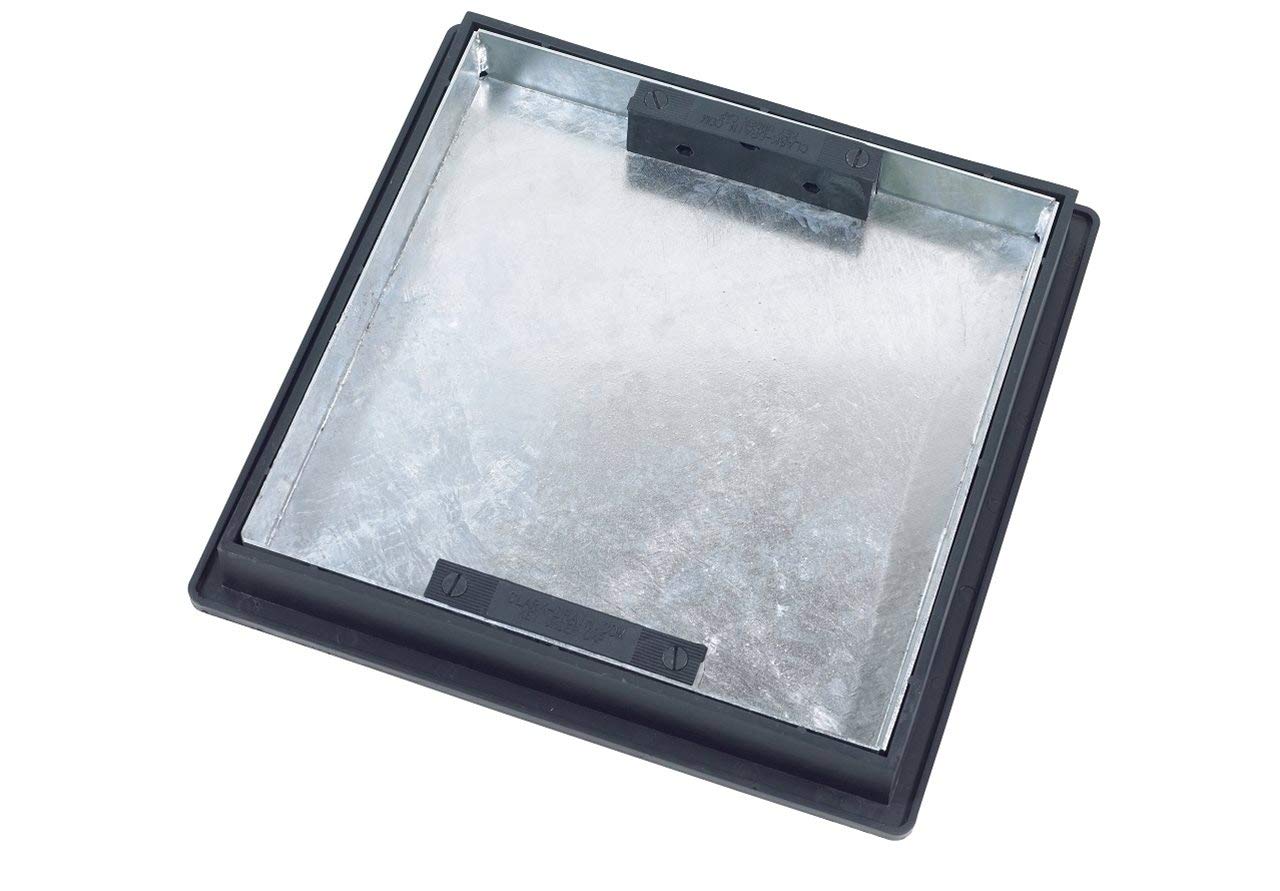

Clark Drain T1G3 440mm (L) x 440mm (W) x 52mm (D) Overall Size Recessed Square to Round Manhole Cover to Suite risers from 220mm to 300mm Locked and Sealed with Built in Handles

• Clark Drain T1G3 440Mm L X 440Mm W X 52Mm D Overall Size Recessed Square To Round Manhole Cover To Suite Risers From 220Mm To 300Mm Locked And Sealed With Built In Handles
• Clark Drain T1G3 440mm L x 440mm W x 52mm D Overall Size Recessed Square to Round Manhole Cover to Suite risers from 220mm to 300mm Locked and Sealed with Built in Handles
• Brand: T1G3

Here At Future Build Supplies Ltd. We Offered From The Leading Provider Of Manhole Ceilings Clark Drain. The T1G3. T1G3 Recessed Manhole Cover And Frame Clear Opening 220Mm To 300Mm Diameter. External Dimensions 440Mm X 440Mm X 52Mm. Total Depth 52Mm. Depth 43.5Mm Without Steps. If You Are Having Trouble Figuring Out What The Clear Opening Corresponds To. The Best Way To Decide Which Cover Is Best For You Is To Measure The Hole In The Ground That Will Be Covered. The T1G3 Is Embedded In Concrete Or Screed. It Has A Total Load Of 5 Tons And Is Therefore Suitable For Pedestrians. This Cover Has Integrated Lifting Keys. The T1G3 Fits Square Or Round Chambers And The Serrated Adapter Can Be Cut To The Chamber Starting From 220Mm To 300Mm. Sealed And Lockable Manhole Covers Are The New Equivalent Of Double Sealed. Building Regulations 2000 Require Internal Manhole Covers To Be Airtight, But No Single Or Double Seal Is Specified. All Of Our Recessed T Series Covers Feature A Rubber Seal And Screw Lock. Sealed And Lockable Covers Include Interiors, Tiled Floors, Patios, Playgrounds And The Like. Technical Data Galvanized Steel Tub With Black Polypropylene Frame. Factory Fitted Rubber Seal To Prevent Unwanted Odours. Four Screw Fasteners This Cover Meets Facta Standards 7.0, 7.2, 7.2.1, 7.2.3 And 7.3.3, As Well As Structural Steel Material Quality To Bs En 1449 1991 En10025 And Galvanized Standards To Bs En 1461 1999. Polypropylene Class Ap9
