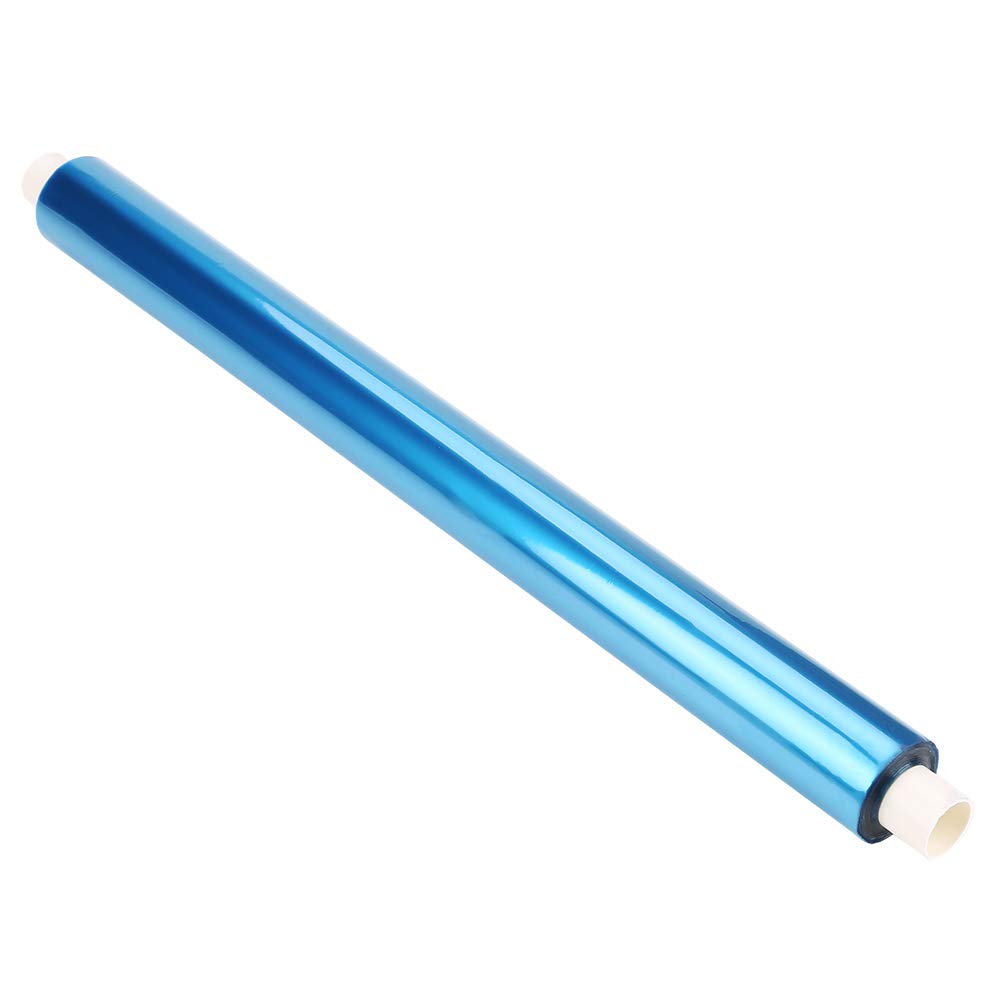

Circuit Production Dry Film 30cm×5m Portable Photosensitive Dry Film for Circuit Production Photoresist Sheet

• ✅【SENSITIVE CIRCUIT BOARD】: The Photosensitive Film can be stick on top of the PCB, and it will become a sensitive circuit board, which can be good helper to you.
• ✅【HIGH RESOLUTION FILM】: The Photosensitive Dry Film has excellent ability to cover holes, with high resolution, hope can meet what you need.
• ✅【DRY FILM FOR PCB BOARD】: This Photosensitive Film is also known as dry film, which is used to PCB board.
• ✅【EXCELLENT ADHESION FILM】: This Photosensitive Dry Film has high image clarity after exposure, and perform excellent adhesion to almost all surfaces.
• ✅【SUITABLE APPLICATIONS】: This Photosensitive Dry Film is very suitable for plating, hole covering, and the etching process.

Features: Photographic film, also known as dry film, is used to make PCB board, stick it on top of the PCB, it will become a sensitive circuit board. Suitable for plating, hole covering, and the etching process. Excellent ability to cover holes, high resolution. Excellent adhesion to almost all surfaces. Image clarity after exposure. Steps of use: 1. Film uncovering, the photographic film is sandwiched between two layers of films. 2. Film pasting, clean and paste flat. 3. Heat slightly to fix with electric iron. 4. Print circuit board film. 5. Exposure 6. Develop 7. Etch 8. Demould Spec: Color: black Material: Plastic Dimension: 30cm*500cm / 11.8*197in Weight: approx. 150g Package List: 1 * Photosensitive film
