Circuit Breaker Isolator Switch PV Solar Surge Protection 500V DC Isolator Switch Lightning Protection with Photovoltaic IP65 Waterproof Housing Distribution Box Distribution Box (2-Pin 40A 20-40KA)

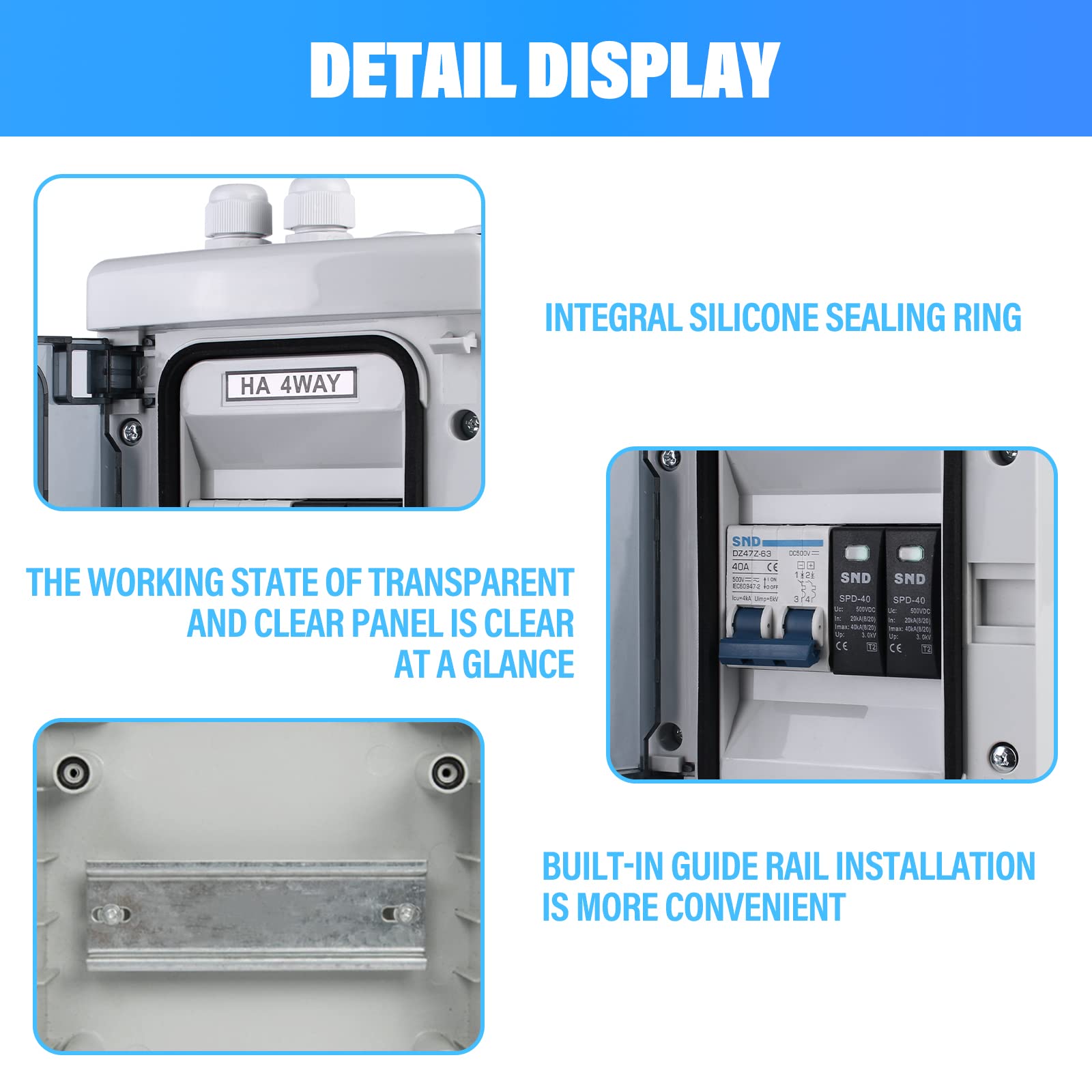

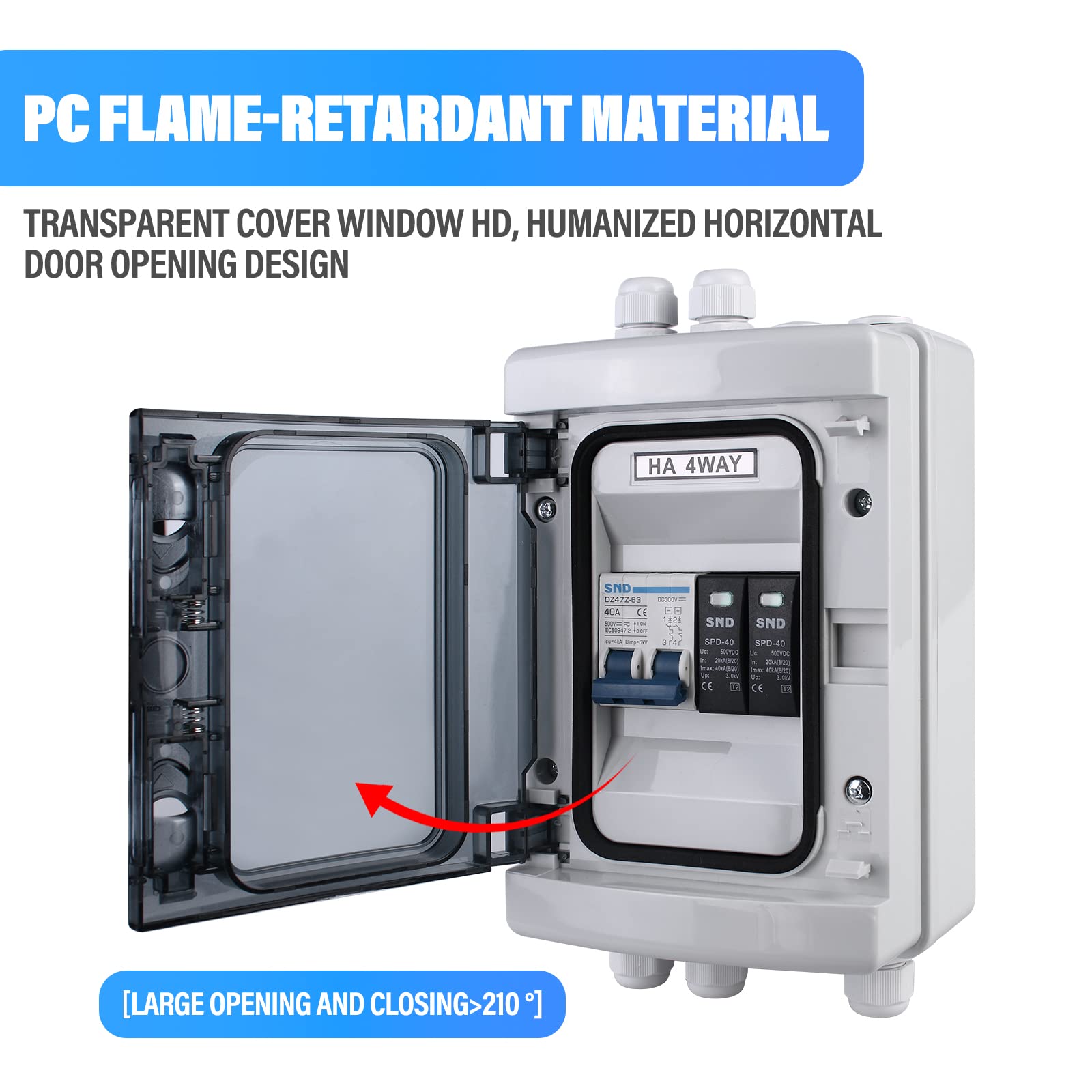

• 【Material】The shell is made of ABS engineering material with high quality hard material and waterproof function. The package includes: 1 x waterproof box + 1 x 2P 500VDC surge protection + 1 x DC500V DC isolator.

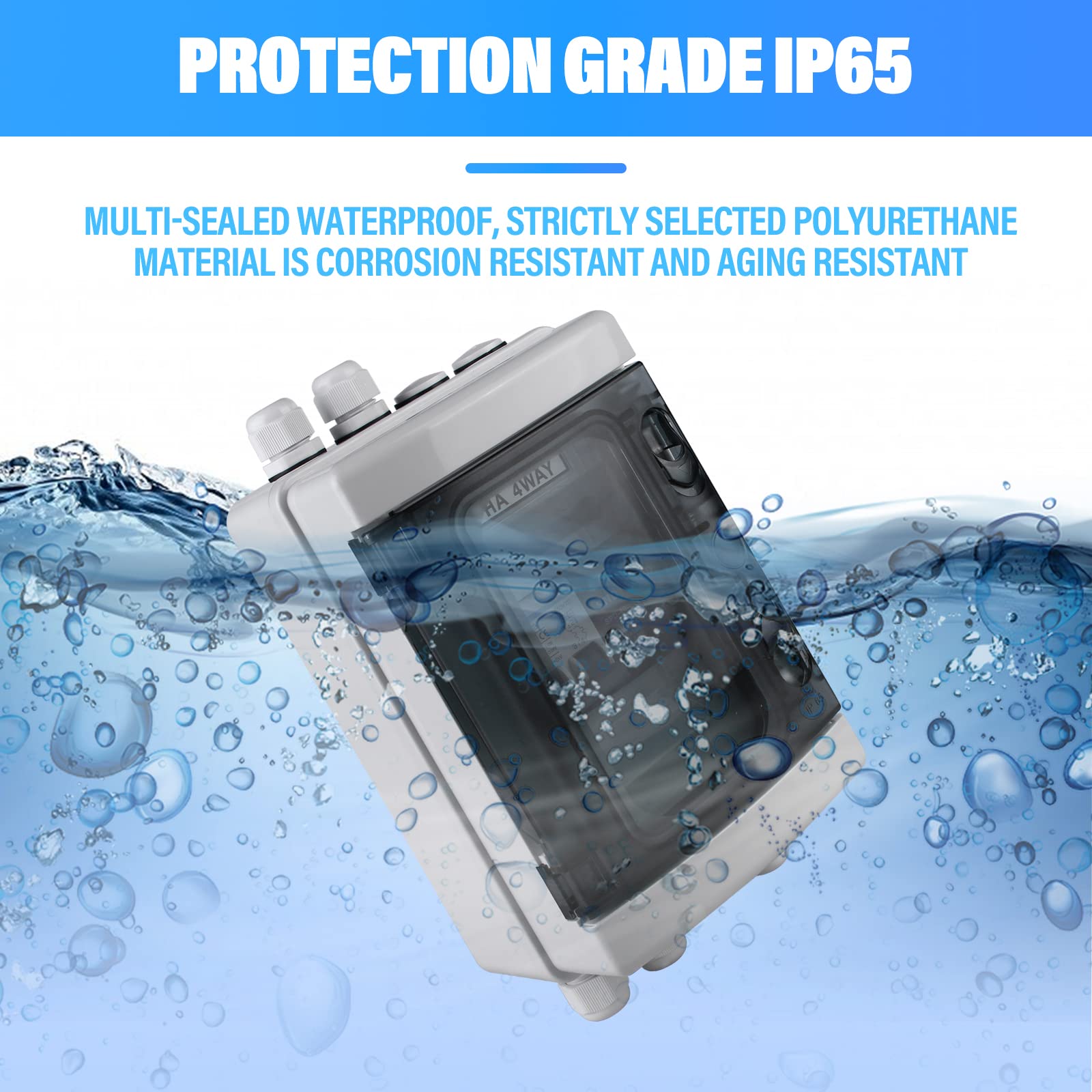

• IP65 waterproof: the distributor box is rated with the protection class IP65 (waterproof) and can therefore be used both indoors and outdoors (wet room).
• 【Easy to install】This junction box is easy to install and very convenient to use. You can mount it on the wall in a few simple steps. Remember to cut off the power supply during installation to avoid electric shock.

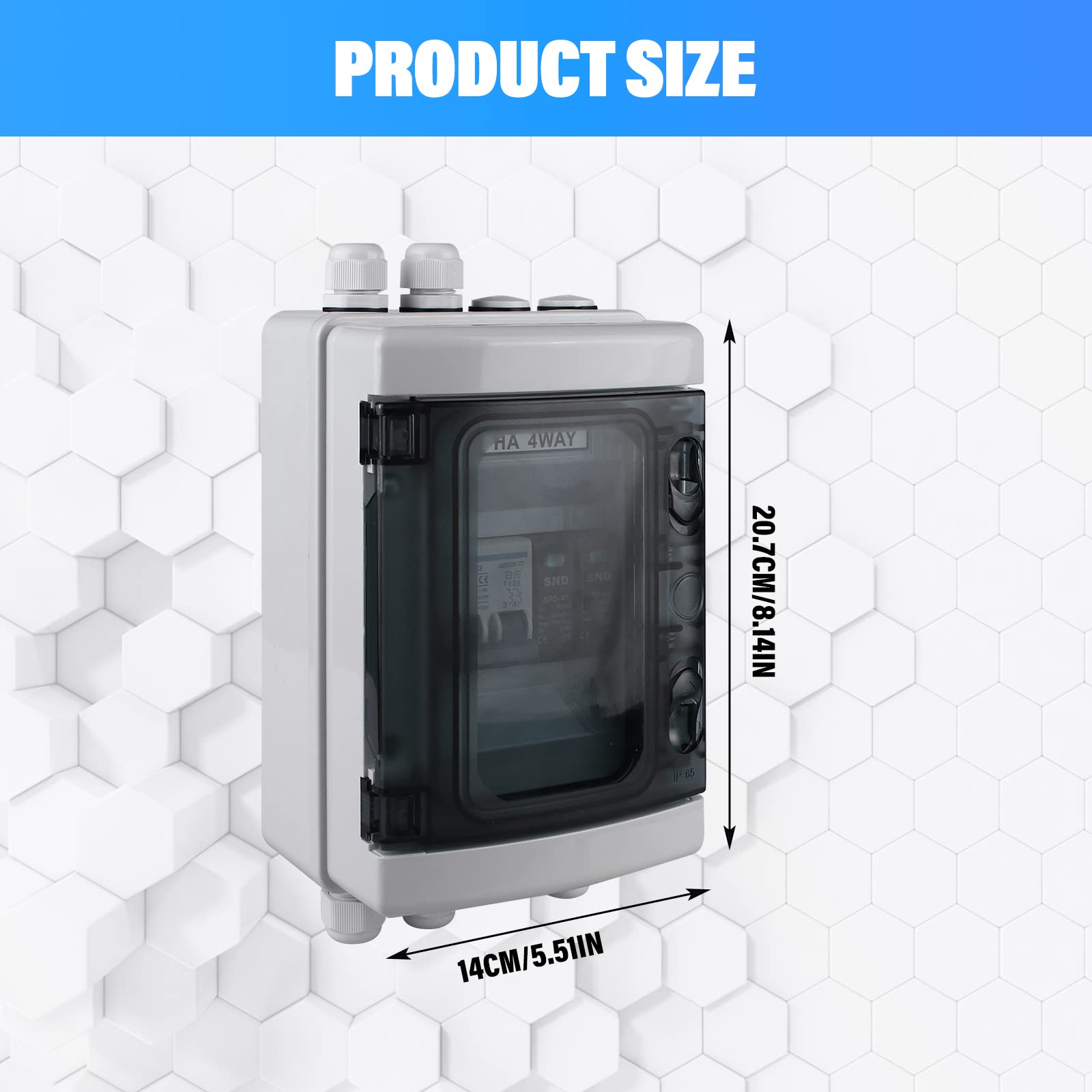

• Appearance size: 500 V DC isolator switch lightning protection with photovoltaic IP65 waterproof housing junction box (2-pin 40 A 20-40 KA).
• 【Applications】The circuit breaker mainly used for lighting office buildings and residential buildings. It is used to distribute and protect the systems from damage caused by overload and short circuit. It is widely used in networked solar panel systems, wind and solar hybrid systems and other DC circuit systems due to overload or short circuit due to overcurrent damage.

Circuit Breaker Isolator Switch PV Solar Surge Protection: 500 V DC Isolator Switch Lightning Protection with Photovoltaic IP65 Waterproof Housing Distribution Box Distribution Box (2 Pin 40 A 20-40 KA) Feature: 1. Miniature circuit breaker has been specially designed for DC circuit applications (DC) and is used for overcurrent and short circuit protection and can also be used as an isolator switch in electrical appliances or electrical appliances. 2. It is widely used in mains connected solar panel systems, wind and solar hybrid systems and other DC circuit systems due to overload or short circuit caused by overcurrent damage. It can also be used for household switches with 120V/240V. 3. IP65 waterproof and dustproof. Suitable for indoor and outdoor gutters, distributors, under solar panels, warehouses and other rooms. Specifications: Poles: 2P. Rated operating voltage: DC12~400V. Rated current: 40 A. Switching capacity: 4 kA Ics=Icu. Trigger characteristic: C Mechanical life: 10,000 times Electrical life: 4,000 times Installation method: 35 mm DIN rail standard: IEC60898 / GB10936 Operating temperature: -30°C to +80°C. Operating height: 2000 metres. Waterproof rating: IP65. Material: ABS Size: 140mm x 160mm x 100mm Package contents: 1 x waterproof box. 1 x 2P 500V DC surge protection. 1 x DC500V DC isolator switch. Notes: 1. Please allow for small deviations caused by human measurements. 2. Depending on the display, the picture is reflected.
