Circuit Breaker B16 A, Circuit Breaker B16 A/ 30mA, B Characteristic 30mA 1-Pole 230/400 V

• Tripping characteristic: B
• Rated current in: 16 A.
• Rated voltage Un: 400 V.
• Number of fused poles: 1.
• Number of poles: 1

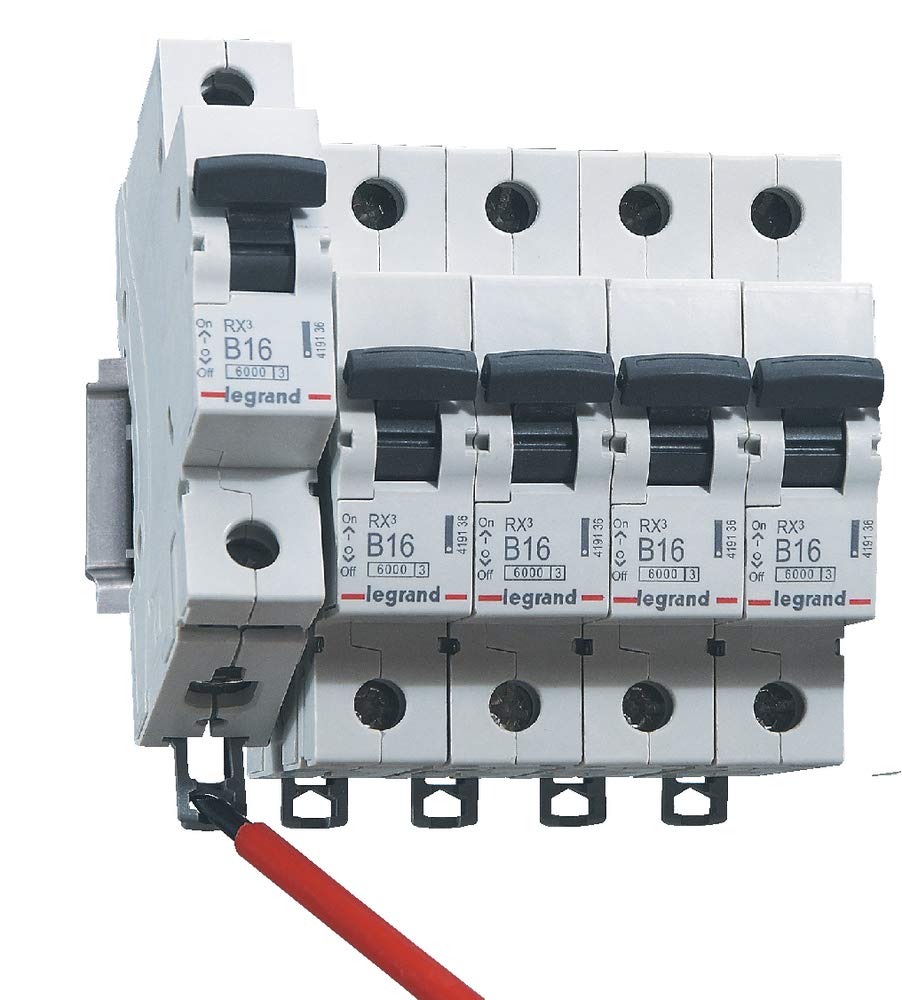

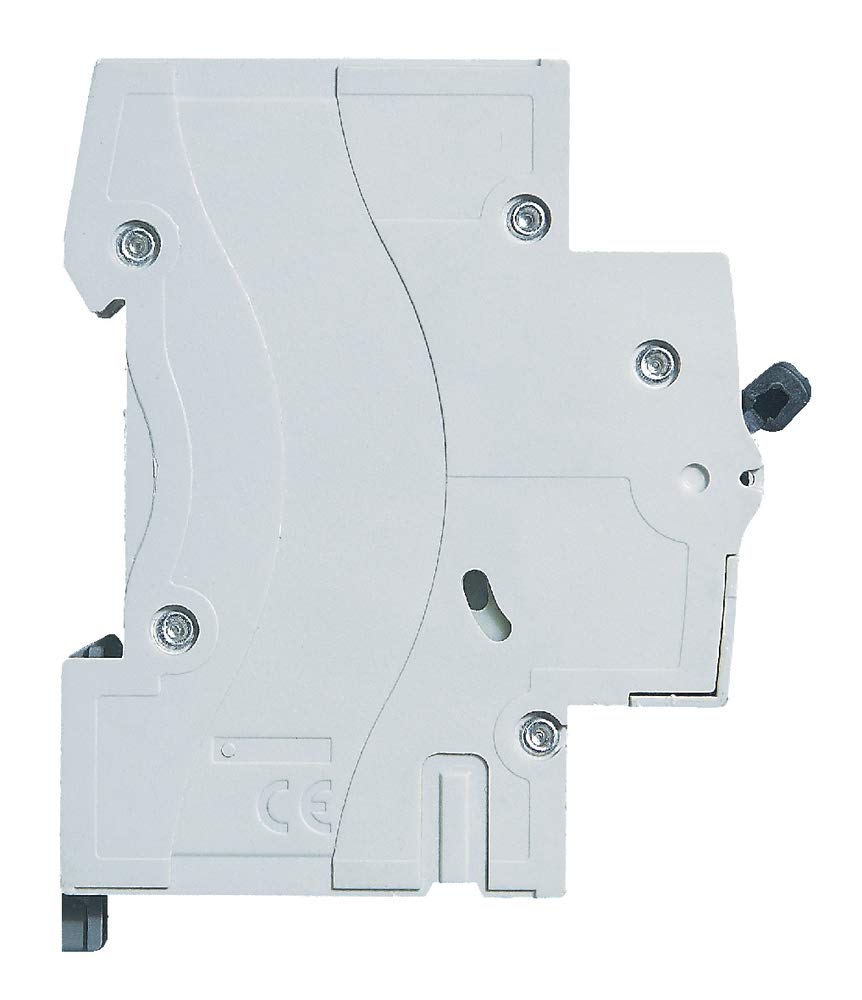

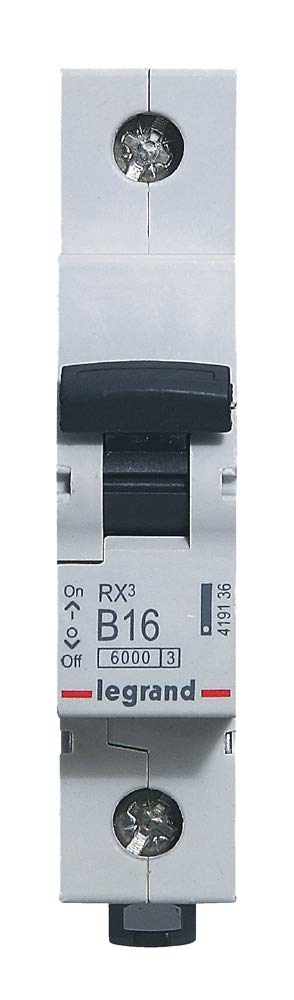

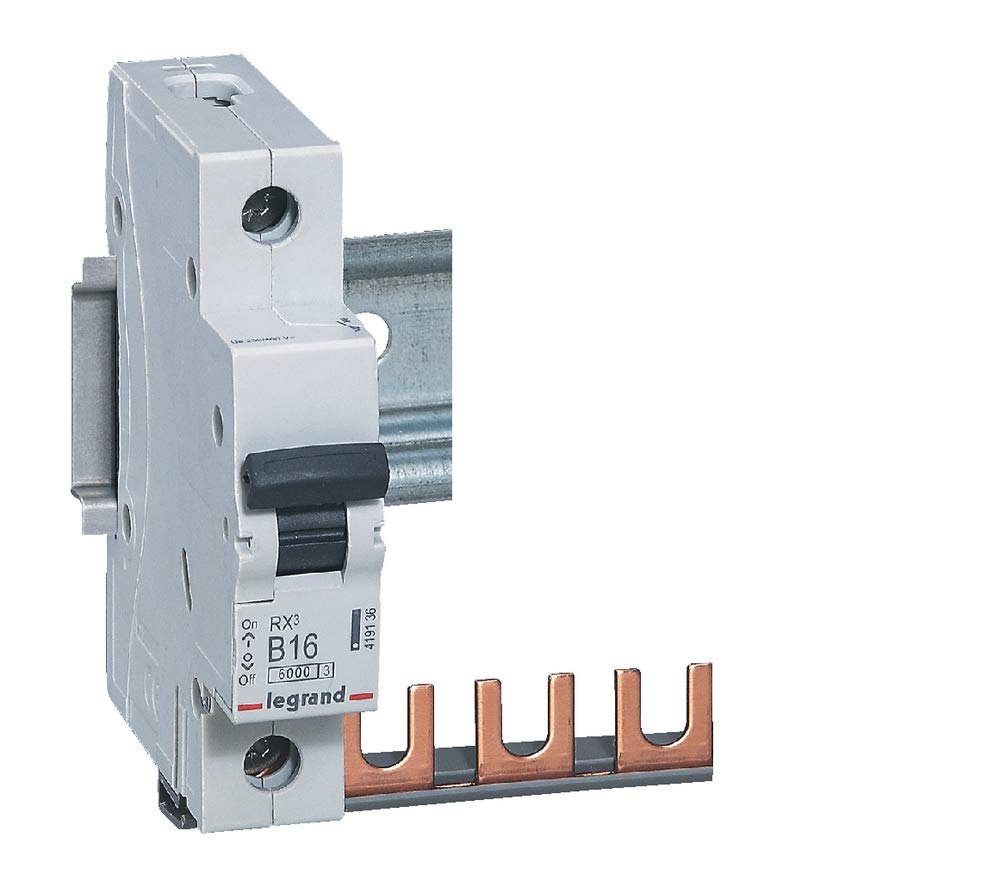

Legrand circuit breaker RX3 according to EN 60898-1, VDE 0641-11, EN 60947-2, 1-pole, B-characteristic, rated current in 16 A, rated switching capacity Icn 6 kA according to EN 60898-1, rated voltage Un 230/400 VAC, rated frequency 50/60 Hz, energy limitation class 3, mounting on the cap profile rail with clear switching device with a clear indication of the front quick-mounting system, green Circuit breakers with B-characteristic are mainly designed for cable protection in light and socket circuits.
