July Summer Gifts Timer Relay - 5V 12V 24V Delay Controller Board Delay off Cycle Timer 0.01s-9999mins with LCD Display

• ★timer switch With LCD display screen, the current mode and parameters are clear at a glance
• ★ Support high or low level trigger, switch quantity control, suitable for most applications
• ★ timer switch Support UART data upload and parameter setting
• ★ Wide power supply voltage 6~30V, support micro USB 5.0V power supply, very convenient to use
• ★ One button emergency stop function (STOP button), with reverse connection protection

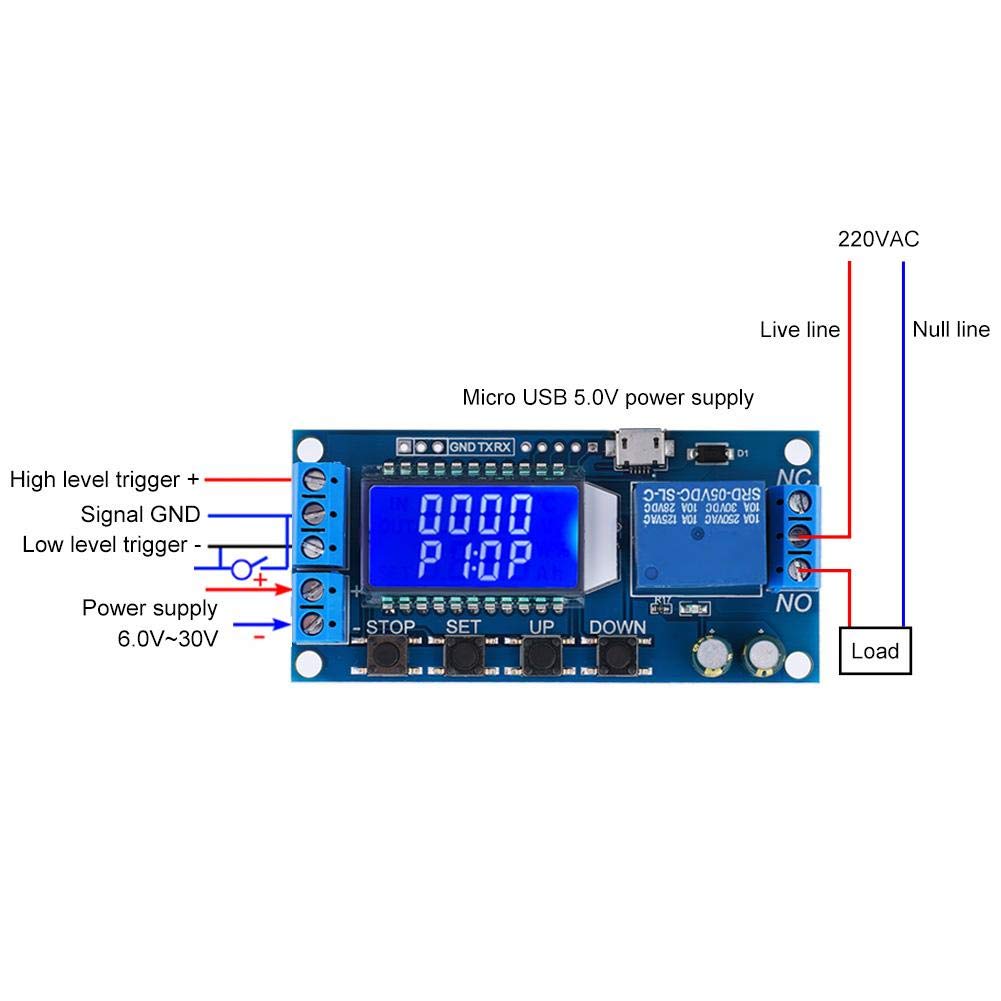

Specification: Item Type: Delay Relay Module Working Voltage: 6--30V Timing Range: 0.01s-9999min continuously adjustable Trigger Signal Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch) Output Capability: Can control devices within 30V 5A or within 220V 5A Quiescent Current: 15mA Operating Current: 50mA Service Life: >100,000 times Working Temperature: -40~85°C Size: 88x3.8x1.9cm / 3.15x1.5x0.75in How to Choose Timing Range: In the OP/CL parameter modification interface, short press the STOP button to select the timing range: XXXX: Timing range is 1s~9999s XXX.X: Timing range is 0.1s 999.9s XX.XX: Timing range is 0.01s to 99.99s X.X.X.X: Timing range is 1min to 9999min Parameter Setting: Parameter Description: OP: Conduction time, CL: Disconnection time, LOP: Cycle number (1-9999 times, ''----'' means infinite loop) a) Enter the setting interface by long pressing the SET button; b) First set the working mode, the working mode flashes reminder, set the working mode by short pressing the UP/DOWN button; c) Short press the SET button to select the working mode and enter the system parameter settings; Package List: 1 x Delay Relay Module
