Chauvin Arnoux CA762 Test Equipment Voltage Absence Tester, up to 690 VAC, IP2X

• Two-pole phase sequence test with 2-wire method: "no third hand needed"
• Automatic indication of the type of voltage AC or DC and indication of the polarity

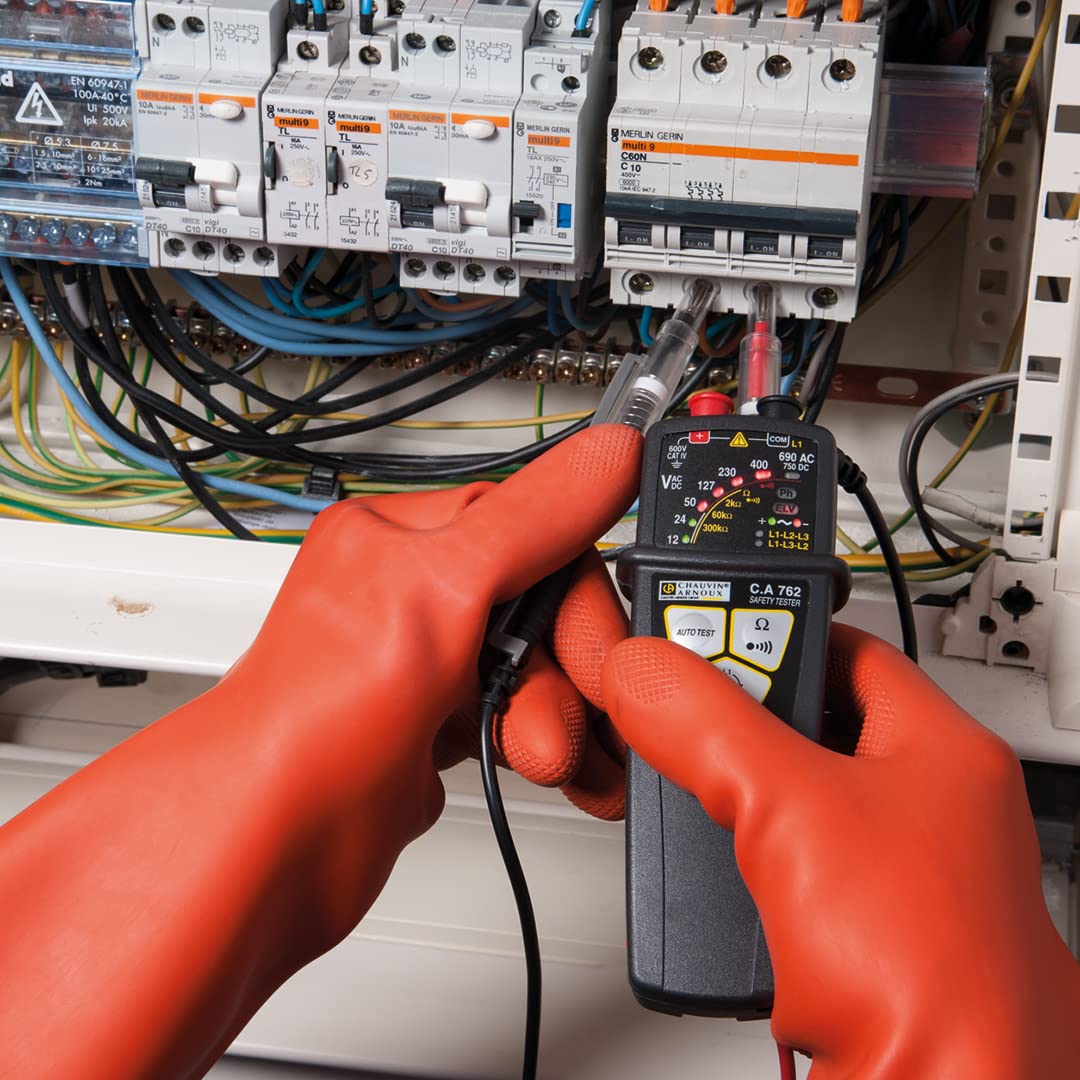

The C.A 762 Voltage Absence Tester is an essential tool for any electrician to check that no voltage is present before working on an electrical installation connected to the network. It complies with IEC 61243-3 Edition 2 and can be used to work on any indoor or outdoor 600 V CAT IV installation. To fulfil the requirements of the standards and legislation in certain countries, there are 2 references with or without IP2X accessories. The C.A 762 is equipped with a redundant safety system in the event of power supply faults, the "ELV LED" which flashes whenever the voltage exceeds 50 VAC/120 VDC. The full Auto test of the C.A 762 checks the electrical circuits, the power supply, the display and the condition of the measurement leads. The test probe and leads are removable. The C.A 753 measurement accessory option can be used to test 2P+E power sockets quickly and simply. Specifications: CAT IV 600V IP65 Full Auto test Voltage detection, LED display, 12.690 VAC/750 VDC Automatic indication of the type of voltage AC or DC and indication of the polarity Single-pole phase test a single contact Two-pole phase sequence test with 2-wire method: "no third hand needed" Continuity test with audible and visual indication R <100 Ω Extended continuity test with visual indication for R <2 kΩ, 60 kΩ and 300 kΩ Automatic continuity test if no voltage is detected Complies with EN 61243-3 Ed.2009, EN 61243-3 Ed.2010 and DIN VDE 0682-401 Ed.2011 Removable lead and test probe Delivered complete and ready to use
