Charnwood CK63 Dust Separator Cyclone Kit for 63mm (2.5") Hose

• A cyclonic dust separator works in conjunction with a regular dust extractor. It is connected into the hose line, to separate a significant amount of the dust and shavings and deposit them in the container. Up to 95% of all dust, shavings and chips will be collector in the separator and never reach the extractor.
• As the majority of the dust is no longer going into the body of the dust extractor, the life span of the filter is massively extended. Airflow and performance remains constant as the filters do not get clogged.
• Can be used with vacuum type drum extractors or high volume bag type extractors.

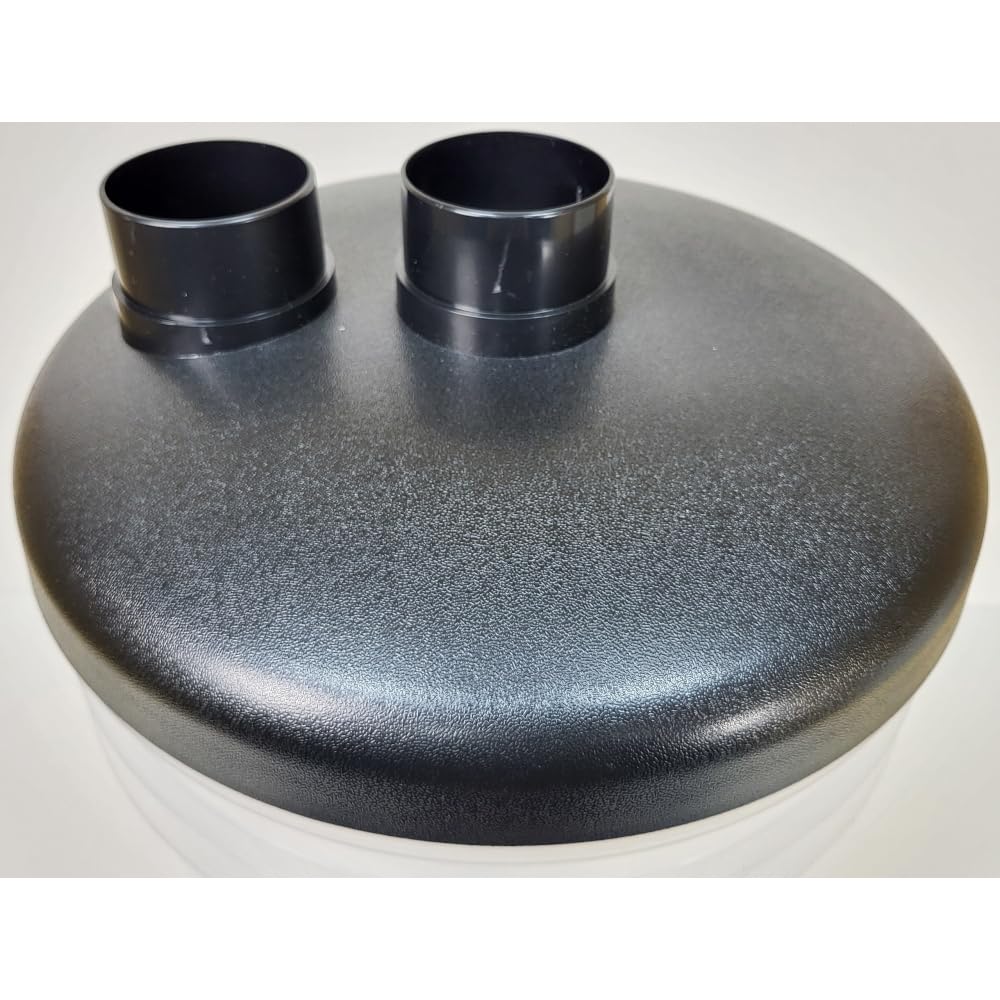

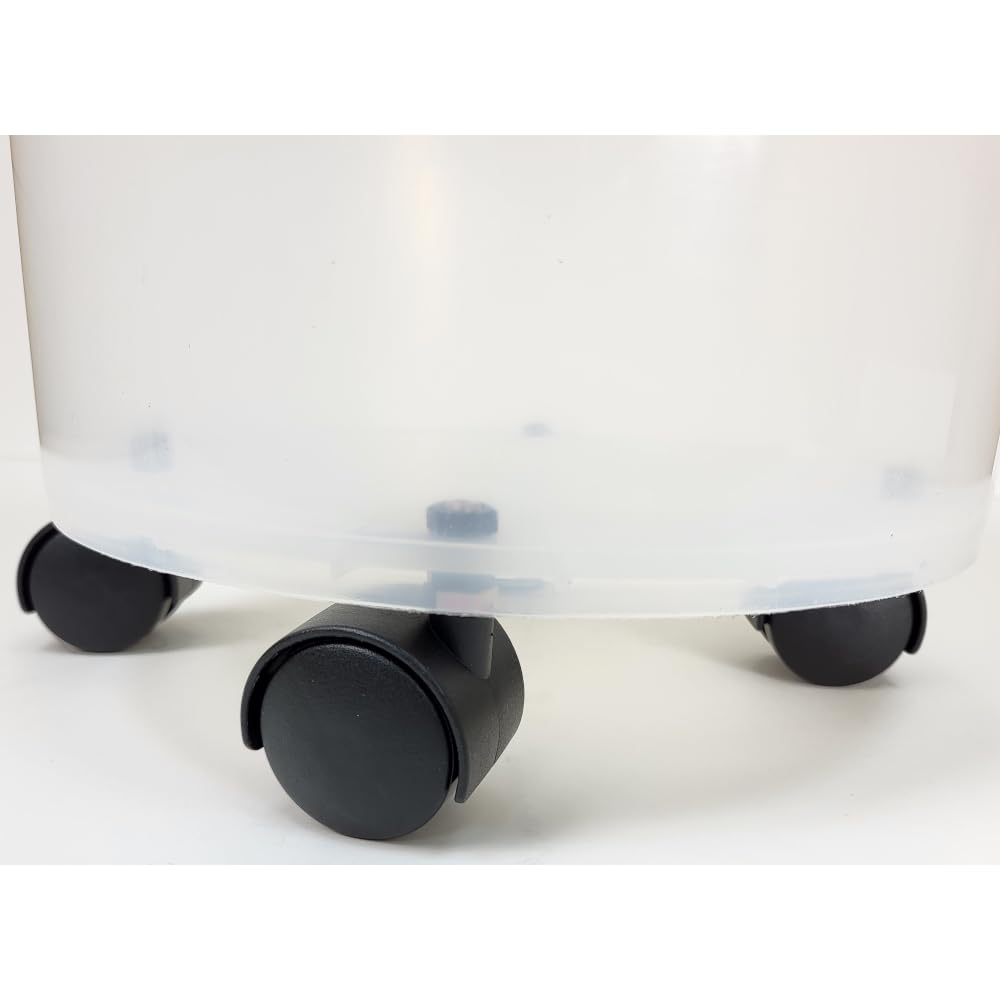

• The kit consists of: 24 Litre transparent container Lid with 2 x 63mm diameter ports Elbow for creating the cyclone Set of 4 castors Carrying handle

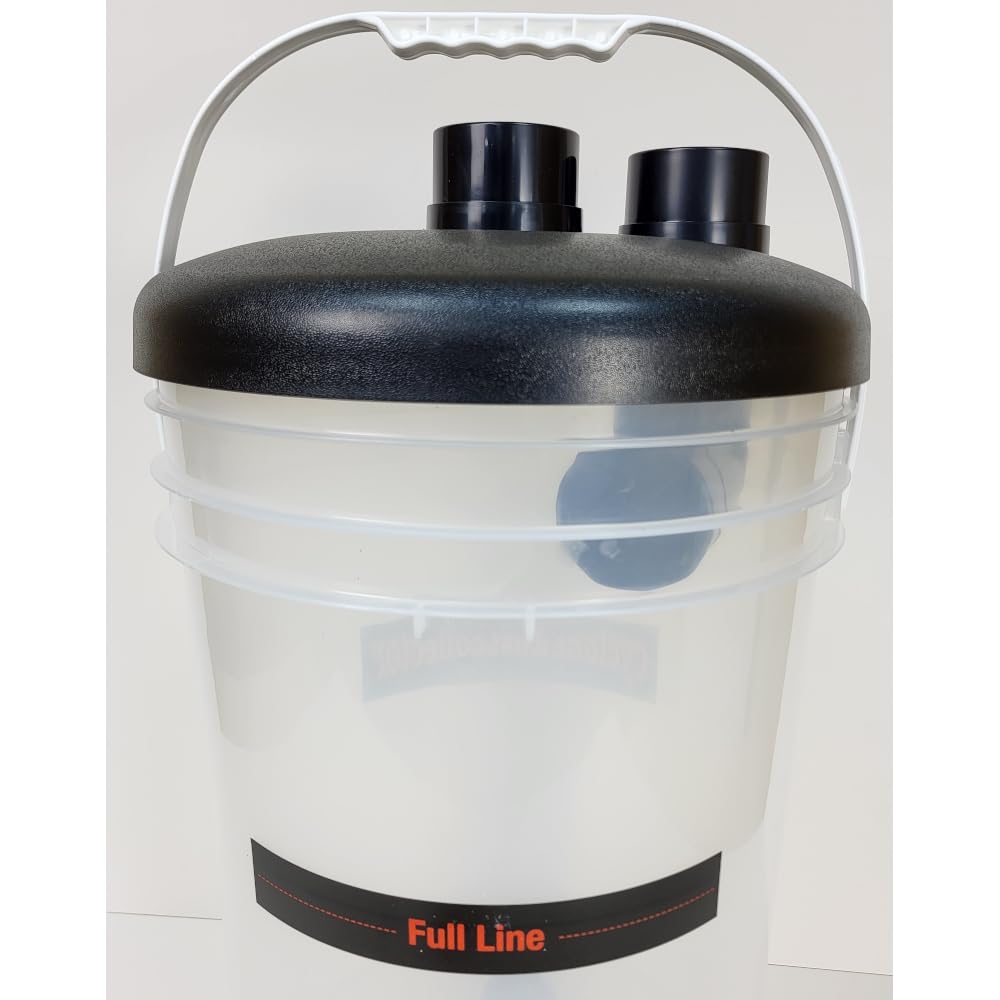

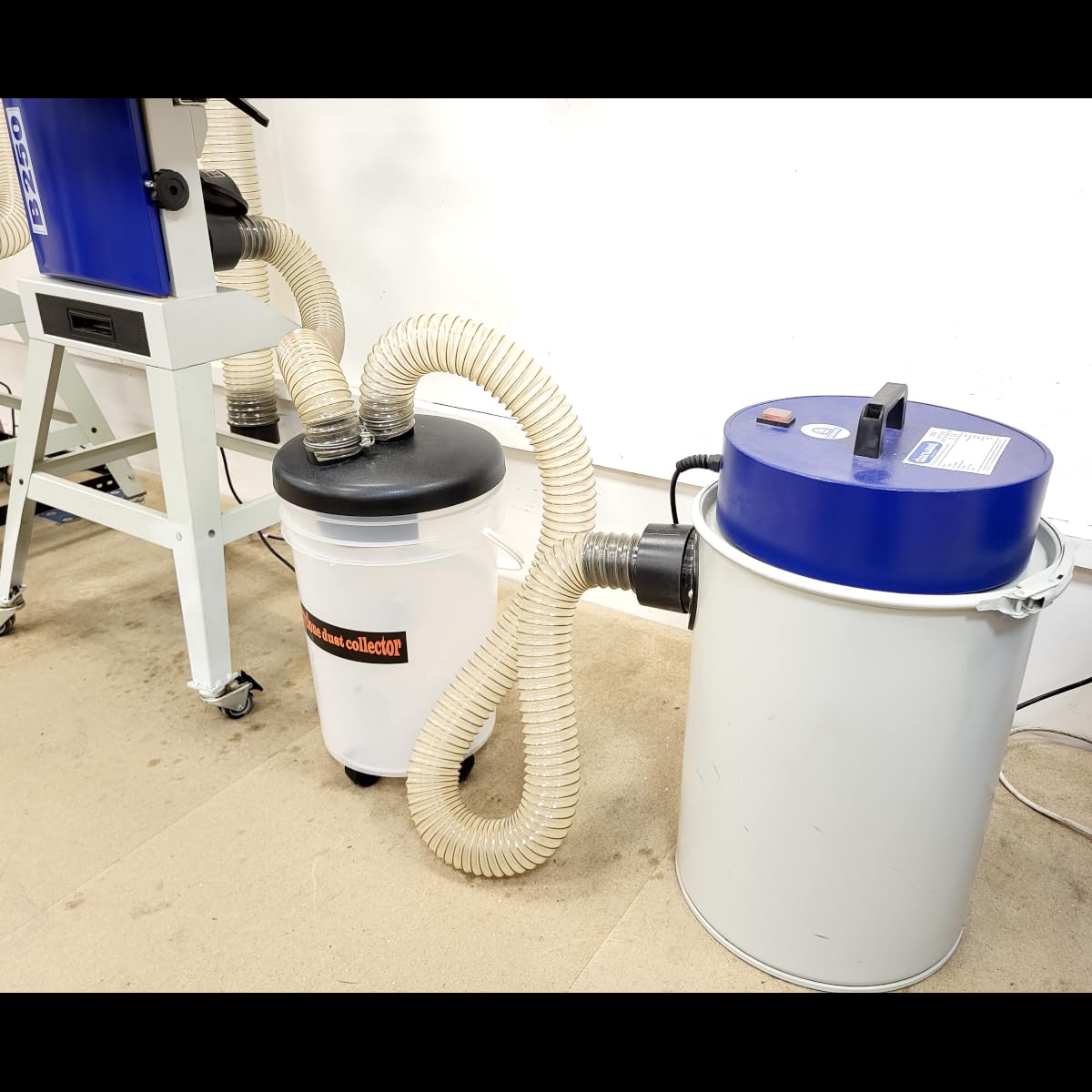

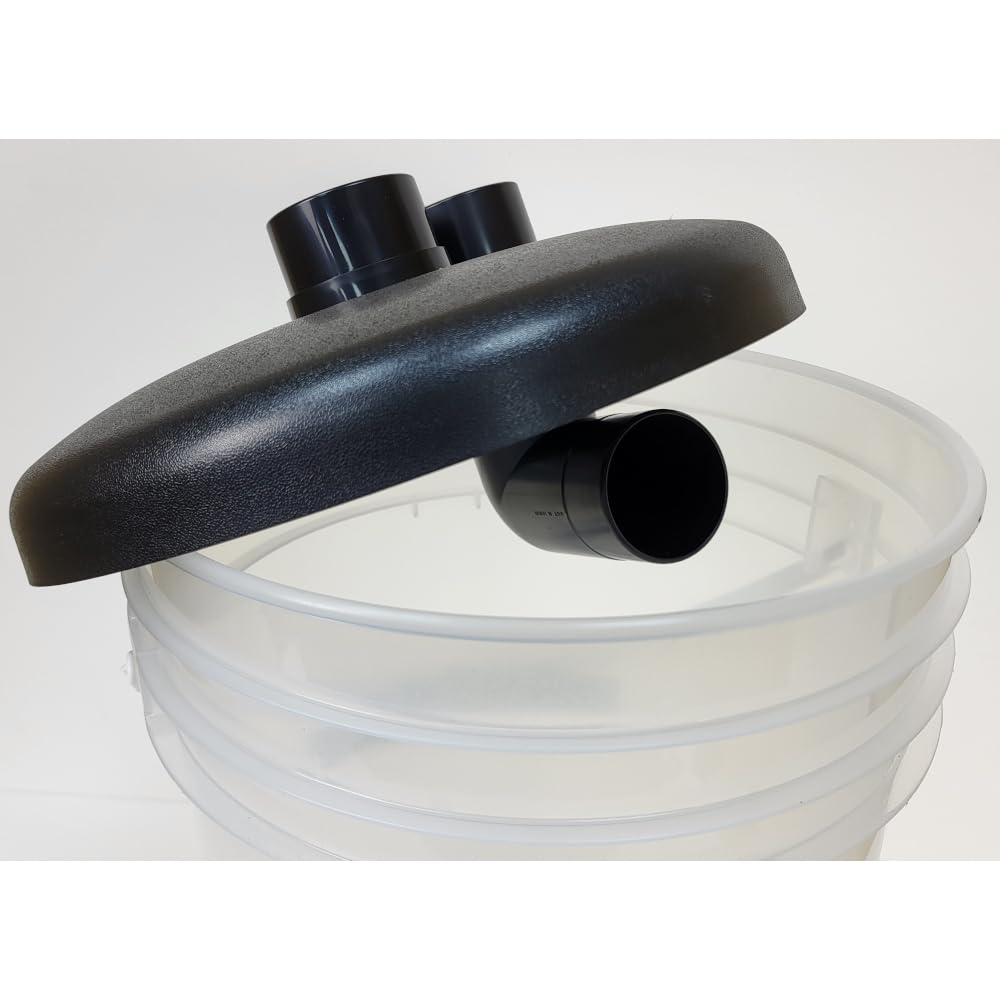

A cyclonic dust separator works in conjunction with a regular dust extractor. It is connected into the hose line, to intercept a significant amount of the dust depositing it into the container. Up to 95% of all dust, shavings and chips will be collected in the separator and never reach the extractor. As the majority of the dust is no longer going into the body of the dust extractor, the life span of the filter is massively extended. Airflow and extractor performance remain more constant as the filters do not get clogged. Can be used with vacuum type drum extractors or high volume bag type extractors. The CK63 kit consists of: 24 Litre transparent container Lid with 2 x 63mm diameter ports Elbow for creating the cyclone Set of 4 castors Carrying handle Simply connect a 63mm hose to the inlet port (located towards the rim of the container). Fit the elbow underneath, and angle it, so that air flows around the rim of the container depositing heavier particles into the bottom. Then connect a hose from the outlet port to the dust extractor for the now cleaner air to continue its journey. The container has transparent side so it easy to see the fill level. There is a fill line marked to remind you to empty the container when it gets to around 12 litres collected. Castors are provided if you need to move it around the workshop and a carrying handle to take it out for emptying.
