CHARNWOOD BD46 Belt & Disc Sander, 4" x 6"

• The design has been updated and simplified from the traditional belt driven sander. Both the belt & disc functions are powered directly from the motor shaft.

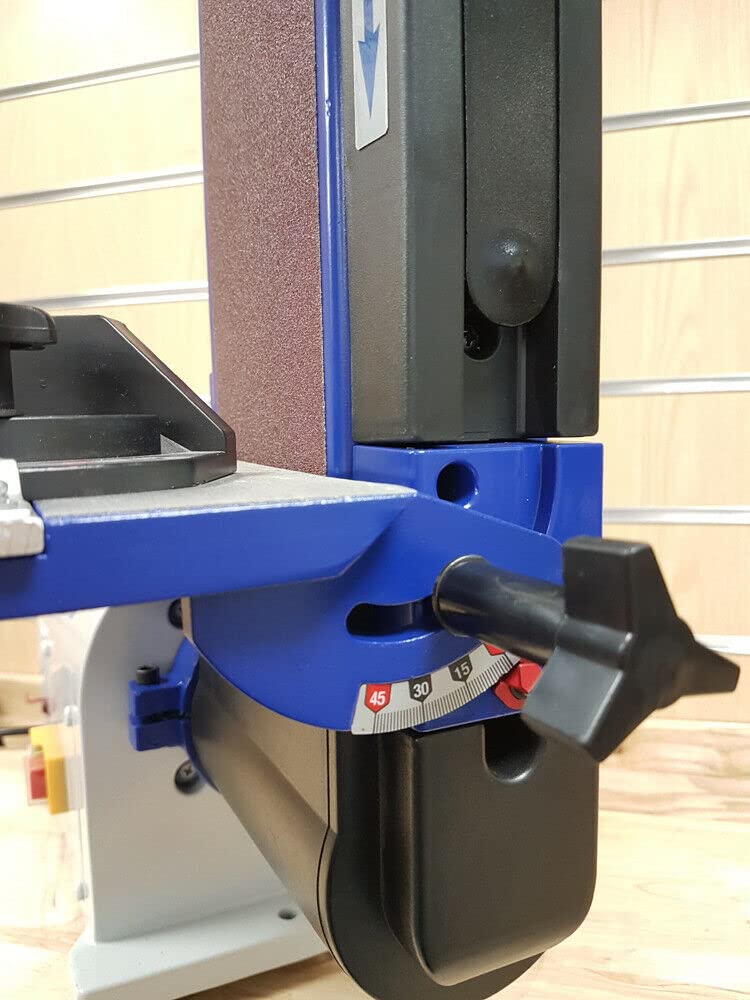

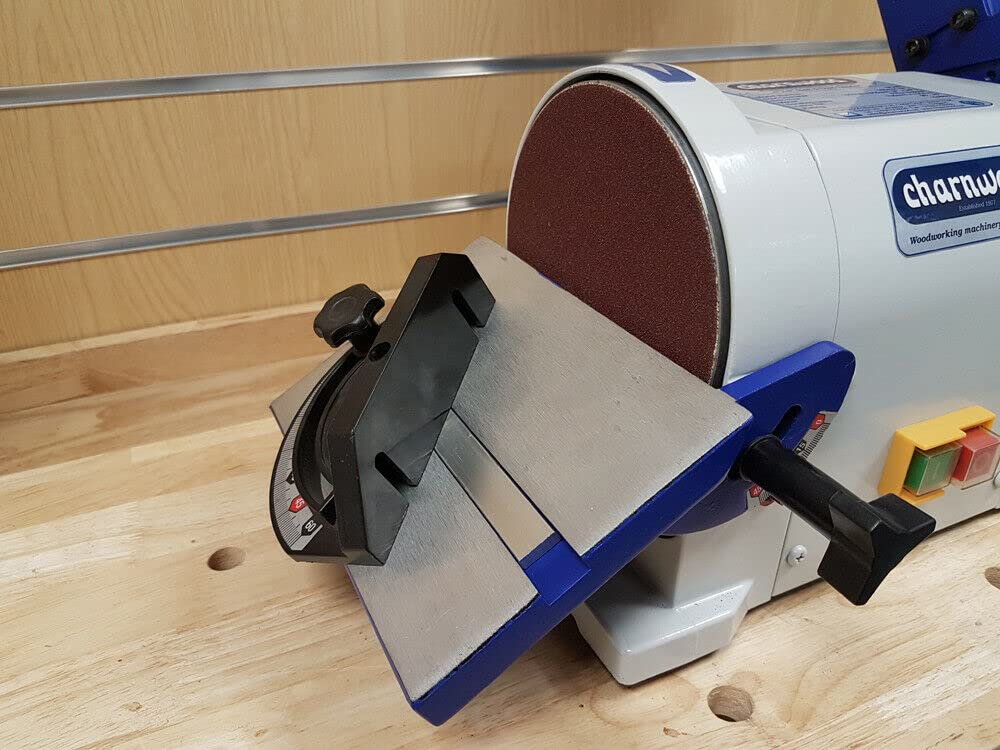

• The disc sander side has a 150mm diameter disc complimented by a solid one piece aluminium work table with 45 degree tilt.

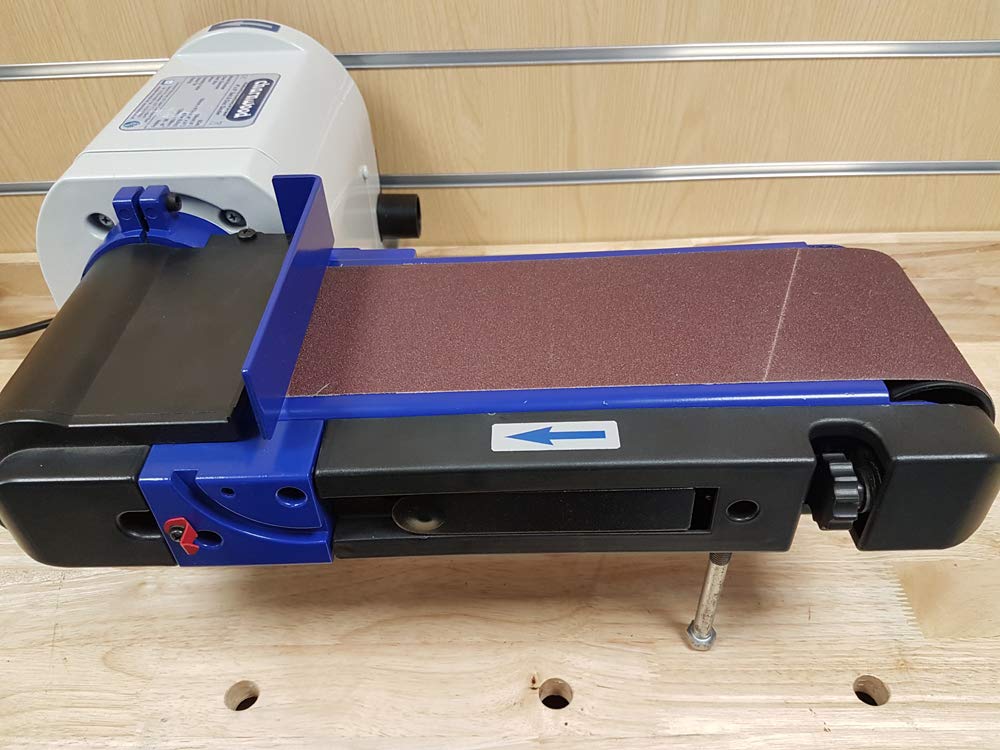

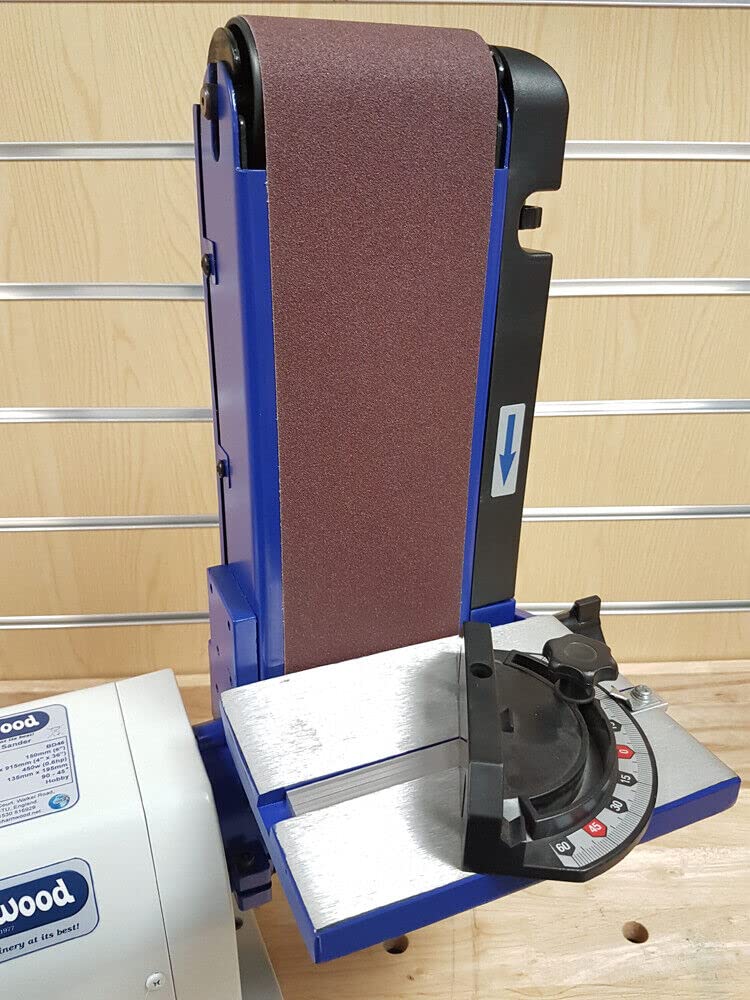

• The sanding belt can be used in horizontal or vertical mode. It can also be locked at any angle in between, sometimes more comfortable for sharpening tools.
• The open drum end of the belt can be used for sanding curved edges, cut on a bandsaw or scroll saw.
• Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.9m power cable & UK 3 pin plug.

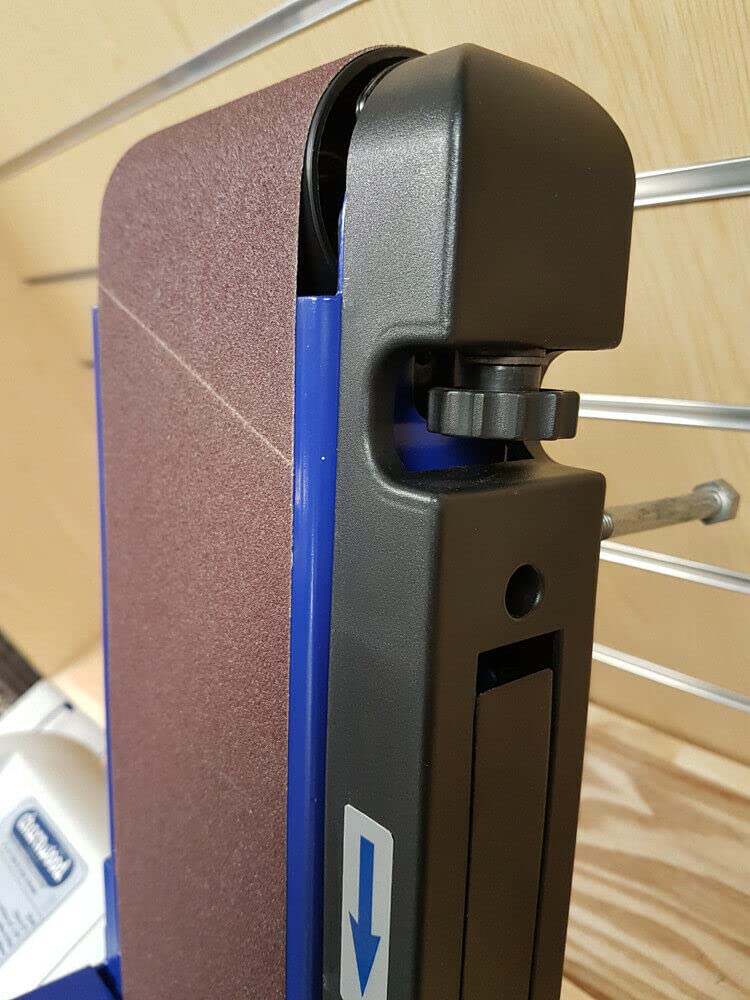

The disc sander side has a 150mm diameter disc complimented by a solid one piece aluminium work table with 45 degree tilt. A mitre guide fits onto a slot in the work table allowing the disc to be used for accurate sanding of square edges as well as bevels, mitres & even compound angles. The sanding belt can be used in horizontal or vertical mode. It can also be locked at any angle in between, sometimes more comfortable for sharpening tools. When used horizontally for face sanding the belt is fitted with a back stop. This can be quickly removed and replaced with the work table. The open drum end of the belt can be used for sanding curved edges, cut on a bandsaw or scroll saw. When the time comes to replace the sanding belt there is a quick release tension lever and tracking adjustment to balance the new belt. Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.9m power cable & UK 3 pin plug. Charnwood BD46 Specification Disc Diameter 150mm (6″) Disc Speed 2850rpm Belt Size 100mm x 915mm (4″ x 36″) Belt Speed 550m/min Motor (Induction) 240v, 50hz 450w (0.6hp) Work Table Size 195mm x 35mm Work Table Tilt 90 to 45 degrees Work Table Guide Slot 16mm (5/8″) Dust Extraction Outlet x 2 37mm OD, 31mm ID Overall Dimensions (WxDxH) 550mm x 530mm x 200mm Shipping Dimensions 530mm x 580mm x 270mm Weight 14kg Assembly Time Required 5 Minutes Rating Hobby Product Guarantee 5 Years We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.
