CHARNWOOD 100T 100MM Diameter T-PIECE for Wood DUST Extraction Hose

• T shaped splitter with 3 x 100mm ends.
• Used To split a single hose line into two branches when creating multiple connections.

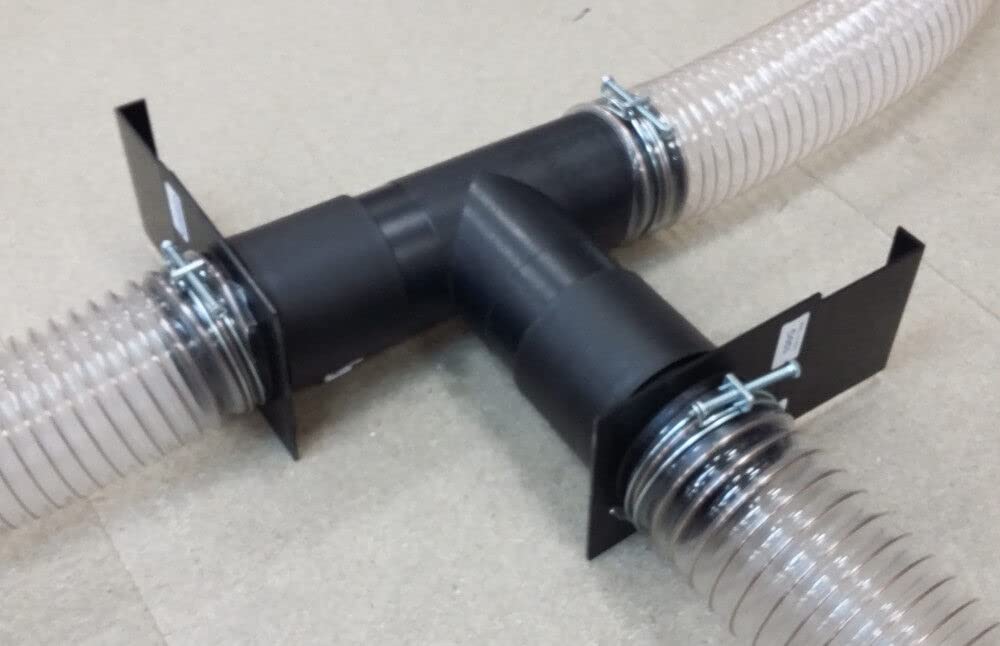

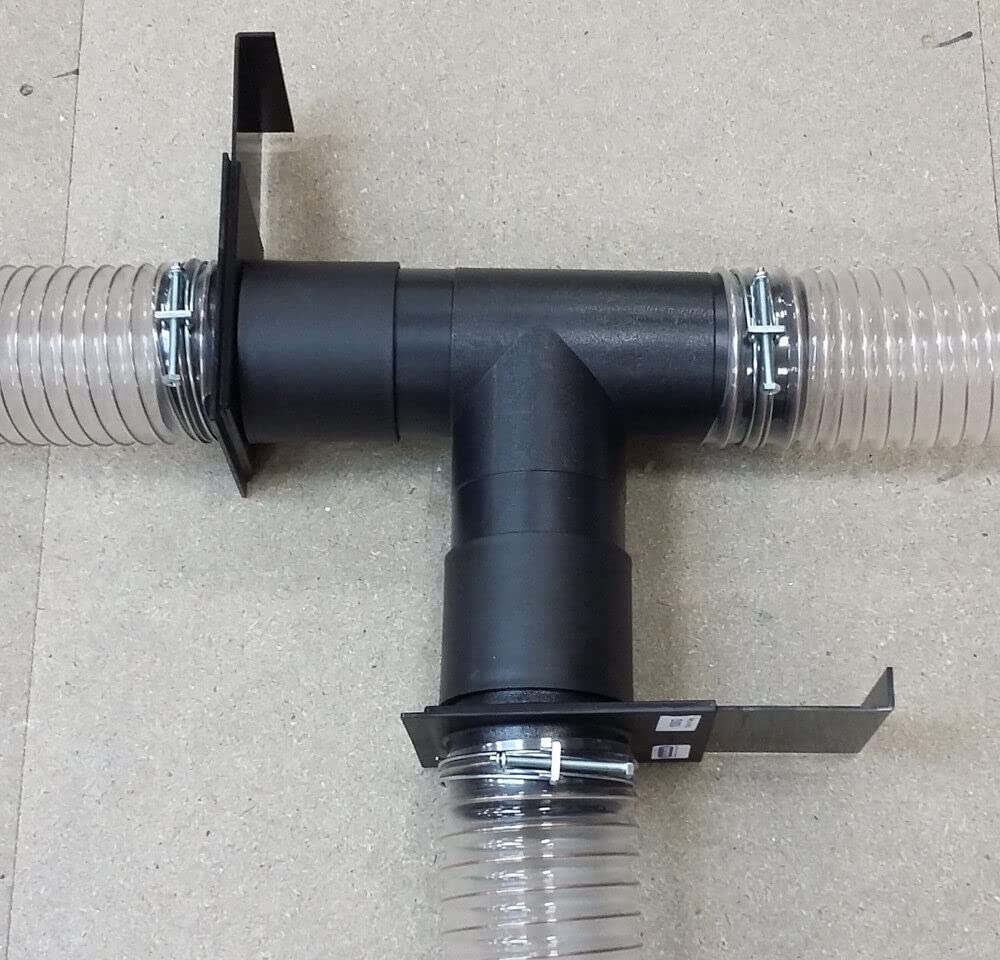

• A 100mm diameter hose can be attached to any end of the T-piece and secured with a hose clamp.
• When using two branches it is recommended to close off any branches not in use, so that a higher airflow is achieved down the active branch.

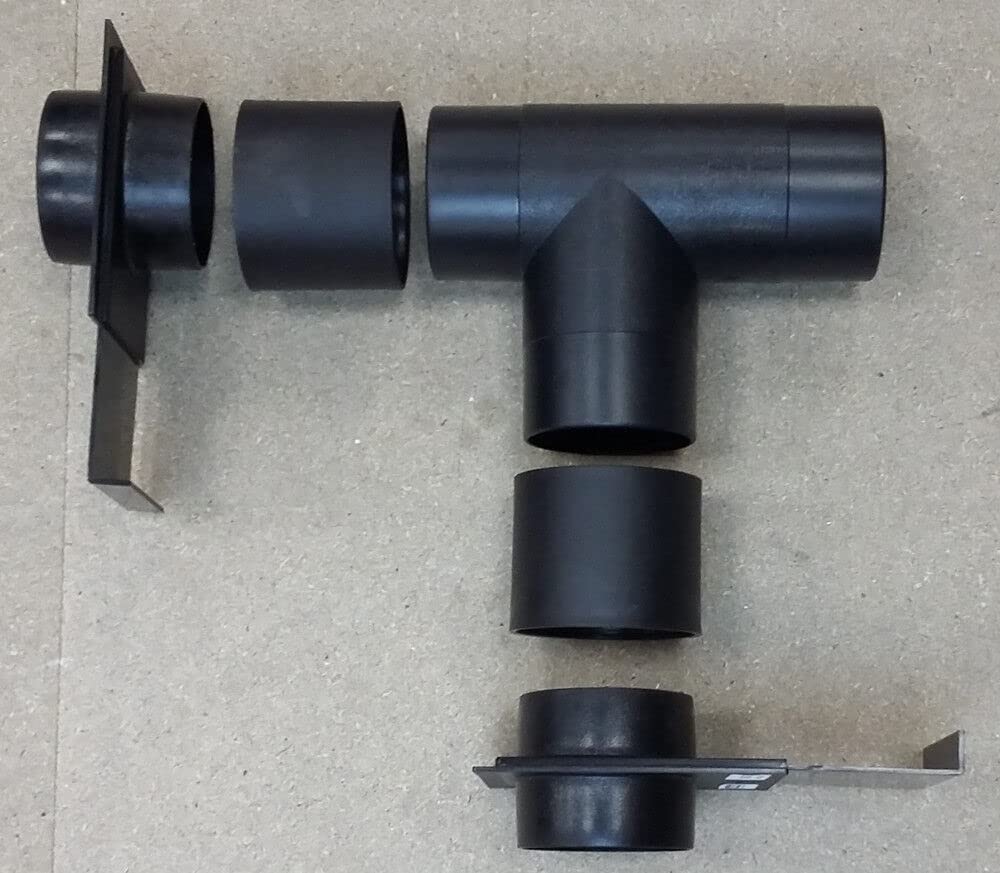

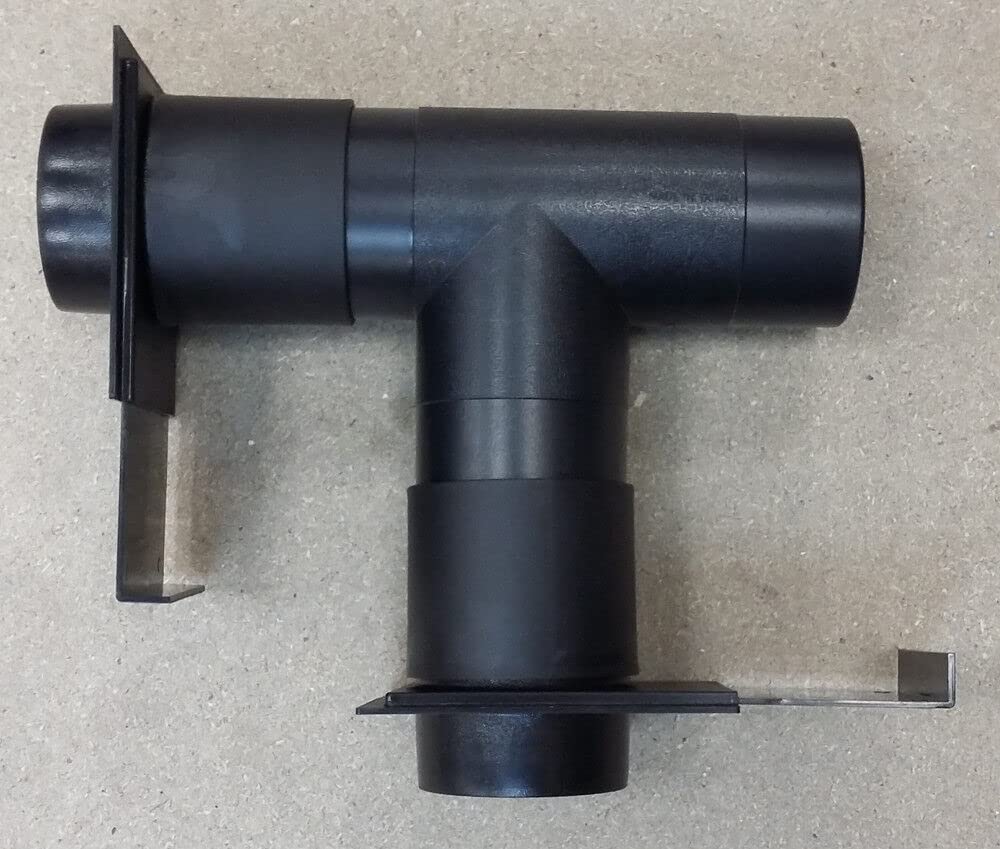

• Shut off gates (100G) can be attached to the T-piece using a joining sleeve (100SL).

T shaped splitter with 3 x 100mm ends. Used To split a single hose line into two branches when creating multiple connections. A 100mm diameter hose can be attached to any end of the T-piece and secured with a hose clamp. When using two branches it is recommended to close off any branches not in use, so that a higher airflow is achieved down the active branch. Shut off gates (100G) can be attached to the T-piece using a joining sleeve (100SL). These tapered sleeves form a tight push fit joint. Hoses can be attached to the gate with a hose clamp. The splitter is available in a Y or T shape. Sometimes the T shape is an advantage when creating a hose network, particularly when dropping down from head height. However the airflow is not as efficient as with the Y shaped branch.
