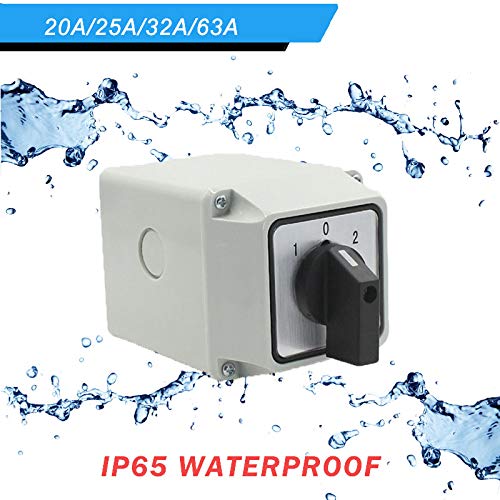

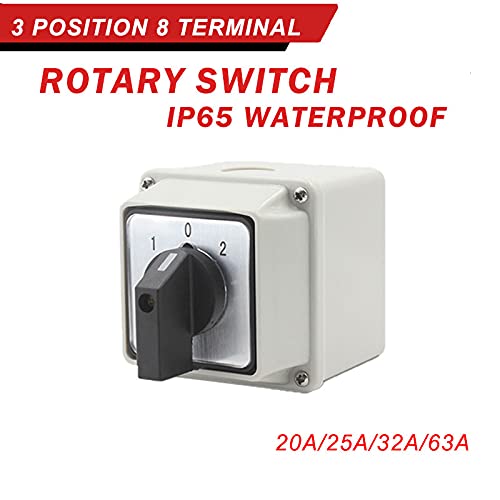

Universal Changeover Switch Rotary Cam Selector with Waterproof Robust Exterior Enclosure Inverter Switch 3 Position 2 Phase 8 Screw Terminals 220V/25A

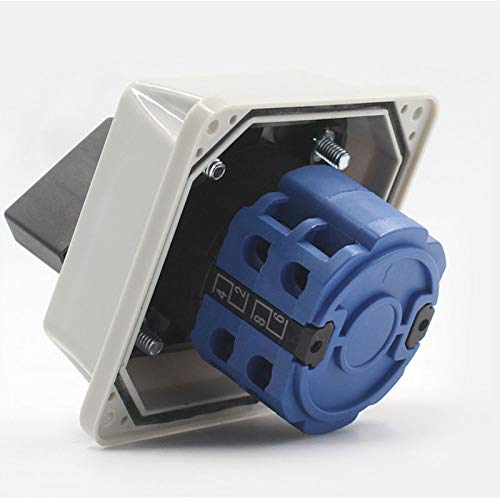

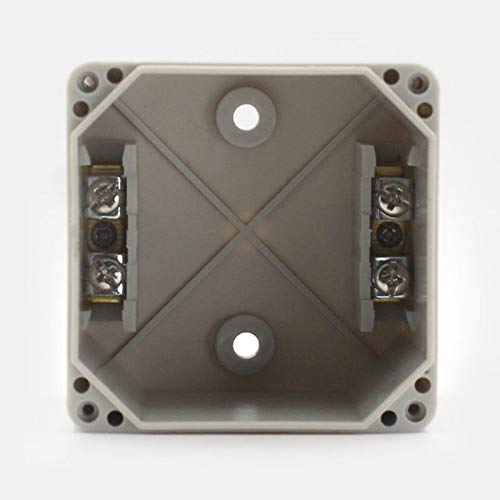

• Product Features:The plastic housing offers strong electrical insulation, enhancing safety. The 3-position design allows the switch to toggle between three different positions. Eight screw terminals provide a stable electrical connection, ensuring secure wiring
• Reversible Function:This switch supports motor forward/reverse switching, suitable for the drive system of electric bikes. When reversing is needed, the motor direction can be easily changed with a simple switch operation, improving vehicle maneuverability and control
• Waterproof Design:Equipped with a waterproof base, this switch prevents rain, dust, and other external environmental factors from affecting normal operation. Ideal for outdoor and humid environments
• Dual Power Switching:(Follow the product markings as indicated; the installation steps below should be paired with images for understanding): 1 (positive) and 5 (negative) connect to Battery 1 (power); 3 (positive) and 7 (negative) connect to Battery 2 (power); 2 (positive) and 6 (negative) connect to the controller. Short-circuit 2-4 and 6-8 (connect two terminals with a wire) to complete the circuit
• Versatility:This switch is designed for use in various electrical devices and tools, including electric vehicles, machinery, household appliances, control panels, industrial equipment, and more

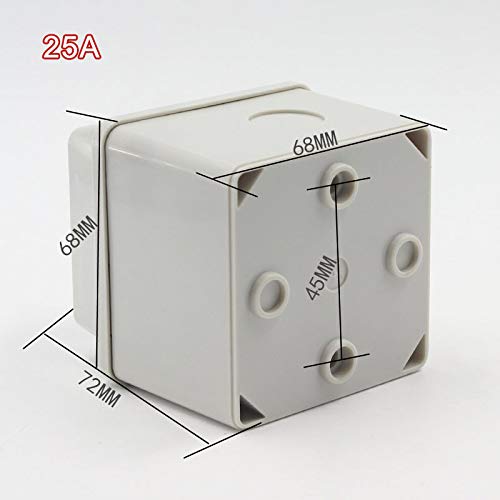

Specifications: Position: 3 Terminals: 8 screw terminals Current: 20A / 25A / 32A / 63A. Voltage: 380 V. Weight: 350 g Package includes: 1 x inverter with IP66 included
