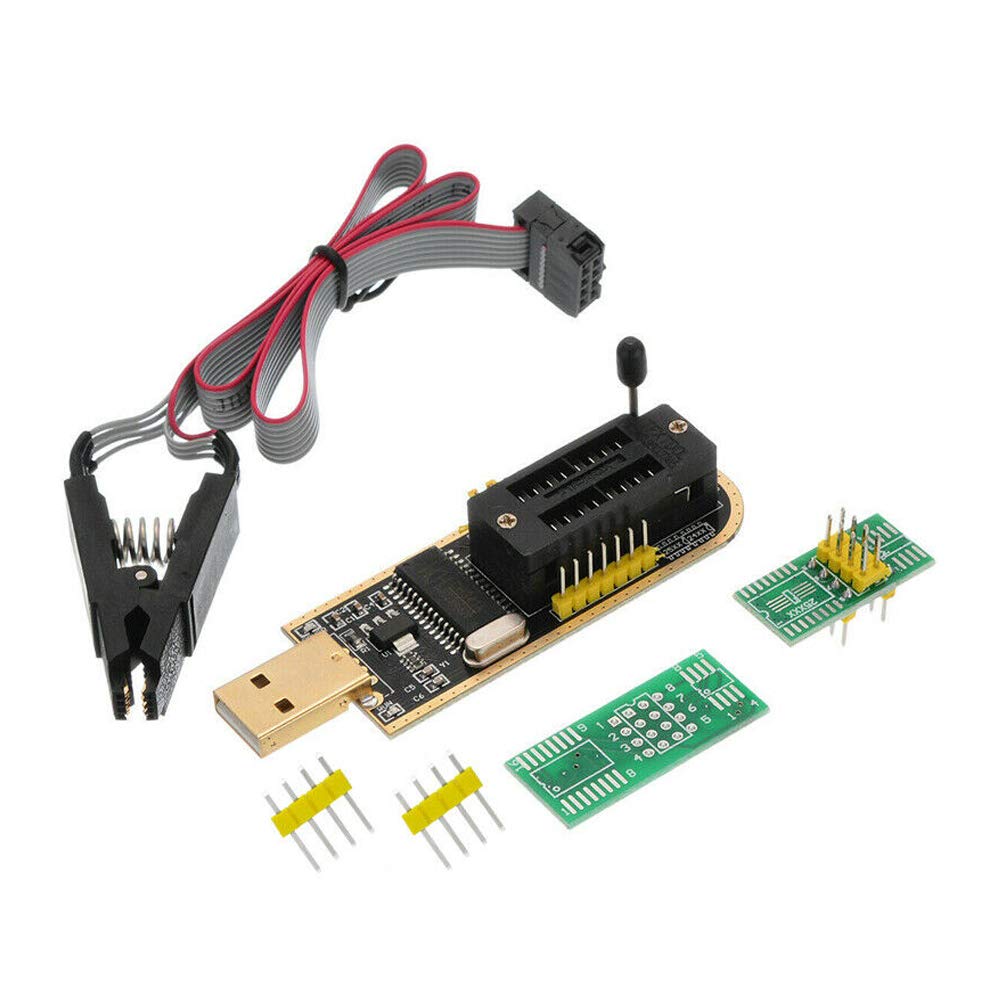

CH341A 24 25 Serie Flash SOIC8 SOP8 Test Clip Adapter for EEPROM Flash BIOS USB Programmer

• The SOP8 clip support both wide body and narrow body SOP8 chip with 1.27MM Pitch.
• The SOP8 clip enables in-circuit programming of EEPROM without disassembling the chip, making flashing the BIOS simpler and more efficient.

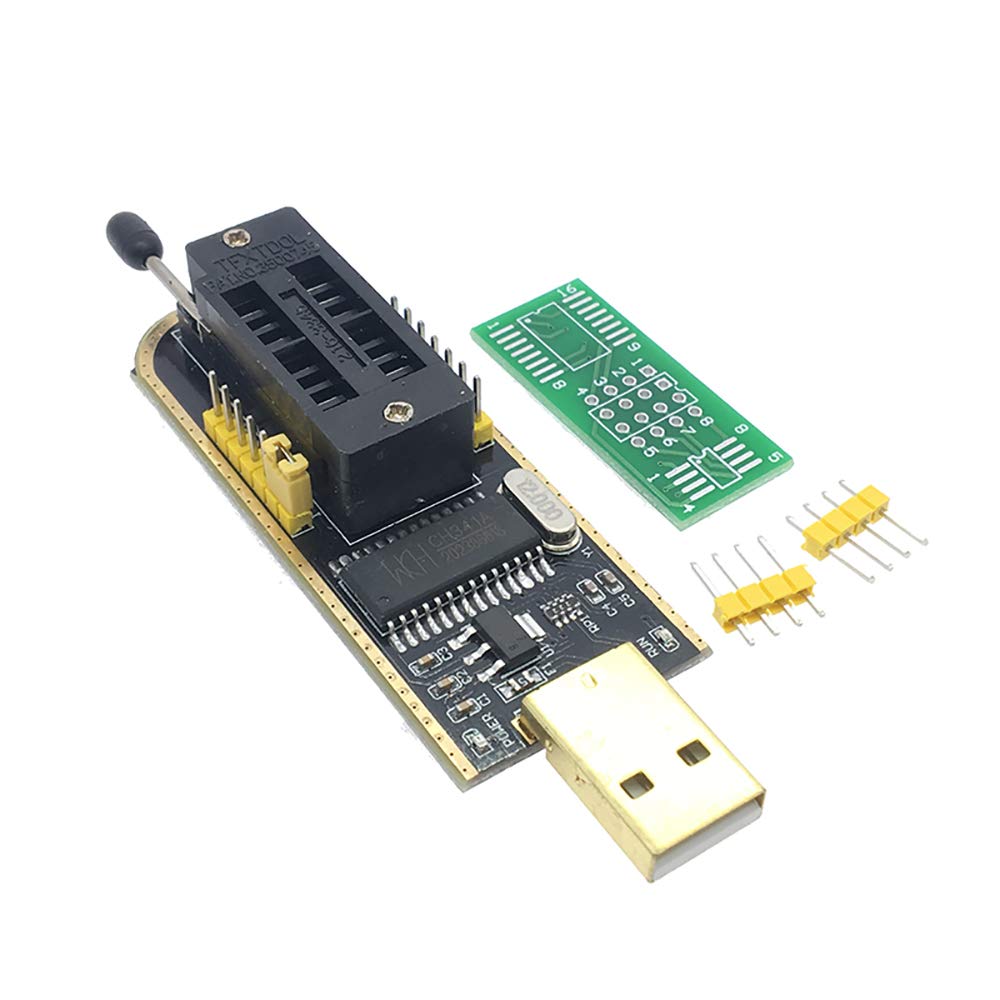

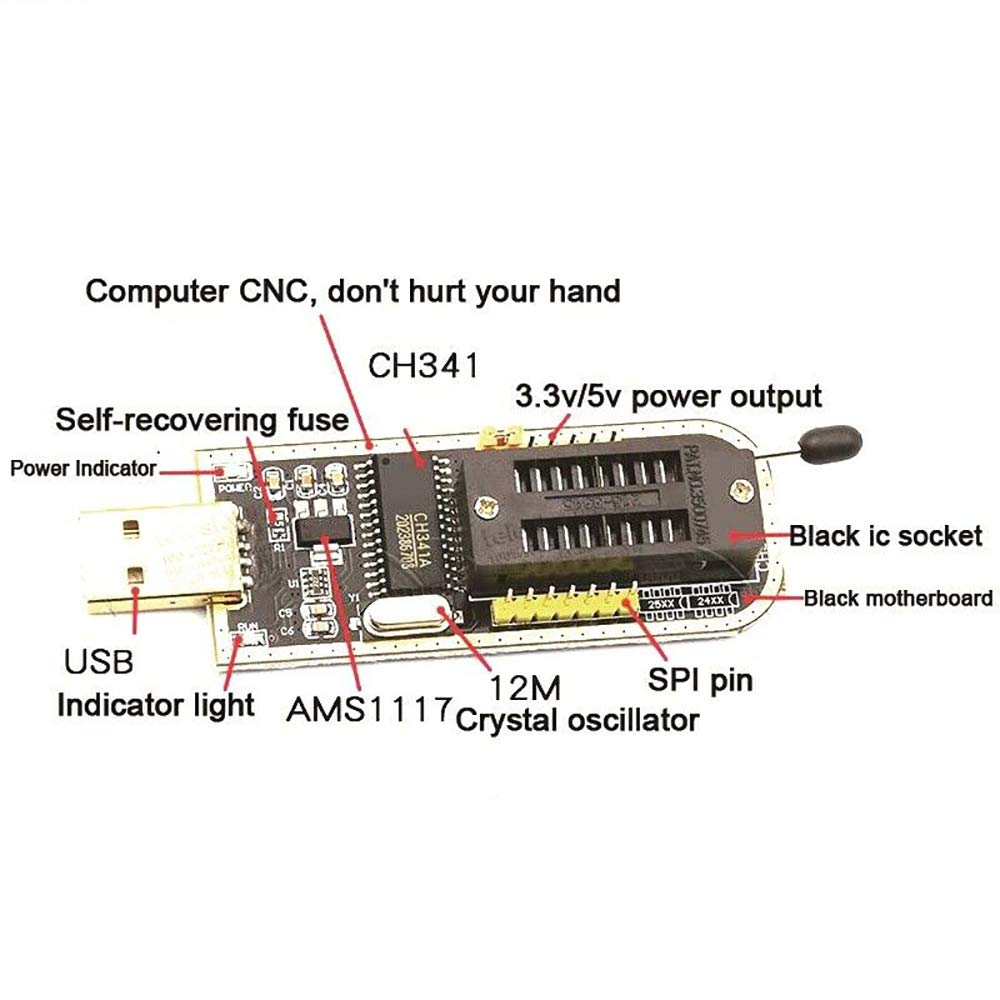

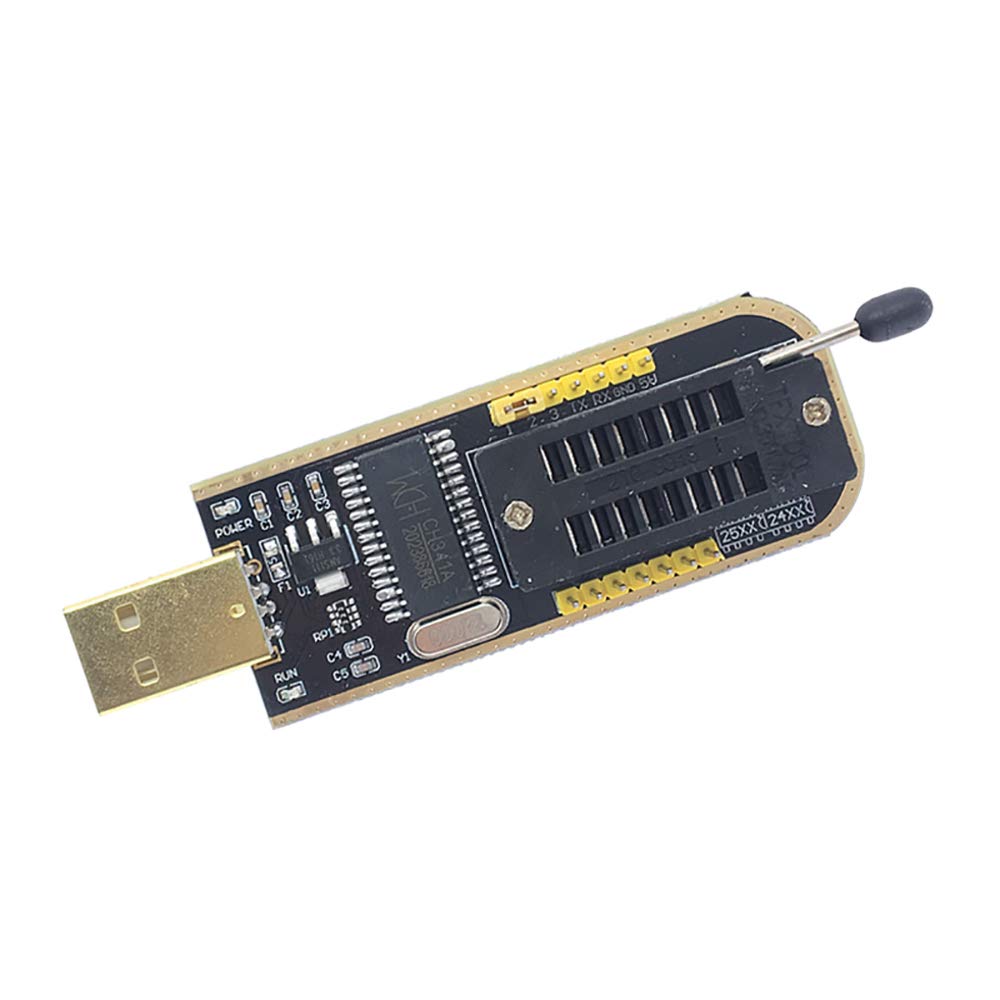

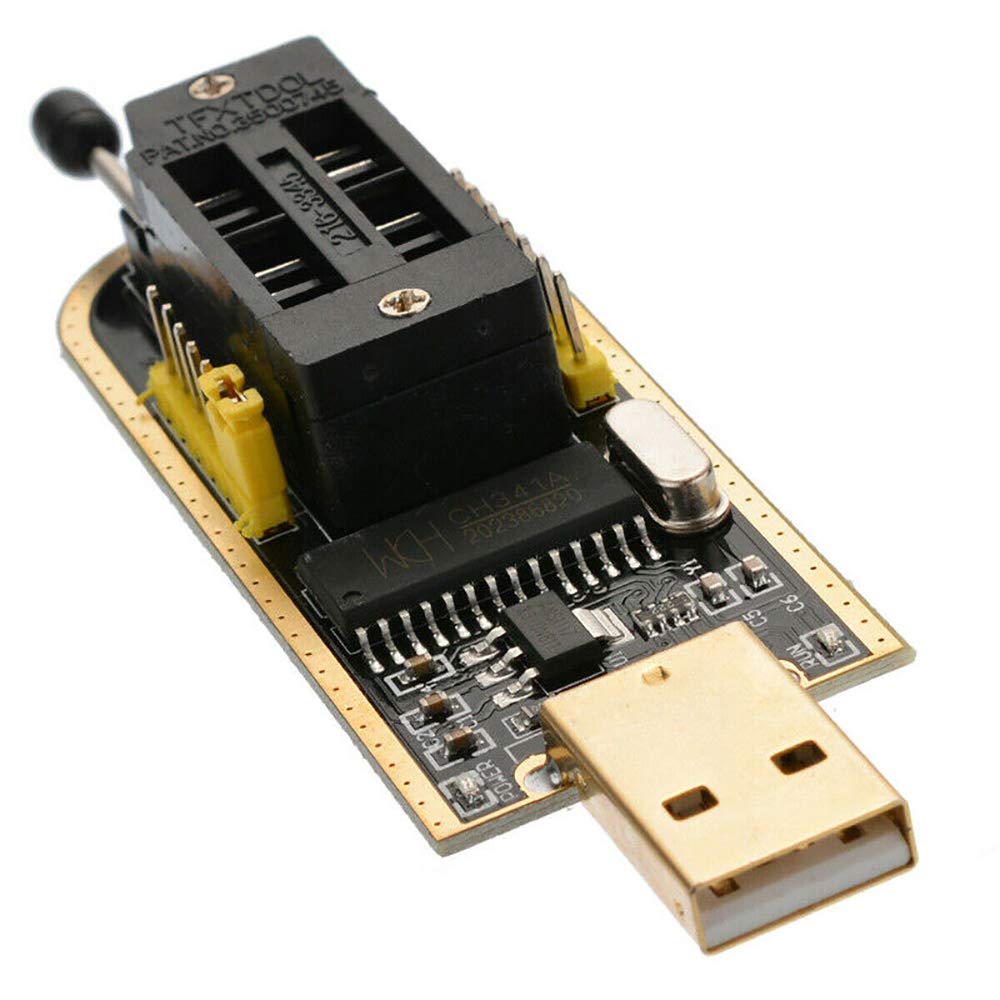

• A professional USB chip of CH341A production. USB-powered, USB communication. Read 2-3 times faster than a simple programmer of the simple series 25. Erase the programming speed is probably 2-3Mbit check every minute. Very suitable for amateur programmer.
• The CH341A Programmer support most 24 / 25 Series EEPROM BIOS SOP8 SOP16 chip on the market . Note: Due to the characteristics of the CH341A chip, the ESMT SST class 25 chip can only be read and cannot be written

100% brand new with high quality with specially produced ch341a chip usb.usb1.1 communication. clear the programming speed is probably 2-3mbit check every minute. faster than normal atmega8 programming do 25 series programmers 2 to 3 times faster. SOIC8 SOP8 Test Clip For EEPROM 93CXX/25CXX/24CXX plus CH341A 24 25 Series Flash - The SOP8 clip enables in-circuit programming of EEPROM without disassembling the chip, making flashing the BIOS simpler and more efficient. - The main purpose of the CH341A Programmer is to back up, erase, program, calibrate and other actions on various software. - The SOP8 clip support chip size: Pitch 1.27MM, full range SOP8 wide body and narrow body. - The CH341A Programmer support most 24 / 25 Series EEPROM BIOS SOP8 SOP16 chip on the market. Note: Due to the characteristics of the CH341A chip, the ESMT SST class 25 chip can only be read and cannot be written. - Tips: Some chips are affected by peripheral circuits and cannot be clipped directly. Please check the chip location on the motherboard before purchasing! - Test Clip Pin format: SOIC8 SOP8 matrix ,Programmer TL866 EZP2010 RT809H CH341A - SOIC8 SOP8 Clip DIP8 for in-circuit programming For EEPROM 93CXX/25CXX/24CXX on ZIP USB - Test Clip Beryllium copper plating needle, without welding, can be directly inserted - USB to TTL port, can getroot online - USB Programmer CH341A Series Burner Chip 24 EEPROM BIOS Writer 25 SPI Flash AE1185 - The main purpose of the CH341A Programmer is to back up, erase, program, calibrate and other actions on various software.Erase / programming speed is probably 2-3Mbit check every minute - Supports EEPROM 24 series ST, WINB IND, AMIC, MXIC, SST, SPANSION, EON, PMC, etc. & 25 series chips. - Support most 24 / 25 Series EEPROM BIOS SOP8 SOP16 chip on the market. Note: Due to the characteristics of the CH3
