CFH Propane regulator with pressure gauge 1-4 bar/DR 115, 52115

• The DR 115 PROPANE REGULATOR is a pressure reducer for liquid gas with adjustable outlet pressure.
• The DR 115 PROPANE REGULATOR is primarily suitable for small handheld devices (e.g. CFH flame devices and CFH hose soldering devices).
• The outlet pressure is infinitely adjustable from 1-4 bar. As a result, the working pressure can be optimally adapted to the implement in order to minimize or increase performance if required.
• The set control pressure (outlet pressure) can be read off the pressure gauge.
• The tightness of the gas connection can also be checked with the help of the pressure gauge.

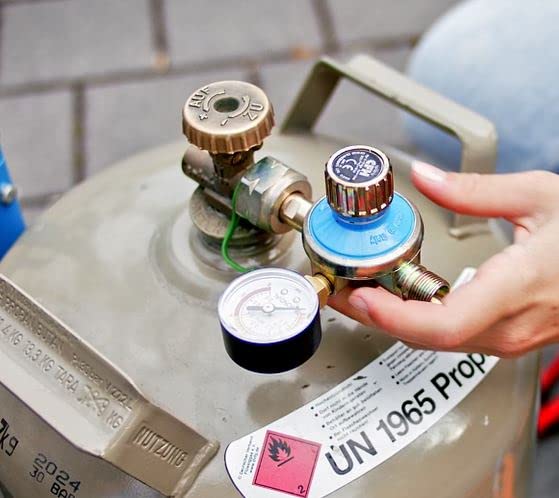

• The DR 115 PROPANE REGULATOR is suitable for connection to 5 KG, 11 KG and 33 KG propane gas cylinders. Use outdoors only.
• Connection type input side: G.5 according to EN 16129 This DR 115 PROPANE REGULATOR is not intended for use on gas barbecues, radiant heaters, in caravans and motorhomes!

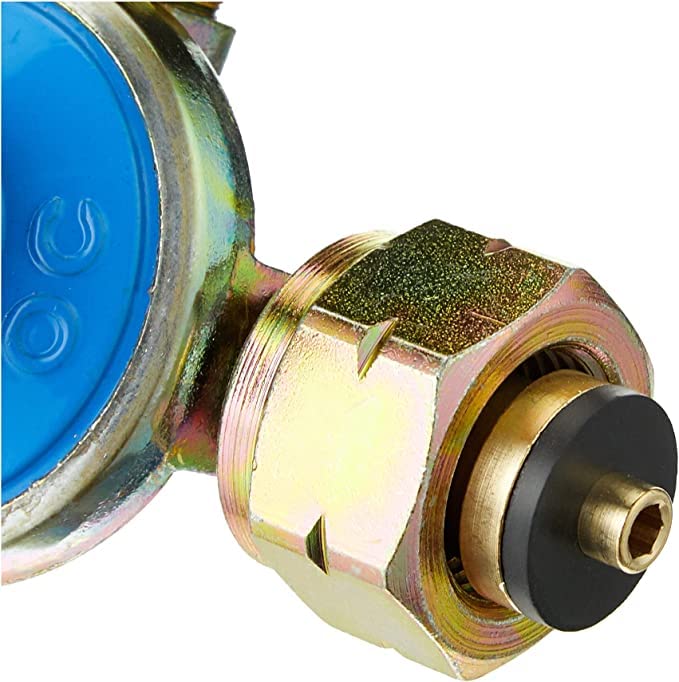

• Suitable for gas hoses with ball pin connection with union nut G 3/8 “left (for connection H.6 according to EN 16129).
• Output pressure: 1 - 4 bar adjustable Flow rate: 6-10 kg/h Observe the user's operating instructions.
• Permissible ambient temperature range: -20°C to +50°C DVGW/CE 0085

infinitely variable with pressure gauge flow rate 6-10 kg/h for 5, 11 and 33 kg bottles, outlet 3/8 inch left. Ideal for heating burners and flame appliances
