CESFONJER 12 pcs T125 Hinge Lever Type Miniature Micro Switch SPDT Snap Action Switch Snap Action for Arduino

• ★Product Name: This is of highquality Micro limit Switch; Mechanical life: one million times

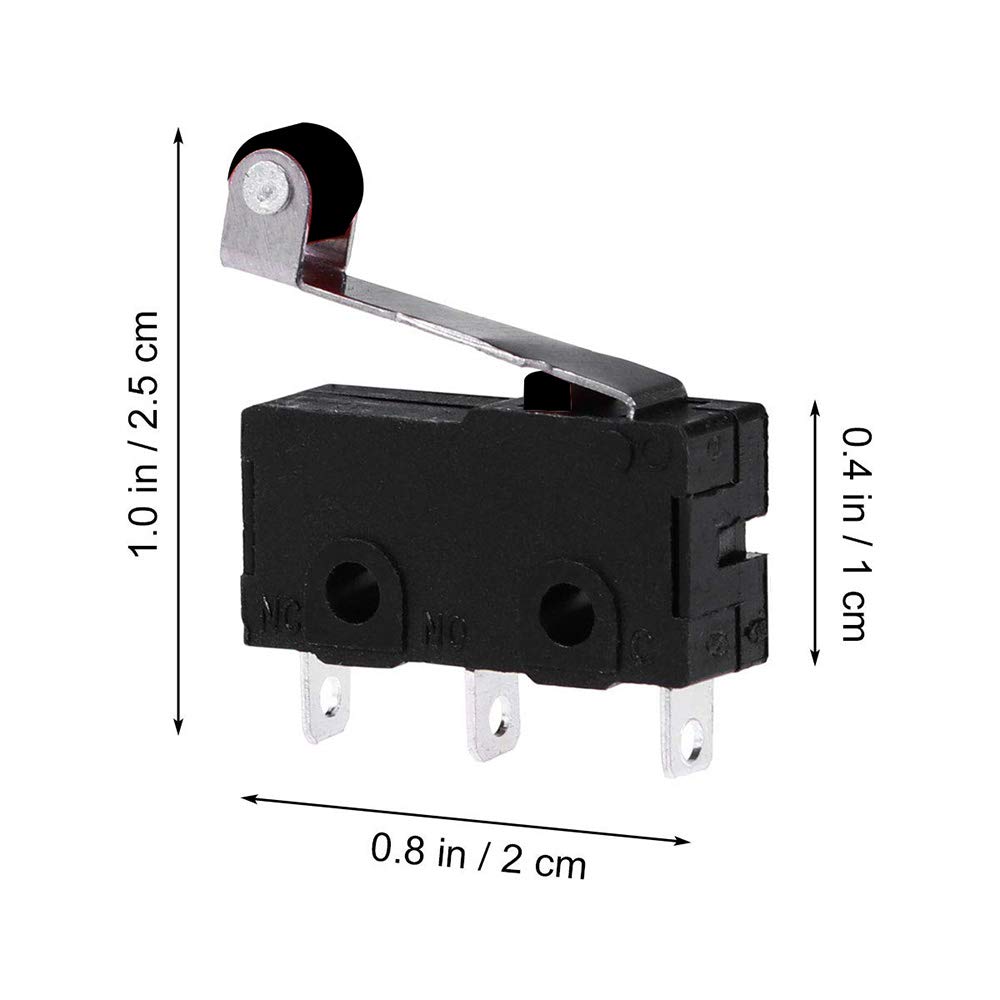

• ★contact configuration: Spdt 1No 1Nc 1Com; Terminals: 3 Pins; Main Body Size: 27.8x 10.3x 19.3mm(L*W*H)
• ★Straight hinge lever length: 39mm/1.5"; fixing hole diameter: 3.2mm/0.1"
• ★Main Color: black; Rating: AC 125V/16A 250V/5A, DC 250V/0.3A 125V/0.6A

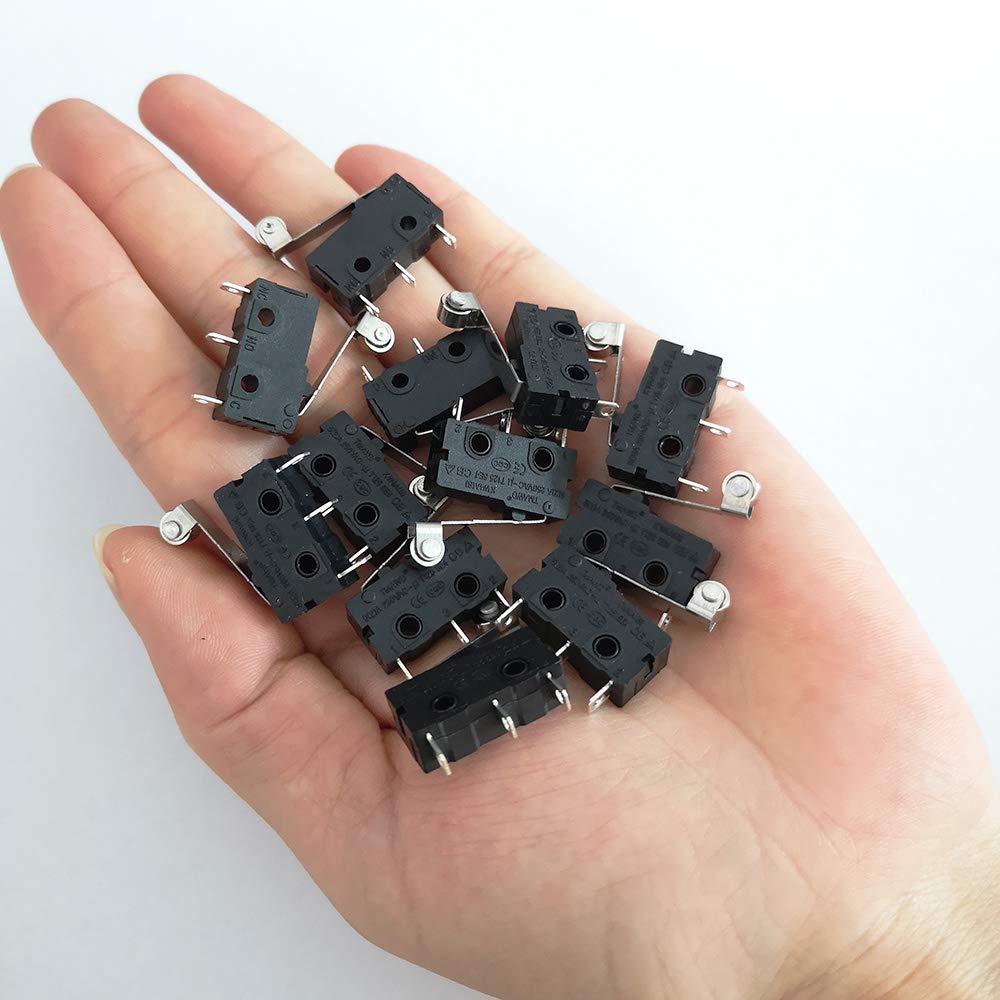

• ★Net Weight: 117g; Package Content: 12 x Micro Switch; Model: T125

le: 16A/5A; Ue: 125/250VAC Operating frequency: Mechanical: 240 operations/min, Electrical 20 operations/min Insulation resistance: 100mOhm above (@ 500VDC) Contact resistance: 15mOhm max. (initial value) Vibration: 10 to 55Hz, 1.5mm pairs swing Shock Durable: 1,000m/S², Misoperation: 300m/S² Mechanical Life: 10,000,000 CESFONJER Long Straight Hinge Lever 3 Pins Basic NO NC Momentary Micro Switch 12 Pcs. 3 terminals, long roller hingle lever, applicable to AC DC control circuits. Designed to control the movement of a mechanical part. Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. High precision mechanism design offering acute operation and long life. Warranty Our professional customer service team is ready to solve the after-sales problem for you. Please feel free to purchase it. For any possible defective products, please contact us first. We will do our best to make it right with either a replacement or refund.
