CERRXIAN PCI to 2 Serial Port Expansion Card DB9 Serial Port Connectors PCI to 2 Ports COM 9 Pin Serial Series RS232 Card Adapter

• Support PCI 32 bit, Speed of 33MHz, PCI Standard Version 2.3.
• Compatible with standard 16550 UART with 256 bytes of transmit receive FIFO.
• Independent power chip, without external power supply can achieve 5v/12v power supply
• The 2 Port Serial Card can be installed in an available PCI slot to add two RS232 serial ports to your system. A cost-effective solution for connecting any new or legacy serial device, with data transfer rates of up to 115.2 Kbps.
• Note: When installing, you need a spare PCI slot on the motherboard. Cannot be used in PCIe slots.

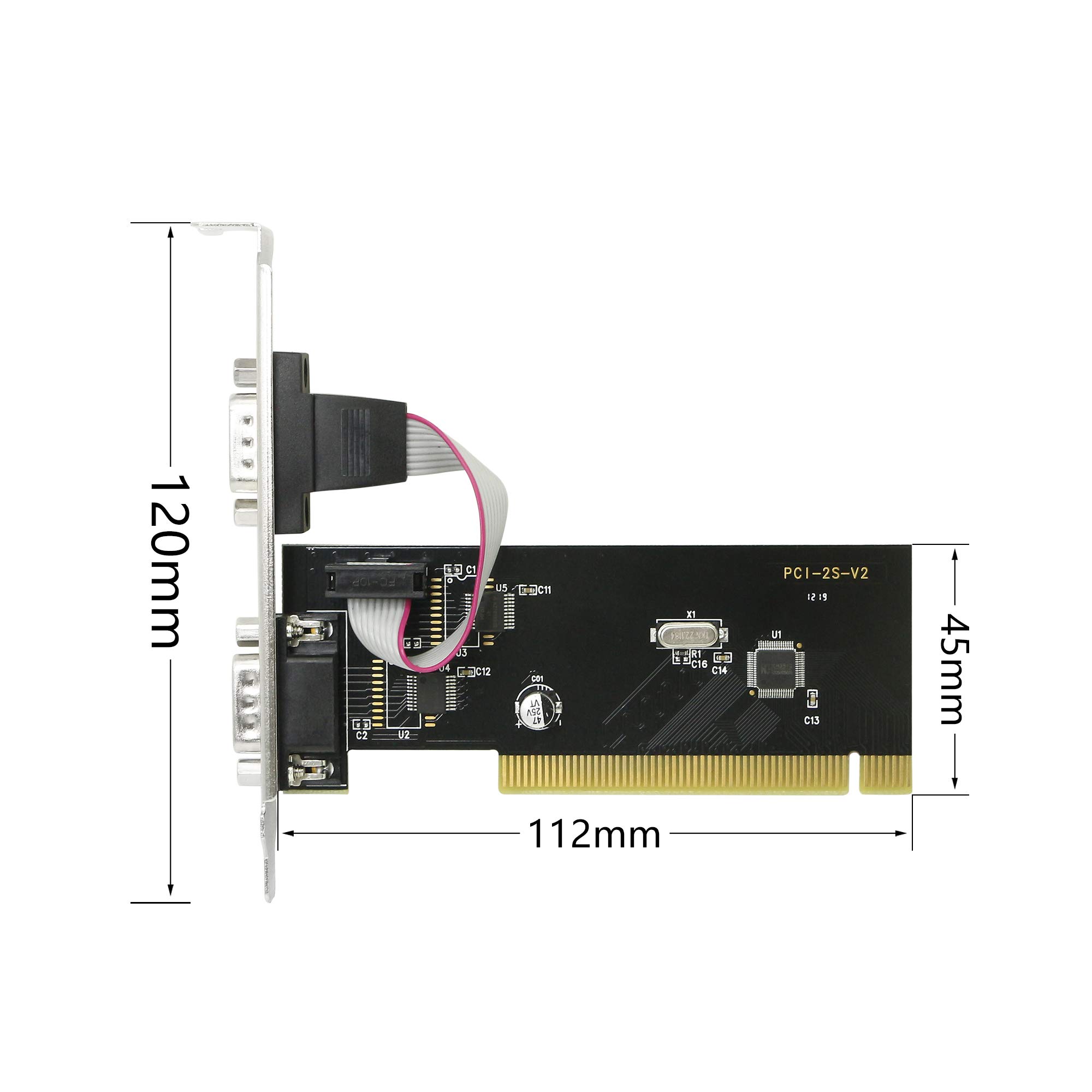

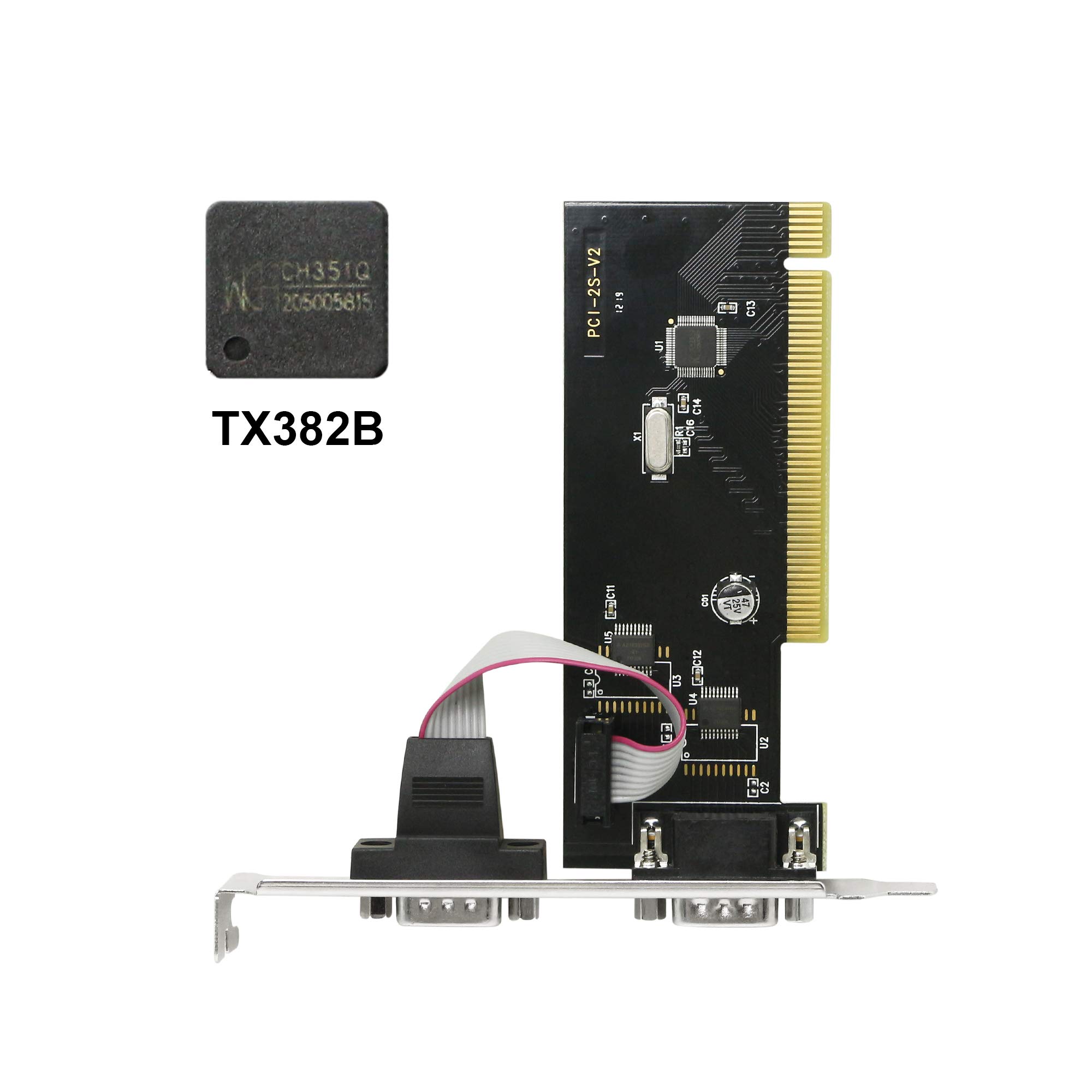

Model Number:TXB080 Chipset: TXIC/TX382B Port number: 2 x series Interface: PCI slot Dimensions: 112.8 x 45 x 16 mm. Compatible with the system Windows 10 (32/64), 8/8.1 (32/64), 7. (32/64), Vista (32/64), XP (32/64), 2000 Windows Server 2012, 2008 R2, 2003 (32/64) Mac OS 10.x (based on Intel, tested up to 10.9) Linux 2.4.x and later (tested up to 3.5) Environment Operating temperature: 0°C to 50°C. Relative humidity: 10% to 90% (non-condensing) Storage temperature: -0°C to 80°C. Relative humidity: 5% to 90% (non-condensing) Features: Supports RS232, RS485 and RS422 modes. Bidirectional speeds from 50 bps to 16 Mbps/full serial modem control port Supports hardware, 5, 6, 7, 8 and 9-bit software flow control supported serial formats Even, odd, none, space and brand parity supported. Custom BAUD rates supported with external clock or internal PLL programming. On chip of 256 bytes FIFO depth in the transmission path, receiving each serial port. Supports remote wake-up and power management. Support serial port transceiver shutdown. Supports slow IrDA on all IEEE1284 serial ports
