CERRXIAN 12VHPWR 180 Degree Angle to Four ATX 8P Adapter,PCI-e 5.0 12VHPWR ATX3.0 600W 16 Pin 180 Degree Angle Female to Four ATX 8P Male Adapter,for 40 Series Graphic Card GPU (Type A)

• The 12VHPWR 180-degree angle adapter can be inserted into the 16-pin 12VHPWR port of the graphics card, and enables the ATX 8P power cable to be inserted at a 180-degree angle, without bending the wires, ensuring full contact with all cable terminals, and making the wires and terminal stress with zero risk of thermal problems
• ATX3.0 Power Modular 90 Degree 12VHPWR to Four ATX 8P Adapter converts four 8pin power supply to 12VHPWR power supply. Power the GPU directly from the PSU with just four 8-pin power cables
• 12VHPWR ATX3.0 PCI-E 5.0 Power Modular Adapter is available in both A/B orientation styles, ensuring that regardless of its 12VHPWR power port orientation, there is a suitable solution for graphics cards, no matter which variant you choose, this 12VHPWR 180 Both angled adapters keep your computer looking great with their sleek styling and low-profile design

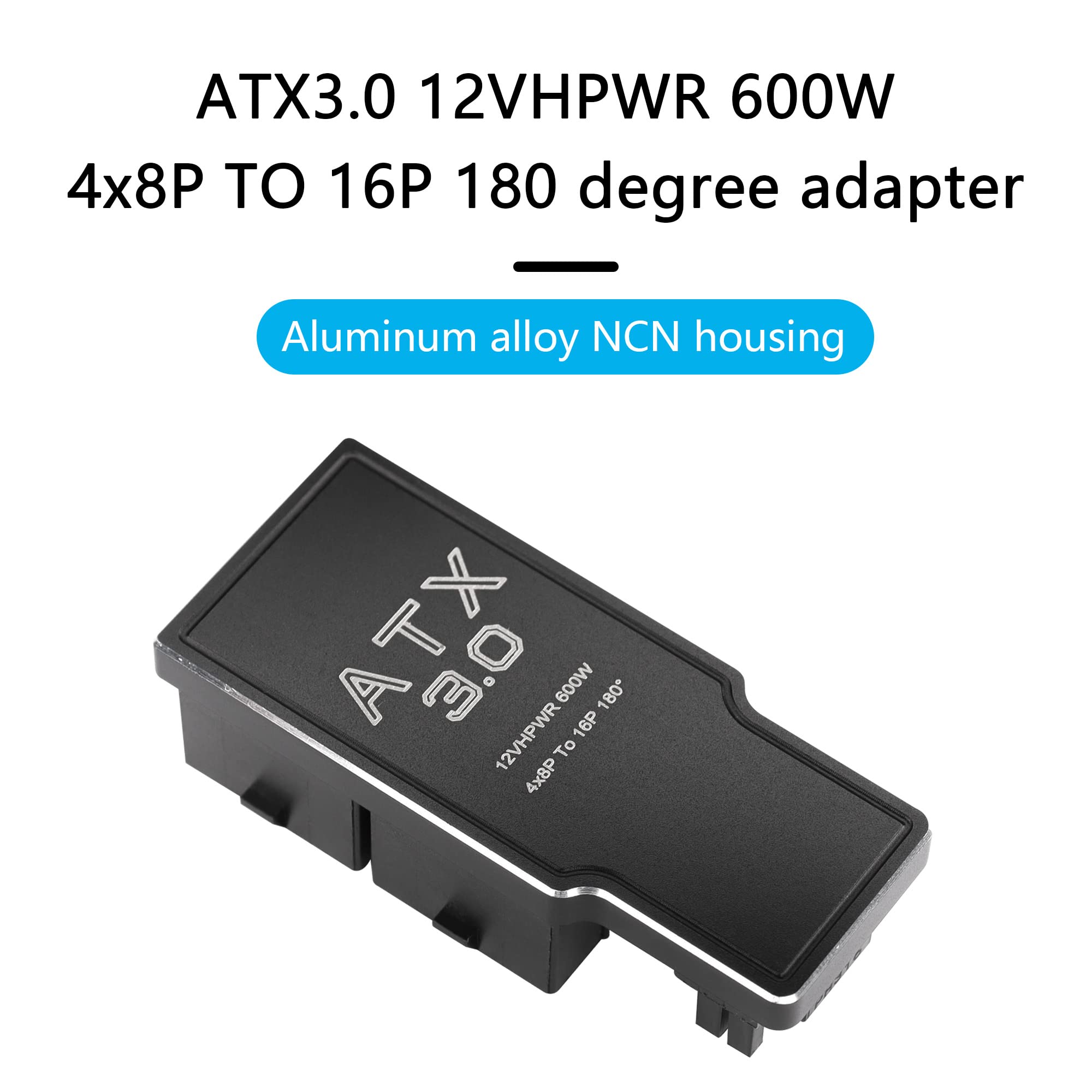

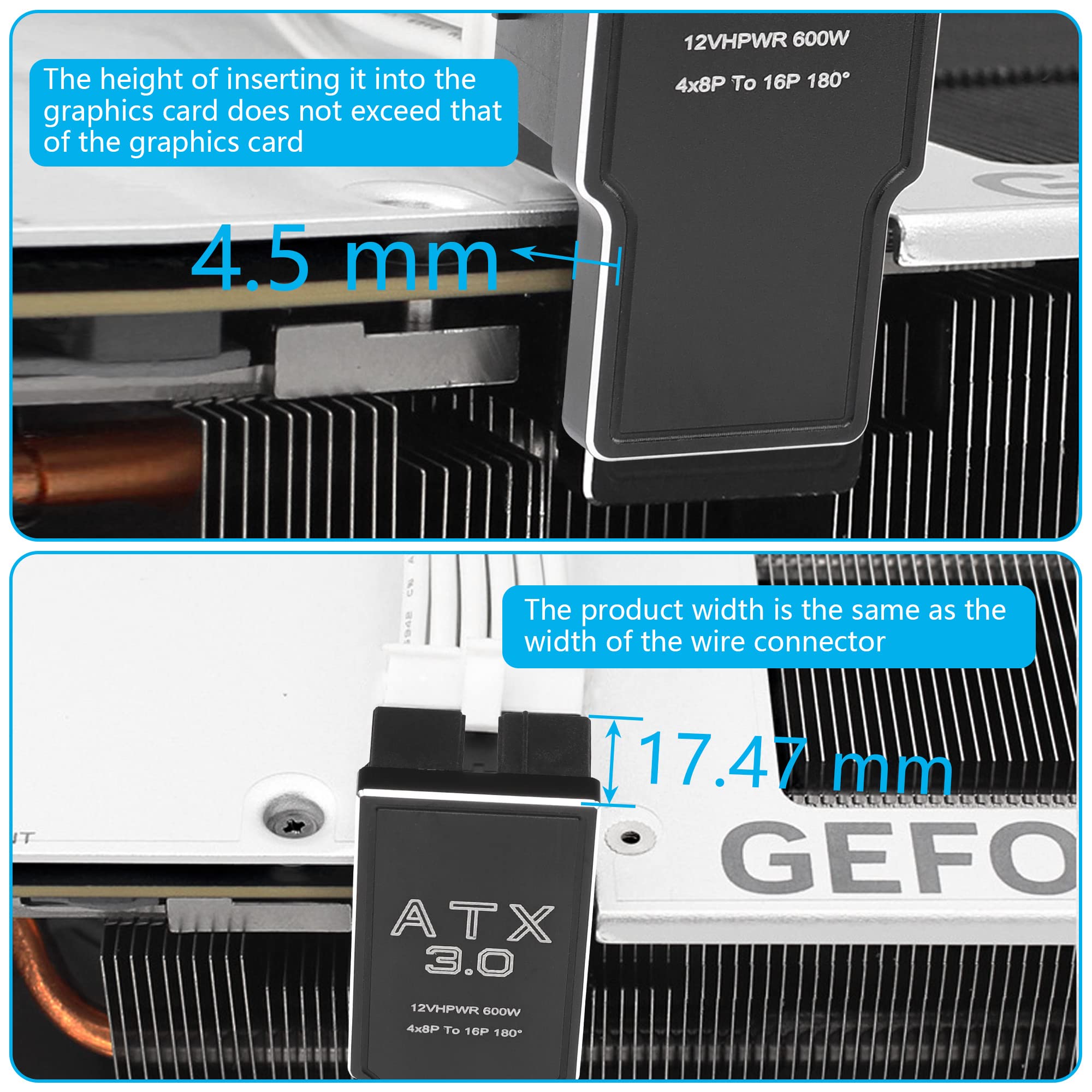

• 600W 12VHPWR 16 Pin Angle Adapter, supports a maximum power output of 600W, aluminum alloy casing, enhanced heat dissipation, can keep cool even under continuous load, Note: Please refer to the product size and selected model before purchasing to ensure compatibility with your graphics card Compatible, if your GPU backplane exceeds the port by more than 3MM. This adapter may not be compatible
• Package: 12VHPWR 180 Degree Angle to Four ATX 8P Adapter (Type A)

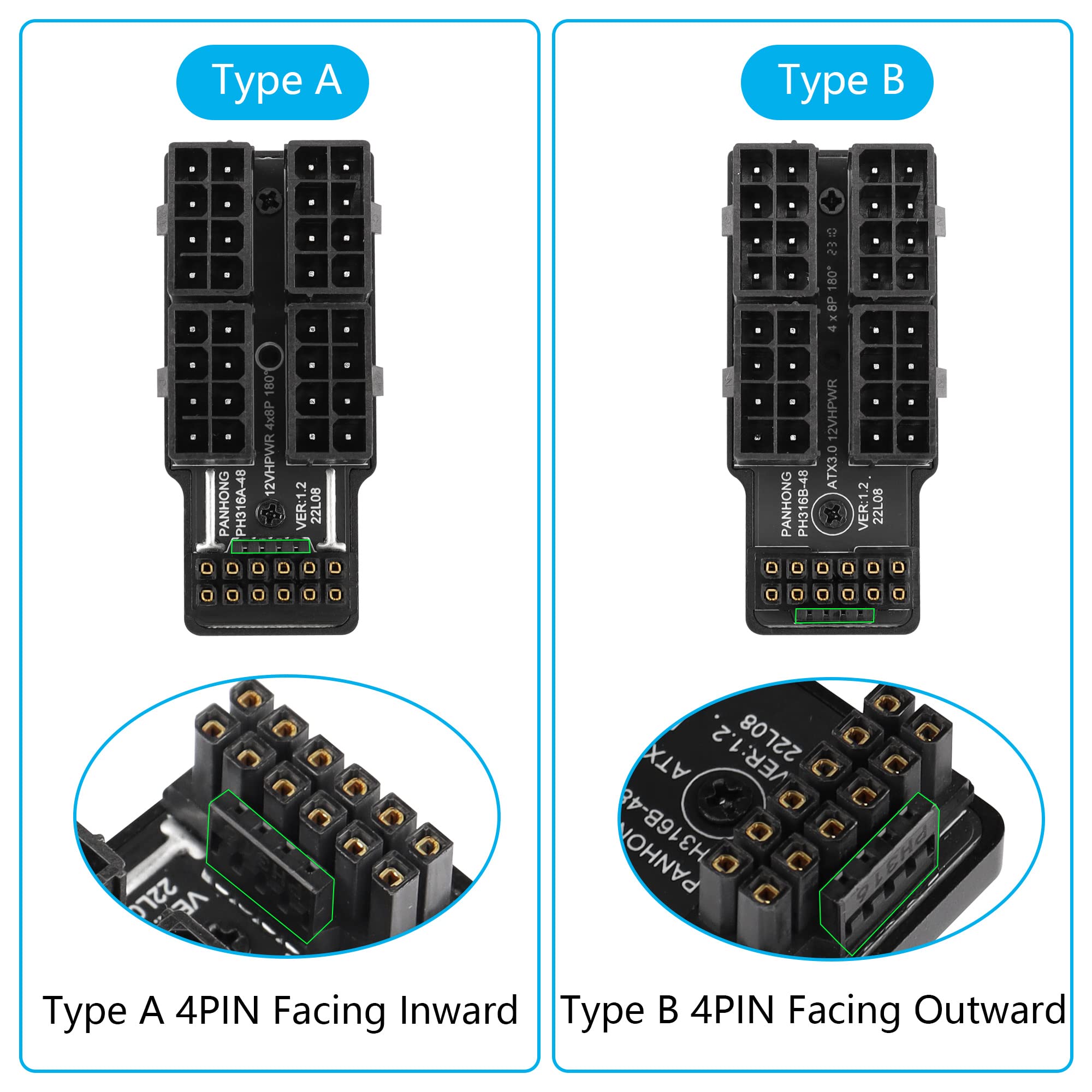

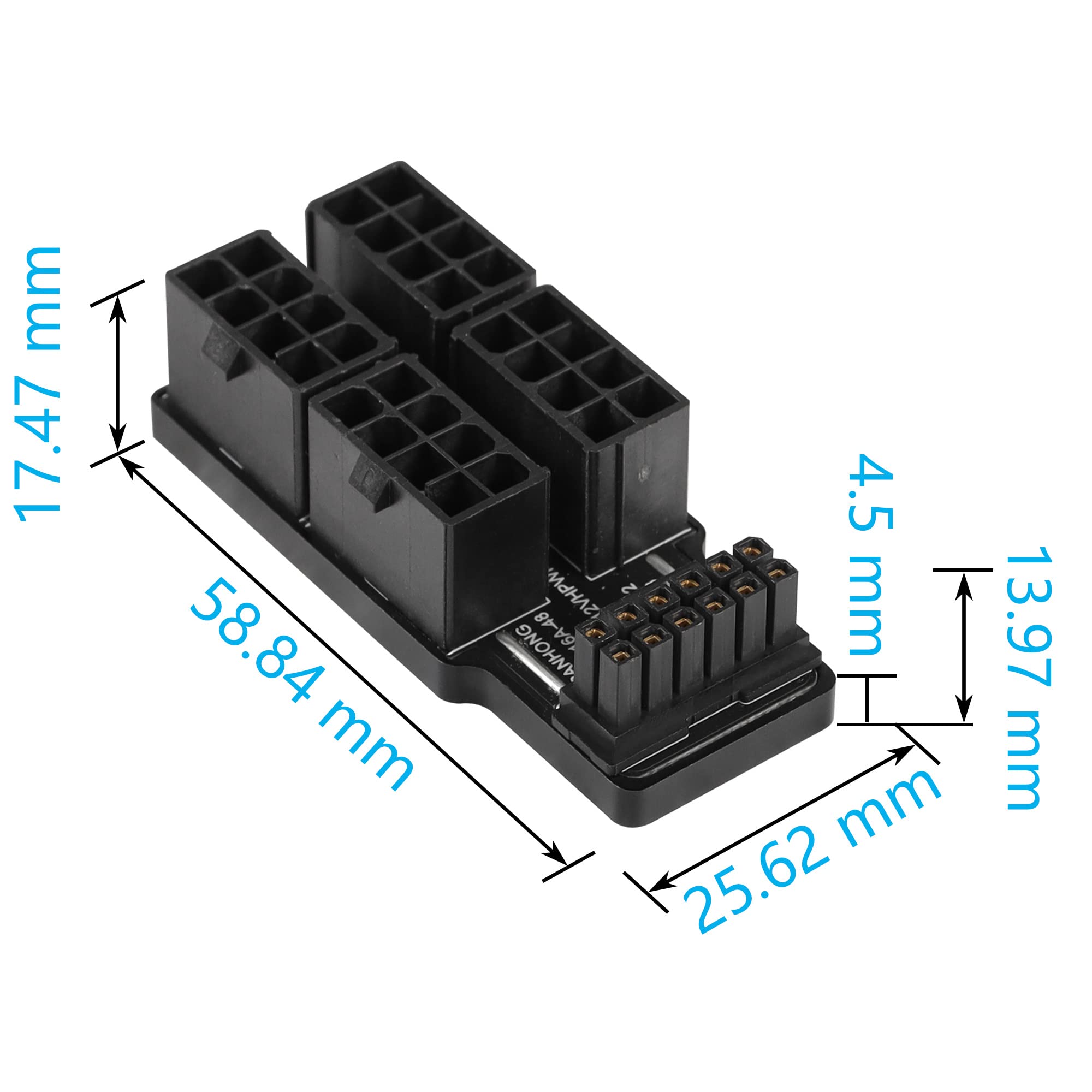

The CERRXIAN 180 Degree 12VHPWR to 4x ATX 8P Adapter is designed for GPU ports with the latch facing down. This will cause the cable to go towards the backplane side of the GPU, if installed in the GPU port with the latch facing up, the cable will instead go towards the GPU cooler. Note that this configuration is generally not recommended due to possible interference with the GPU cooler Note: 1. Please refer to the product size and selected model before purchasing to ensure compatibility with your graphics card 2. When in use, it needs to be inserted into the slot completely to avoid loosening of the interface, resulting in poor contact, which can be judged by looking at the side of the contact socket Specifications Name: ATX3.0 12VHPWR 16P TO to Four ATX 8P 180 degree power steering connector Model:Type A Identification method: Type A 4PIN faces inward, Type B 4PIN faces outward Power: 600W Shell: aluminum alloy shell Function: 4 8PIN to 12VHPWR 12+4P Product size: 59*26*14mm Product weight: 29.4g Packaging: 1 x ATX3.0 12VHPWR 600W 16P TO Four ATX 8P 180° Adapter (Type A)
