CERRXIAN ARGB HUB 1 to 11 Ports 12 Way 5V 3Pin RGB LED Splitter Hub with SATA Port Support Magic Tape and Screw Fixation

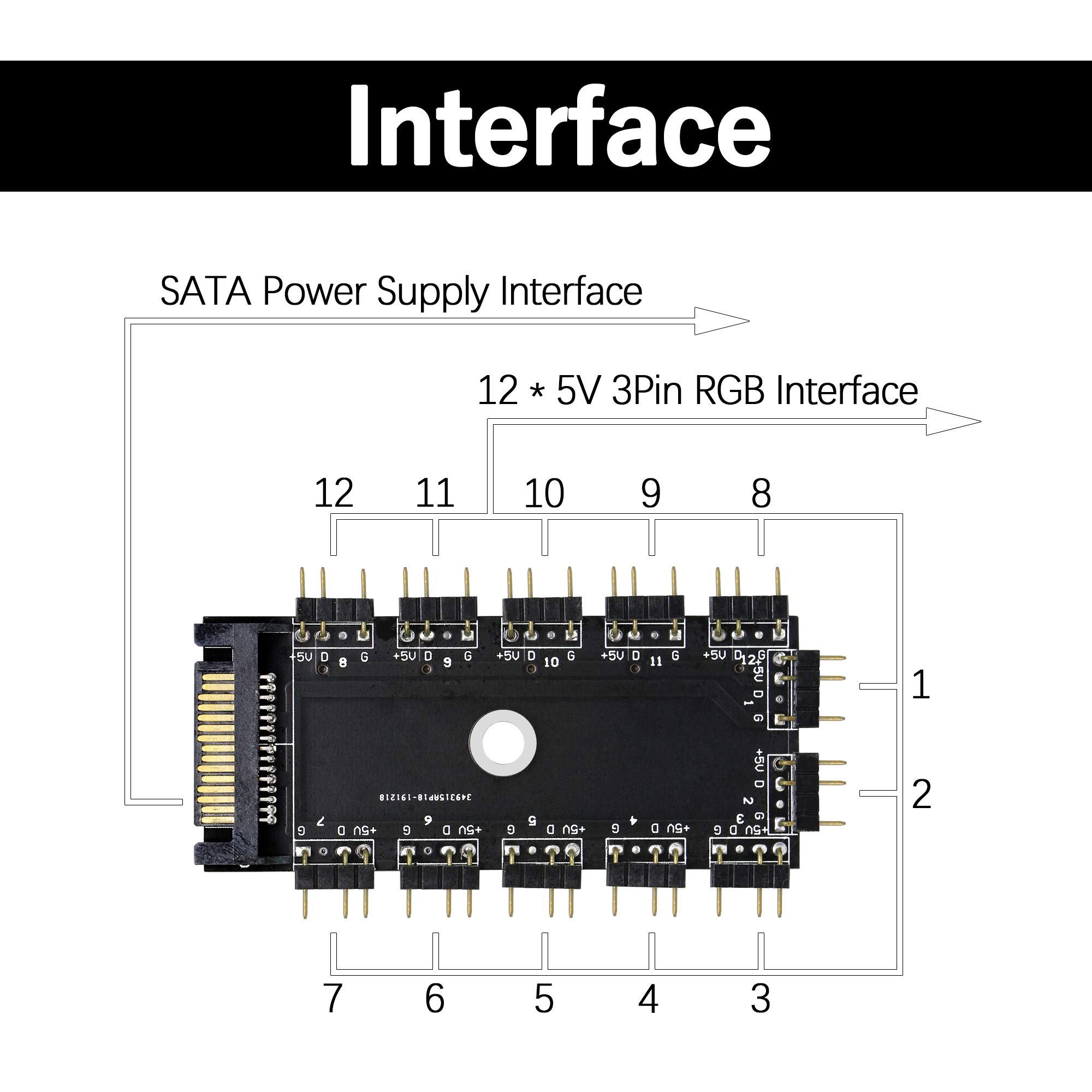

• 11 Ports ARGB HUB: The interface of main board ARGB(3PIN) can be increased to 11 to realize centralized control of many RGB light equipment.

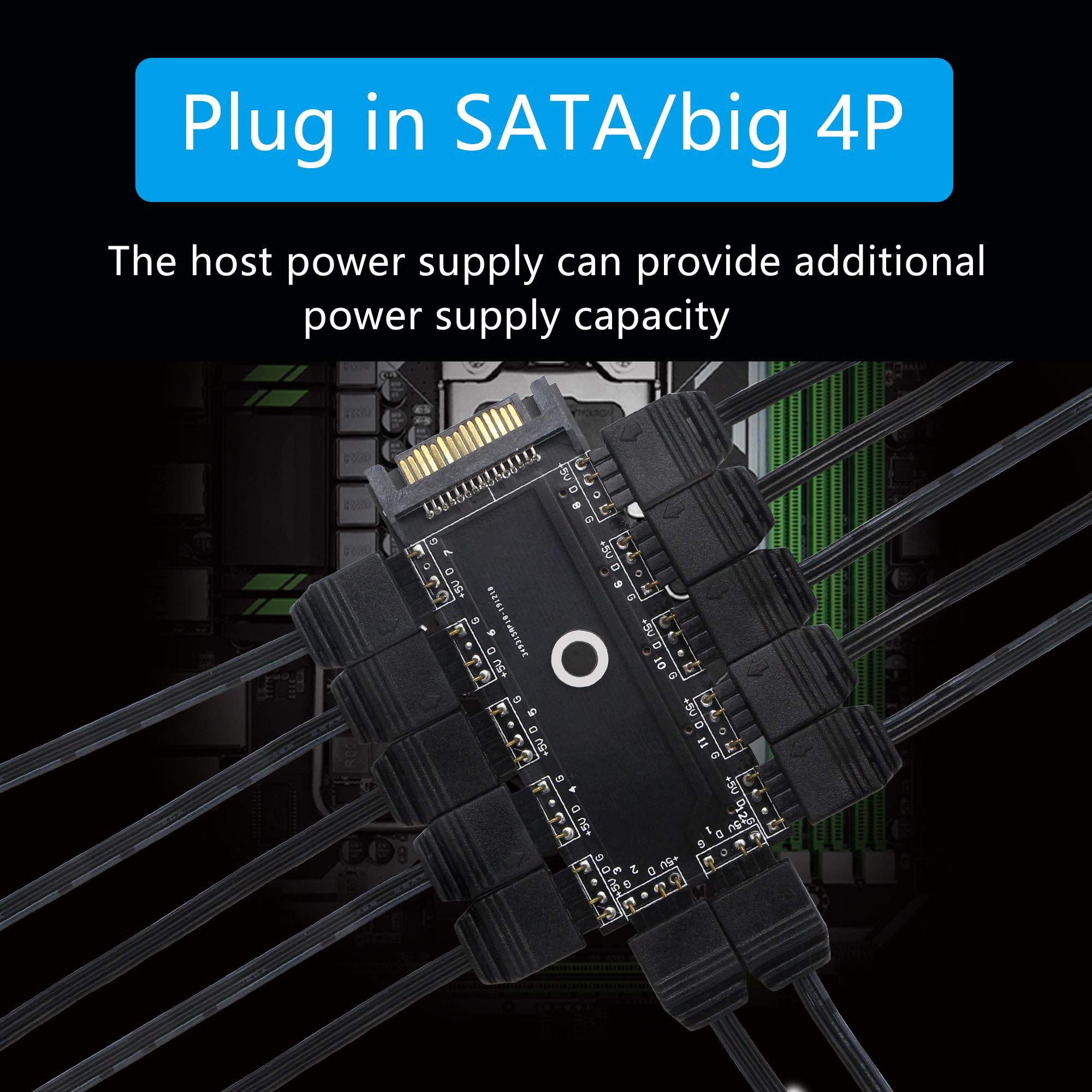

• SATA POWER: To avoid undersupply, the ARGB HUB is equipped with an additional SATA power supply so that it can maintain a stable output even at full load.
• SPACE SAVING: It will save your space effectively and make the cable management easier, and make the inside case neat and tidy.

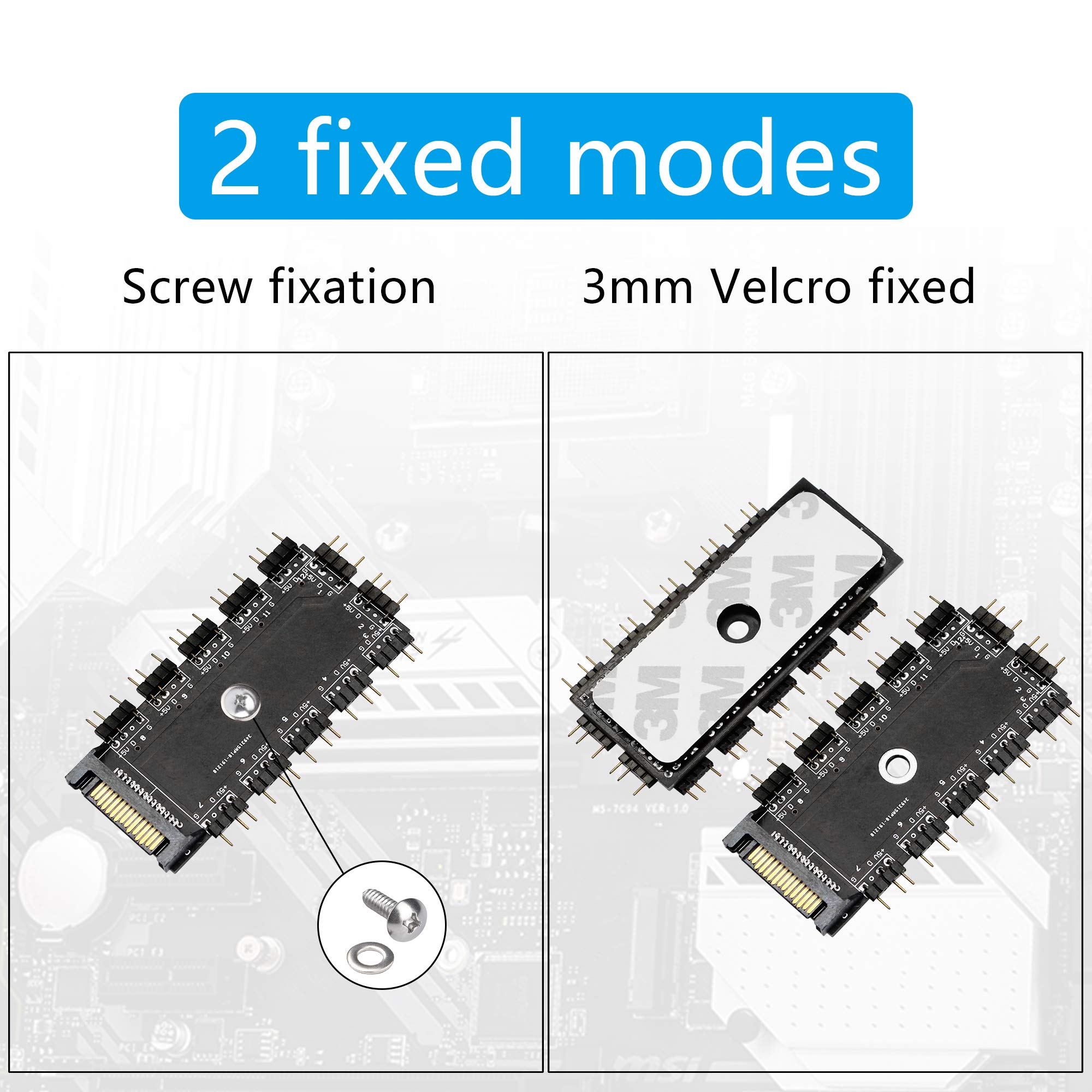

• 3M MAGIC TAPE Fixed:Let put the position, installation operation becomes more flexible（Support screw fixation）
• Only Support 5V / 3Pin RGB Interface:This hub is only compatible with 3pin 5V addressable RGB headers or controllers. not connect to 12V RGB components, making sure the arrows on connectors and headers line up.Through the motherboard control, the synchronized lighting can be consistent with other D-RGB products.

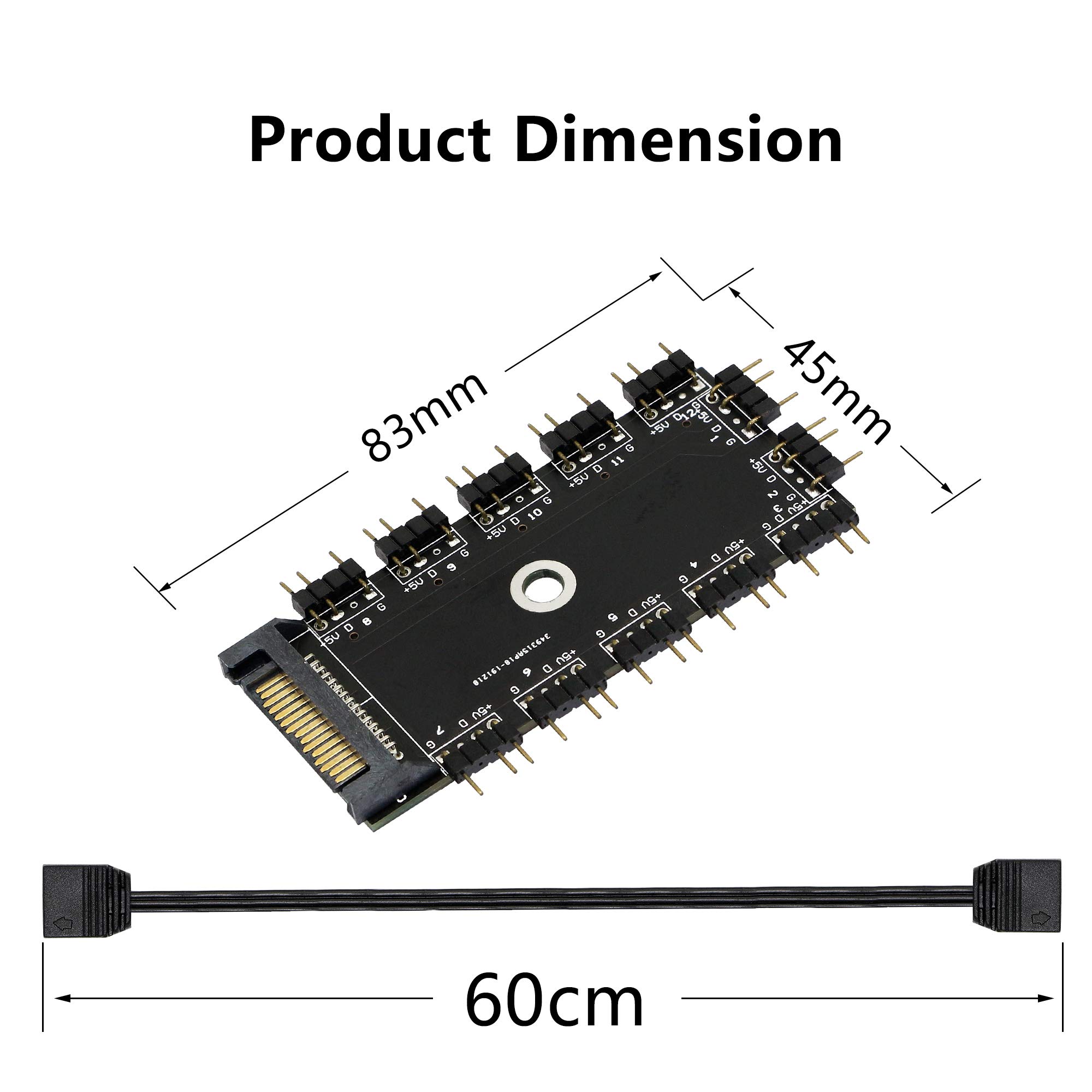

Parameter Product Name：11 Ports ARGB HUB Size：83×45×16MM Phantom light control port：11PCS（3PIN ARGB） Rated voltage of light：5V Power supply port：SATA/IDE Power supply safety curren：4.5A Product weight：23g Enclosure：Instuctions, One connecting lines Installation Description: ●Insert the SATA interface (or IDE interface) of the computer power supply into the power supply interface of the hub. ●Connect one end of 3PIN ARGB line to the interface of 5V 3PIN ARGB (or RGB LED magic color controller) on main board, the other end to any 3PIN ARGB interface as input port, and the rest of the 11 3PIN ARGB interfaces will be connected to RGB light equipment as output port ●Stick the hub on inner wall of case by glue.
