YYKJ Car Reversing Camera ，Wired Backup Camera and Monitor Kit for 7 Inch HD Monitor IR Night Vision Rear View System for Heavy Duty Vehicles by RV Trucks Bus Trailers

• 7 Inch Rear View Monitor This rear view camera kit features high-resolution images, color display, and energy efficient design. Brightness, contrast and colour are adjustable. It supports two-channel video input and the images can be rotated horizontally or vertically to achieve a mirror image or normal display.

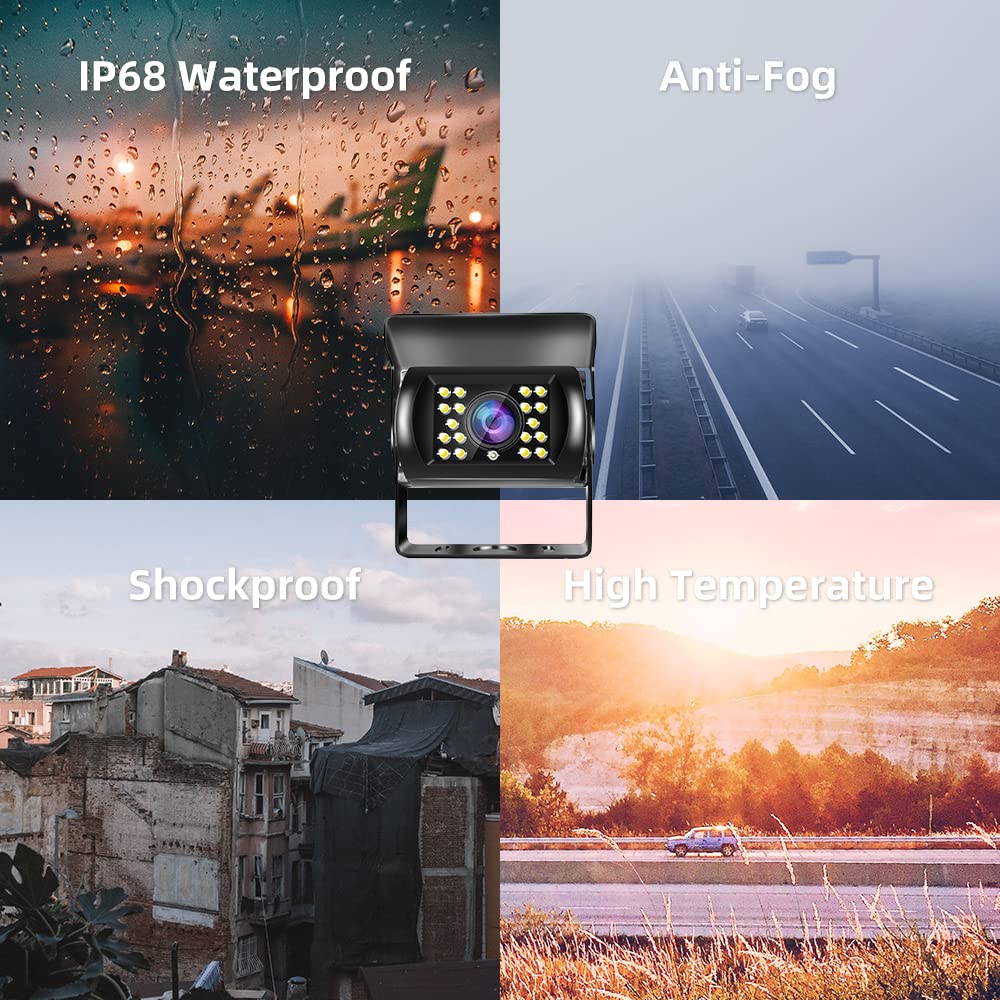

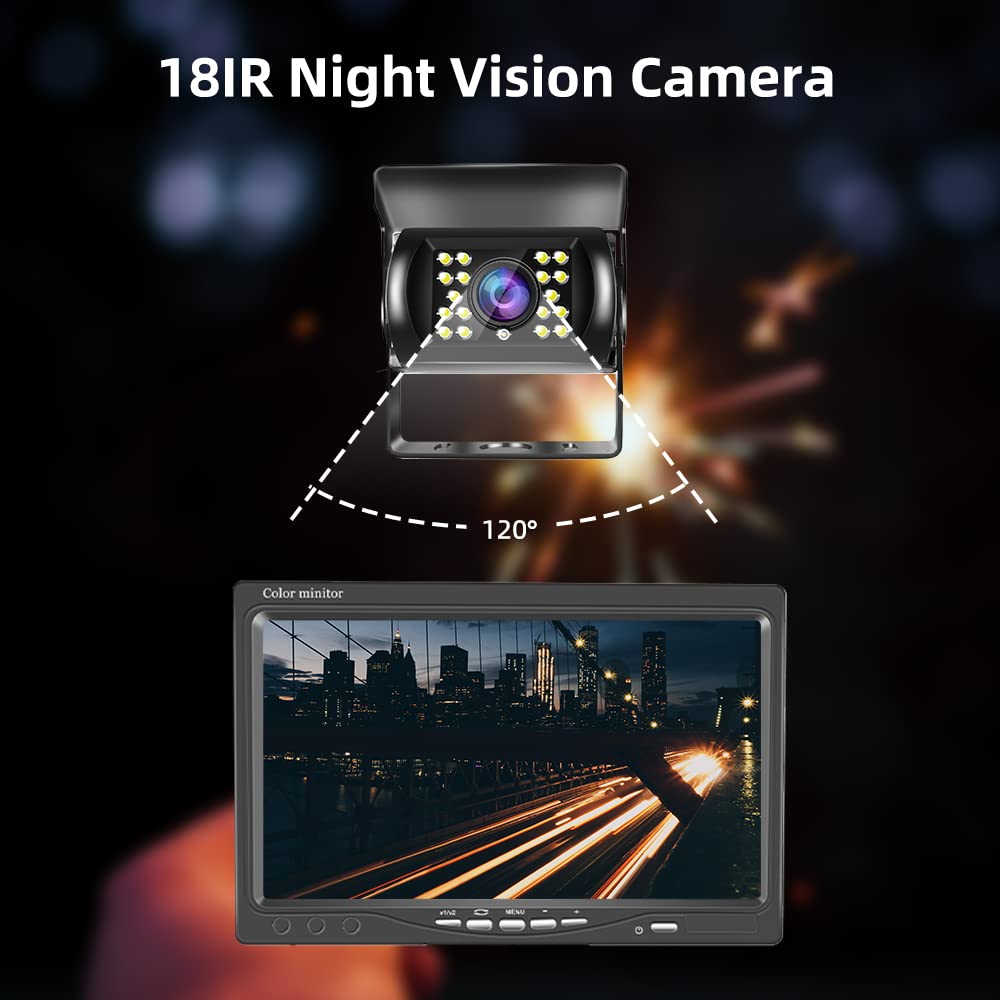

• Infrared Car Camera: With IP68 protection against water and dust, this camera is equipped with 18 infrared LEDs and supports night vision function. It has a horizontal viewing angle of 120° and a vertically adjustable viewing angle of up to 180°, which completely covers blind spots. After connecting to a constant power source, it can be operated 24/7.
• Car Park Camera System: includes a remote control and bracket, a 7 inch TFT LCD color display, a 18 infrared LED rear view camera (with night vision function) and a 4 pin connection cable. The fixed cable connection ensures safe, clear and stable reversing images.

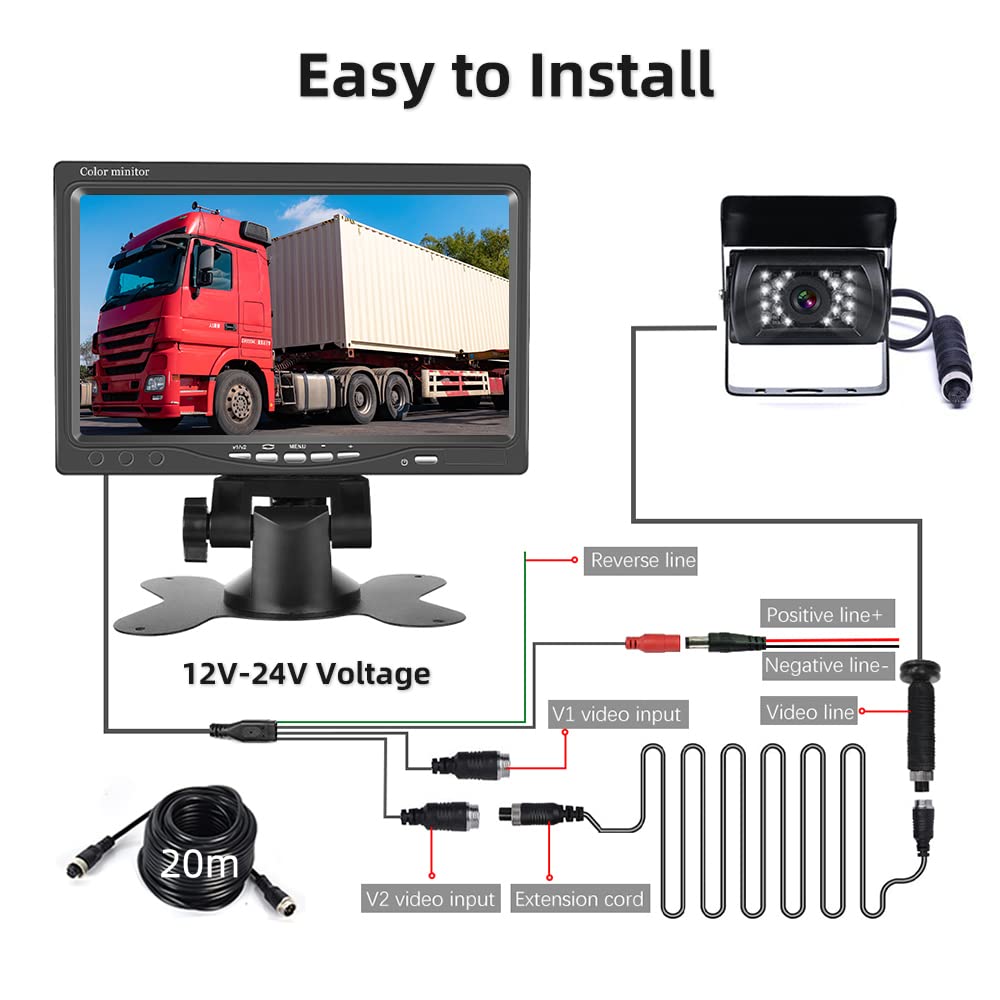

• Advanced aviation grade 4-pin connection cable: the rear view camera set is equipped with a 65 foot long aviation grade video connection cable, which provides strong interference freedom, stable connection and easy installation. Compared with normal AV cables, it can prevent the interference of the vehicle circuit more effectively. Compared to wireless rear view cameras, the signal of the wired cameras is more stable.
• Parking Assistance: When reversing or braking, the display is automatically activated and displays the videos of the rear view camera synchronously. The rear view camera is equipped with a vibration-resistant design and a metal housing to ensure a longer service life.

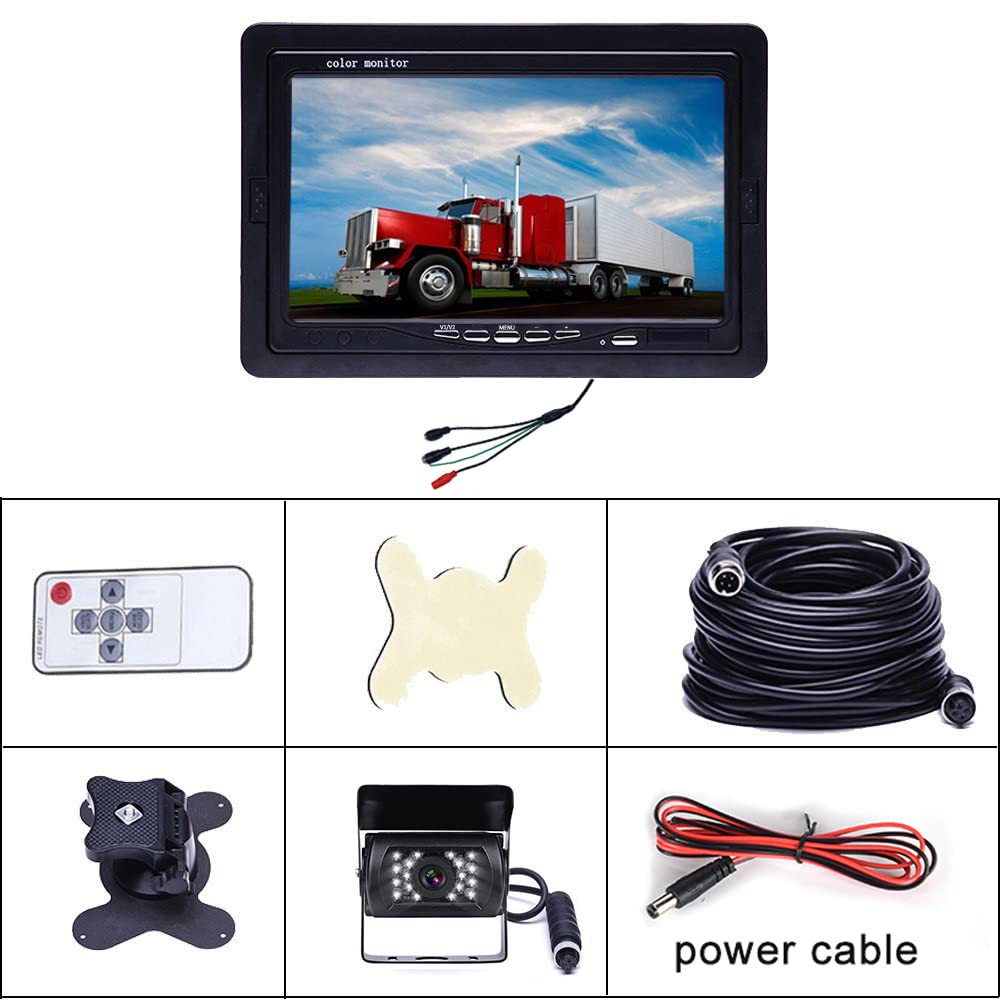

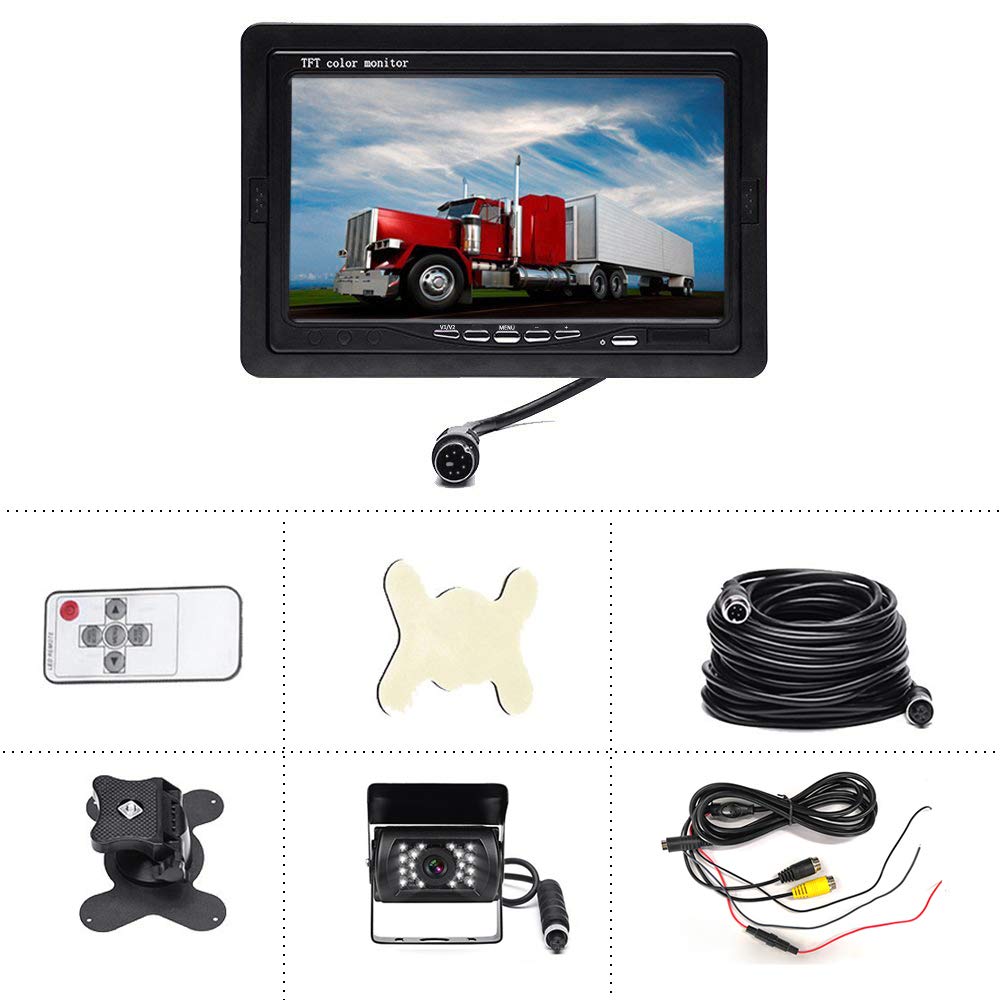

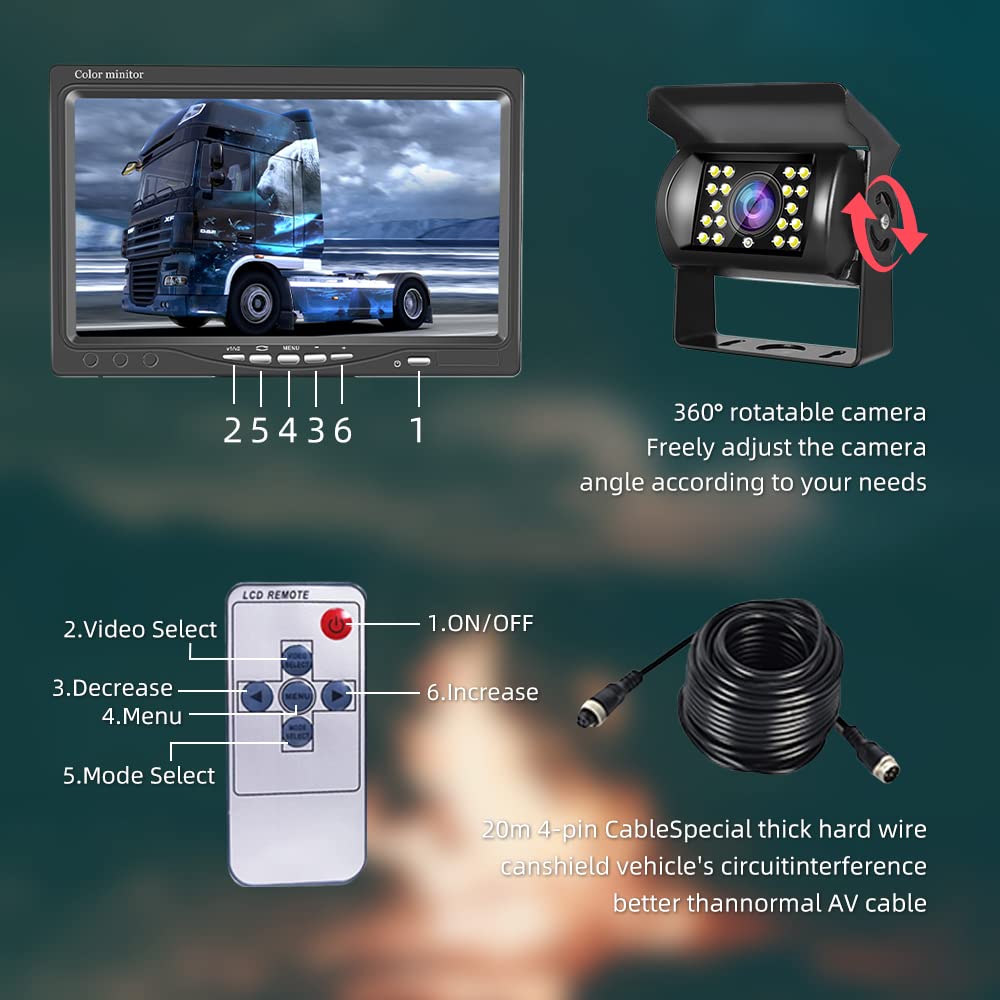

7 inch TFT LCD car monitor: Screen size: 7 inches. Resolution: 800 x 480. Housing: ABS. Colour: black. TV System: NTSC/PAL Video: 2 video inputs Rear view: V2 automatic reverse when triggering the trigger. Reverse line: turn on/off and adjust height/width Viewing angle: up/down/left/right. Power supply: DC 12 V – 24 V. Power consumption: 5 W. Operation mode: button operation and remote control Operating temperature: -10°C to +40°C. Storage temperature: -25°C to +80°C. 18 IR LEDs rear view camera (without reversing line): Metal housing with bracket for easy installation High resolution and wide viewing angles. Supports CMOS color images Waterproof: IP68 Horizontal resolution: 420 TV lines Effective pixels: NTSC: 648 × 488 pixels Power supply: DC 12V-24V Operating temperature: -20°C to 70°C, RH95% MAX Storage temperature: -40°C to 85°C, relative humidity max. 95% Package includes: 1 x 7 inch car monitor. 1 x rear view camera. 1 x 65 foot video cable with aviation plug. 1 x remote control. 1 x holder. 1 x double-sided tape. 1 x user manual.
