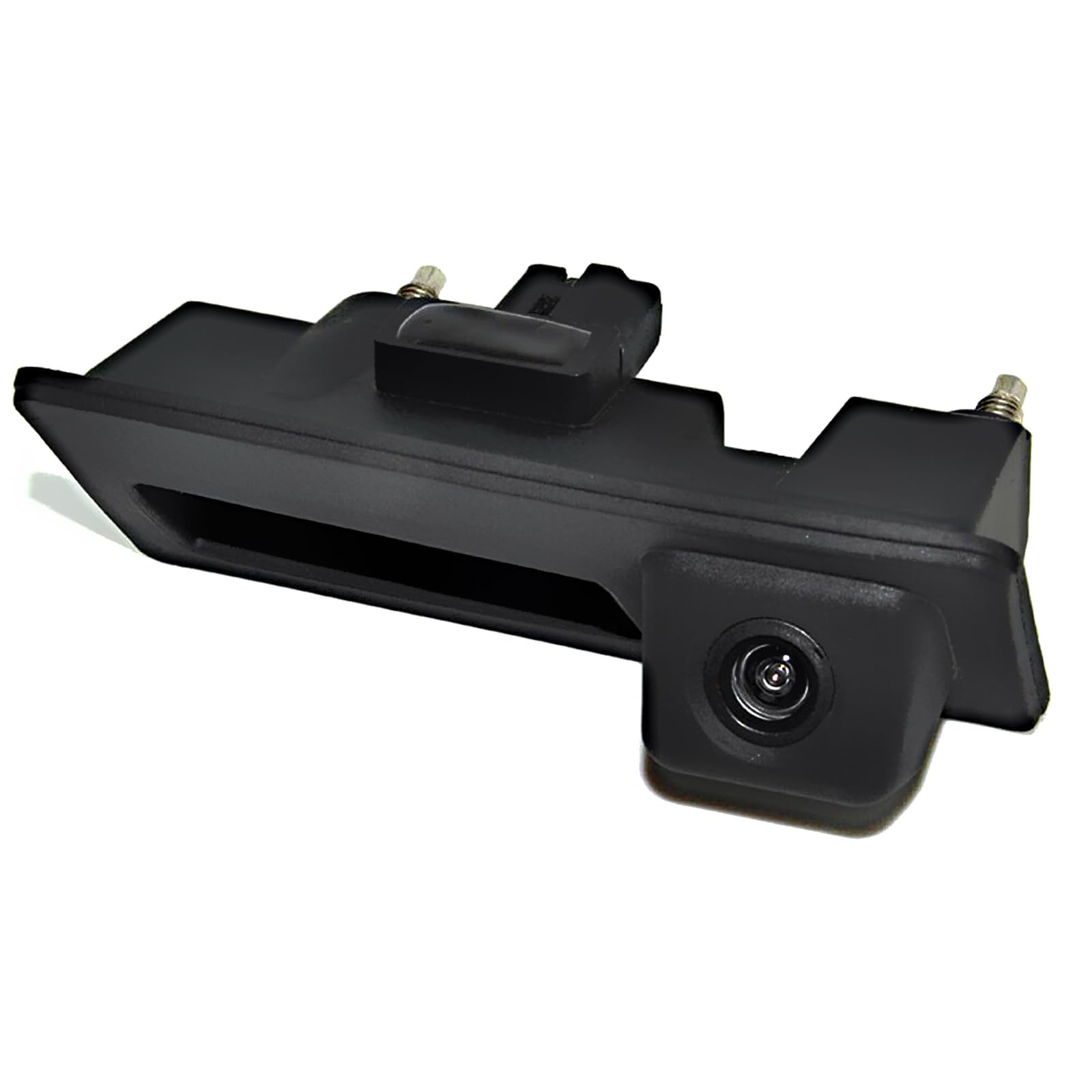

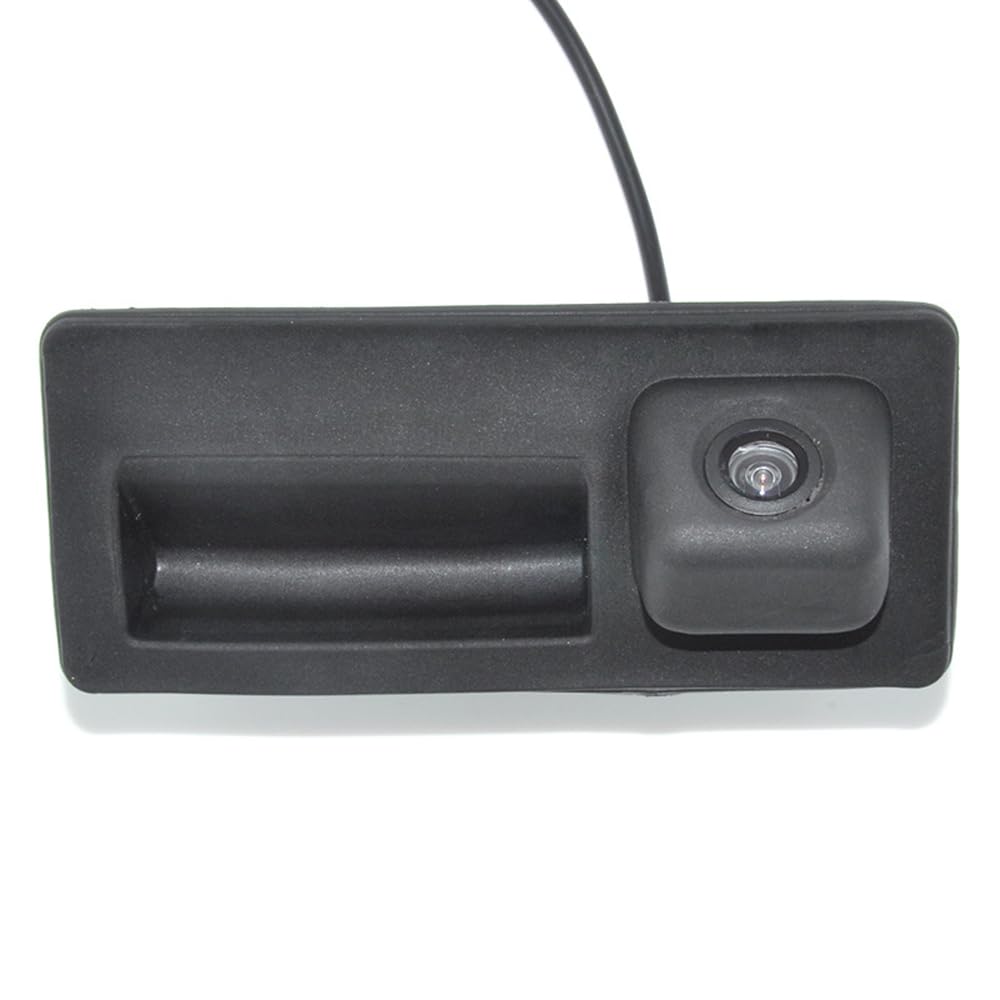

car reverse camera Compatible with Car VW Golf Passat Touareg Sharan Tiguan Touran Jetta Audi A3 A4 A5 A6 A7 Q3 Q5 Q7 Seat Skoda Octavia Yeti Superb

• Sensor: Color CCD; Effective pixels: 580 x 540
• TV System: NTSC/ PAL; Lens Angle: 170°
• Waterproof: IP69; Voltage: 12V; Night vision and water proof.

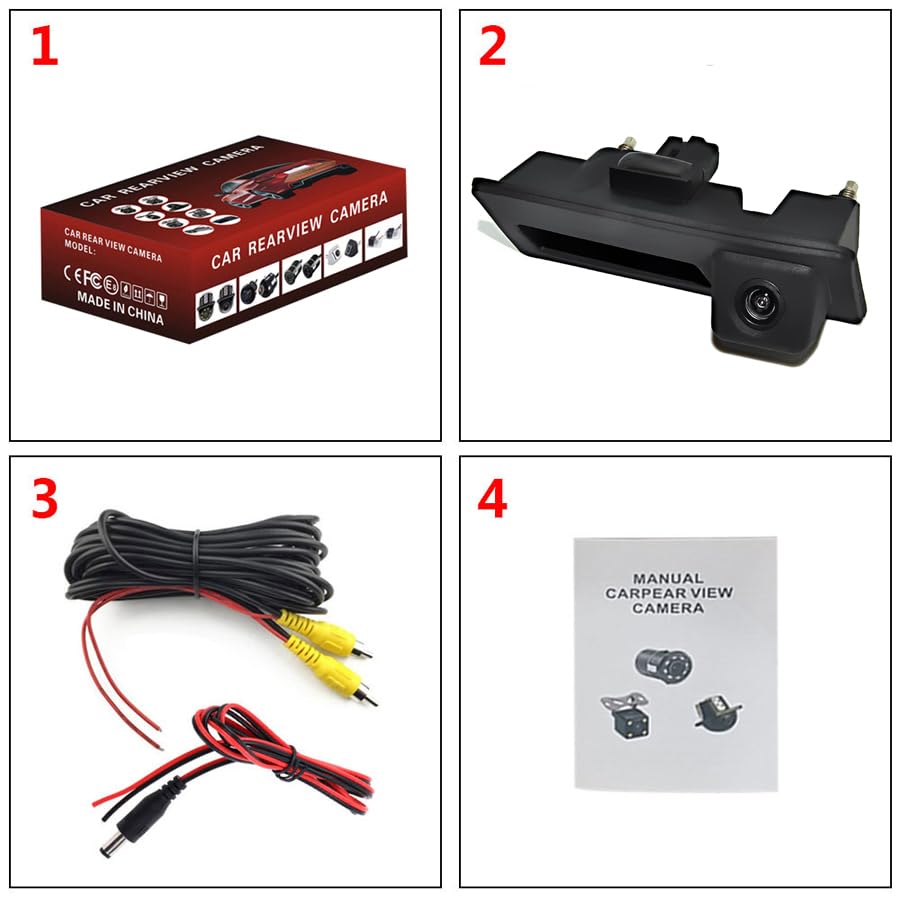

• Package Included: 1 x Rearview Camera 1 x Power cable 1 x Extension cable (6 meters) 1 x User Manual
• Power cable Length: approx. 1 meter ; Extension cable Length: approx. 6 meters
• --Simple design and easy to use. --High sensitivity and low power consumption

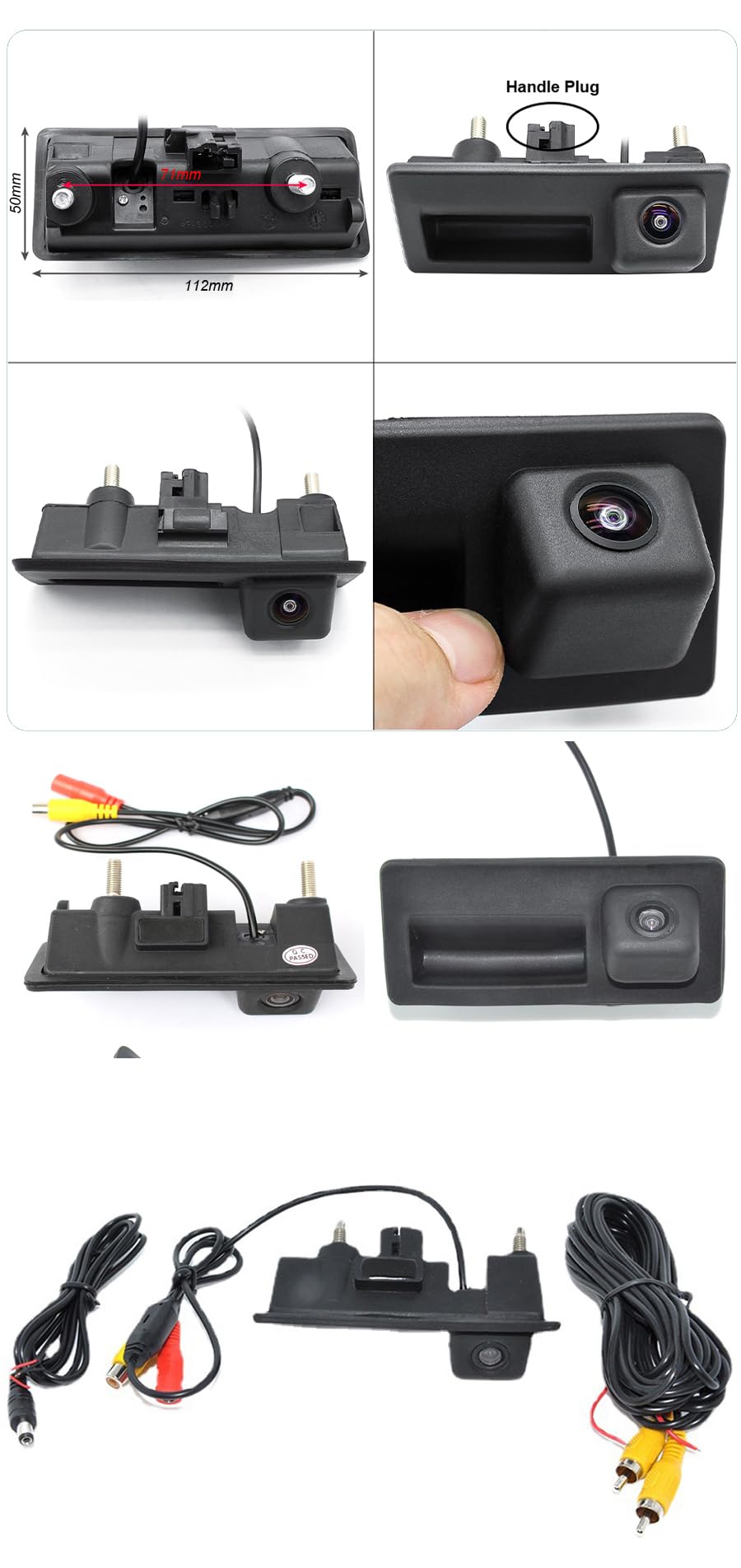

• Dimensions: 112 x 50 mm. With the dimensions of the handle, please make sure if they are the same as your handle. You'd better simply measure it.
• Warm note: Please make sure there is Chinch/RCA connection from your radio, otherwise it will not fit. It does not fit the car VW RSN 315 or RSN 510 with Navi on original VW radio
• Warm note: Please connect or cut (depends on the version you got) the white cable to show the distance lines for parking assisstant
• Warm note: If you connect the camera to the rear lamp and you do not have camera image while reversing, you need a signal filter. it's because there is no stable 12V for the camera. As an alternative, you can also use a 12V vehicle relay and connect it to the 12V from other source (e.g., cigarette lighter and as a switching voltage stop from the backlight).

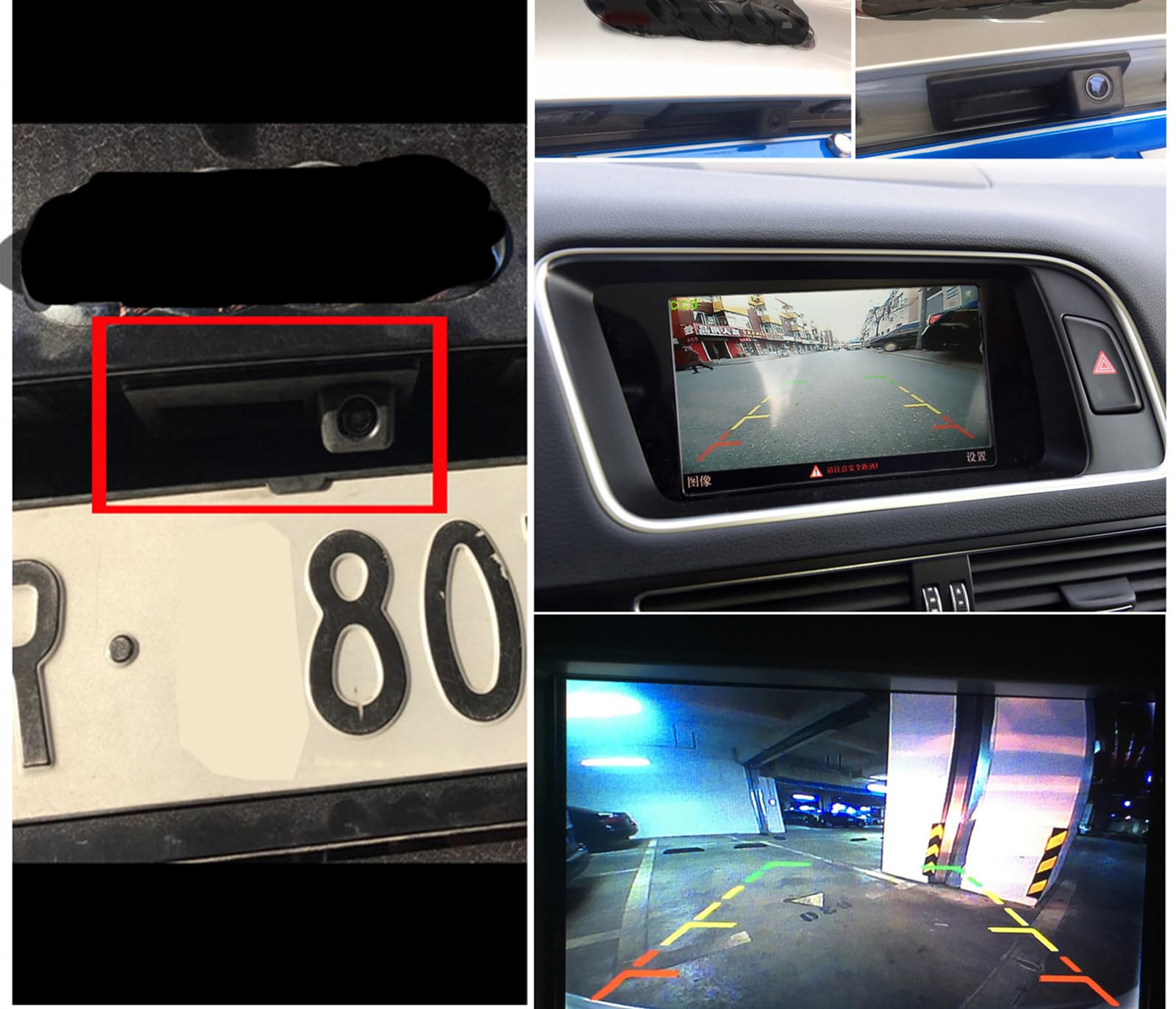

Specification Color: Black Size: Like the picture show Power cable Length: approx. 1 meter Extension cable Length: approx. 6 meters Sensor: Color CCD Effective pixels: 580 x 540 TV System: NTSC/ PAL AGC: Auto BLC: Auto White Balance: Auto S/N Ratio: More than 48dB Lens Angle: 170° Resolution: 500 TV Lines Operation Temperature: -20°C - 80°C RH95% Max Waterproof: IP69 Voltage: 12V Feature - 100% Brand new and high quality. - High sensitivity and low power consumption. - Simple design and easy to use. - Night vision and water proof. - This camera can give you a full sight of the back of your car when you are driving. How to Install: (Only for reference) 1. Take out your stock license plate light at the back of your car. 2. Fix the camera to where the stock license plate light was. 3. Connect the power cables of the Camera to your Reverse lights - red wire to positive and black wire to negative. 4. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative. 5. Connect the video cable of the camera to the extension cord. 6. Connect the extension cord to your car monitor. 7. You will see the images when your car is in reverse shift. Note 1. Please check the size measurement and the pictures carefully before making payment. 2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm) 3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding. 4. Professional Installation Is Highly Recommended! Not compatible with: For Golf 5 Variant For VW Caddy year of manufacture 2018 For Golf Plus 2005 For Audi 4 For Passat 3c 2007 For Golf 6 variant For Audi A5 B8 Coupé BJ. 2013 For Audi A6 4F estate For VW Touran 2007 For Skoda Octavia 1Z5
