Candeon Capacitance Meter - MESR-100 Auto Ranging ESR Capacitor Resistance Tester 1? High Pricision 0.001 to 100R LCD Display Double Terminals Low Ohm Meter Capacitive Resistance Tester

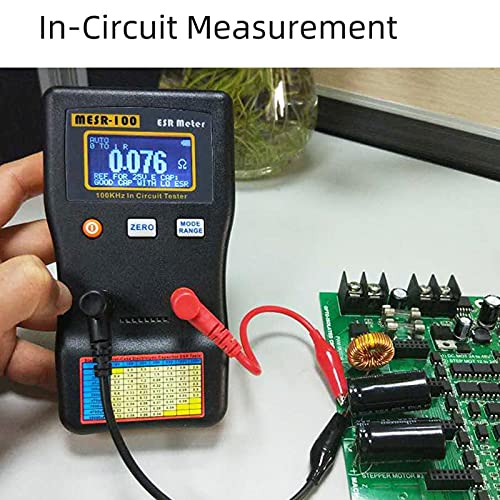

• PROFESSIONAL MULTIFUNCTIONAL RESISTANCE TESTER : Professional test capacitor internal resistance ESR value, support circuit board online test, suitable for home appliance repair, development by professional engineers, and use by DIY users.
• HIGH PRECISION MEASUREMENT : The measurement range of ESR capacitor is from 0.001 to 100.0R, with a high accuracy of 1%, and supports measurement in the line.

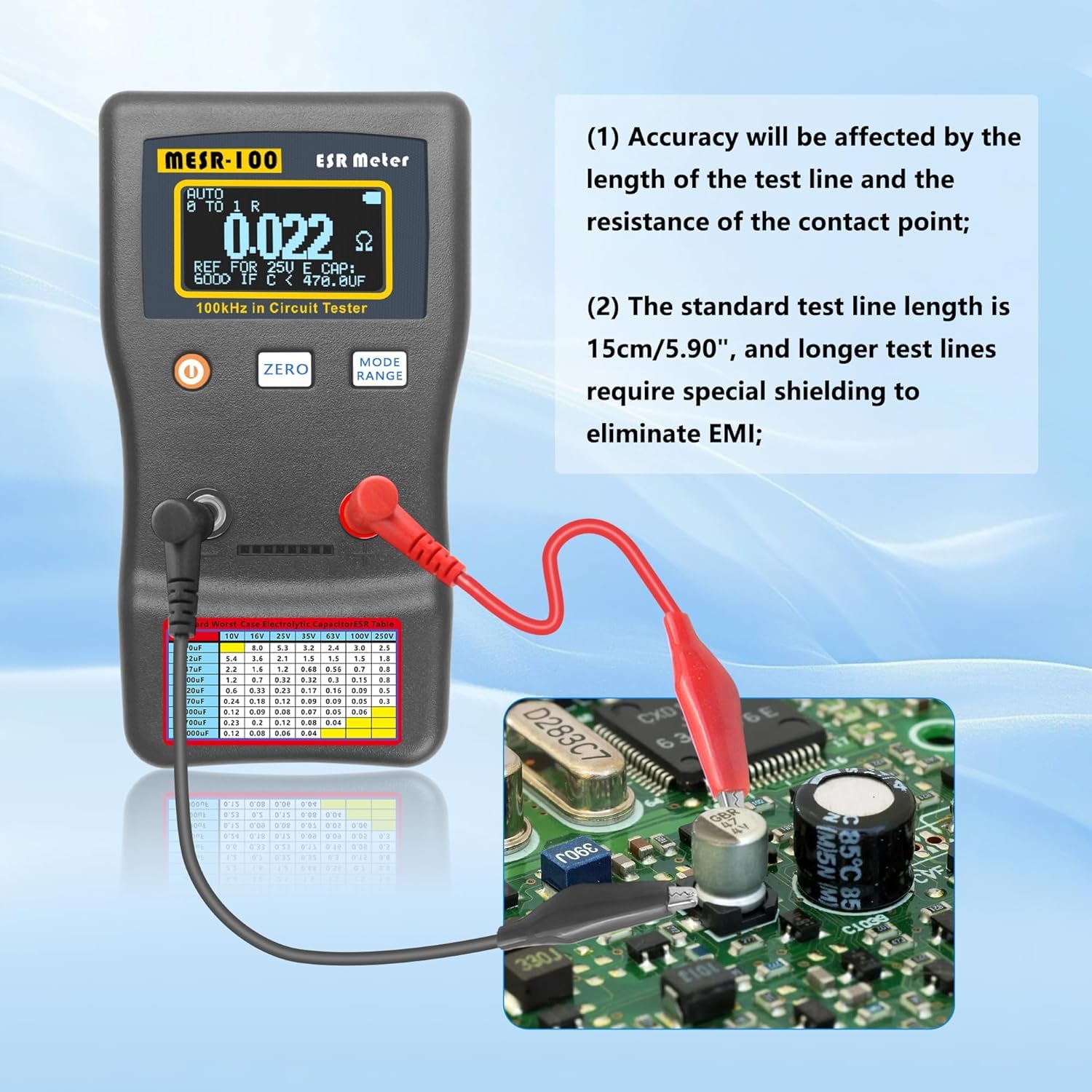

• DOUBLE TERMINALS QUICKLY CHECK : Double terminals, easy to quickly check the internal resistance of the capacitor, and the pasted ESR meter is used for quick inspection.

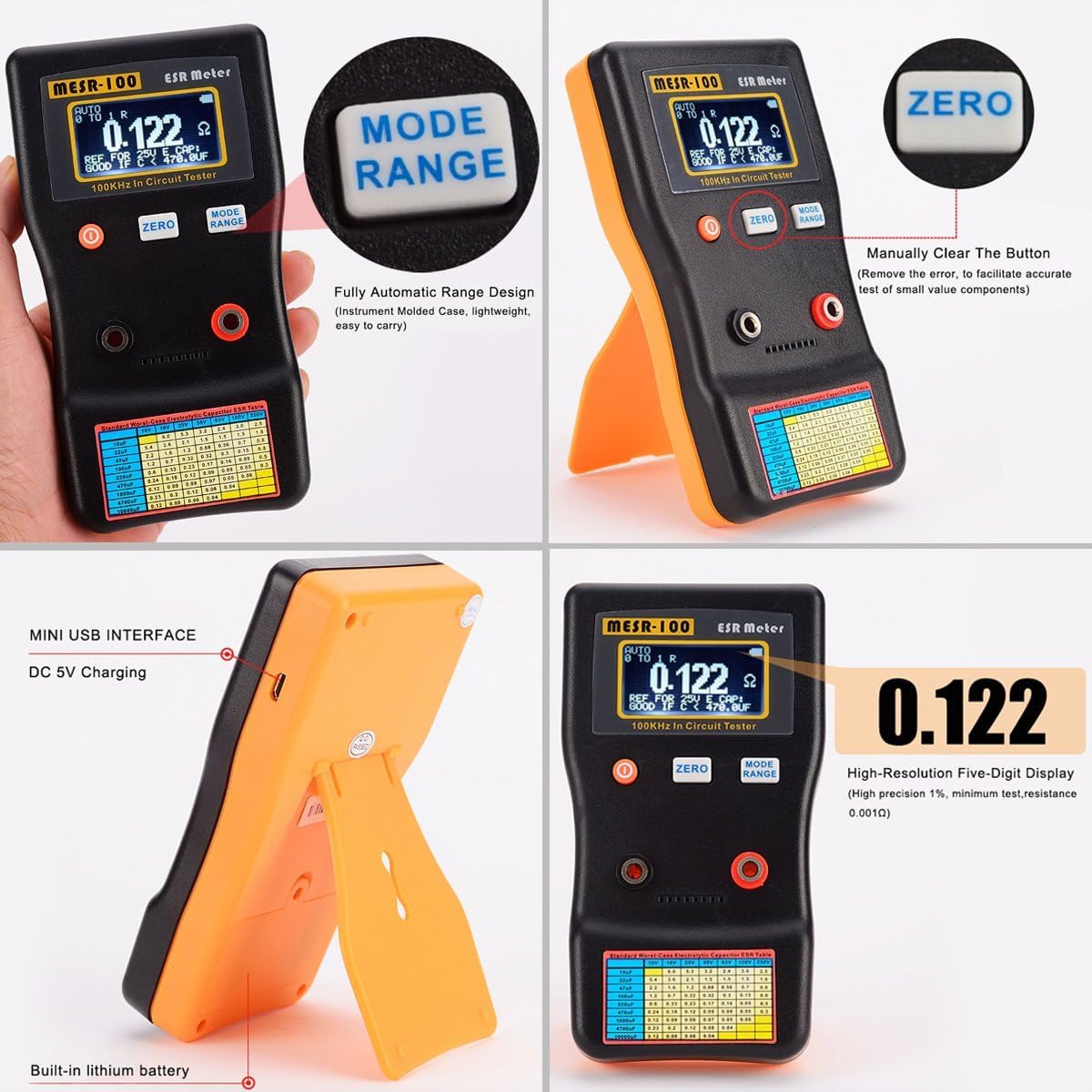

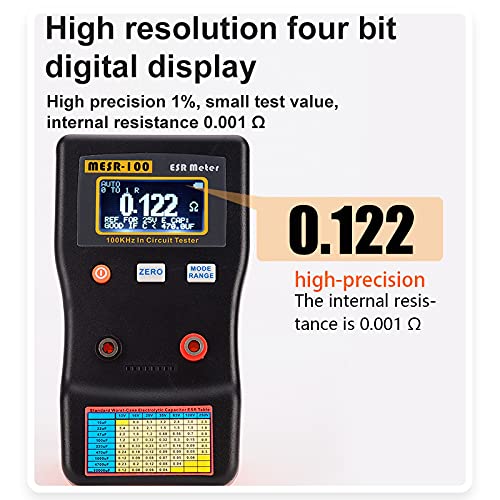

• LARGE LCD DISPLAY : High resolution 0.001, large LCD display, support USB power supply, DC5V power supply.
• SUPERIOR PERFORMANCE : Use a real 100KHz sine waves to measure the internal resistance (ESR) of the capacitor, which is equivalent to the test method of the capacitor manufacturer. new housing, and support design.

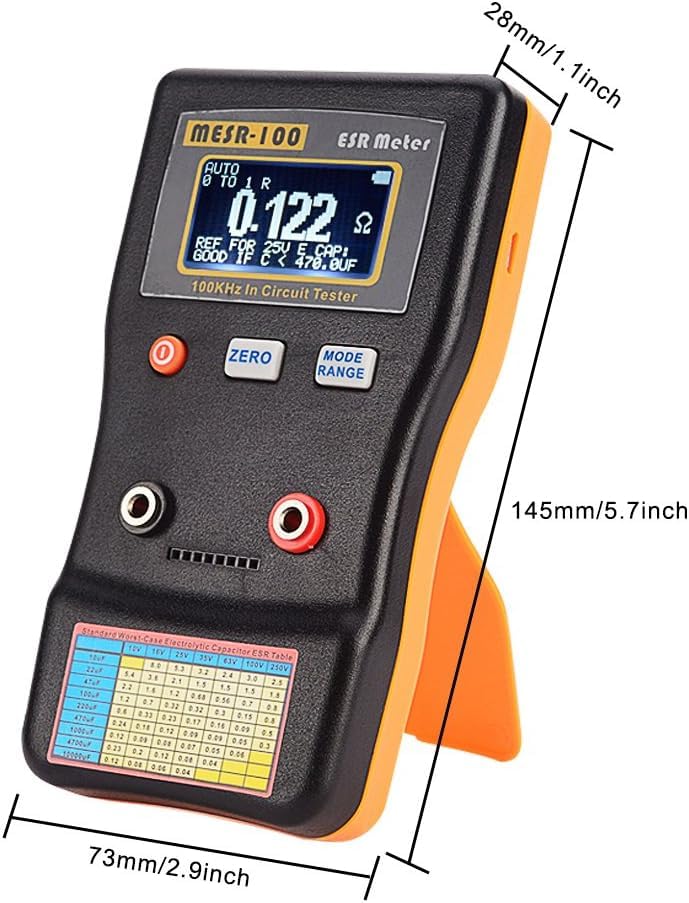

Specifications: Material: ABS Test range; accuracy; response time 0.000 to 1.000R; (1%+2Digit); -0.4s 1.000 to 10.00R; (1%+1Digit); -0.4s 10.00-100.0R; (2%+1Digit); -0.4s Accuracy: up to 1% (see the table above for details) Wide measuring range: >1uF High resolution: 4 bits, or 0.001Ohm @ 1 Ω range Measuring voltage: <-40mV RMS (TESTING VOLTAGE) External power supply: 5V micro USB Working current: 0.02A Battery: 2 * AA 1.5V batteries (not included) Battery life: >80 hours Item size: about 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in Packing size: about 17 * 9 * 5cm / 6.7 * 3.5 * 2.0in Package weight: about 262g Packing list: 1 * Capacitance meter 2 * Test clips 1 * Manual
