Candeon 2P 80A DC Photovoltaic Circuit Breaker Isolator Air Switch w/IP65 Waterproof Distribution Box

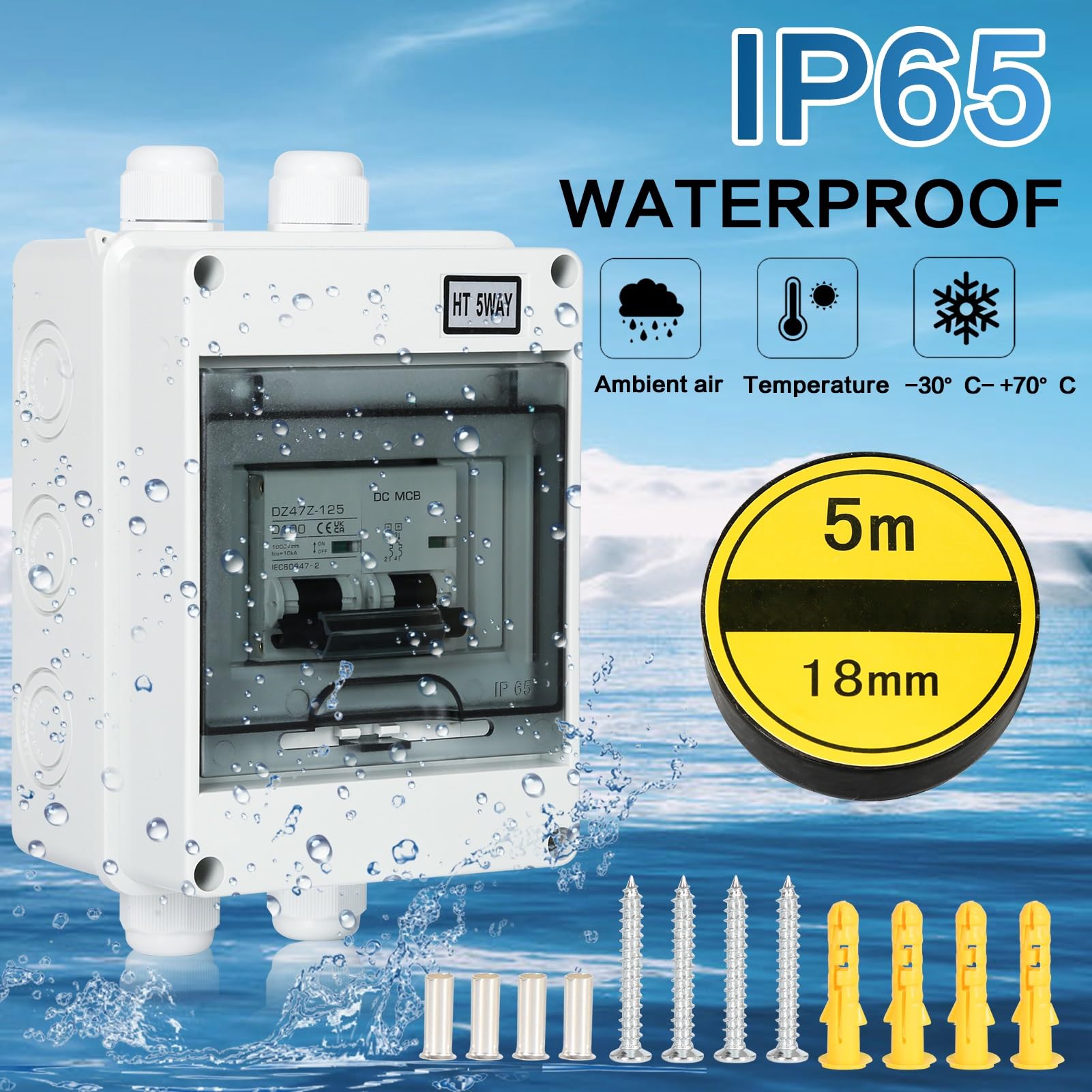

• High-quality waterproof IP65 circuit breaker box can block rain and dust, making your electricity use safer and more reliable.
• Arc extinguishing: DC is more difficult to extinguish than AC. The DC circuit breaker has a magnetic system for auxiliary arc extinguishing.

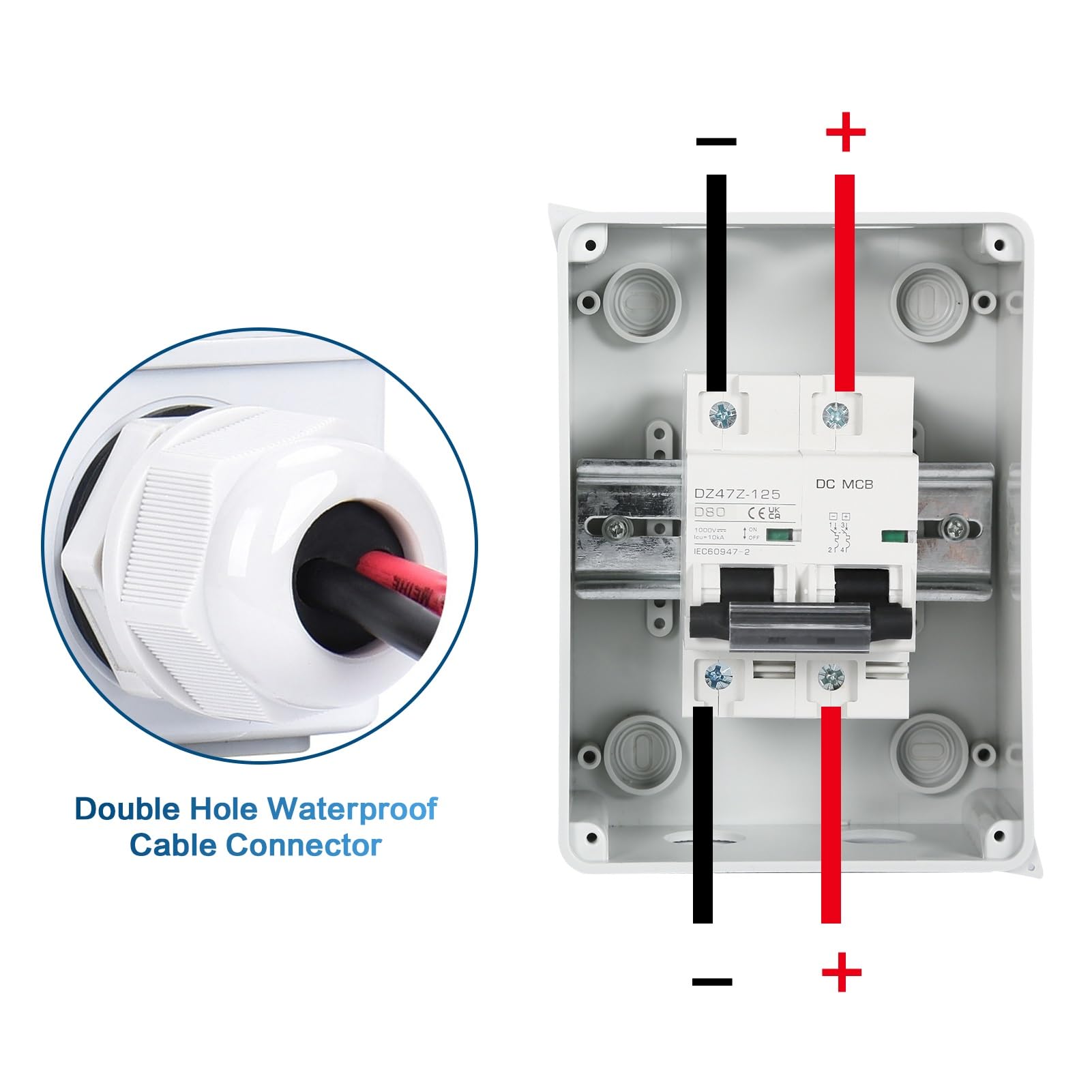

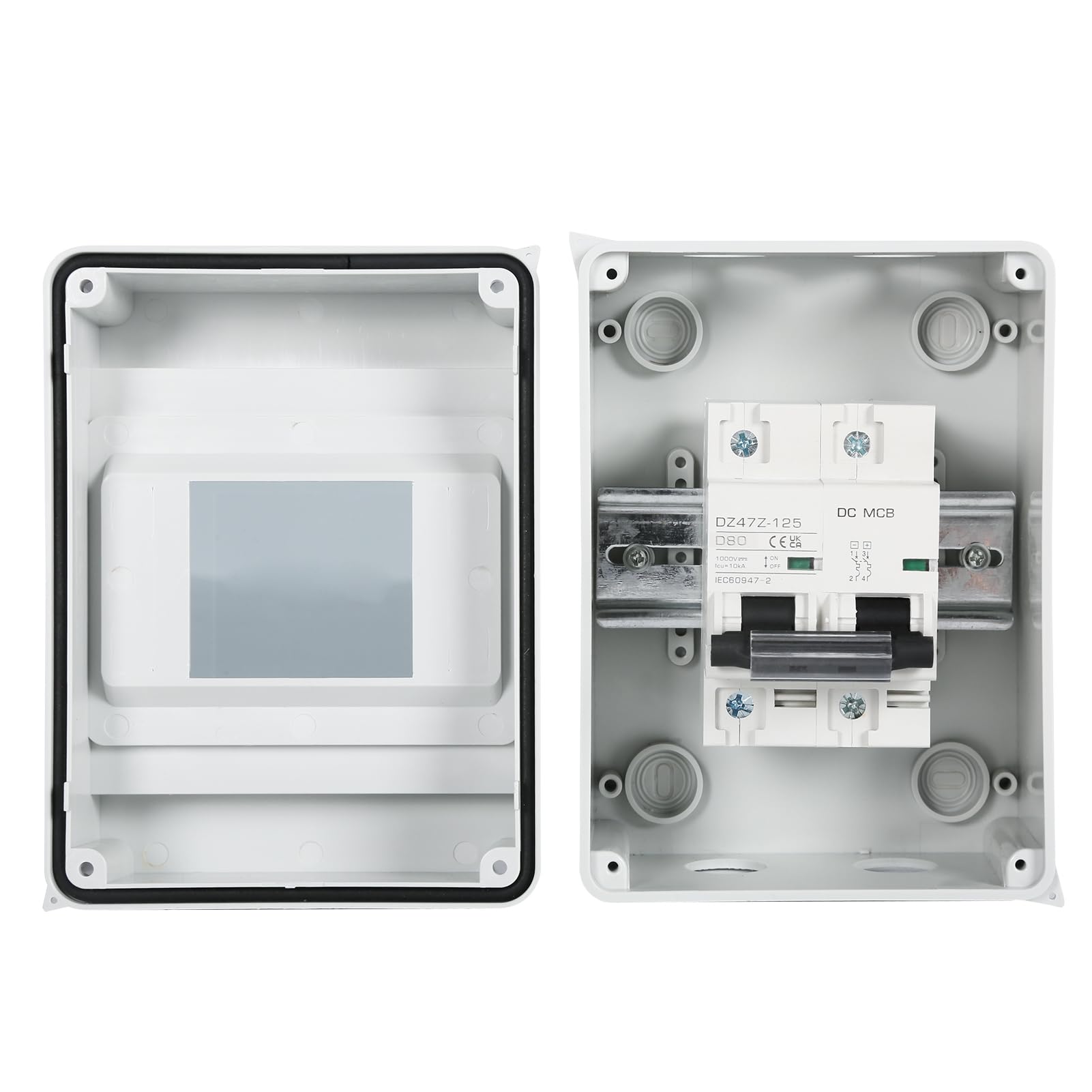

• The circuit breaker is easy to install, equipped with a transparent cover also makes it easier to check the status of the circuit breaker.

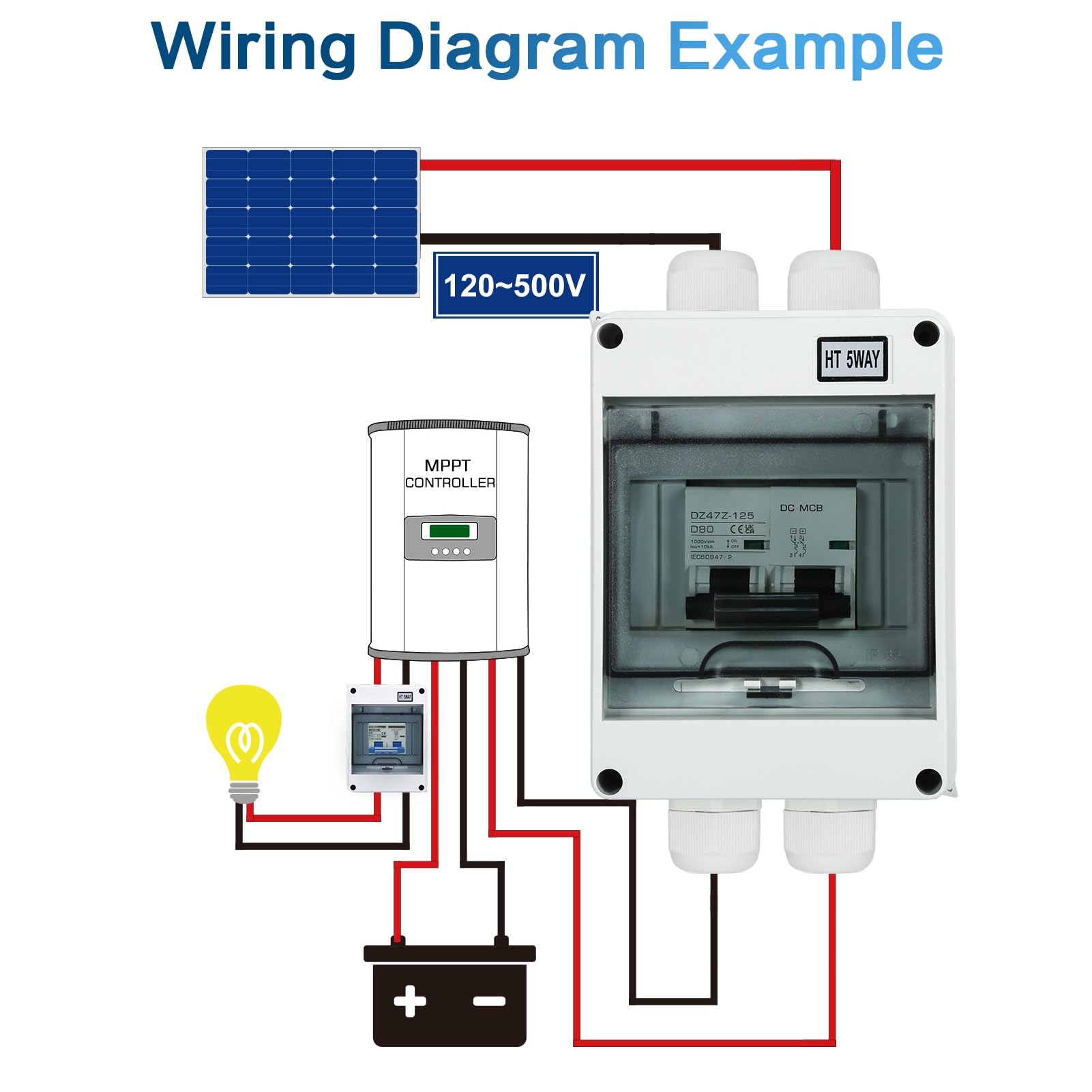

• DC isolator switch circuit breaker is mainly used for output protection of outdoor photovoltaic modules, caravans, electric vehicles and UPS batteries and inverters.
• It has fast switching circuit, thermal overload protection, short circuit protection, and can also be used for AC circuit output protection.

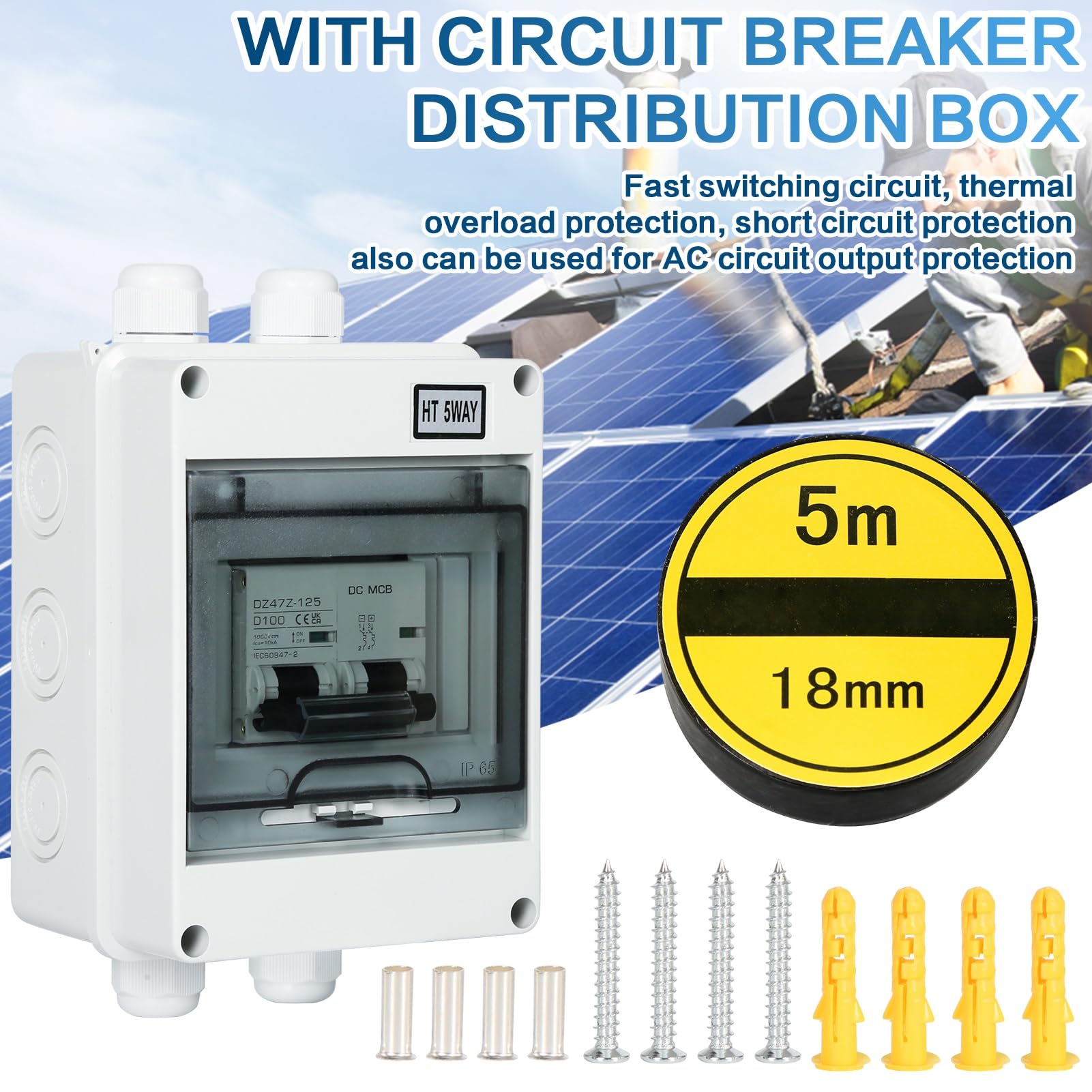

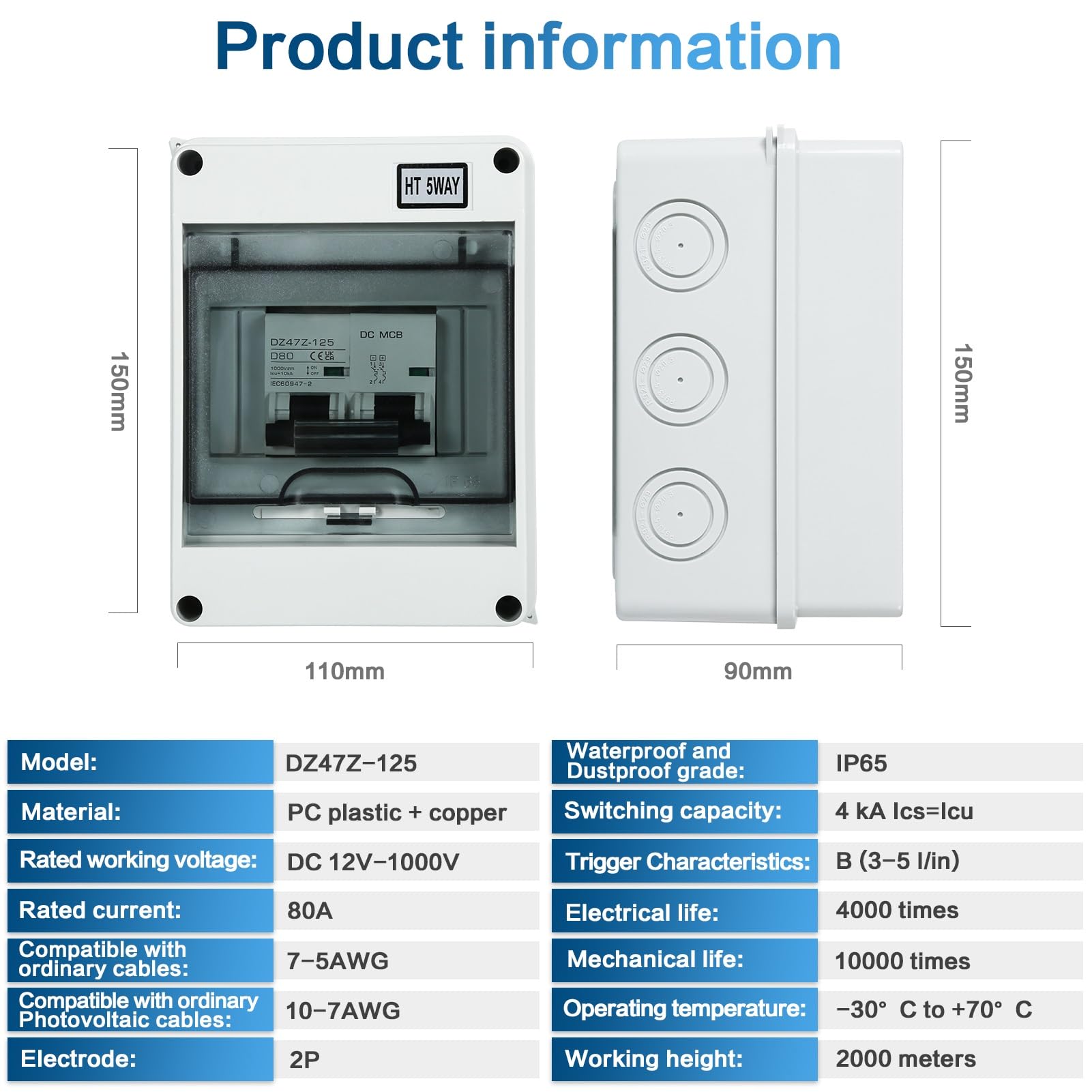

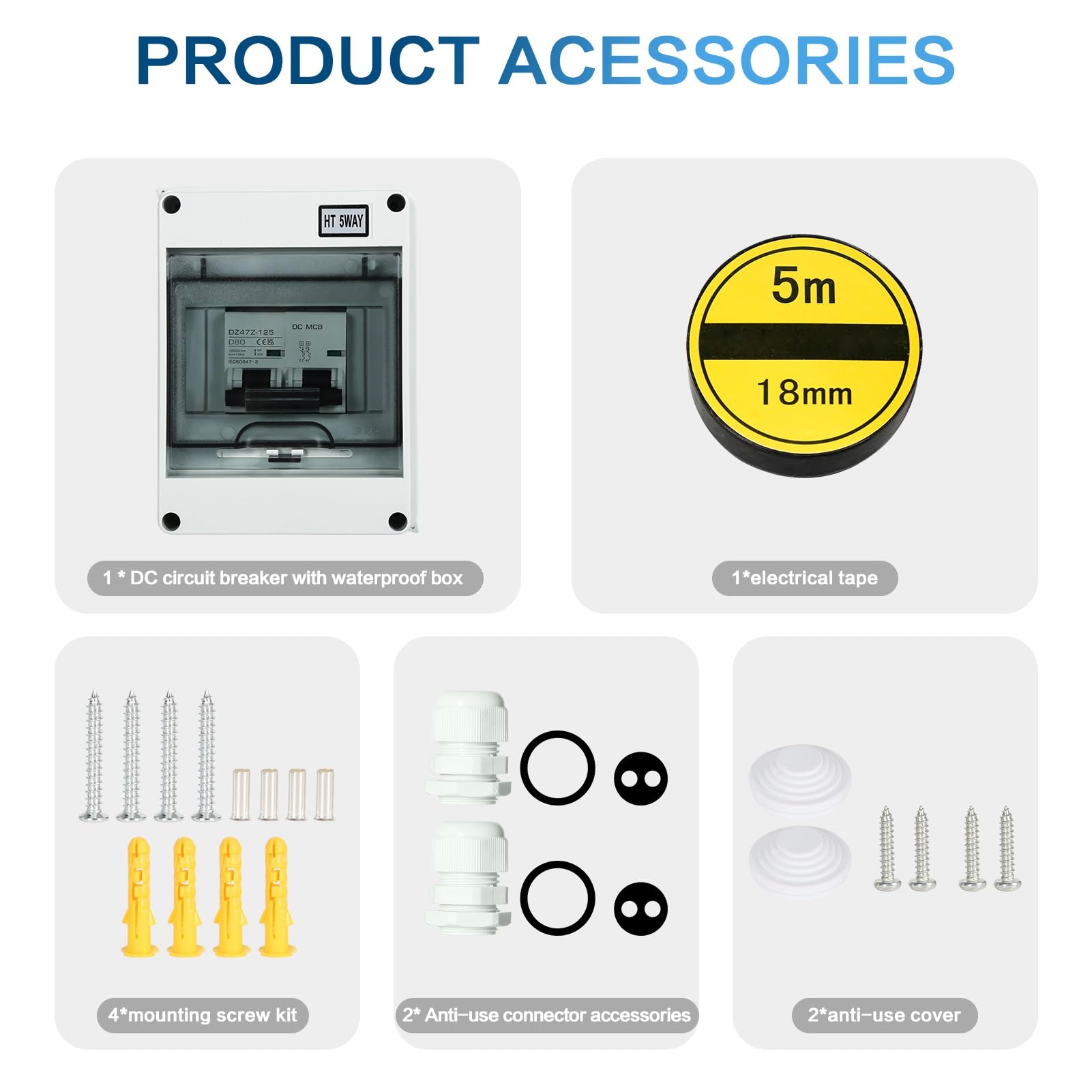

Specifications: Material: PC plastic + copper Rated working voltage: DC 12V-1000V Rated current: 80A Compatible with ordinary cables: 7-5AWG Compatible with ordinary photovoltaic cables: 10-7AWG Electrode: 2P Waterproof and dustproof grade: IP65 Switching capacity: 4 kA Ics=Icu Trigger characteristic: B (3-5 I/in) Electrical life: 4000 times Mechanical life: 10000 times Working temperature: -30°C to +70°C Working height: 2000 meters Packing List: 1*DC circuit breaker with waterproof box 2 Sets*Waterproof covers 2 Sets*Waterproof connector accessories 1 Roll*Electrical tape 4*Mounting screw kits
