TOP-A433N Professional Antenna 433.92 MHz Reception Aerial 50 Ohm, 5 m RG58 Cable, Up to 200 m Range, Bracket Mount

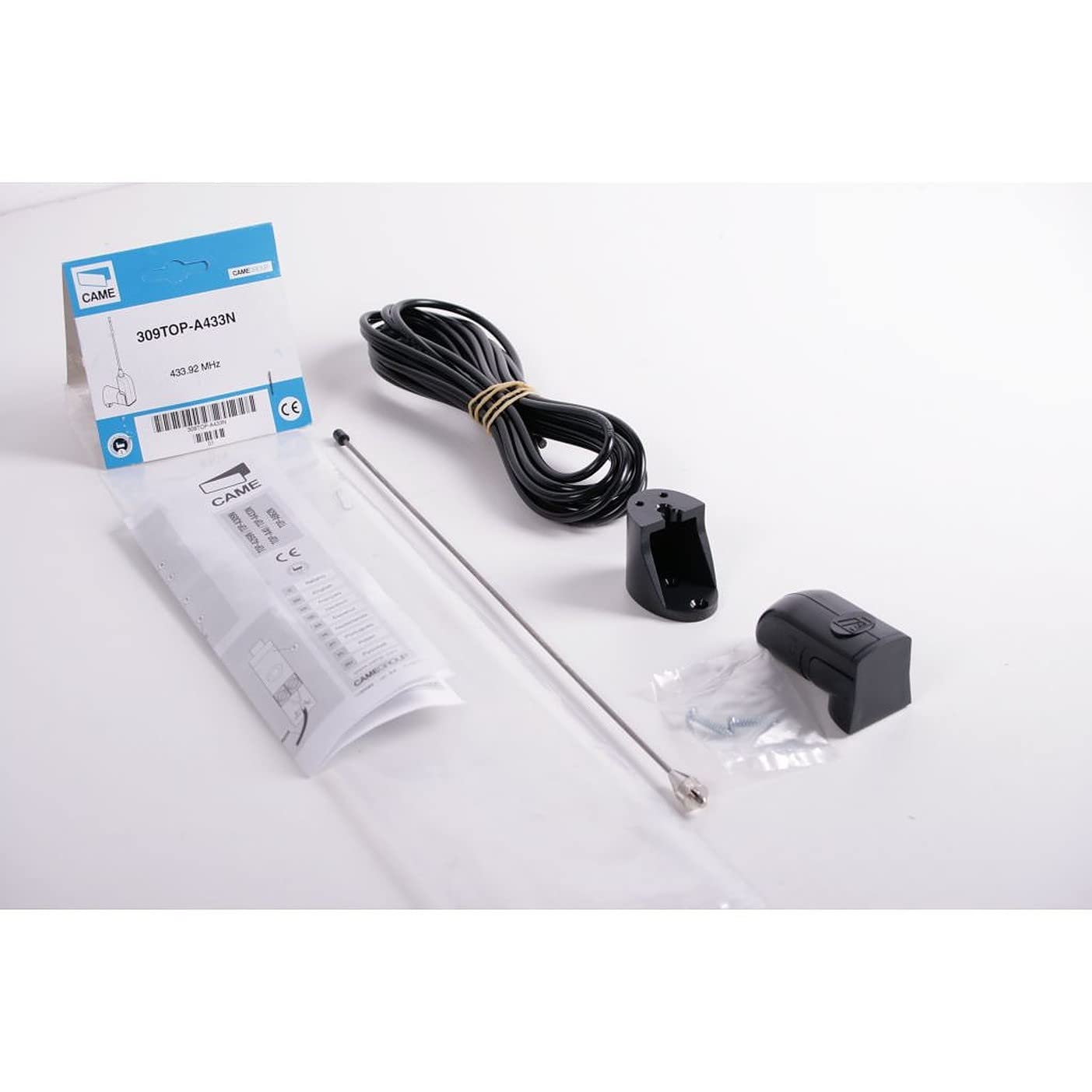

• Antenna CAME 433.92 MHz with cable 5 metres, item no. 309TOP-A433N antenna for self-installation and installation. is used to increase the range of the remote controls 433.92 MHz.
• Designed for all gate automation controls or receivers. Increases the range of transmitters with 433.92 MHz up to 200 m. The antenna can be mounted in any place suitable for the user, e.g. on a wall or a goal post as well as directly on the KLED and KLED24 beacons.
• Garage doors, electronic gates, barriers, sliding doors, automatic doors, roller shutters. Electrical appliances/home automation, e.g. lighting, alarm system, access control system
• 433MHz is a commonly used frequency band for all types of devices that require low power, such as garage door openers, smart WiFi remote controls, smart home, headphones, baby monitor and remote controls transmitters; used in most wireless RF devices for consumers, including mobile phones and wireless routers
• Extra long 5 m cable RG58. The antennas are very easy to install and remove. Convenient and practical.

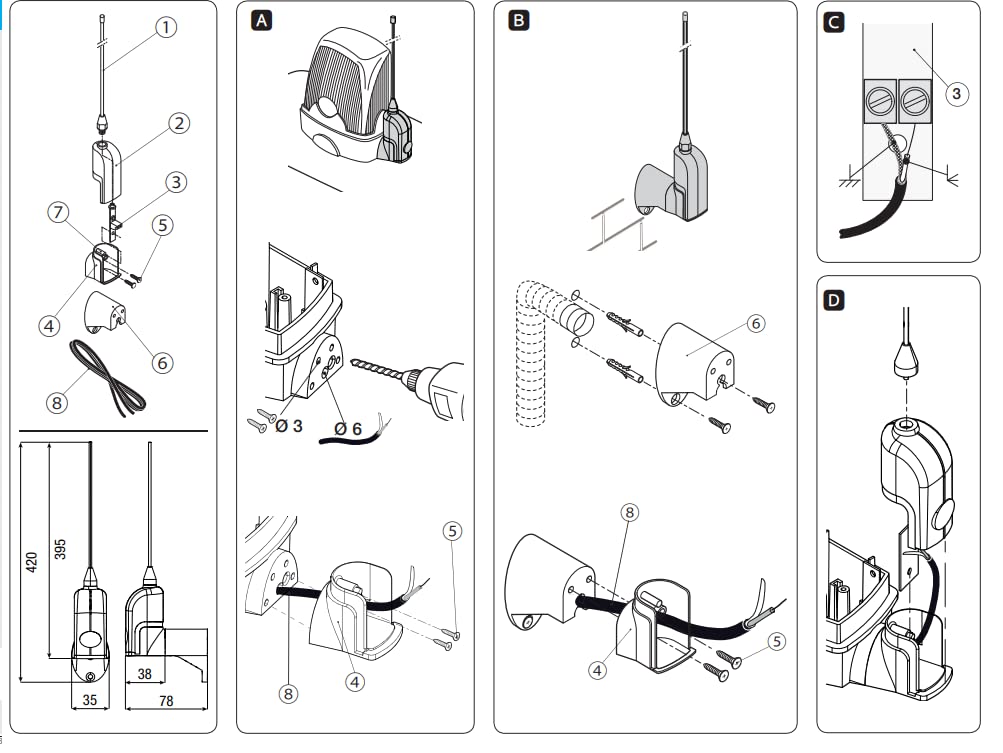

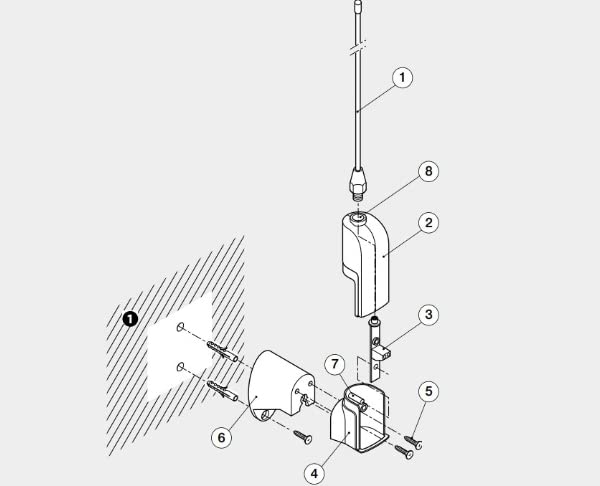

Antenna is available in the following frequency ranges 433.92MHz. Garage doors, electronic gates, barriers, sliding doors, automatic doors, roller shutters, electrical appliances/home automation, e.g. B. lighting, security alarm system, access control system. 1. On tennis rod. 2. Ge case part upper 3. Breadboard 4. Ge case part lower 5. Mounting screws. 6. Hal te rung WALL MOUNTED OR MOUNTED ON KIARO - Bracket ⑥ with suitable screws on the wall. or - Lower housing part ④ directly at the designated place on KIARO attach; - Run the 001TOP-RG58 cable through the holes provided and connect to the terminal block of the breadboard; - Lower housing part; - Close the breadboard between the ③ two housing parts. ② and ④ snap into place, make sure that the breadboard is accurate between the pen and the hole ; - Screw in antenna rod. ①. That this device meets the basic requirements and corresponding provisions of Directive 1999/5/EC. Item number to request a copy corresponding to the original: DDC RA S001. Dismantling and disposal - Before disposal, it is recommended to of the regulations applicable at the installation site. The Components of the packaging (cardboard, plastic, etc.) can be separated. collected with normal household waste. Other Components (circuit boards, hand-held transmitter batteries, etc.) can be harmful substances. included. They must be removed accordingly and in approved
