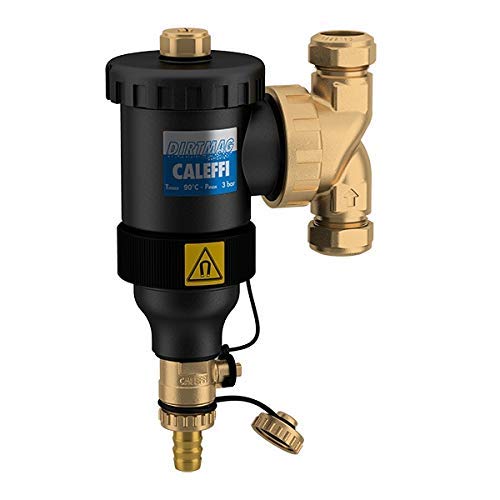

Caleffi Dirtmag 545302 Mud Separator 22 mm with Magnet Made from Technopolymer with Compression Fitting

• DIRTMAG 5453 with Magnet Diameter 22 mm Clamp Fitting
• Caleffi
• Mud separator
• Item package quantity: 1.0

Sand, mud and iron residues accumulate in heating or cooling circuits and contaminate them. Thanks to the sludge separator, these impurities can be separated with minimal pressure loss in closed circuits. Thanks to the high capacity of the magnetite separator, no frequent cleaning is necessary. The cleaning is done quickly and easily by removing the magnetic ring and the included key. The efficient cleaning of the decanting chamber can also be emptied when the systems are running. The mud separator is versatile and can be installed in vertical and horizontal pipelines taking into account the flow direction. Product details: Mud separator made of technopolymer with magnet. For water and glycol solutions. Housing made of technical plastic. Connection flange rotatable diameter 22 with compression fittings for copper pipe. Can be converted for horizontal and vertical piping. Brass drain tap with hose connection. Dimensions: DN20. Max. Operating pressure: 3 bar. Max. Glycol content: 30%. Operating temperature: 0-90°C. Weight: 1.5 kg. Box contents: mud separator 22 mm magnetic Dirtmag magnetic filter rotatable.
